1. Pengenalan
This manual provides detailed instructions for the safe and efficient operation of your HOTT C229 Portable Bluetooth 5.3 CD Player. Please read this manual thoroughly before using the device and retain it for future reference.
2. Maklumat Keselamatan
- Jangan dedahkan peranti kepada hujan, lembapan atau suhu yang melampau.
- Avoid disassembling the unit. Repairs should only be performed by qualified personnel.
- Jauhkan peranti daripada medan magnet yang kuat.
- Pastikan pengudaraan yang betul untuk mengelakkan terlalu panas.
- Gunakan hanya kabel pengecasan dan penyesuai yang disediakan.
- Do not look directly at the laser head to avoid eye damage.
3. Kandungan Pakej
- HOTT C229 Desktop CD Player
- Remote Control (2x AAA batteries not included)
- Kabel Pengecas USB-C
- Kabel AUX
- Manual Pengguna
4. Produk Lebihview
The HOTT C229 is a versatile desktop CD player featuring a transparent magnetic CD tray, touch-sensitive controls, and dynamic RGB lighting. It supports multiple audio sources including CD, Bluetooth, AUX, U Disk, and Micro SD.
Rajah 1: Depan view of the HOTT C229 CD Player highlighting its features including RGB Lighting, Remote Control, AUX Input, MicroSD Recording, LED Display, Bluetooth 5.3, USB-C Charging Port, Hi-Fi Audio, and Auto Shutdown Timer.
Kawalan dan Pelabuhan
- Panel Depan: Power Button/Volume Knob, Play/Pause/Stop, Next Track, Previous Track, Mode, Lighting Modes, Playback Modes/Transcription.
- Panel belakang: MicroSD Slot, 3.5mm Headphone Jack, USB Port, USB-C Charging Port, Charging Indicator.
Rajah 2: Terperinci view of the HOTT C229's controls and ports on both the front and rear panels.
5. Persediaan
5.1 Mengecas Peranti
The HOTT C229 features a built-in 4000mAh rechargeable battery. Connect the provided USB-C charging cable to the charging port on the rear panel and plug the other end into a compatible USB power adapter (not included). The charging indicator will illuminate during charging and turn off when fully charged. A full charge takes approximately 3 hours and provides 10-12 hours of playback.
Figure 3: The HOTT C229 CD Player connected to a power source for charging.
5.2 Memasukkan CD
- Gently open the transparent magnetic CD tray cover.
- Place the CD onto the spindle with the label side facing you.
- Close the CD tray cover securely.
Video 1: Demonstrates inserting a CD into the HOTT C229 CD Player and its various functions, including Bluetooth connectivity, recording to TF card, and remote control operation.
6. Arahan Operasi
6.1 Main Semula Asas
- Hidupkan/Mati Kuasa: Putar tombol kelantangan mengikut arah jam untuk menghidupkan, lawan arah jam untuk mematikan.
- Kawalan Kelantangan: Putar tombol kelantangan untuk melaraskan kelantangan.
- Main/Jeda: Tekan butang Main/Jeda.
- Trek Seterusnya / Sebelumnya: Press the Next or Previous track buttons.
- Pemilihan Mod: Press the 'M' (Mode) button to switch between CD, Bluetooth, AUX, U Disk, and Micro SD modes.
6.2 Kesambungan Bluetooth
The HOTT C229 supports Bluetooth 5.3 for both receiving and transmitting audio.
- Bluetooth Receive Mode: In Bluetooth mode, the device will automatically enter pairing mode. Cari untuk 'HOTT C229' on your smartphone or tablet and connect.
- Bluetooth Transmit Mode: To connect to Bluetooth headphones or speakers, ensure the external device is in pairing mode. The CD player will automatically search and connect to the nearest device with the strongest signal.
- Tetapan Semula Bluetooth: If Bluetooth fails to connect, disconnect previously connected devices. Press and hold the Next Track button on the CD player to reset its Bluetooth connection.
Figure 4: The HOTT C229 CD Player showing its Bluetooth receive and transmit capabilities.
6.3 RGB Night Light
The device features dynamic RGB lighting around the CD tray. Press the 'Light' button on the front panel or remote control to cycle through different color themes or turn the lights off.
Figure 5: The HOTT C229 CD Player showcasing its colorful RGB lighting options.
6.4 Pemasa Tidur
Set a sleep timer for 30, 60, or 90 minutes using the remote control. The device will automatically power off after the selected duration.
Figure 6: The HOTT C229 CD Player illustrating its sleep timer function.
6.5 CD to Micro SD Recording
You can transcribe music from your CDs directly to a Micro SD card. Insert a Micro SD card (1GB-128GB supported) into the MicroSD slot on the rear panel. In CD mode, press the 'Transcription' button to begin recording.

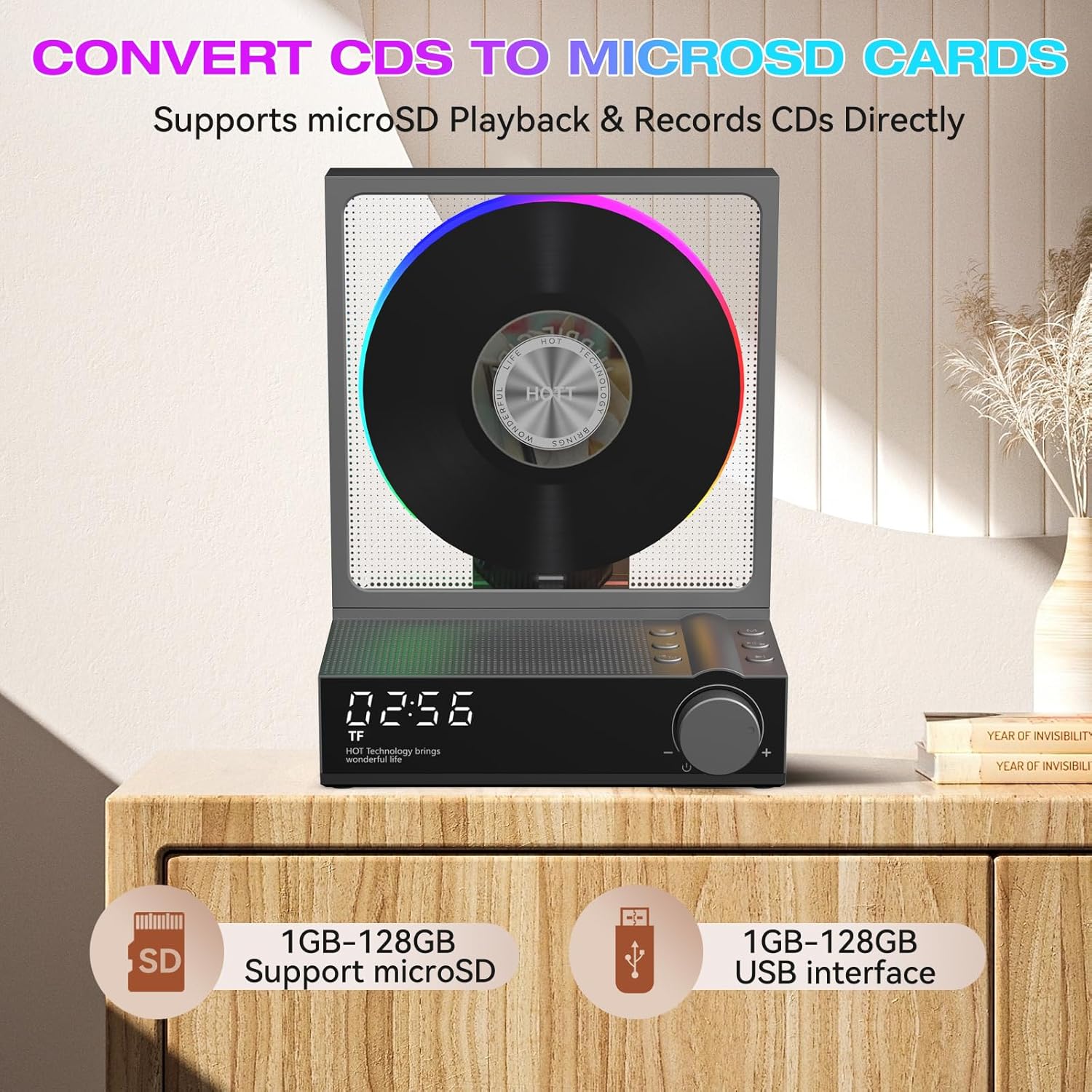

Figure 7: The HOTT C229 CD Player demonstrating its ability to record CD audio to a MicroSD card.
6.6 Alat Kawalan Jauh
The included remote control allows convenient operation from up to 20 feet away. It requires 2x AAA batteries (not included).

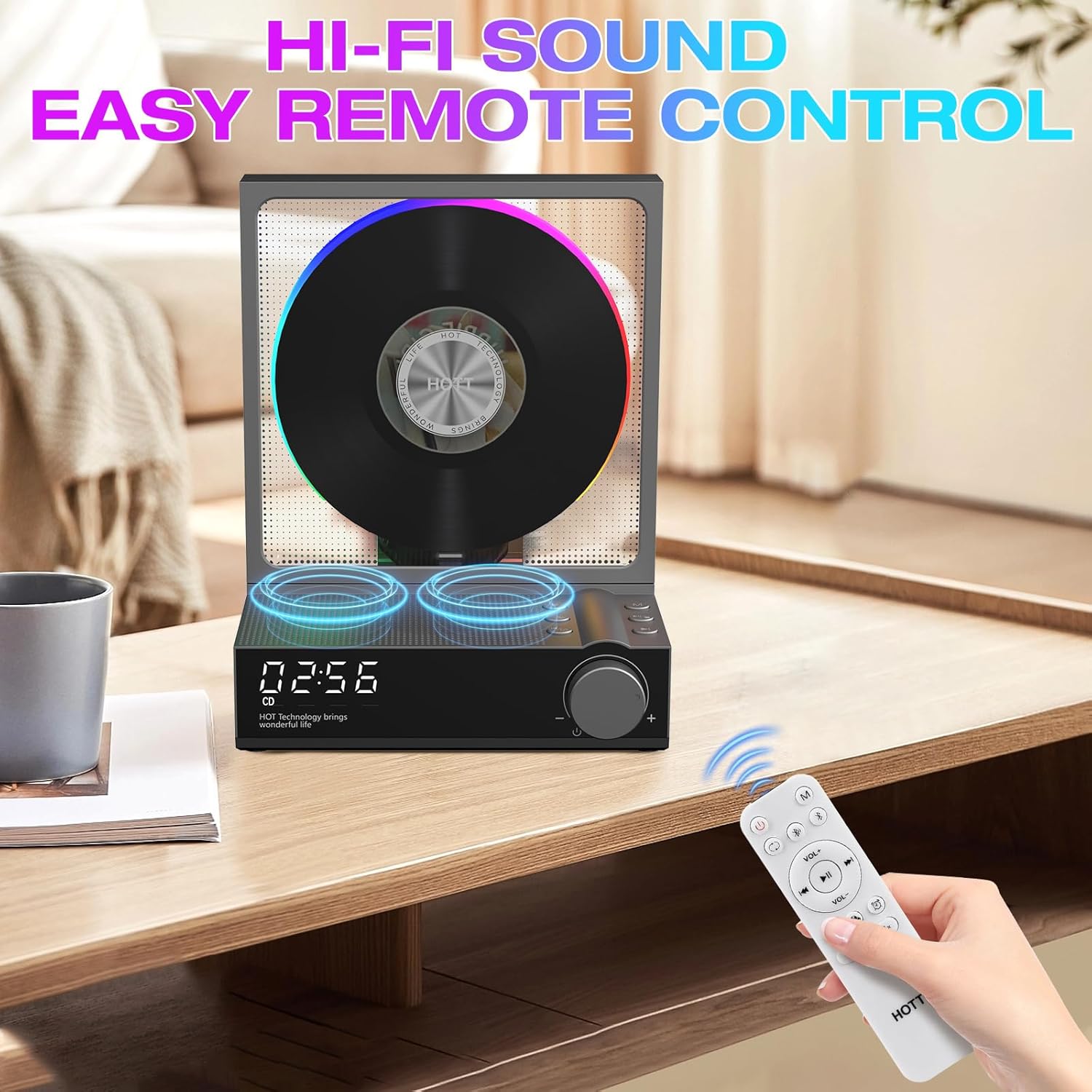

Figure 8: The HOTT C229 CD Player and its remote control for convenient operation.
7. Penyelenggaraan
- Bersihkan peranti dengan kain lembut dan kering. Jangan gunakan pembersih cecair atau aerosol.
- Keep the CD tray free from dust and debris.
- Handle CDs by their edges to avoid scratches and fingerprints.
- Simpan peranti di tempat yang sejuk dan kering apabila tidak digunakan.
8. Penyelesaian masalah
| Masalah | Penyelesaian yang Mungkin |
|---|---|
| Peranti tidak dihidupkan. | Ensure the device is charged or connected to a power source. Check the power cable connection. |
| CD melangkau atau tidak dimainkan. | Clean the CD for smudges or scratches. Ensure the CD is inserted correctly. The disc may stop revolving intermittently to avoid skipping and prolong its life. |
| Tiada bunyi. | Check the volume level. Ensure the correct mode (CD, Bluetooth, AUX, etc.) is selected. If using external speakers, check their connection and power. |
| Isu sambungan Bluetooth. | Disconnect any previously connected devices. Reset the CD player's Bluetooth by pressing and holding the Next Track button. Ensure the device you are trying to connect to is in pairing mode. |
| Alat kawalan jauh tidak berfungsi. | Check and replace the AAA batteries in the remote control. Ensure there are no obstructions between the remote and the CD player. |
9. Spesifikasi
- model: C229
- Dimensi Produk: 5.66 x 3.78 x 7.28 inci
- Berat Barang: 1.79 paun
- Teknologi Ketersambungan: Bluetooth 5.3
- Jenis pembesar suara: Stereo
- Bateri: 4000mAh rechargeable (included)
- Masa Pengecasan: Lebih kurang 3 jam
- Masa Bermain: 10-12 jam
- Format Cakera yang Disokong: CD/MP3/CD-R/CD-RW
- Format Muzik yang Disokong: CD-DA/MP3/WMA
- Micro SD/U Disk Support: 1GB-128GB
10. Waranti dan Sokongan
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official HOTT website. Your satisfaction is our priority.
