The Gustard N18 PRO is a high-fidelity audio network switch designed to optimize audio streaming performance. It features multiple Ethernet ports, an SFP optical fiber input, and support for an external 10MHz clock, all integrated with advanced power supply and isolation technologies to ensure a clean audio signal. This manual provides essential information for the proper setup, operation, and maintenance of your N18 PRO.
Maklumat Keselamatan
- Pastikan peranti disambungkan kepada sumber kuasa dengan volum yang betultage seperti yang ditunjukkan pada unit.
- Jangan dedahkan peranti kepada kelembapan, hujan atau suhu yang melampau.
- Elakkan meletakkan peranti berhampiran sumber haba atau di bawah cahaya matahari langsung.
- Jangan buka casing; merujuk semua perkhidmatan kepada kakitangan yang berkelayakan.
- Disconnect power before cleaning or making any connections.
Persediaan
Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- Gustard N18 PRO Network Switch
- Kabel Kuasa
Sambungan Fizikal
Rujuk rajah di bawah untuk overview daripada sambungan panel belakang.
Figure 1: Rear panel of the Gustard N18 PRO, showing Ethernet ports, SFP port, Clock In, Clock selection, Voltage selection, AC power input, and Fuse.
- Sambungan Kuasa: Connect the provided power cable to the AC power input on the rear panel and then to a suitable wall outlet. Ensure the voltage selection switch is set correctly for your region (115V/230V).
- Sambungan Ethernet: The N18 PRO features 5 Gigabit Ethernet ports (LAN1-LAN5) and 1 SFP port. Connect your network devices (e.g., router, NAS, PC, audio streamers) to these ports using standard Ethernet cables.
- Pelabuhan SFP: For enhanced optical isolation, insert a compatible SFP fiber module into the SFP port. It is recommended to use Gustard's optical modules for optimal performance. Connect an LC-LC fiber cable from the SFP module to your network.
- 10MHz Clock Input: For improved audio clarity and analog warmth, connect an external 10MHz clock source to the BNC 10MHz Clock In port. Use the adjacent switch to select between internal (INT) and external (EXT) clock sources.
Pilihan Kesambungan
The N18 PRO offers flexible integration into your audio network. Below are examples of typical setups.
Gambar 2: Cthample connectivity diagram for N18 PRO, showing connections to a router, NAS, PC, and various audio devices.

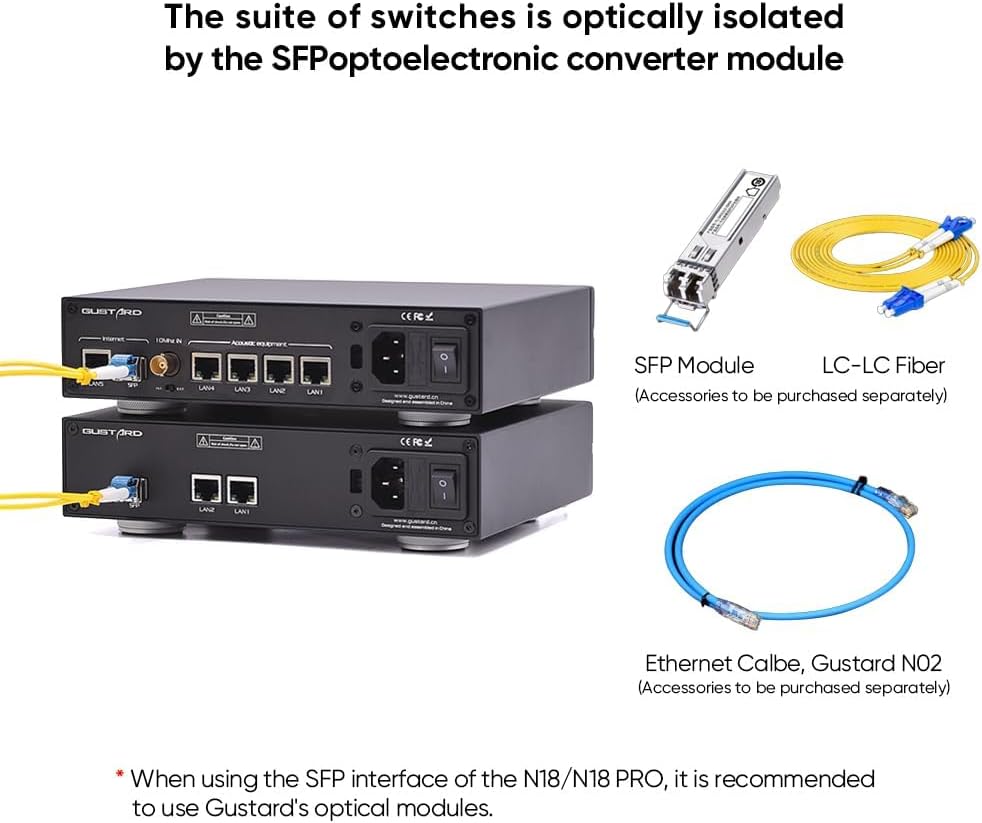

Figure 3: Illustration of optical isolation using an SFP module and LC-LC fiber cable with the N18 PRO.
Arahan Operasi
Hidupkan/Mati Kuasa
After all connections are made, flip the power switch on the rear panel to the 'ON' position. The device will power on and begin network operations.
Operasi Rangkaian
The N18 PRO functions as a network switch, facilitating data transfer between connected devices. Its primary role is to provide a clean and stable network environment for audio streaming by minimizing interference and noise.
- Port Ethernet: The 10/100/1000M adaptive Ethernet interfaces automatically detect and adjust to the speed of the connected device.
- Optoelectronic Isolation: When using the SFP fiber module, the network ripple is effectively isolated, contributing to a cleaner audio signal.
- Jam Luaran: If an external 10MHz clock is connected and selected, it will synchronize the device, enhancing audio clarity and reducing jitter.
Penyelenggaraan
Pembersihan
To clean the exterior of the device, use a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the finish or internal components.
Kemas kini Perisian Tegar
Periodically check the official Gustard website for any available firmware updates. Follow the instructions provided with the update package carefully to ensure proper installation.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa | Power cable not connected; Power switch off; Blown fuse; Incorrect voltage pemilihan. | Ensure power cable is securely connected. Turn power switch ON. Check and replace fuse if necessary. Verify voltagSuis pemilihan e ditetapkan dengan betul. |
| Tiada aktiviti rangkaian | Ethernet cables loose or faulty; Connected device is off or misconfigured. | Check all Ethernet cable connections. Ensure connected devices are powered on and configured correctly. Try different Ethernet cables. |
| Kualiti audio yang lemah | Network interference; External clock not properly connected or selected. | Ensure SFP module is used for optical isolation if possible. Verify external 10MHz clock is connected and the 'EXT' option is selected. Check for other sources of electrical interference. |
Spesifikasi
Figure 4: Gustard N18 PRO specifications and dimensions.
- Antara Muka Ethernet: 1*SFP, 5*10/100/1000M adaptive Ethernet interfaces
- SFP: Supports GPON/EPON fiber modem, SFP RJ45 extension port, SFP fiber module
- Protokol Ethernet: 10Base-T, 100Base-T, 1000Base-T, 100Base-X, 1000Base-X
- 10M BNC Input: Input impedance 50 Ohm, 0dBm - 20dBm
- Kuasa AC: 115V/230V 50/60Hz
- Penggunaan Kuasa: <10W
- Dimensions (excluding protruding parts): W220mm*H50mm*D170mm
- Saiz Pakej: W285mm*H85mm*D270mm
- Weight with Package: 2.5KG
Maklumat Waranti
The Gustard N18 PRO comes with a warranty period of 1 year or more from the date of purchase, depending on the specific product and regional regulations. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
Sokongan
For technical assistance, troubleshooting, or any inquiries regarding your Gustard N18 PRO, please contact our customer support. We offer 24-hour online service to assist you. Refer to the official Gustard webtapak untuk butiran hubungan dan sumber tambahan.
