1. Pengenalan
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Hertz DP 4.300 AB-Class 4 Channel Amppengalir. Sila baca manual ini dengan teliti sebelum cuba memasang atau mengendalikan amplifier to ensure proper function and to prevent damage.
Maklumat Keselamatan
- Always disconnect the vehicle's battery negative terminal before starting any installation work.
- Ensure all wiring is correctly routed and secured to prevent damage from moving parts or sharp edges.
- Gunakan pendawaian tolok yang sesuai untuk sambungan kuasa dan pembumian seperti yang dinyatakan dalam bahagian pemasangan.
- Jangan dedahkan amppenguat kepada kelembapan atau suhu yang melampau.
- Dapatkan bantuan profesional jika anda tidak pasti tentang mana-mana bahagian proses pemasangan.
2. Produk Lebihview dan Ciri
The Hertz DP 4.300 is a high-performance AB-Class 4-channel amplifier designed for car audio systems. It offers robust power output in a compact design, ensuring high-fidelity audio reproduction.
Imej 2.1: Atas view of the Hertz DP 4.300 amppenguat, pertunjukancasing its sleek design and central Hertz logo with an illuminated status indicator.
Ciri-ciri Utama:
- High-Resolution Audio Certification: Features a frequency response of 10 Hz – 50 kHz, meeting Hi-Res Audio standards.
- Compact Size with Maximum Power: A fully bridgeable 4-channel Class-AB amplifier with 2Ω stable power outputs, designed for space-efficient installation.
- Reka bentuk yang menarik: Incorporates an elegant status LED, solid machined terminal blocks, and a removable top panel to protect controls and connections.
- Keserasian Universal: Operates with a supply voltage from 9 to 16.5 V and offers speaker-in input sensitivity from 1.6 to 40 Vrms, including an integrated Universal Speaker Simulator.
- High-Noise Rejection: Equipped with balanced input circuitry for both Pre-in and Speaker-in connections to minimize interference.
Image 2.2: Graphic illustrating key specifications of the DP 4.300, including 2-4 channel mode, AB-Class technology, 60W x 4 @ 4Ω output power, 0.01% THD, and 100 dBA S/N ratio.
3. Persediaan dan Pemasangan
Proper installation is crucial for optimal performance and safety. Ensure you have all necessary tools and wiring before beginning.

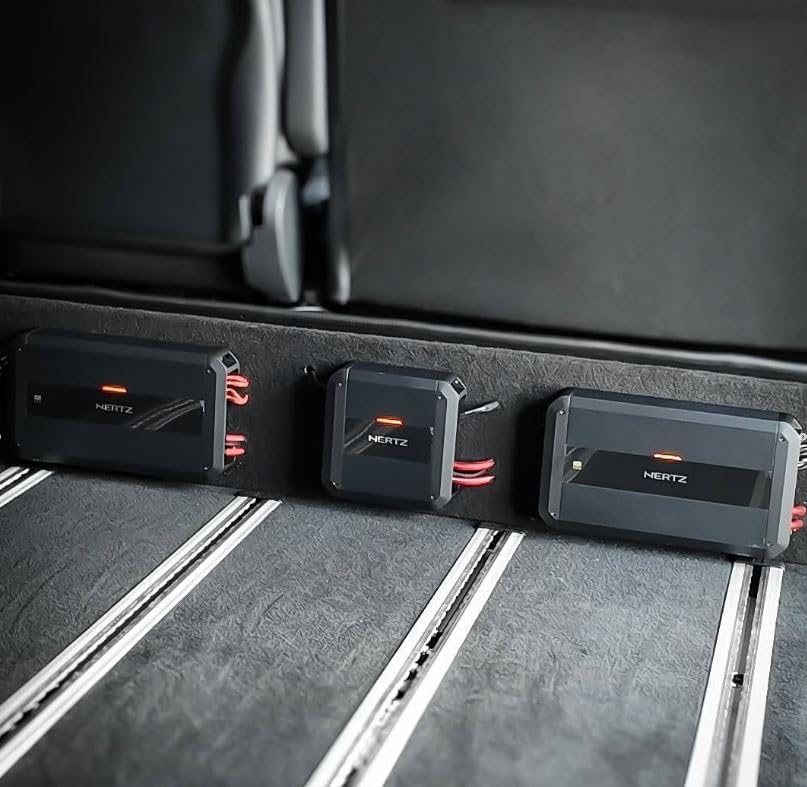

3.1 Memasang Amplebih hidup
- Pilih lokasi pemasangan yang kering, mempunyai pengudaraan yang baik dan terlindung daripada cahaya matahari langsung atau haba yang berlebihan.
- Pastikan ruang yang mencukupi di sekeliling amppenguat untuk peredaran udara.
- Use the provided mounting hardware to secure the amplifier firmly to a solid surface.
3.2 Sambungan Pendawaian
Refer to the diagrams below for correct wiring connections. Always use high-quality cables.
Image 3.1: Rear panel of the Hertz DP 4.300 amplifier, showing power (GND, REM, +12V), fuse, and speaker output terminals.
Sambungan Kuasa:
- +12V (Kuasa): Connect to the positive terminal of the vehicle's battery via an appropriate fuse holder (not supplied) located within 18 inches of the battery.
- GND (Tanah): Connect to a clean, unpainted metal point on the vehicle chassis. Ensure a solid, low-resistance connection.
- REM (Penghidupan Jauh): Connect to the remote output of your head unit. This signal turns the amplifier on and off with the head unit.
Sambungan Pembesar Suara:
- Connect your speakers to the 'SPK OUT' terminals. Observe correct polarity (+/-) for each speaker.
- The amplifier supports 2Ω stable operation. Ensure your speaker impedance matches the ampkeupayaan liifier.
- For bridged mode operation, consult the specific wiring diagram in the full product manual for your speaker configuration.
Image 3.2: Front panel of the Hertz DP 4.300 amplifier, displaying RCA inputs (Mono In, Front In, Rear In, Pre Out), Speaker-In terminals, Auto Turn-On switch, Level controls, Filter Mode switches, and Frequency/Boost adjustments.
Sambungan Input:
- RCA Inputs (FRONT IN, REAR IN): Connect these to the corresponding RCA pre-outs from your head unit for low-level signal input.
- Speaker-In: For head units without RCA pre-outs, connect the speaker-level outputs directly to the 'SPK-IN' terminals. The amplifier features a Universal Speaker Simulator for compatibility.
- Auto Hidupkan: If using speaker-level inputs, the 'AUTO TURN ON' switch can be set to 'ON' to detect DC offset or audio signal for automatic amplifier turn-on, eliminating the need for a remote wire.
4. Arahan Operasi
Setelah dipasang, amplifier requires proper adjustment for optimal sound quality.
4.1 Adjusting Input Levels (Gain)
- Set the head unit volume to about 75% of its maximum.
- Play a dynamic piece of music.
- Slowly increase the 'LEVELS' control on the amplifier until you hear slight distortion, then back off slightly until the sound is clear.
- Avoid setting the gain too high, as this can lead to clipping and speaker damage.
4.2 Crossover Settings (Filter Mode)
- The 'FILTER MODE' switches allow you to select Full Range, High Pass (HI), or Low Pass (LO) filtering for each channel pair.
- PENUH: No filter applied.
- HI: Allows frequencies above the set point to pass. Useful for tweeters or full-range speakers.
- LO: Allows frequencies below the set point to pass. Useful for subwoofers.
- Adjust the 'FREQUENCY' knob to set the desired crossover point (e.g., 80 Hz for subwoofers, 100 Hz for mid-range speakers).
4.3 Peningkatan Bass
- The '50Hz BOOST' control allows you to increase bass output at 50 Hz.
- Use this feature sparingly and adjust carefully to avoid distortion or damage to speakers.
5. Penyelenggaraan
Penyelenggaraan yang kerap memastikan ketahanan dan prestasi peranti anda amplebih hidup.
- Pembersihan: Gunakan kain lembut dan kering untuk mengelapnya ampbahagian luar penapis. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
- Pengudaraan: Memastikan bahawa ampSirip penyejuk lifier bebas daripada habuk dan serpihan untuk mengekalkan pelesapan haba yang betul.
- Sambungan: Periodically check all power, ground, and speaker connections to ensure they are secure and free from corrosion.
6. Penyelesaian masalah
Jika anda mengalami masalah dengan anda amplifier, rujuk kepada masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada Kuasa / AmpPemanas Tidak Menghidupkan | Blown fuse, loose power/ground/remote wire, no remote signal, incorrect Auto Turn-On setting. | Semak amplifier fuses and vehicle's main fuse. Verify all power, ground, and remote connections. Ensure head unit is on and sending a remote signal, or check Auto Turn-On switch. |
| Tiada Keluaran Bunyi | Loose RCA/speaker wires, incorrect input selection, amplifier in protection mode, gain set too low. | Check all input and output connections. Ensure RCA cables are securely connected. Verify amplifier is not in protection mode (status LED). Adjust gain levels. |
| Bunyi Herot | Gain set too high, incorrect crossover settings, poor ground connection, damaged speakers. | Reduce gain level. Adjust crossover settings. Check ground connection for corrosion or looseness. Inspect speakers for damage. |
| Amplifier Terlalu Panas | Pengudaraan tidak mencukupi, impedans terlalu rendah, operasi volum tinggi yang berpanjangan. | Pastikan aliran udara yang mencukupi di sekeliling amplifier. Verify speaker impedance is within specifications. Reduce listening volume or duration. |
7. Spesifikasi
Detailed technical specifications for the Hertz DP 4.300 amplebih hidup.
Image 7.1: Table detailing the dimensions (mm and inches) and weight (Kg and lbs) of the Hertz DP 4.300 amplebih hidup.
| Spesifikasi | Nilai |
|---|---|
| Nombor Model | DP-4.300 |
| Berat Barang | 5.36 paun (2.43 kg) |
| Dimensi Produk (L x W x H) | 11.42 x 7.48 x 1.97 inci (290 x 190 x 50 mm) |
| Saluran | 4 |
| AmpKelas yang lebih hidup | Kelas AB |
| Kuasa Output (RMS) | 105 WRMS x 4 at 2Ω (Refer to Image 2.2 for 4Ω rating) |
| Respons Kekerapan | 10 Hz – 50 kHz (Hi-Res Audio Certified) |
| Vol Operasitage | 9 hingga 16.5 V |
| Speaker-In Input Sensitivity | 1.6 hingga 40 Vrms |
| Herotan Harmonik Jumlah (THD) | 0.01% (Refer to Image 2.2) |
| Nisbah Isyarat-kepada-Bunyi (S/N) | 100 dBA (Refer to Image 2.2) |
8. Maklumat Waranti
The Hertz DP 4.300 ampliifier dilengkapi dengan a Waranti Pengeluar 1 Tahun. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa. Sila simpan bukti pembelian anda untuk tuntutan waranti.
The warranty does not cover damage caused by improper installation, accident, misuse, abuse, negligence, unauthorized modification, or normal wear and tear. For specific terms and conditions, please refer to the warranty card included with your product or contact Hertz customer support.
9. Sokongan
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Hertz customer support. You can typically find contact information on the official Hertz webtapak atau melalui pengedar sah anda.
When contacting support, please have your product model number (DP-4.300) and proof of purchase readily available.
