1. Pengenalan dan Maklumat Keselamatan
Thank you for choosing the Eglo Amandolo LED Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before proceeding and retain them for future reference.
Arahan Keselamatan Penting:
- Always disconnect the main power supply before installation, maintenance, or cleaning to prevent electric shock.
- Installation should be performed by a qualified electrician or a person with appropriate electrical knowledge to ensure compliance with local wiring regulations and safety standards.
- Pastikan permukaan pemasangan kukuh dari segi struktur dan dapat menampung berat lekapan.
- Do not modify the fixture in any way. Unauthorized modifications may void the warranty and pose safety risks.
- Jauhkan bahan pembungkus daripada kanak-kanak.
2. Kandungan Pakej
Please check that all components are present and undamaged before beginning installation.
- Eglo Amandolo LED Ceiling Light (Model 901116)
- Alat Kawalan Jauh
- Perkakasan Pemasangan (skru, palam dinding)
- Manual Pengguna (dokumen ini)
Figure 1: Eglo Amandolo LED Ceiling Light (main unit)
3. Arahan Pemasangan
Follow these steps carefully to install your Eglo Amandolo LED Ceiling Light.
- Sediakan untuk Pemasangan: Turn off the main power supply at the circuit breaker before starting any electrical work. Ensure the power is completely off using a voltage penguji.
- Pemasangan Braket Pemasangan: Attach the mounting bracket to the ceiling using the provided screws and wall plugs. Ensure the bracket is securely fastened to a joist or suitable anchor point. Use a spirit level to ensure it is straight.
Figure 2: Mounting bracket and light fixture base
- Sambungan Elektrik: Connect the household electrical wires to the terminals on the light fixture. Typically, this involves connecting the live (L), neutral (N), and ground (earth) wires. Ensure all connections are tight and secure. Refer to local electrical codes for proper wiring.
- Lampirkan Lekapan: Carefully align the light fixture with the mounting bracket and secure it in place using the screws provided. Ensure the fixture is flush against the ceiling.
- Pulihkan Kuasa: Setelah lekapan dipasang dengan selamat dan semua sambungan diperiksa, kembalikan kuasa pada pemutus litar.
4. Operasi
Your Eglo Amandolo LED Ceiling Light is controlled by the included remote control. The remote requires 1 C-type battery (not included).
Fungsi Kawalan Jauh:

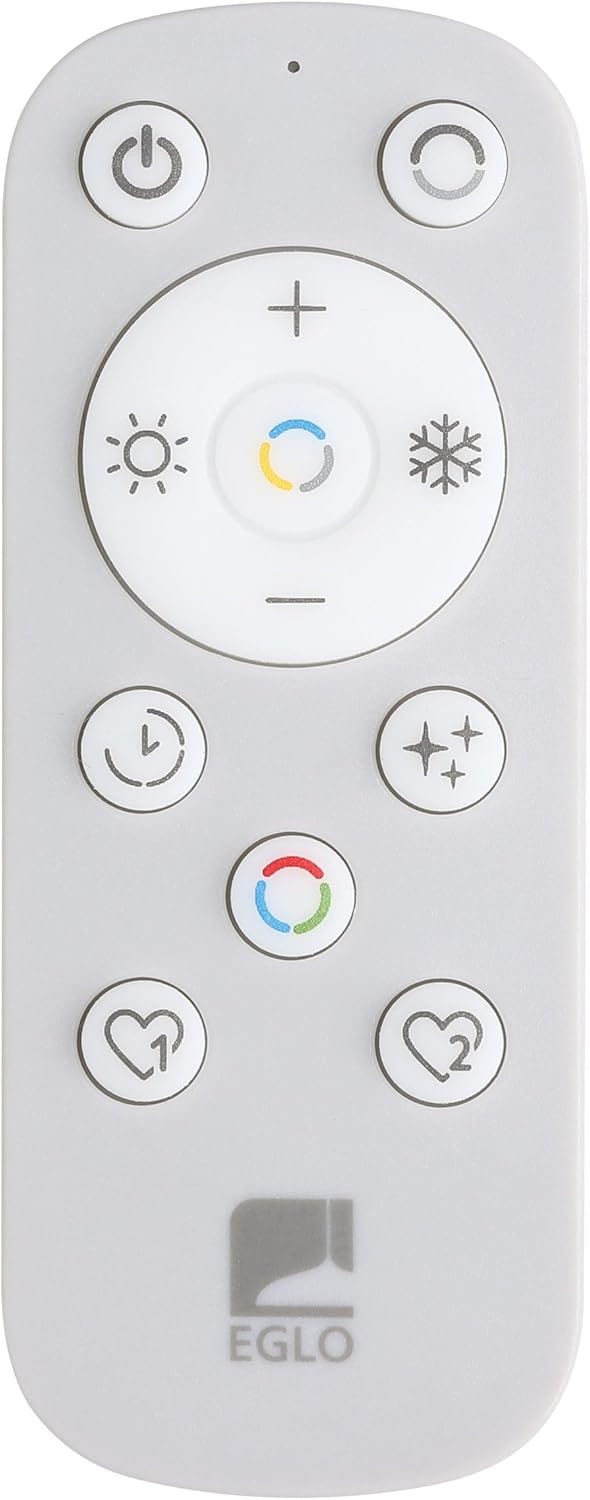

Figure 3: Remote Control for Eglo Amandolo LED Ceiling Light
- Hidupkan/Mati Kuasa: Tekan ke kuasa butang untuk menghidupkan atau mematikan lampu.
- Pelarasan Kecerahan: Gunakan + dan - buttons to increase or decrease the brightness of the main light.
- Pelarasan Suhu Warna: The main light (square luminous surface) can be adjusted from warm white to neutral white to cool white. Use the ikon matahari (warm) and Ikon kepingan salji (cool) buttons to cycle through or fine-tune the color temperature.
- RGB Backlight Control: The light bar features an RGB backlight. Press the RGB circle icon button to activate and cycle through various RGB colors for indirect lighting.
- Memory Functions (Heart 1 & 2): The remote may include programmable memory buttons (e.g., Heart 1, Heart 2) to save your preferred light settings for quick recall. Consult the remote's specific instructions for programming.
Mod Cahaya:
The main light provides 17 watts of power and 1900 lumens, offering versatile illumination for various environments.
Figure 4: Warm White Light Setting
Figure 5: Cool White Light Setting
The combination of adjustable main light and RGB backlight allows for creating various ambiances, from functional task lighting to decorative mood lighting for living rooms, bedrooms, dining rooms, or hallways.
5. Penyelenggaraan
To ensure the longevity and optimal performance of your Eglo Amandolo LED Ceiling Light, follow these maintenance guidelines:
- Pembersihan: Putuskan sambungan kuasa sebelum membersihkan. Gunakan yang lembut, kering, atau sedikit damp kain untuk mengelap permukaan lekapan. Jangan gunakan pembersih yang kasar, pelarut atau bahan kimia yang keras, kerana ini boleh merosakkan kemasan atau komponen elektrik.
- Panjang Umur LED: The integrated LED light sources are designed for long life and are not user-replaceable. If the LEDs fail, the entire fixture may need to be replaced.
- Kawalan Jauh: Replace the C-type battery in the remote control when its performance diminishes. Ensure correct polarity when inserting new batteries.
6. Penyelesaian masalah
If you encounter issues with your Eglo Amandolo LED Ceiling Light, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. | Tiada bekalan kuasa; pendawaian longgar; bateri alat kawalan jauh kehabisan kuasa. | Check circuit breaker. Verify wiring connections. Replace remote control battery. |
| Cahaya berkelip atau malap tanpa diduga. | Unstable power supply; loose connection; incompatible dimmer switch (if applicable). | Check power supply stability. Tighten wiring connections. Ensure no external dimmer is used if not designed for it. |
| Alat kawalan jauh tidak bertindak balas. | Depleted battery; remote out of range; obstruction between remote and light. | Replace remote control battery. Ensure remote is within effective range and has a clear line of sight to the fixture. |
| RGB backlight not working. | RGB function not activated; internal component issue. | Ensure the RGB button on the remote has been pressed. If the issue persists, contact customer support. |
If these solutions do not resolve the issue, please contact Eglo customer support for further assistance.
7. Spesifikasi
Detailed technical specifications for the Eglo Amandolo LED Ceiling Light (Model 901116).
- Jenama: Eglo
- Nombor Model: 901116
- Dimensi Produk: 40 cm (Panjang) x 20 cm (Lebar) x 6.5 cm (Tinggi)
- Berat Barang: 510 gram
- Bahan: Metal (Aluminum/Steel)
- warna: putih
- Jenis Sumber Cahaya: LED bersepadu
- Kuasa: 17 Watt
- Fluks Bercahaya: 1900 Lumen
- Suhu Warna: Adjustable from Warm White (approx. 2700 Kelvin) to Cool White
- Ciri-ciri tambahan: Dimmable, RGB Backlight
- Kawalan: Alat Kawalan Jauh
- Sumber Kuasa: Elektrik Berwayar
- Kelas Kecekapan Tenaga: F (for the contained light source)
Rajah 6: Dimensi Produk
8. Waranti dan Sokongan
Eglo products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official Eglo website. If you require technical assistance or have questions not covered in this manual, please contact Eglo customer support through their official channels.
Eglo Official Webtapak: www.eglo.com
