1. Produk Lebihview
The Neo-Pure CTOX-2510 Carbon Block Filter is engineered with premium coconut shell carbon to provide advanced filtration for various water systems. This filter is designed to enhance water quality and taste, making it suitable for residential, food service, and commercial drinking water applications.

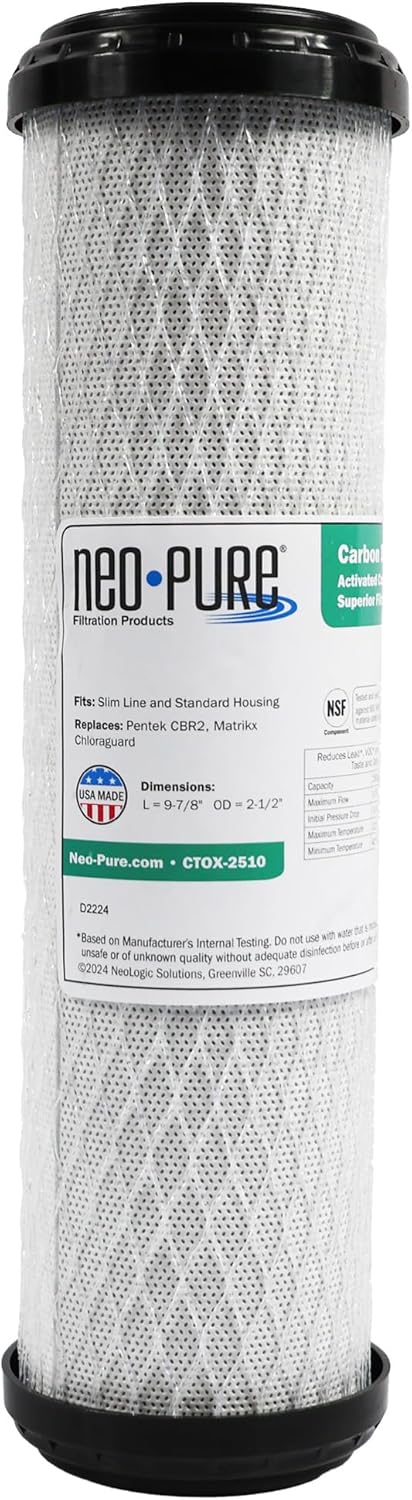

Image: The Neo-Pure CTOX-2510 Carbon Block Filter, a cylindrical filter with black caps on both ends and a white mesh exterior.
Aplikasi Utama:
- Residential drinking water systems
- Food service water filtration
- Commercial water systems
2. Key Features and Filtration Capabilities
The CTOX-2510 filter utilizes high-quality materials and design to deliver effective water purification.
Advanced Filtration Media:
Image: Illustration showing coconut shells and activated carbon powder, indicating the filter media is made from coconut shell carbon.
The filter is constructed with premium coconut shell carbon block, known for its high adsorptive capacity. This eco-friendly material efficiently removes a wide range of contaminants while improving water taste and clarity.
Pengurangan bahan cemar:
Image: The filter alongside a list of contaminants it reduces, including Chloramines, Chlorine, Lead & Cysts, MTBE and VOCs, Mercury, and Asbestos.
- Chloramines: Significantly reduces chloramines for improved water quality.
- Klorin: Effectively removes chlorine, enhancing taste and odor.
- Lead & Cysts: Provides reduction of lead and cysts.
- MTBE and VOCs: Filters out Methyl Tertiary Butyl Ether (MTBE) and Volatile Organic Compounds (VOCs).
- Merkuri: Reduces mercury content.
- Asbestos: Filters asbestos fibers.
Reka bentuk dan Pembinaan:
Image: A close-up of the filter's end cap, highlighting the Texaprene gasket for a leak-free seal.
- Texaprene Gaskets: Features compression Texaprene gaskets to ensure a tight, leak-free seal during installation and operation.
- Poly Net Wrap: A robust outer layer provides a first line of defense, enhancing the filter's durability.
- Keserasian: Designed to fit standard 2-1/2" x 10" filter housings.
3. Spesifikasi Teknikal
| Spesifikasi | Perincian |
|---|---|
| Nombor Model | CTOX-2510 |
| bahan | Carbon Block (Coconut Shell Carbon) |
| Dimensi Produk (D x W x H) | 2.5" x 2.5" x 9.75" |
| Berat Barang | 1.04 paun |
| Micron Rating (Nominal) | 0.5 µm |
| CTO Reduction Capacity | 8,000 Gallons at 1 GPM |
| Pensijilan Ujian Luaran | NSF |
| Negara Asal | USA |
| Pengeluar | Neologic |
Image: An ordering guide table showing different CTOX series models, their dimensions, flow rates, and capacities, along with a diagram illustrating filter dimensions.

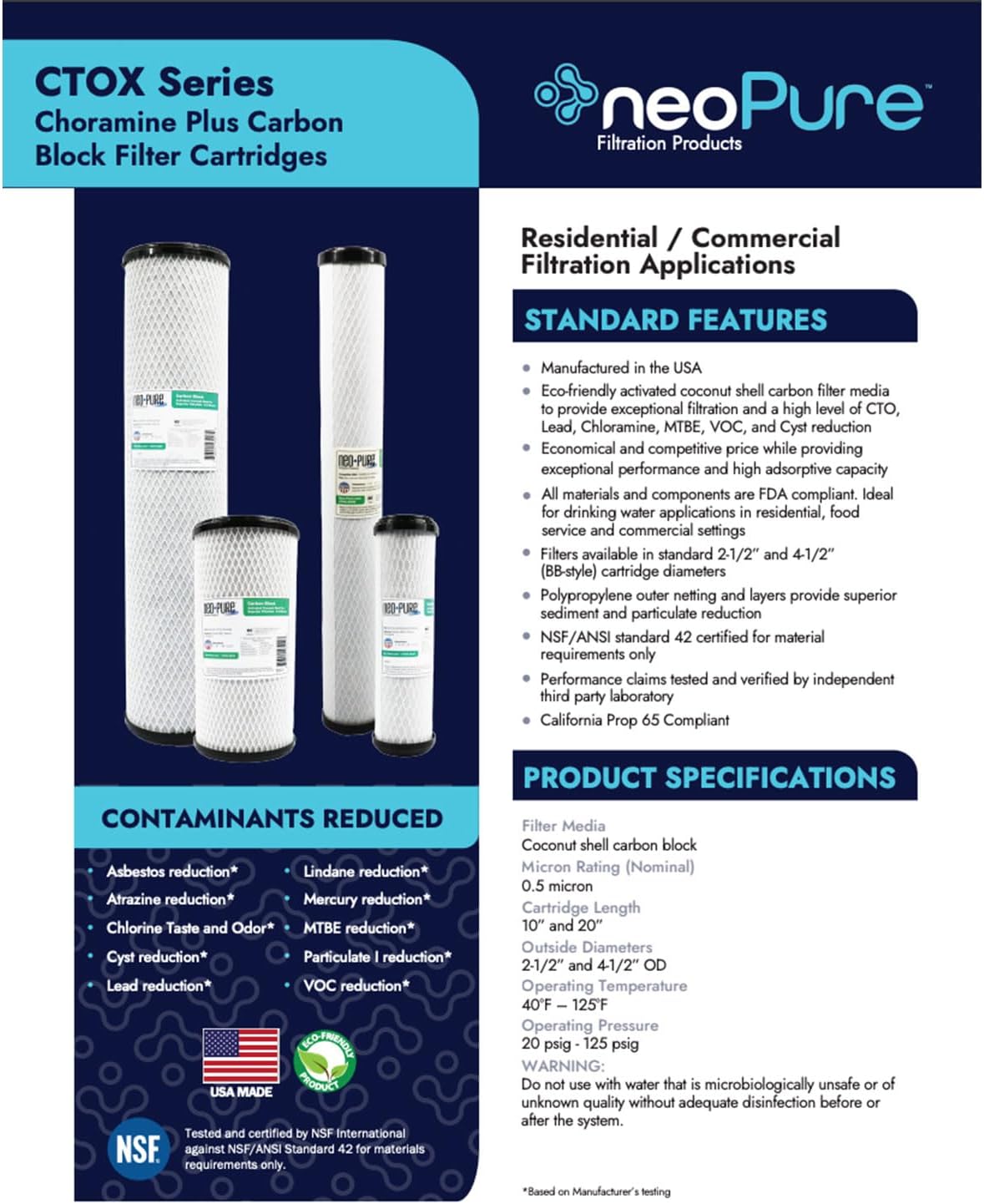

Image: A detailed product sheet for CTOX Series Chloramine Plus Carbon Block Filter Cartridges, outlining standard features, product specifications, and contaminants reduced.
4. Panduan Pemasangan
This filter is designed for easy installation into compatible 2.5" x 10" filter housings. For optimal performance and safety, it is recommended that installation be performed by a qualified professional if you are unsure of the process.
Langkah Pemasangan Umum:
- Matikan Bekalan Air: Locate the main water shut-off valve and turn off the water supply to the filter system.
- Sistem Penyahtekanan: Open a nearby faucet to relieve pressure in the system.
- Perumahan Penapis Terbuka: Use a filter wrench to unscrew and open the filter housing.
- Keluarkan Penapis Lama: Carefully remove the old filter cartridge and dispose of it properly.
- Perumahan Bersih: Clean the inside of the filter housing with warm, soapy water. Inspect and lubricate the O-ring if necessary.
- Masukkan Penapis Baharu: Insert the new Neo-Pure CTOX-2510 filter cartridge into the housing, ensuring it is seated correctly.
- Tutup Perumahan: Screw the filter housing back on, hand-tightening it, then use the wrench for a snug fit (do not overtighten).
- Pulihkan Bekalan Air: Slowly turn on the main water supply, checking for leaks.
- Penapis Siram: Allow water to run through the filter for several minutes (e.g., 5-10 minutes) to flush out any carbon fines and air. This is crucial before consuming the water.
Penting: Jangan gunakan dengan air yang tidak selamat secara mikrobiologi atau kualiti yang tidak diketahui tanpa pembasmian kuman yang mencukupi sebelum atau selepas sistem.
5. Operasi
Once properly installed, the Neo-Pure CTOX-2510 filter operates continuously as water flows through your system. The coconut shell carbon block media actively adsorbs impurities, providing clean, great-tasting water. No user interaction is required during normal operation.
6. Penyelenggaraan dan Penggantian Penapis
Regular maintenance, primarily filter replacement, is essential to ensure the continued effectiveness and longevity of your water filtration system.
Kekerapan Penggantian:
It is recommended to replace the Neo-Pure CTOX-2510 filter cartridge every 6 to 12 months, or after filtering approximately 8,000 gallons, whichever comes first. Actual replacement frequency may vary based on water quality and usage.
Langkah Penggantian Penapis:
Follow the same steps as the initial installation (Section 4) to replace the old filter cartridge with a new one. Always remember to turn off the water supply and depressurize the system before opening the filter housing.
7. Penyelesaian masalah
If you experience issues with your water filtration system after installing the Neo-Pure CTOX-2510 filter, consider the following common troubleshooting tips:
- Aliran Air Mengurangkan: This often indicates a clogged filter. If the filter has been in use for an extended period or if your water has high sediment, it may be time for replacement. Ensure proper flushing after installation.
- Rasa atau Bau yang Luar Biasa: If taste or odor issues persist after initial flushing, ensure the filter is correctly seated and the housing is sealed. If the filter is old, it may have reached its capacity and requires replacement.
- Leaks from Housing: Check that the filter housing is securely tightened and that the O-ring is properly seated and not damaged. A small amount of food-grade silicone grease can help maintain the O-ring's seal.
- Cloudy Water After Replacement: This is usually due to carbon fines being flushed out. Continue flushing the filter for a longer period until the water runs clear.
If problems persist, consult a qualified plumbing professional.
8. Waranti dan Sokongan
For information regarding the product warranty, please refer to the documentation included with your purchase or visit the official Neo-Pure website. For technical support or further assistance, please contact the manufacturer or your authorized Neo-Pure dealer.
Pengeluar: Neologic
Kedai Jenama: Visit the Neo-Pure Store on Amazon
