1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Leadfan Wireless Apple CarPlay & Android Auto Car Radio. This 9-inch IPS touchscreen stereo is designed specifically for Toyota Camry models from 2006 to 2011, offering advanced features such as GPS navigation, Bluetooth 5.1, WiFi connectivity, rear camera support, voice control, and steering wheel control compatibility.

Image: Leadfan 9-inch IPS Touch Screen Car Radio for Toyota Camry 2006-2011, showing the unit's sleek design and integration.

2. Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda. Jika ada item yang hilang atau rosak, sila hubungi sokongan pelanggan.

• Car Radio Unit (9-inch IPS Touch Screen)
• Kabel Kuasa
• RCA kabel
• Kabel USB (x2)
• Antena GPS
• belakang View Kamera
• belakang View Kabel Kamera
• Mikrofon Luaran
• Frame Removal Tool
• Manual Pengguna

Imej: komprehensif view of all components included in the Leadfan car radio package, laid out neatly on a surface.

3. Ciri-ciri Produk

• Keserasian Kenderaan: Custom-designed for Toyota Camry 2006-2011 models, ensuring a seamless fit and integration with the factory dashboard.
• Prestasi Tinggi: Equipped with 2GB RAM and 32GB ROM for smooth operation and fast response times. Features a 1080P IPS Touchscreen for clear visuals.
• Kesambungan Tanpa Wayar: Supports Wireless Apple CarPlay and Android Auto for seamless smartphone integration, allowing access to navigation, music, calls, and apps via the touchscreen or voice assistant.
• Fungsi Pautan Cermin: Enables screen mirroring from your smartphone to the car stereo display.
• Navigation & Internet: Built-in GPS navigation module and support for WiFi/Hotspot connectivity for online navigation apps, streaming, and other internet-based content.
• Penambahbaikan Audio: Integrated FM radio with automotive-grade chipset for strong signal reception. DSP Equalizer (EQ) for customized sound effects and improved audio quality.
• Keselamatan & Kemudahan: Supports HD backup camera with automatic display switching when reversing. Compatible with existing steering wheel controls (SWC) for volume adjustment, track changes, and call management.

4. Persediaan & Pemasangan

Proper installation is crucial for optimal performance. It is recommended to have this unit installed by a professional if you are unfamiliar with car audio systems.

4.1. Semakan Pra-Pemasangan

Before beginning installation, ensure the vehicle's battery is disconnected. Verify all components from the package contents list are present.

4.2. Sambungan Pendawaian

The unit features a plug-and-play wiring harness for simplified installation. Connect the power cable, RCA cables, USB cables, GPS antenna, and rear view camera cable to their respective ports on the car radio and your vehicle's wiring system. Refer to the wiring diagram in the included user manual for specific connections.

Image: A visual comparison highlighting the simpler plug-and-play wiring of the Leadfan product compared to the complex wiring of traditional car stereos.

4.3. Pemasangan Fizikal

Carefully remove the factory radio from your Toyota Camry. Install the Leadfan car radio unit into the dashboard opening, ensuring all clips and mounting points align. Secure the unit in place. The custom-molded design ensures a perfect fit without gaps.

Image: The Leadfan car radio seamlessly integrated into the dashboard of a Toyota Camry, showcasing the finished installation effect.

4.4. Initial Power-Up and Calibration

After installation, reconnect the vehicle's battery. Power on the unit. It is recommended to perform a screen calibration for optimal touch response.

5. Arahan Operasi

5.1. Operasi Asas

The 9-inch IPS touchscreen provides intuitive control over all functions. Use the on-screen icons to navigate between applications such as Music, Video, Radio, Navigation, and Settings.

5.2. Apple CarPlay & Android Auto Tanpa Wayar

Connect your smartphone wirelessly via Bluetooth and Wi-Fi to activate Apple CarPlay or Android Auto. This allows you to access your phone's navigation, music, messaging, and calling features directly on the car radio display. Voice commands are supported for hands-free operation.

Image: The car radio screen showing both Wireless Apple CarPlay and Android Auto interfaces, demonstrating seamless smartphone integration.

5.3. Navigasi GPS & WiFi

The built-in GPS module provides accurate navigation. Connect to a WiFi hotspot (e.g., from your smartphone) to download online maps, stream content from platforms like YouTube, or access other internet services directly on the unit.

Image: The car radio screen showing a GPS navigation map on one side and various application icons, indicating WiFi hotspot functionality.

5.4. FM Radio & EQ Settings

Tune into your favorite FM radio stations. The integrated DSP Equalizer allows you to customize audio settings for a personalized listening experience. Adjust frequency bands to enhance bass, treble, or vocal clarity.

Image: The car radio screen showing the FM radio interface on the top and detailed DSP Equalizer settings on the bottom, allowing audio customization.

5.5. Bluetooth 5.1

Pair your smartphone via Bluetooth 5.1 for hands-free calling and wireless audio streaming. The system supports phonebook synchronization and displays call information on the screen.

Image: The car radio screen showing the Bluetooth 5.1 interface, with options for making calls and playing music wirelessly from a connected smartphone.

5.6. Kefungsian Skrin Pisah

Gunakan ciri skrin pisah untuk menjalankan dua aplikasi secara serentak. Contohnyaample, you can have navigation displayed on one side and music playback controls on the other.

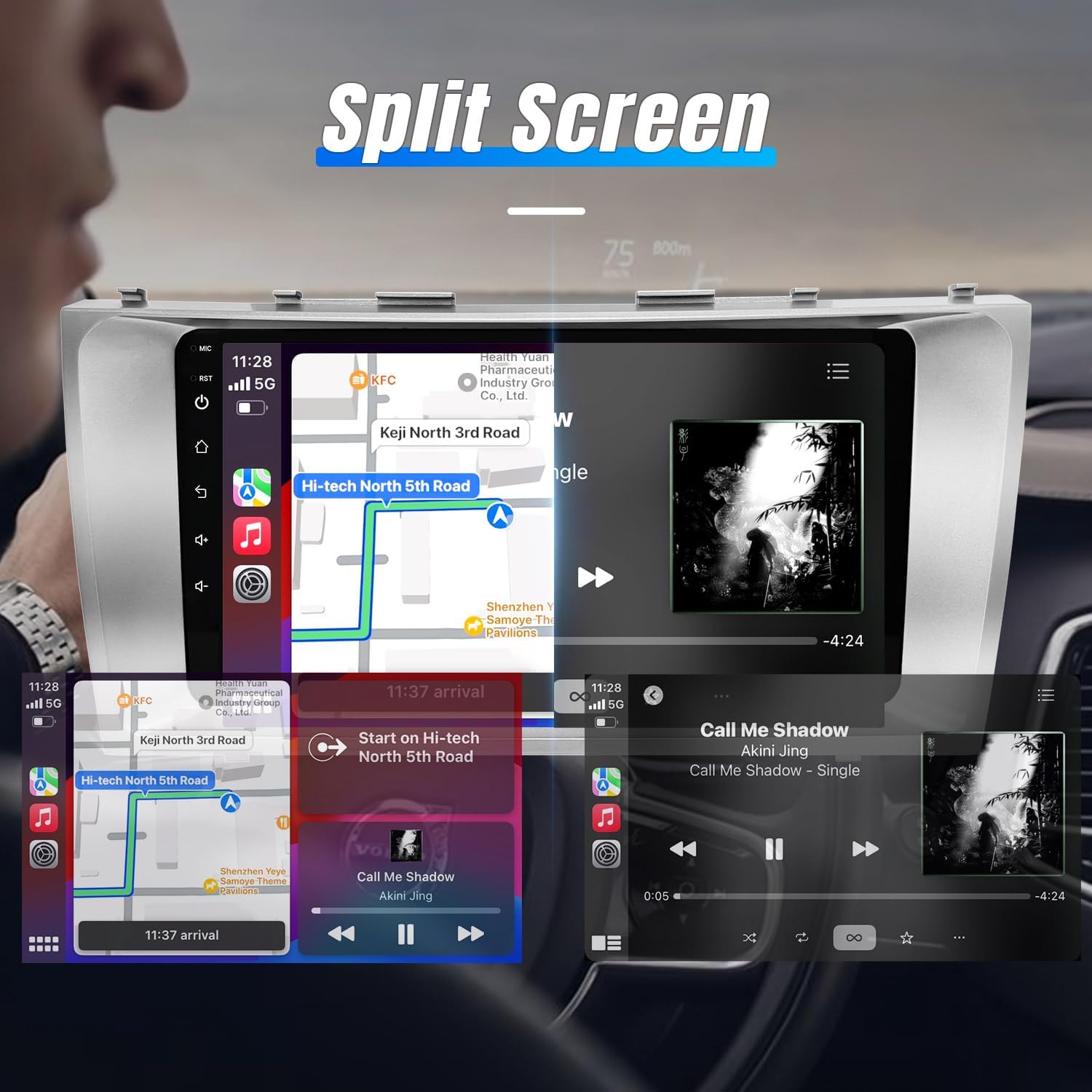

Image: The car radio screen demonstrating the split-screen feature, showing a navigation map on one side and a music player interface on the other.

5.7. Belakang View Camera & Steering Wheel Control (SWC)

When the vehicle is in reverse, the display automatically switches to the rear view suapan kamera, memberikan yang jelas view of the area behind your car. The unit is compatible with your vehicle's existing steering wheel controls, allowing you to manage audio and calls without taking your hands off the wheel.

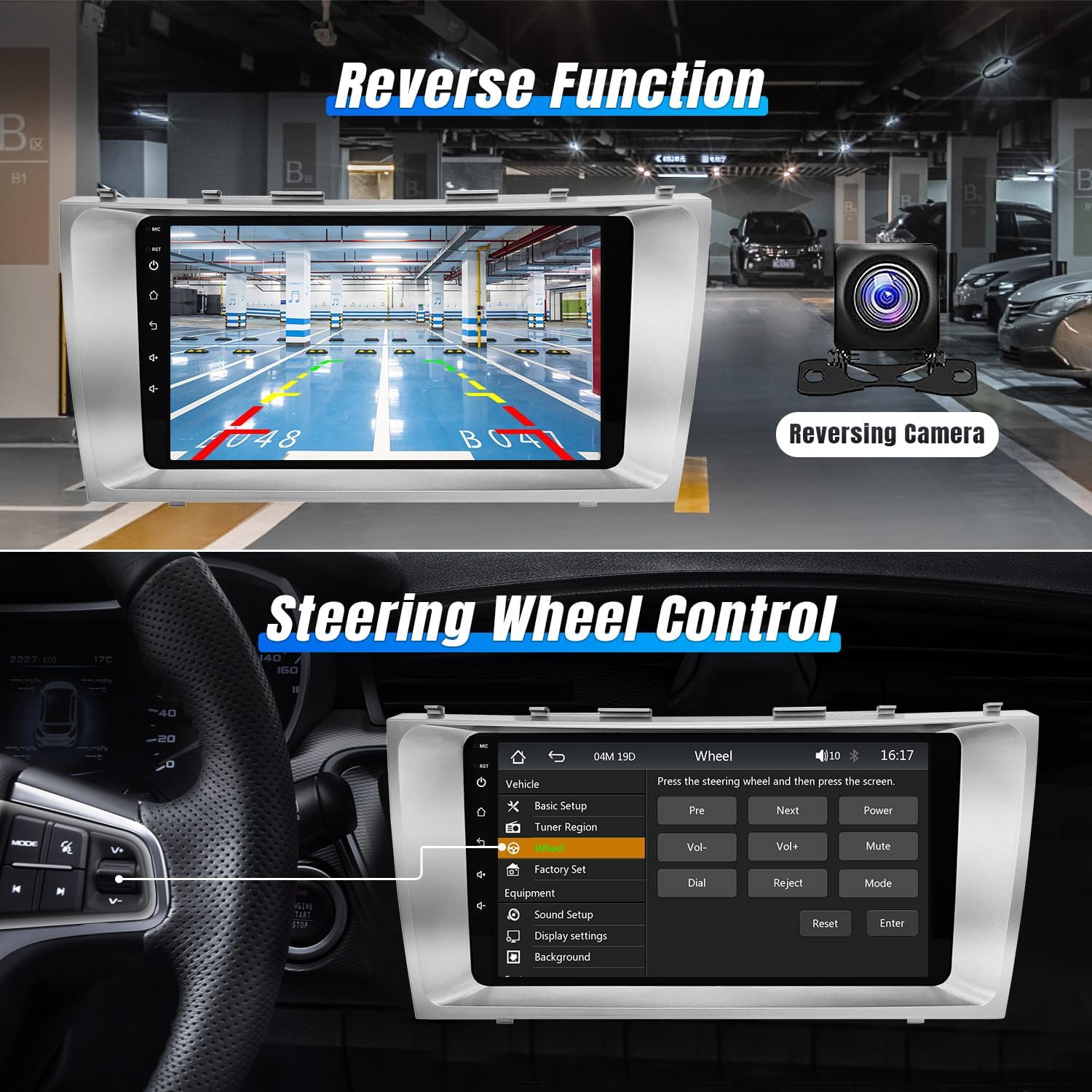

Imej: Skrin radio kereta yang menunjukkan bahagian belakang view camera display on the top and the steering wheel control learning interface on the bottom.

6. Penyelenggaraan

To ensure the longevity and optimal performance of your Leadfan car radio, follow these maintenance guidelines:

• Pembersihan: Use a soft, dry cloth to clean the touchscreen and exterior. Avoid abrasive cleaners or solvents that could damage the screen or finish.
• Kemas Kini Perisian: Periodically check for available software updates to ensure you have the latest features and bug fixes. Updates can typically be found on the manufacturer's website or through the unit's settings menu.
• Suhu: Avoid exposing the unit to extreme temperatures for extended periods, as this can affect performance and lifespan.
• Pendawaian: Regularly inspect wiring connections for any signs of wear or damage. Ensure all connections remain secure.

7. Penyelesaian masalah

If you encounter any issues with your Leadfan car radio, refer to the following common troubleshooting steps. For more complex problems, consult the detailed troubleshooting guide video or contact customer support.

7.1. Isu & Penyelesaian Lazim

• Tiada Kuasa: Periksa semua sambungan kuasa dan fius. Pastikan bateri kenderaan disambungkan dan dicas dengan betul.
• Tiada Bunyi: Verify speaker connections. Check volume levels and mute settings. Ensure the correct audio source is selected.
• Skrin sentuh Tidak Responsif: Perform a screen calibration (refer to the included manual for instructions). If the issue persists, try resetting the unit.
• Kehilangan Isyarat GPS: Pastikan antena GPS dipasang dengan betul dan mempunyai garis penglihatan yang jelas ke langit.
• Isu Sambungan Bluetooth: Ensure Bluetooth is enabled on both the car radio and your smartphone. Delete previous pairings and attempt to re-pair.
• CarPlay/Android Auto Tidak Bersambung: Verify Bluetooth and Wi-Fi are active. Ensure your phone's operating system is up to date. Try restarting both the phone and the car radio.

8. Spesifikasi

9. Waranti dan Sokongan

Your Leadfan car radio comes with a Waranti 1 Tahun from the date of purchase, covering manufacturing defects. We are committed to providing excellent customer service and technical support.

9.1. Khidmat Pelanggan

We offer 24-hour after-sales technical support to assist with any installation or operation questions. Our professional technical team is dedicated to making your driving experience easier and more enjoyable.

For assistance, please contact Leadfan customer service via the platform where you purchased the product.

9.2. Returns and Replacements

• 60 Days No Worry Return: You may return the product within 60 days of purchase.
• 12 Months Replacement: Replacement is available within 12 months for eligible issues.
• Rundingan Selepas Jualan dan Sokongan Teknikal Sepanjang Hayat: We provide ongoing support for the lifetime of the product.
