pengenalan
The CENMATE 3 Bay Hard Drive Docking Station provides a convenient solution for accessing and managing multiple 2.5-inch and 3.5-inch SATA I/II/III Hard Disk Drives (HDDs) and Solid State Drives (SSDs). This device features USB 3.0 connectivity for high-speed data transfer and includes an offline clone function, allowing direct drive duplication without requiring a computer connection. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
Ciri-ciri Produk
- Reka Bentuk 3-Teluk: Supports up to three 2.5-inch or 3.5-inch SATA I/II/III HDDs/SSDs simultaneously.
- Sokongan Kapasiti Tinggi: Each bay supports drives up to 18TB, for a total capacity of 54TB.
- Kesambungan USB 3.0: Offers data transfer speeds up to 5Gbps, with UASP support for enhanced performance up to 6Gbps.
- Fungsi Klon Luar Talian: Allows direct disk-to-disk cloning without a host computer.

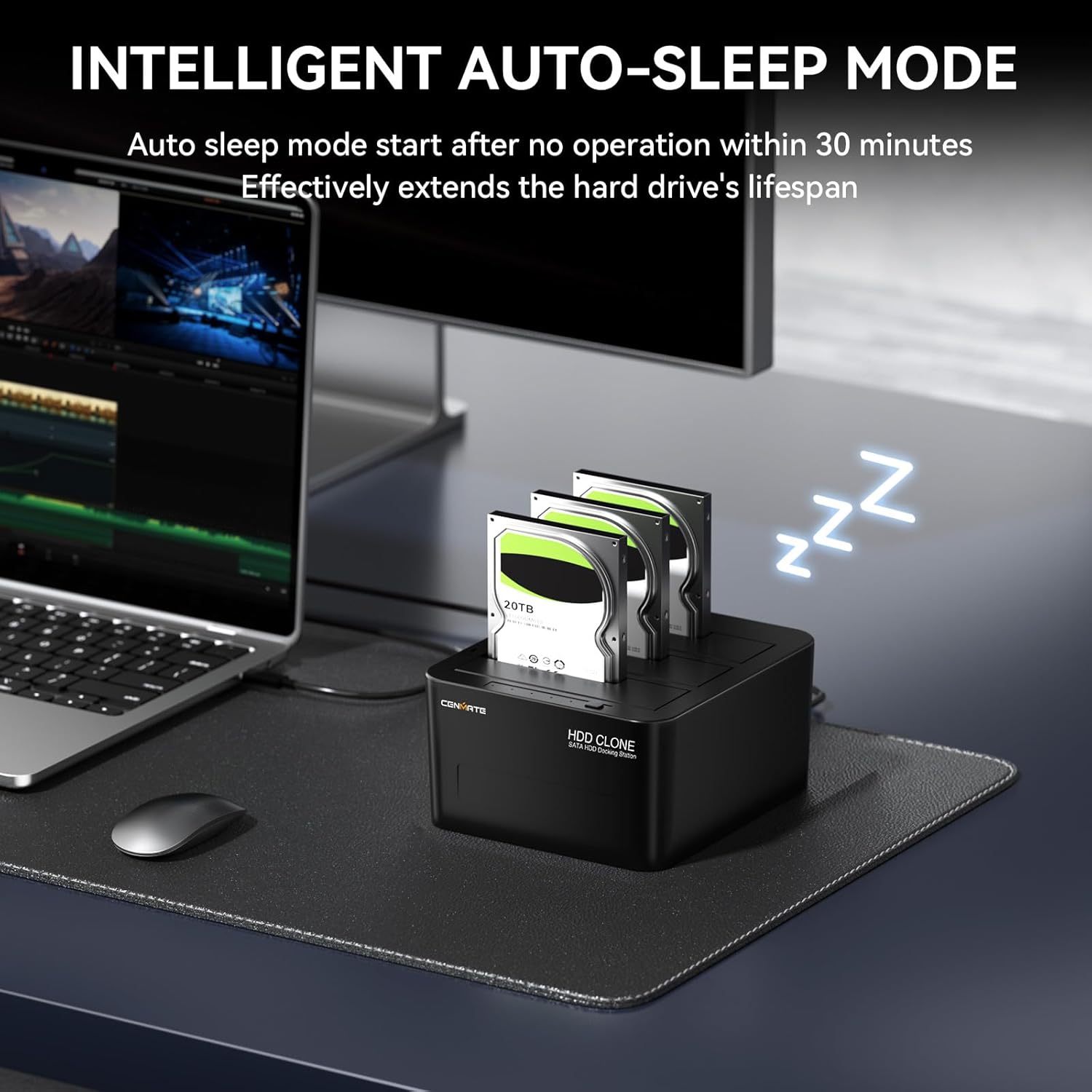

- Intelligent Auto-Sleep Mode: Automatically enters sleep mode after 30 minutes of inactivity to reduce power consumption and extend drive lifespan.
- Keserasian Universal: Compatible with Windows, Mac OS, and Linux operating systems. Can connect to various devices including laptops, PCs, TVs, PS5 consoles, and routers.
- Penunjuk LED: Provides clear status updates for power, data activity, and cloning progress.
- Pembinaan Tahan Lama: Features anti-slip silicone foot pads for stability and dust-proof dual port slots.
Arahan Persediaan
- Sambungkan Kuasa: Plug the provided DC12V power adapter into the docking station's power input port, then connect it to a power outlet.
- Connect USB (Optional for Online Mode): If you intend to use the docking station with a computer for data transfer, connect the USB 3.0 cable from the docking station to an available USB 3.0 port on your computer.
- Masukkan Pemacu: Gently insert your 2.5-inch or 3.5-inch SATA HDDs/SSDs into the available bays (HDD1, HDD2, HDD3) until they are securely seated. Ensure the drive's SATA connector aligns with the docking station's connector.
- Hidupkan kuasa: Press the power button on the docking station. The power indicator LED should illuminate.
Arahan Operasi
Online Mode (Data Transfer)
When connected to a computer via USB, the docking station functions as an external drive enclosure, allowing you to access and manage data on the inserted drives.
- Ensure the docking station is powered on and connected to your computer via the USB 3.0 cable.
- Insert your SATA HDDs/SSDs into the bays.
- Your operating system (Windows, Mac OS, Linux) will detect the drives as external storage. You can then browse, copy, move, or delete files as you would with any other external drive.
- For optimal transfer speeds, ensure you are connected to a USB 3.0 port on your computer.
Offline Clone Function
The offline clone function allows you to duplicate a source drive to one or two target drives without connecting to a computer. This is useful for data backup or drive upgrades.
- Putuskan sambungan USB: Ensure the USB cable is disconnected from your computer. The docking station must operate in standalone mode for cloning.
- Insert Source Drive: Insert the source HDD/SSD (the drive you want to copy from) into the HDD 1 slot.
- Insert Target Drive(s): Insert the target HDD/SSD(s) (the drive(s) you want to copy to) into the HDD 2 dan/atau HDD 3 slot(s).
- Keperluan Kapasiti: The capacity of the target drive(s) must be equal to or greater than the capacity of the source drive.
- Sambungkan Kuasa: Ensure the power adapter is connected and the docking station is powered on.
- Initiate Clone: Press and hold the 'Clone' button for approximately 3-5 seconds until the blue indicator lights (25%, 50%, 75%, 100%) begin to flash. Release the button.
- Confirm Clone: Press the 'Clone' button again briefly to start the cloning process. The 25% blue indicator will blink, signifying the start of the clone.
- Pantau Kemajuan: The blue indicator lights will progressively illuminate (25%, 50%, 75%, 100%) as the cloning process advances. When all lights are solid and no longer blinking, the clone is complete.
- Power Off and Remove: Once cloning is complete, power off the docking station and carefully remove the drives.
Penting: All data on the target drive(s) will be overwritten during the cloning process. Ensure you have backed up any important data from the target drive(s) before proceeding.
Penyelenggaraan
- Pembersihan: Gunakan kain lembut dan kering untuk membersihkan bahagian luar stesen dok. Elakkan menggunakan pembersih cecair atau pelarut.
- Pencegahan habuk: The dust-proof design helps, but regularly inspect the drive slots for any accumulated dust or debris. Use compressed air if necessary to clear the slots.
- Keadaan Persekitaran: Operate the docking station in a well-ventilated area, away from direct sunlight, excessive heat, and moisture.
- Pelepasan yang betul: When using the docking station with a computer, always safely eject the drives through your operating system before powering off or disconnecting the USB cable to prevent data corruption.
- Mod Auto Tidur: The intelligent auto-sleep mode helps reduce wear and tear on your hard drives and conserves energy. Ensure the device is allowed to enter this mode when not in use.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Drives not recognized by computer | Loose USB connection, drive not properly seated, drive not initialized/formatted, faulty USB port/cable. | Ensure USB cable is securely connected to both the docking station and computer. Re-insert drives firmly. Try a different USB port or cable. For new drives, initialize and format them via Disk Management (Windows) or Disk Utility (Mac). |
| Kelajuan pemindahan data yang perlahan | Connected to a USB 2.0 port, faulty USB 3.0 cable, drive performance limitations. | Ensure the docking station is connected to a USB 3.0 port (usually blue). Use the provided USB 3.0 cable. Drive performance can vary; older HDDs will be slower than SSDs. |
| Offline clone fails or does not start | USB cable connected, target drive capacity insufficient, incorrect cloning procedure, source drive errors. | Putuskan sambungan kabel USB daripada komputer. Ensure the target drive's capacity is equal to or larger than the source drive. Review the 'Offline Clone Function' steps carefully. Check the source drive for errors before cloning. |
| Docking station not powering on | Power adapter not connected, faulty power outlet, power button not pressed. | Ensure the power adapter is securely connected to the docking station and a working power outlet. Press the power button firmly. |
| Drives feel warm during operation | Normal operation, prolonged use. | It is normal for drives to generate heat during operation, especially during intensive tasks like cloning or large data transfers. The open design of the docking station aids in heat dissipation. Ensure adequate ventilation around the device. |
Spesifikasi
- model: 3 Bay Clone
- Jenis Pemacu yang Serasi: 2.5-inch / 3.5-inch SATA I/II/III HDD/SSD
- Bilangan Teluk: 3
- Max Capacity Per Bay: 18 TB
- Total Max Capacity: 54 TB
- Antara muka: USB 3.0 (serasi ke belakang dengan USB 2.0)
- Kadar Pemindahan Data: Up to 5Gbps (USB 3.0), up to 6Gbps (with UASP)
- Sistem Operasi yang Serasi: Windows, Mac OS, Linux
- Peranti Serasi: Laptop, PC, TV, PS5, Router
- Bahan: Akrilonitril Butadiena Stirena (ABS)
- Input Kuasa: DC12V
- Dimensi Produk: 5.12 x 4.75 x 2.75 inci (13 x 12.07 x 6.99 cm)
- Berat Barang: 1.28 paun (0.58 kg)
Waranti dan Sokongan
CENMATE products are designed for reliability and performance. For specific warranty information regarding your 3 Bay Hard Drive Docking Station, please refer to the warranty card included in your product packaging or visit the official CENMATE website. For technical assistance, troubleshooting beyond this manual, or customer service inquiries, please contact CENMATE support through their official channels. Please have your product model number (3 Bay Clone) and purchase details ready when contacting support.
