1. Pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Lloyd's Smart Full HD 1080P Video Intercom System. This system is designed to provide secure access control for your home or office, allowing you to monitor, communicate with, and grant access to visitors remotely.

Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.

2. Maklumat Keselamatan

To prevent damage to the product or injury to yourself or others, please observe the following safety precautions:

• Pastikan semua bekalan elektrik diputuskan sebelum pemasangan atau penyelenggaraan.
• Pemasangan hendaklah dilakukan oleh juruelektrik yang berkelayakan jika anda tidak biasa dengan pendawaian elektrik.
• Jangan dedahkan produk kepada suhu yang melampau, kelembapan atau cahaya matahari langsung.
• Gunakan hanya penyesuai kuasa dan aksesori yang disediakan.
• Jauhkan produk daripada air dan cecair lain.
• Jangan cuba membuka atau membaiki unit sendiri. Hubungi sokongan pelanggan untuk mendapatkan bantuan.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• 1 x Monitor (7'' Color LCD Touchscreen)
• 1 x Outdoor Unit (Doorbell with Camera and Keypad)
• 1 x Panduan Pengguna
• 1 x Perumahan
• 1 x Rain Cover Bracket
• 1 x Recessed Box
• 1 x Penyesuai AC/DC
• 1 x Kurungan Pemasangan
• Wall Plugs and Mounting Screws
• 3 x Penyambung
• 1 x Allen Screwdriver
• 4 x Kabel Sambungan

Gambar 3.1: Lebihview of the Lloyd's Smart Video Intercom System components and packaging.

4. Produk Lebihview

4.1. Monitor (Indoor Unit)

• paparan: 7-inch color LCD touchscreen with 1020 x 600 px resolution.
• Tetapan Boleh Laras: Brightness, contrast, and volume.
• Fungsi: Hands-free intercom, call transfer (requires additional monitor), date, time, and weather display.
• Storan: Integrated memory for up to 30 photos, supports up to 128 GB memory card (not included).
• Ketersambungan: 2.4 GHz Wi-Fi for stable connection in large areas.

4.2. Outdoor Unit (Doorbell)

• kamera: 2MP Full HD (1920x1080) resolution.
• Penglihatan Malam: Yes, with LED numeric panel.
• Viewsudut: 120 darjah.
• Pengesanan Pergerakan: Detection distance of less than or equal to 3 meters.
• Audio: 2-way audio with adjustable microphone and speaker volume.
• Kawalan Akses: Works with a 12 VDC electric lock (not included), supports 4-6 digit password entry.
• Tamper Button: Sends alerts to your smartphone and triggers an alarm if the outdoor unit is forced.
• Ketahanan: IP65 rating for indoor or outdoor use.

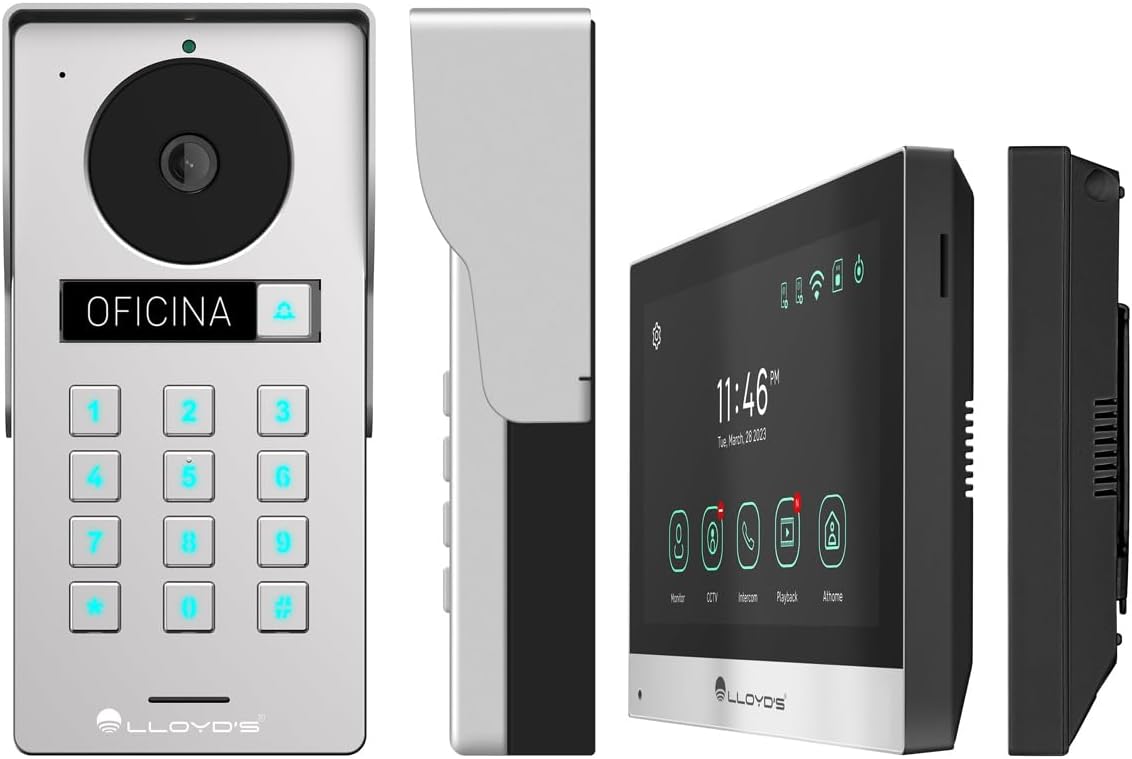

Rajah 4.1: Terperinci views of the outdoor unit and monitor.

Figure 4.2: Key features of the Lloyd's Smart Video Intercom System.

5. Persediaan dan Pemasangan

5.1. Pendawaian dan Pemasangan

The system requires a wired connection between the monitor and the outdoor unit. The maximum operating distance is 50 meters using a 4-wire cable (0.5 mm² not included). Follow the wiring diagram provided in the quick start guide for correct connections.

• Outdoor Unit Mounting: Choose a suitable location near your entrance, ensuring clear camera view and easy access to the keypad. Use the provided mounting bracket, wall plugs, and screws. The unit is IP65 rated for outdoor use.
• Pemasangan Monitor: Install the monitor indoors at a convenient height for viewing and interaction. Use the mounting bracket and screws.
• Sambungan Kuasa: Connect the AC/DC adapter to the monitor and a power outlet.
• Electric Lock Connection (Optional): If using an electric lock (12 VDC, not included), connect it to the outdoor unit as per the wiring diagram.

5.2. Aplikasi dan Sambungan Wi-Fi

To utilize smart features, download the Lloyd's smart home application on your smartphone (compatible with Android 5.0+ and iOS 11+).

1. Power on the monitor and outdoor unit.
2. On the monitor, navigate to the Wi-Fi settings and connect to your 2.4 GHz Wi-Fi network.
3. Open the Lloyd's app on your smartphone and create an account or log in.
4. Follow the in-app instructions to add your new video intercom system. This typically involves scanning a QR code displayed on the monitor or manually entering device details.
5. Once connected, you will receive notifications and can control the system remotely via the app.

6. Arahan Operasi

6.1. Answering Calls and Communication

• When a visitor presses the doorbell button, the monitor will ring, and you will receive a notification on your smartphone.
• On the monitor, tap the "Answer" icon to establish two-way audio and video communication.
• On your smartphone, open the app and tap the incoming call notification to answer.
• The intercom communication time is 60 seconds.

Figure 6.1: Communicate with visitors from anywhere using the app or monitor.

Figure 6.2: Receive instant notifications on your smartphone and monitor.

6.2. Door Opening

• Daripada Apl: During a call, tap the "Unlock" icon in the app to open the connected electric lock.
• From the Monitor: During a call, tap the "Unlock" icon on the monitor's touchscreen.
• From the Outdoor Unit: Visitors can enter a pre-set 4-6 digit password on the numeric keypad to open the door.

6.3. Motion Detection and Recording

• The system automatically captures photos and videos when motion is detected within 3 meters of the outdoor unit or when someone rings the doorbell.
• You will receive real-time alerts on your smartphone via the app when motion is detected.
• Review recorded events and snapshots through the app or on the monitor.
• The monitoring time for motion detection is 30 seconds.

Figure 6.3: Receive motion detection alerts directly on your smartphone app.

Figure 6.4: Automatic photo and video capture for events.

6.4. Peluasan Sistem

The system supports expansion for enhanced security and convenience:

• Up to 2 additional Outdoor Units (Doorbell)
• Up to 3 additional Monitors
• Up to 2 additional Cameras
• Up to 2 additional Sensors

(Additional units and sensors are not included and must be purchased separately.)

You can also integrate the system with other Lloyd's smart home products to create customized routines and share device access with family members.

7. Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the monitor screen and outdoor unit. Do not use abrasive cleaners or solvents.
• Kemas Kini Perisian: Periodically check the Lloyd's app for firmware updates to ensure optimal performance and security.
• Pengurusan Storan: If using a memory card, regularly back up important recordings and delete old files untuk mengosongkan ruang.

8. Penyelesaian masalah

9. Spesifikasi

Figure 9.1: Dimensions of the Monitor and Outdoor Unit.

10. Waranti dan Sokongan

For warranty information, please refer to the warranty card included with your product or visit the official Lloyd's website. If you encounter any issues or require technical assistance, please contact Lloyd's customer support.

Sokongan Pelanggan: Refer to the contact information provided on the product packaging or the official Lloyd's webtapak.

Sumber Dalam Talian: melawat Lloyd's Official Store on Amazon untuk maklumat dan sokongan produk tambahan.
