HOFTRONIC Q-Series 60cm LED Wet Room Light (2-Pack)

1. Pengenalan

Thank you for choosing the HOFTRONIC Q-Series 60cm LED Wet Room Light. This product is designed for efficient and durable illumination in various environments, including wet and dry rooms, cold storage, warehouses, workshops, offices, and garages. Its robust construction and high protection ratings ensure reliable performance. Please read this manual carefully before installation and use to ensure safe and optimal operation.

2. Maklumat Keselamatan

Sentiasa patuhi langkah keselamatan berikut untuk mengelakkan kecederaan atau kerosakan:

• Keselamatan Elektrik: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Ensure the power supply is disconnected before any installation, maintenance, or cleaning.
• Voltage: Produk ini beroperasi pada voltan AC 220-240V. Sahkan sama ada bekalan kuasa anda memenuhi keperluan ini.
• Suhu Operasi: The light is designed to operate in temperatures ranging from -20°C to +40°C. Do not use outside this range.
• Tahan Air dan Debu: The IP65 rating indicates protection against dust ingress and low-pressure water jets from any direction. While suitable for wet environments, avoid submerging the fixture.
• Rintangan Kesan: The IK08 rating signifies high resistance to mechanical impact. However, avoid intentional forceful impacts.
• Pendedahan Kimia: The ABS and polycarbonate materials are resistant to chemical vapors, making them suitable for industrial environments.
• Tidak Boleh Dimalapkan: This LED fixture is not dimmable. Do not connect it to a dimmer switch.

3. Kandungan Pakej

Pakej termasuk:

• HOFTRONIC Q-Series 60cm LED Wet Room Light (2 units)
• Pemasangan kurungan dan skru
• Quick connectors for tool-free installation

4. Persediaan dan Pemasangan

The HOFTRONIC Q-Series LED light features a 'Plug and Play' design with integrated light sources and quick connectors for easy, tool-free installation.

4.1 Memasang Lekapan

1. Sediakan Permukaan Pemasangan: Choose a suitable location on the ceiling or wall. Ensure the surface can support the weight of the fixture.
2. Tandai Lubang Gerudi: Use the provided mounting brackets to mark the positions for drilling.
3. Drill and Insert Anchors: Drill holes and insert appropriate wall anchors (if necessary).
4. Lampirkan Kurungan: Secure the mounting brackets to the surface using the screws.
5. Pasang Cahaya: Clip the LED fixture onto the installed mounting brackets. Ensure it is securely fastened.

Rajah 1: Mounting the LED fixture. The image illustrates the process of attaching mounting brackets to a surface with screws and then clipping the light fixture into place.

4.2 Electrical Connection (Quick Connect)

The Q-Series features convenient quick connectors for tool-free wiring.

1. Putuskan Kuasa: Pastikan bekalan kuasa utama dimatikan sebelum membuat sebarang sambungan elektrik.
2. Access Connector: Twist and remove the end cap of the fixture to reveal the quick connector terminals.
3. Masukkan wayar: Insert the stripped ends of your power supply wires (Live, Neutral, Earth) into the corresponding quick connect terminals. Ensure a secure connection.
4. Secure End Cap: Replace and twist the end cap to seal the connection, maintaining the IP65 rating.

Rajah 2: Quick connect for fast installation. The image shows the twist-off end cap and the internal quick-connect terminals for easy wiring.

4.3 Linking Multiple Fixtures

Up to 20 Q-Series LED lights can be linked together using the integrated quick connectors, allowing for a continuous lighting solution.

1. Prepare Linking Cable: Use a suitable linking cable (min. 5mm / max. 9mm diameter) with stripped ends.
2. Connect First Fixture: Connect one end of the linking cable to the output quick connector of the first LED fixture.
3. Connect Second Fixture: Connect the other end of the linking cable to the input quick connector of the next LED fixture.
4. Sambungan Selamat: Ensure all cable glands (PG11 type) are tightened to maintain the IP65 rating.

Rajah 3: Linking multiple fixtures. The image demonstrates how two lights can be connected in series using a linking cable and PG11 cable glands.

5. Arahan Operasi

Once installed and connected to the power supply, the HOFTRONIC Q-Series LED light operates by a standard wall switch. Simply toggle the switch to turn the light on or off.

• Output Cahaya: The fixture provides 2160 lumens of bright, 6500K cool white light, ideal for environments requiring high visibility and a daylight-like ambiance.
• Kecekapan Tenaga: Consuming only 18W, this LED light offers significant energy savings compared to traditional 72W fluorescent tubes, reducing electricity costs by up to 75%.
• Diffuse Light: The Q-Series is designed to emit diffuse light, which minimizes glare and provides uniform illumination, making it suitable for professional applications and areas like parking lots.

Rajah 4: Diffuse vs. Non-diffuse light. The HOFTRONIC Q-Series provides diffuse light for comfortable, glare-free illumination.

5.1 Aplikasi Khas

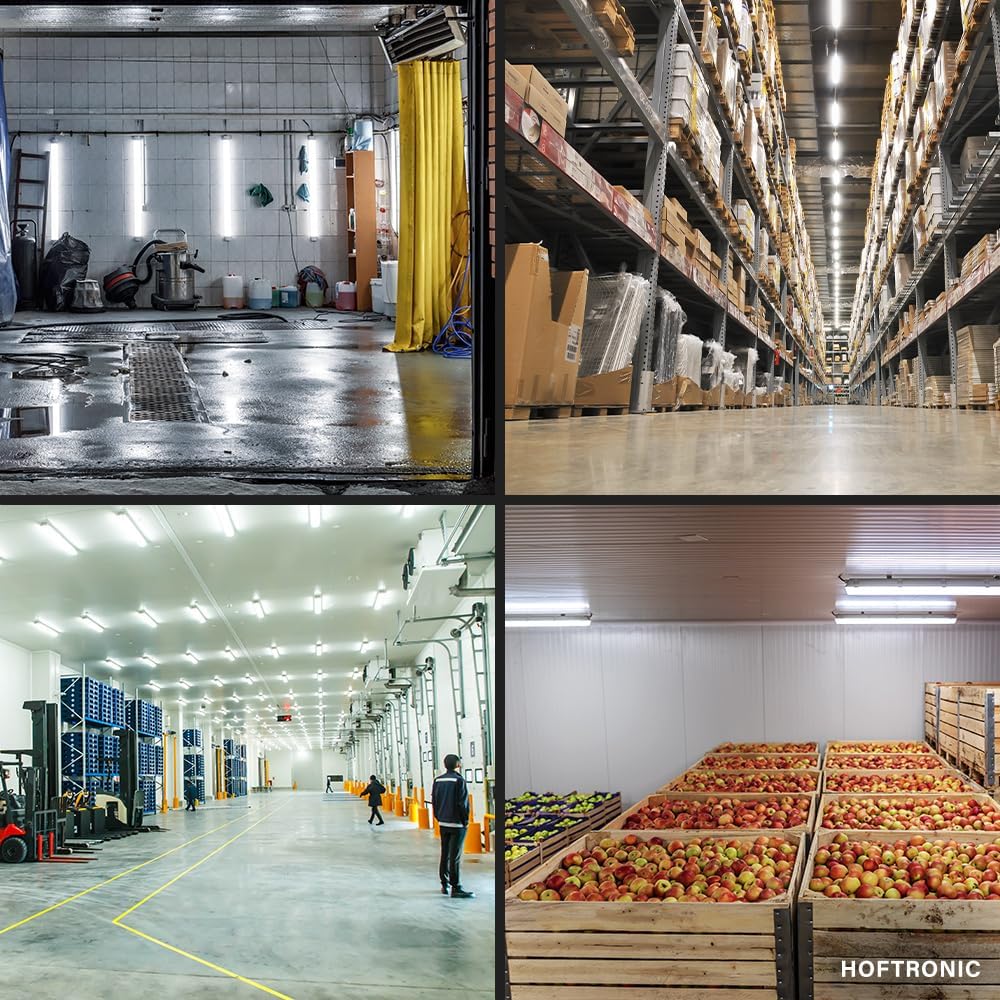

Rajah 5: Applications in industrial and storage environments. The lights are suitable for car washes, warehouses, and cold storage facilities.

Rajah 6: Applications in retail, workshop, and garage environments. The lights are effective in supermarkets, workshops, and garages.

6. Penyelenggaraan

The HOFTRONIC Q-Series LED light is designed for minimal maintenance due to its durable construction and long lifespan.

• Pembersihan: To clean the fixture, ensure the power is disconnected. Use a soft, damp cloth with mild soap and water. Avoid abrasive cleaners or solvents that could damage the plastic housing.
• Ketahanan Bahan: Constructed from high-quality ABS and polycarbonate, the fixture is resistant to chemical vapors and will not become porous over time, ensuring long-term performance in challenging environments.
• Jangka hayat: The average lifespan of the LED light is 25,000 hours, which translates to approximately 10 years of average use. No bulb replacement is necessary as the LEDs are integrated.

Rajah 7: Robust construction. The fixture boasts an IK08 impact resistance rating, ensuring durability.

7. Penyelesaian masalah

If you encounter issues with your HOFTRONIC Q-Series LED light, consider the following:

• Lampu Tidak Dihidupkan:
  • Check if the power supply is connected and switched on.
  • Verify all electrical connections are secure, especially the quick connectors.
  • Ensure there is no tripped circuit breaker or blown fuse.
• Cahaya berkelip:
  • Pastikan lekapan tidak disambungkan kepada suis dimmer, kerana ia tidak boleh dimalapkan.
  • Periksa sambungan pendawaian yang longgar.
• Kecerahan dikurangkan:
  • Clean the diffuser cover if it appears dirty.
  • Pastikan suhu operasi berada dalam julat yang ditetapkan.

Jika masalah berterusan, rujuk juruelektrik yang berkelayakan atau hubungi khidmat pelanggan.

8. Spesifikasi

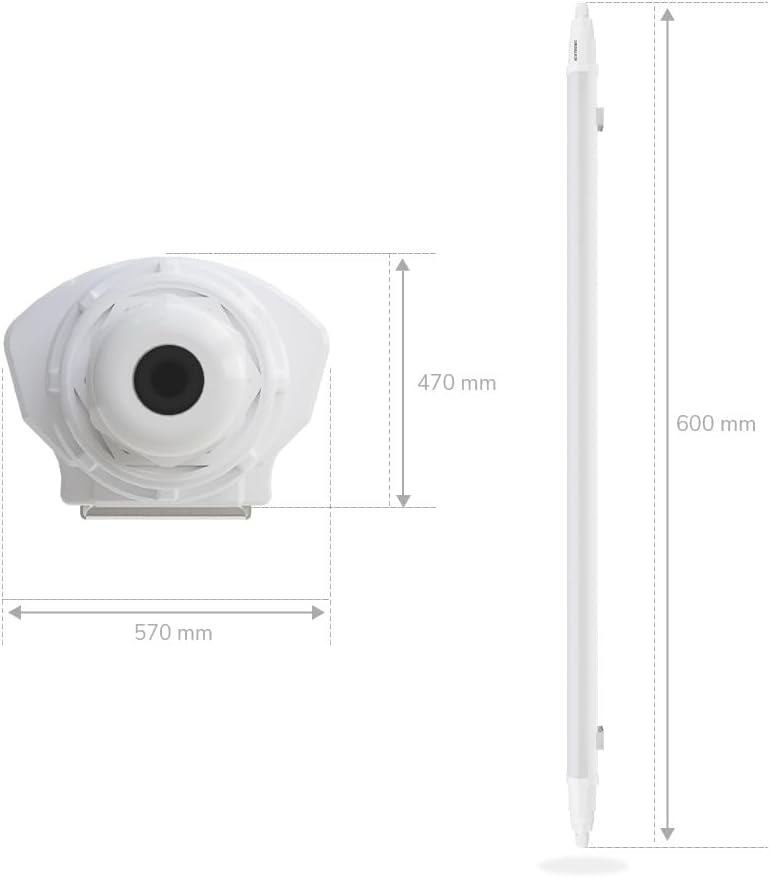

Rajah 8: Product Dimensions. The image displays the length (600mm), width (570mm), and height (470mm) of the fixture.

8.1 Energy Efficiency Label

Rajah 9: Energy Label. The label indicates an energy efficiency class E and consumption of 18 kWh/1000h. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/1953752.

9. Waranti dan Sokongan

HOFTRONIC products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, the product is designed for a long operational life of 25,000 hours. For any technical assistance, troubleshooting beyond this manual, or inquiries regarding warranty, please contact your retailer or the HOFTRONIC customer support channel.
