BAOFENG UV-20R Two-Way Radio Instruction Manual

pengenalan

The BAOFENG UV-20R is a feature-packed handheld transceiver designed for reliable communication. It includes a 1.77" LCD screen, full keyboard, and various functions for both recreational and professional use.

Figure 1: BAOFENG UV-20R Two-Way Radio.

Ciri-ciri Produk

• paparan: 1.77" LCD large screen with full keyboard for menu operation.
• Saluran: Up to 999 named memory channels across 10 zones.
• Pancaragam: 4-band operation (1.25M, 144-148MHz, 420-450MHz, FM).
• mengecas: Pengecasan terus Jenis-C dan penyangga pengecas untuk kuasa yang mudah.
• Mengimbas: VFO scan range setting, three scan recovery methods, channel scan, CTC/DCS scan, and scan channel addition/removal.
• Salinan Kekerapan: Wireless frequency copy function.
• Radio Cuaca NOAA: Built-in NOAA weather radio receiver.
• DTMF: DTMF encoder and manual dial.
• Bateri: High capacity Lithium-Ion battery.
• Nada: 50 nada CTCSS dan 105 kod DCS.
• Makluman: Fungsi penggera.
• Output Kuasa: Kuasa tinggi atau rendah boleh dipilih.
• Pencahayaan Paparan: Programmable via keypad.
• Maklum Balas Audio: Fungsi bip pada papan kekunci.
• Repeater Offset: Pengimbang pengulang boleh atur cara.
• Lampu suluh: Lampu suluh LED terbina dalam.
• Boleh Diprogram PC: Supports PC programming for advanced customization.
• End of Transmission Tone: Also known as "Roger Beep".
• Keselamatan: Kunci pad kekunci.
• Tahan Air: IP54 Life Waterproof (Splash Waterproof Protection).

Gambar 2: Lebihview of BAOFENG UV-20R key features.

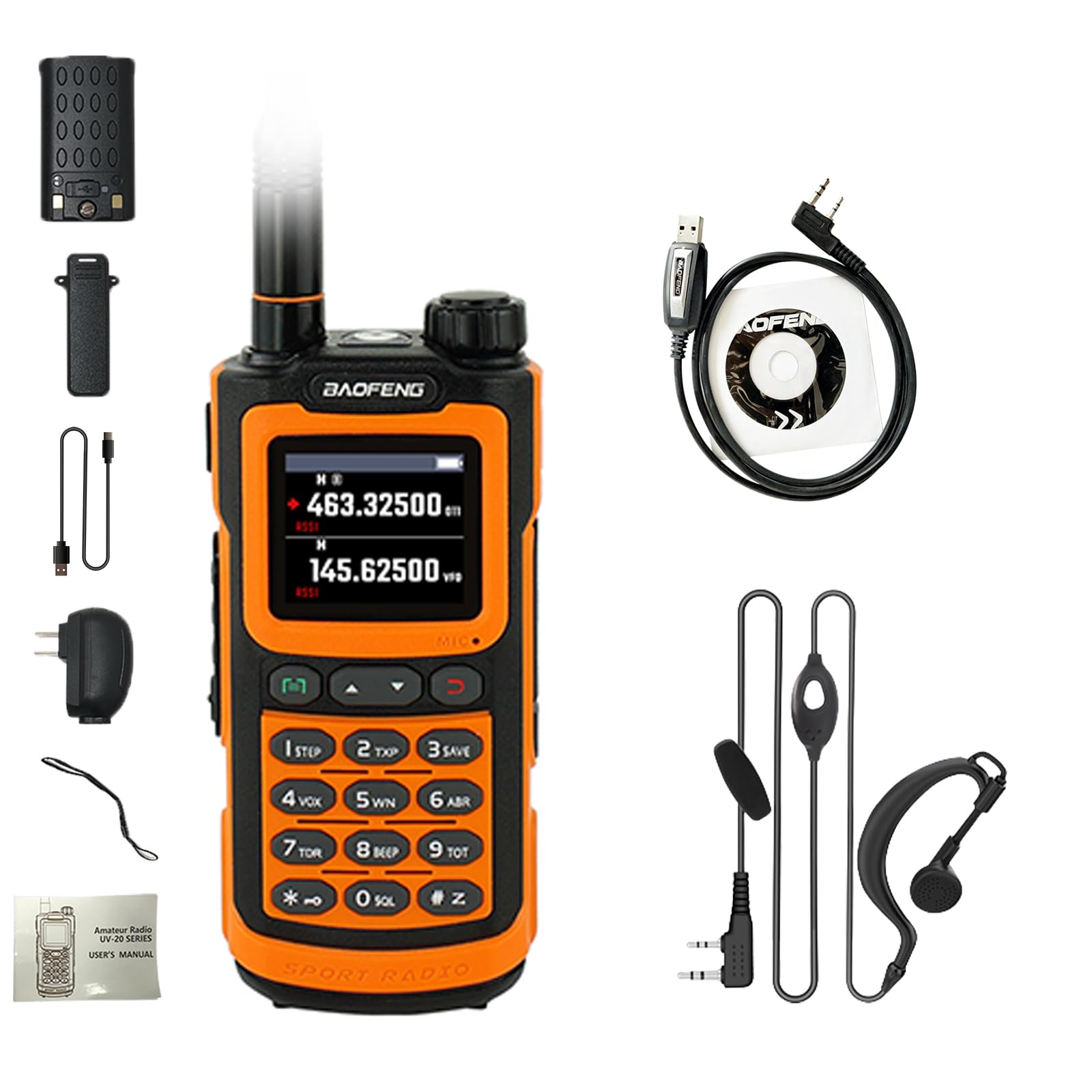

Apa yang ada dalam Kotak

The BAOFENG UV-20R package includes the following items:

• BAOFENG UV-20R Radio
• Antena
• Bateri
• Kabel USB-C
• US Adapter
• tali
• Manual Pengguna
• Kabel pengaturcaraan
• Alat dengar

Persediaan

1. Memasang Antena

Carefully screw the antenna onto the connector at the top of the radio until it is finger-tight. Do not overtighten.

2. Memasang Bateri

Align the battery with the back of the radio and slide it into place until it clicks securely. To remove, press the release latch and slide the battery off.

3. Pengecasan Awal

Before first use, fully charge the battery. Connect the USB-C cable to the radio's Type-C port or use the charging stand with the US adapter. The charging indicator will show the charging status.

Figure 3: USB-C charging options for the BAOFENG UV-20R.

Arahan Operasi

1. Hidup/Mati dan Kelantangan

Rotate the Power/Volume knob clockwise to turn the radio on and increase volume. Rotate counter-clockwise to decrease volume and turn off.

2. Komunikasi Asas

• Selecting a Channel/Frequency: Use the keypad to enter frequencies directly or navigate through stored channels.
• Menghantar: Press and hold the PTT (Push-To-Talk) button on the side of the radio to transmit. Speak clearly into the microphone. Release the PTT button to listen.
• Menerima: Radio akan menerima isyarat secara automatik pada frekuensi/saluran yang dipilih.

3. Navigasi Menu

Tekan ke MENU key to access the main menu. Use the Up/Down arrow keys to scroll through options. Press MENU sekali lagi untuk memilih satu pilihan, dan EXIT to go back or exit the menu.

4. Kunci Pad Kekunci

To prevent accidental changes, activate the keypad lock function via the menu or a shortcut key (refer to the full user manual for specific key combinations).

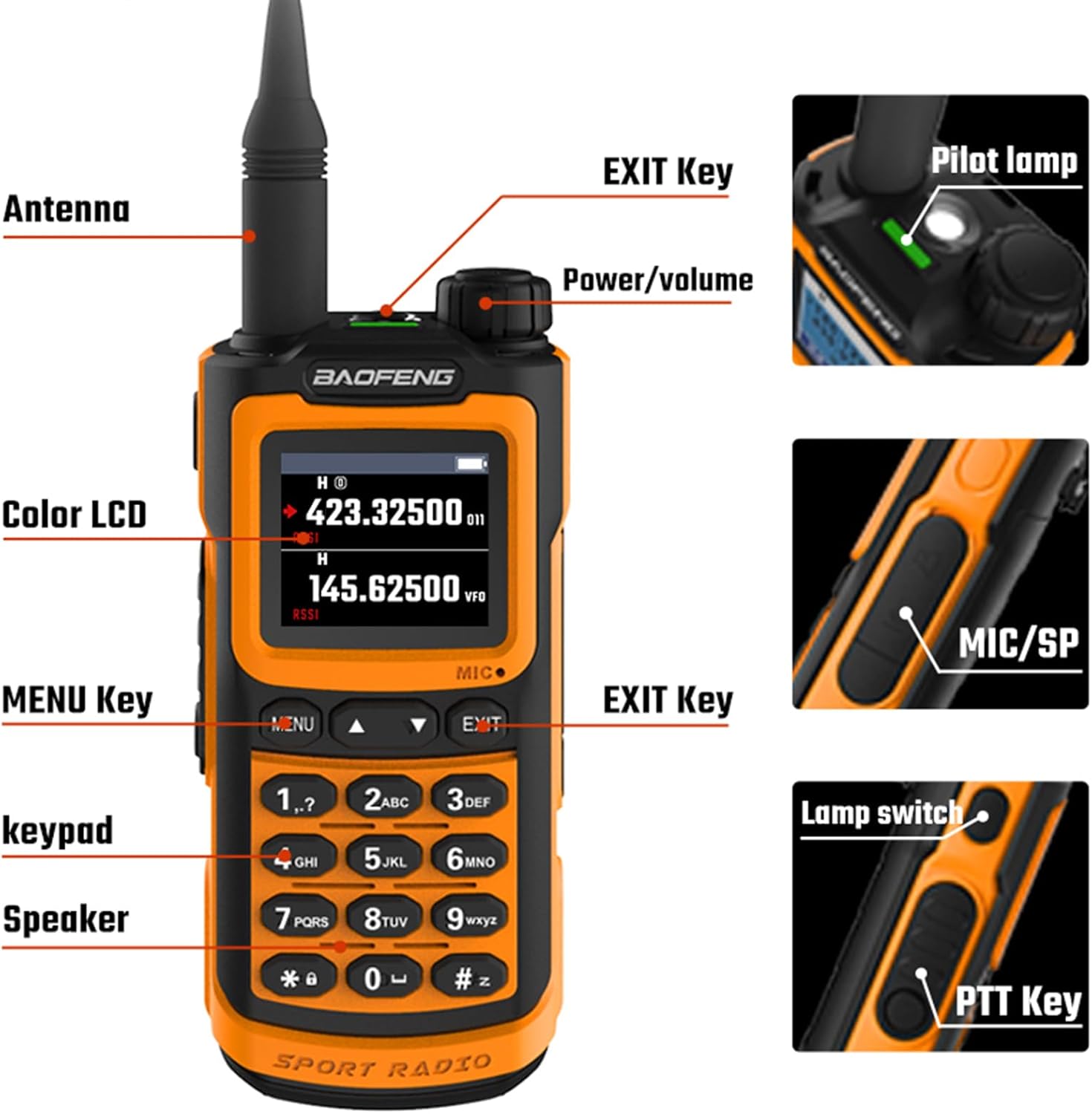

Figure 4: Key components and controls of the BAOFENG UV-20R.

Mengecas

The UV-20R offers flexible charging options:

• Pengecasan Terus USB-C: Connect a standard USB-C cable to the port on the battery pack. This allows charging from power banks, PCs, car chargers, or any USB power source.
• Tempat Pengecasan: Place the radio in the provided charging stand. Connect the US adapter to the stand and a power outlet.

A red indicator light typically signifies charging, while a green light indicates a full charge.

Pengaturcaraan

The BAOFENG UV-20R can be programmed both manually via the keypad and through a PC using the provided programming cable.

• Pengaturcaraan Manual: Use the full keypad and LCD screen to enter frequencies, set tones (CTCSS/DCS), and configure other parameters directly on the radio. Refer to the detailed user manual for specific menu options and steps.
• Pengaturcaraan PC: Connect the radio to a computer using the programming cable. Utilize compatible software (e.g., CHIRP) to manage channels, frequencies, and other settings. This method allows for efficient customization and backup of radio configurations.

The wireless frequency copy function allows for quick duplication of settings between compatible radios.

Penyelenggaraan

• Pembersihan: Lap radio dengan lembut, damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
• Penjagaan Bateri: Simpan bateri di tempat yang sejuk dan kering apabila tidak digunakan. Elakkan menyahcas sepenuhnya bateri untuk tempoh yang lama.
• Antena: Ensure the antenna is securely attached. Avoid bending or stressing the antenna excessively.
• Tahan Air: The radio offers IP54 splash waterproof protection. While it can withstand splashes, avoid submerging the device in water. Ensure all port covers are properly sealed.

Menyelesaikan masalah

• Tiada Kuasa: Check if the battery is properly installed and charged. Ensure the Power/Volume knob is turned on.
• Tidak Boleh Hantar/Terima: Verify the antenna is attached. Check the selected frequency/channel and ensure it is within the radio's operating range. Confirm that CTCSS/DCS tones are correctly set if required for the channel.
• Kualiti Audio Lemah: Adjust the volume. Check the squelch level in the menu. Ensure the microphone and speaker are clear of obstructions.
• Pad kekunci Tidak Responsif: Check if the keypad lock is active. Deactivate it if necessary.
• Isu Pengaturcaraan: Ensure the programming cable is correctly connected and the correct software (e.g., CHIRP) and drivers are installed on your PC.

Spesifikasi

Figure 5: Physical dimensions of the BAOFENG UV-20R.

Waranti dan Sokongan

The BAOFENG UV-20R comes with a Waranti 1 tahun provided exclusively through "Shiqun Electronics Co., Ltd". For warranty claims or technical support, please contact the seller directly.
