Targus EcoSmart Keyboard AKB868FR User Manual

pengenalan

Welcome to the user manual for your Targus EcoSmart Keyboard AKB868FR. This keyboard is designed for efficiency and sustainability, featuring solar power generation, antimicrobial protection, and versatile wireless Bluetooth 5.0 connectivity. It offers a comfortable typing experience with a backlit QWERTY (French) layout and durable scissors key switches. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your keyboard.

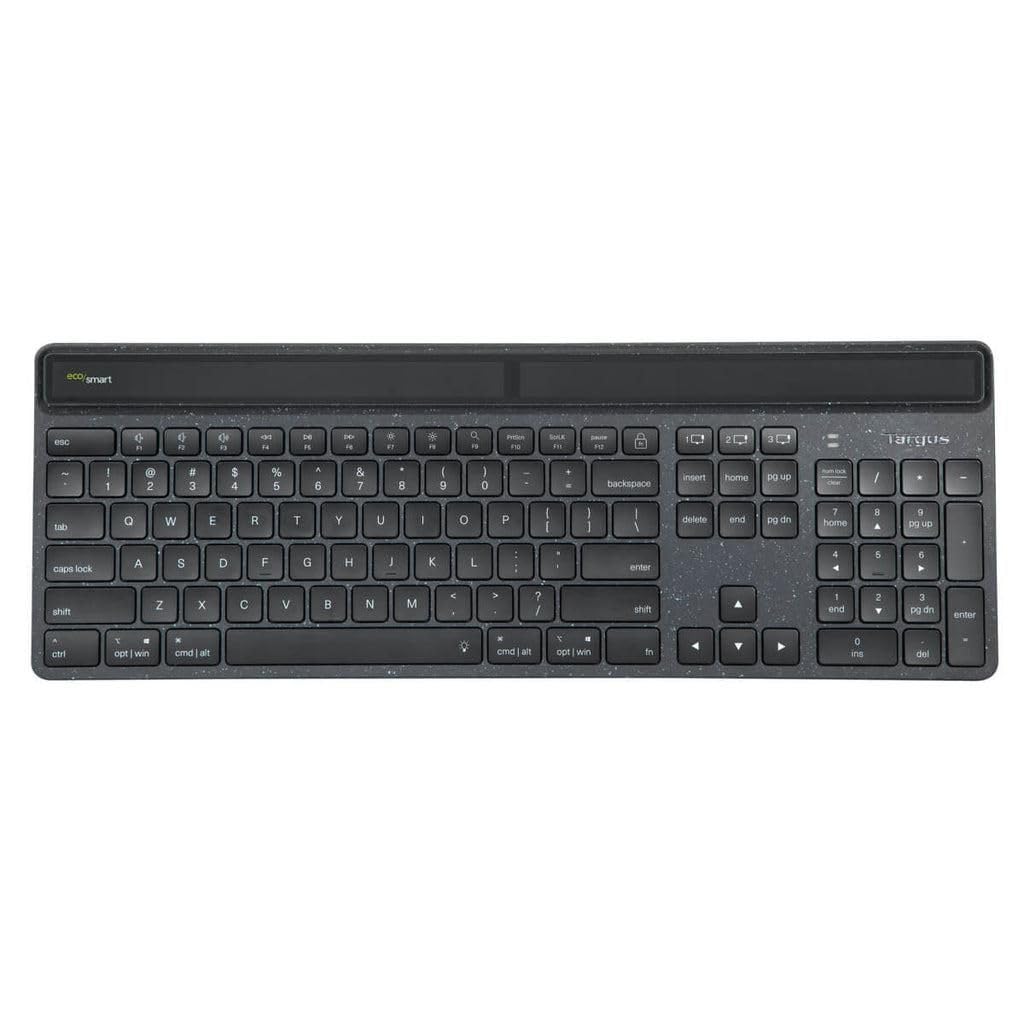

Targus EcoSmart Keyboard AKB868FR, front view

Rajah 1: Depan view of the Targus EcoSmart Keyboard AKB868FR, showcasing its sleek design and key layout.

Persediaan

1. Tanpa Peti Masuk

Carefully remove the keyboard from its packaging. Ensure all components are present. The package typically includes the Targus EcoSmart Keyboard AKB868FR and this user manual.

2. Initial Power and Charging

The Targus EcoSmart Keyboard is equipped with solar power generation. For optimal performance, expose the keyboard's solar panel (located on the top edge) to light. Direct sunlight or strong indoor lighting will charge the internal battery. A full charge ensures extended use, even in low-light conditions.

3. Berpasangan Bluetooth

Hidupkan kuasa: Locate the power switch on the keyboard (usually on the side or back) and slide it to the 'ON' position.
Aktifkan Mod Berpasangan: Press and hold the Bluetooth pairing button (often indicated by a Bluetooth icon or a specific Fn key combination, refer to keyboard markings) for 3-5 seconds until the Bluetooth indicator light begins to flash. This indicates the keyboard is in pairing mode.
Dayakan Bluetooth pada Peranti Anda: On your computer, tablet, or smartphone (Windows®, macOS®, Chrome OS®, iPadOS®, iOS®, Android™), navigate to the Bluetooth settings.
Pilih Papan Kekunci: In the list of available Bluetooth devices, locate and select "Targus AKB868FR" or a similar name.
Sahkan Gandingan: Follow any on-screen prompts to complete the pairing process. You may be asked to enter a code displayed on your screen using the keyboard, then press Enter. Once paired, the Bluetooth indicator light on the keyboard will stop flashing and remain solid or turn off.

Your keyboard is now ready for use. The keyboard can typically remember multiple paired devices, allowing for quick switching between them (refer to specific keyboard markings for multi-device switching functions).

Arahan Operasi

1. Penggunaan Papan Kekunci Asas

The Targus EcoSmart Keyboard AKB868FR functions as a standard QWERTY (French) layout keyboard. Simply begin typing after successful pairing. The scissors key switches provide a responsive and comfortable typing experience.

2. Special Function Keys (Fn)

Many keys on the top row (F1-F12) and other keys may have secondary functions, indicated by icons. To activate these functions, press and hold the Fn key (usually located near the bottom left of the keyboard) simultaneously with the desired function key. Common functions include media control (play/pause, volume), screen brightness, and application shortcuts.

3. Kawalan Lampu Latar

The keyboard features a backlight for improved visibility in low-light conditions. Use the dedicated backlight control keys (often an Fn key combination, e.g., Fn + F5/F6 or a specific backlight icon key) to:

Hidupkan atau matikan lampu latar.
Laraskan tahap kecerahan lampu latar.

The backlight will automatically turn off after a period of inactivity to conserve battery life.

4. Pengurusan Kuasa

The integrated solar panel continuously charges the keyboard's internal battery when exposed to light. For optimal battery life, ensure the solar panel is not obstructed. The keyboard is designed to enter a low-power sleep mode after a period of inactivity to conserve energy. Press any key to wake it up.

Penyelenggaraan

1. Membersihkan Papan Kekunci

To clean your keyboard, power it off first. Use a soft, lint-free cloth slightly dampened with water or a mild, non-abrasive cleaning solution. Avoid spraying liquids directly onto the keyboard. For cleaning between keys, use compressed air or a soft brush. Do not use harsh chemicals or abrasive materials.

2. Antimicrobial Protection

The Targus EcoSmart Keyboard features an antimicrobial coating designed to inhibit the growth of microorganisms. To maintain its effectiveness, clean the keyboard regularly as described above. Avoid scratching or damaging the surface, as this may compromise the coating.

Menyelesaikan masalah

Masalah	Penyelesaian yang Mungkin
Papan kekunci tidak bersambung melalui Bluetooth.	Pastikan papan kekunci dihidupkan dan dicas sepenuhnya. Sahkan Bluetooth didayakan pada peranti anda. Letakkan papan kekunci ke dalam mod berpasangan sekali lagi. Remove previous pairings of the keyboard from your device's Bluetooth settings and try pairing again. Mulakan semula peranti anda.
Kunci tidak bertindak balas.	Check if the keyboard is connected to your device. Ensure the keyboard has sufficient power; expose it to light for charging. Cuba sambungkan semula sambungan Bluetooth. Uji papan kekunci pada peranti lain untuk menolak isu khusus peranti.
Backlight is not working or is dim.	Ensure the keyboard has enough battery charge. The backlight consumes power. Use the backlight control keys to adjust brightness or turn it on. The backlight may automatically turn off in low-power mode.
Battery not charging effectively.	Ensure the solar panel on the keyboard is exposed to sufficient light (direct sunlight or strong indoor light). Clean the solar panel surface to remove any dust or obstructions. Avoid placing the keyboard in shaded areas for extended periods.

Spesifikasi

model: AKB868FR
Ketersambungan: Bluetooth 5.0
Jenis Suis Kekunci: Scissors Key
Susun atur: QWERTY (French)
Sumber Kuasa: Berkuasa Suria
Perlindungan Antimikrob: ya
Lampu latar: ya
Sistem Operasi yang Serasi: Chrome OS®, Windows®, macOS®, iPadOS®, iOS®, Android™
Bahan: plastik
warna: Plain (Black)

Waranti dan Sokongan

Targus products are backed by a limited warranty. For detailed warranty information, product registration, and technical support, please visit the official Targus website or contact your local Targus customer service. Keep your proof of purchase for warranty claims.

Targus Official Webtapak: www.targus.com
