Volkano Cyclone Series Portable Bluetooth Speaker User Manual

pengenalan

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Volkano Cyclone Series Portable Bluetooth Speaker. Please read this guide thoroughly before using the product to ensure proper function and longevity.

Maklumat Keselamatan

• Jangan dedahkan pembesar suara kepada suhu yang melampau, cahaya matahari langsung atau kelembapan yang tinggi.
• Keep the speaker away from water and liquids. This product is not water-resistant.
• Jangan cuba membuka atau mengubah suai pembesar suara. Ini boleh membatalkan jaminan dan menyebabkan kerosakan.
• Gunakan hanya volum pengecasan yang dinyatakantage (5V DC, 1A) to prevent damage to the battery and speaker.
• Jauhkan daripada kanak-kanak.

Kandungan Pakej

Pastikan semua item ada dalam pakej:

• Volkano Cyclone Series Portable Bluetooth Speaker
• Kabel Pengecas USB
• Kabel Auxiliary
• Manual Pengguna

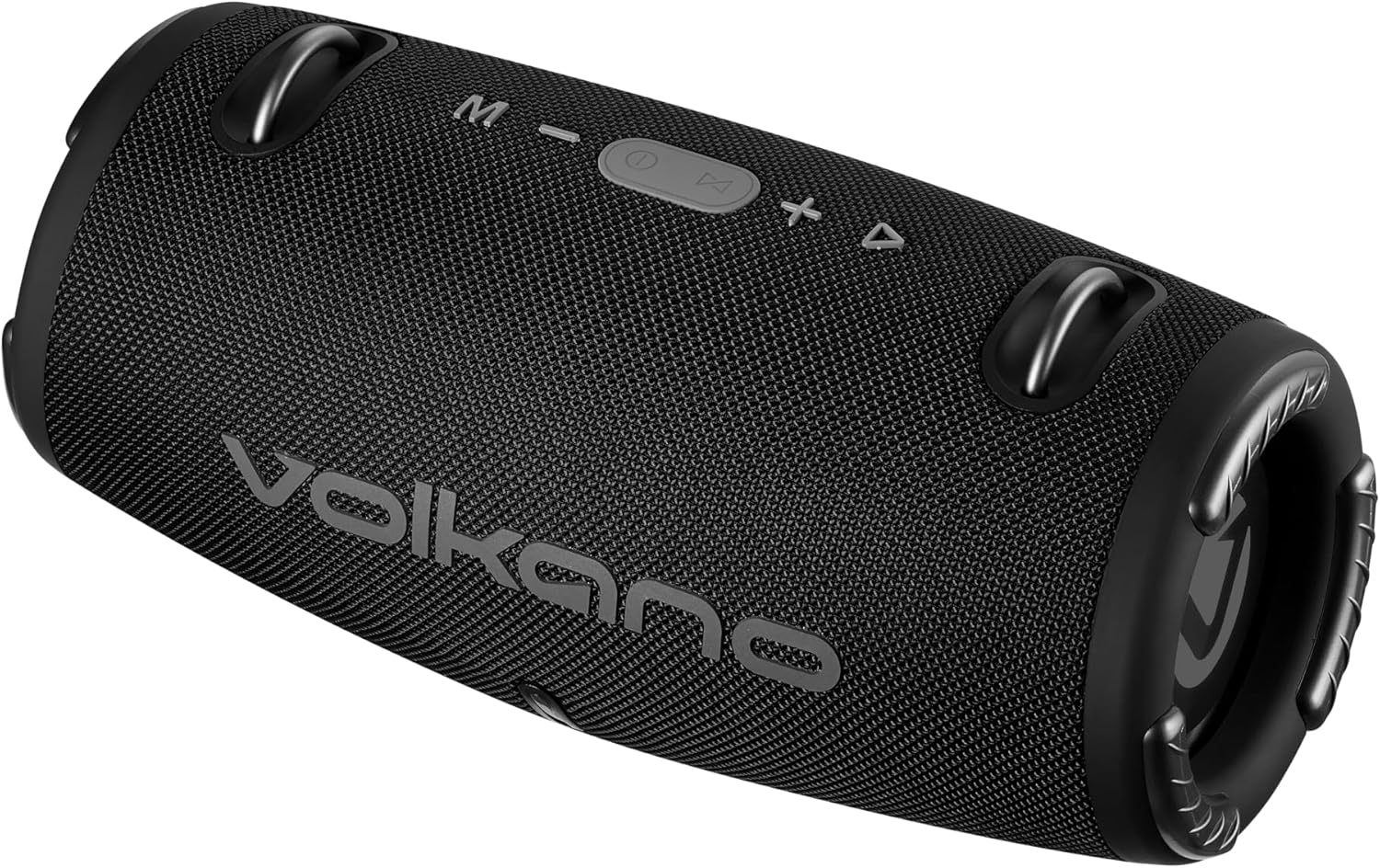

Imej: Depan view of the Volkano Cyclone Series Portable Bluetooth Speaker, showing the Volkano logo and control buttons on top.

Produk Selesaiview

Biasakan diri anda dengan komponen dan kawalan pembesar suara.

Panel Kawalan

Imej: Atas view of the speaker, highlighting the control buttons: Mode (M), Volume Down (-), Play/Pause/Call (Power button), Volume Up (+), and Track Skip (triangle).

1. Butang M (Mod): Tekan untuk bertukar antara mod Bluetooth, Radio FM, USB dan AUX.
2. - (Volume Down) Button: Press to decrease volume. Hold to go to the previous track.
3. Butang Main/Jeda/Panggil: Press to play or pause music. Press to answer or end calls. Hold to power on/off.
4. + (Volume Up) Button: Press to increase volume. Hold to go to the next track.
5. Penunjuk LED: Shows charging status and Bluetooth pairing status.

Pelabuhan dan Sambungan

Imej: Belakang view of the speaker, showing the covered input ports for charging, USB, and AUX connections.

• Port Pengecasan DC 5V: Untuk mengecas pembesar suara menggunakan kabel USB yang disediakan.
• Port USB: Untuk memainkan muzik daripada pemacu kilat USB.
• Input AUX: For connecting external audio devices via a 3.5mm auxiliary cable.

Persediaan

Mengecas Speaker

1. Connect the USB charging cable to the DC 5V port on the speaker.
2. Connect the other end of the USB cable to a compatible USB power adapter (5V DC, 1A output) or a computer's USB port.
3. The LED indicator will illuminate to show charging status. Charging takes approximately 3.5 hours.
4. Once fully charged, the LED indicator will change (e.g., turn off or change color). Disconnect the charging cable.

Menghidupkan/Mematikan

• To power on, press and hold the Play/Pause/Call button until you hear an audible prompt.
• To power off, press and hold the Play/Pause/Call button until you hear an audible prompt and the LED indicator turns off.

Arahan Operasi

Berpasangan Bluetooth

1. Ensure the speaker is powered on and in Bluetooth mode (indicated by a flashing LED). If not, press the 'M' button to switch modes.
2. Enable Bluetooth on your smartphone or tablet (e.g., Android, iPhone).
3. Cari untuk peranti Bluetooth yang tersedia.
4. Select "Volkano Cyclone" (or similar name) from the list.
5. Once paired, the LED indicator will stop flashing and remain solid, and you will hear a confirmation sound.
6. You can now play audio from your device through the speaker. The speaker has a wireless range of up to 10 meters.

Bermain Muzik

• Mod Bluetooth: After pairing, play music directly from your connected device.
• Mod USB: Insert a USB flash drive into the USB port. The speaker will automatically switch to USB mode and begin playing music.
• Mod AUX: Connect an external audio device (e.g., MP3 player) to the AUX input using a 3.5mm audio cable. Press the 'M' button to switch to AUX mode.
• Mod Radio FM: Press the 'M' button to switch to FM Radio mode. Use the Play/Pause button to auto-scan for stations. Use the +/- buttons to change stations.

Kawalan Isipadu dan Jejak

• Pelarasan Kelantangan: Tekan butang '+' untuk meningkatkan kelantangan, dan butang '-' untuk mengurangkan kelantangan.
• Lagu Seterusnya: Hold the '+' button.
• Trek Sebelumnya: Hold the '-' button.
• Main/Jeda: Press the Play/Pause/Call button.

Panggilan Bebas Tangan

• Apabila panggilan masuk semasa disambungkan melalui Bluetooth, muzik akan berhenti seketika.
• Press the Play/Pause/Call button to answer the call.
• Press the Play/Pause/Call button again to end the call.
• The speaker also supports voice control, allowing you to manage calls or music playback through voice commands if your connected device supports it.

Penyelenggaraan

• Bersihkan pembesar suara dengan kain lembut dan kering. Jangan gunakan pembersih atau pelarut yang melelas.
• Simpan pembesar suara di tempat yang sejuk dan kering apabila tidak digunakan untuk tempoh yang lama.
• Elakkan daripada menjatuhkan atau menundukkan pembesar suara kepada impak yang kuat.
• Cas bateri dengan kerap, walaupun tidak kerap digunakan, untuk mengekalkan kesihatan bateri.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

This Volkano Cyclone Series Portable Bluetooth Speaker comes with a Waranti Terhad.

For warranty claims, technical support, or further inquiries, please contact the manufacturer, SMD TECHNOLOGIES, or your local retailer. Keep your proof of purchase for warranty validation.
