pengenalan
Thank you for choosing the Vente-unique Kayla Single Basin Vanity Unit. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.
This wall-mounted vanity unit features a single basin, two soft-close drawers, and is designed for modern bathroom spaces. It is constructed from MDF with a laminated finish.
Maklumat Keselamatan
AMARAN: This product must be securely fixed to the wall to reduce the risk of tipping. Failure to do so can result in serious injury.
- Always follow the assembly instructions precisely.
- Exercise caution when handling components, as some may have sharp edges.
- Jauhkan bahagian kecil daripada kanak-kanak semasa pemasangan untuk mengelakkan bahaya tercekik.
- Ensure all fittings are tightened securely, but do not overtighten.
- If you are unsure about any part of the assembly or installation, seek professional assistance.
- Do not stand on or climb on the unit.
Kandungan Pakej
Before starting assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- 1 x Kayla Single Basin Vanity Unit (components for self-assembly)
- Assembly hardware kit (screws, dowels, brackets, etc.)
- Manual arahan
Nota: Faucet and drain assembly are not included with this vanity unit.
Persediaan dan Perhimpunan
This product requires self-assembly. Please ensure you have adequate space and the necessary tools before beginning. Two people are recommended for assembly and installation.
Alat yang Diperlukan (Tidak Termasuk):
- Pemutar skru kepala Phillips
- Pemutar skru kepala rata
- Drill with appropriate drill bits for wall mounting
- Tahap
- Pita pengukur
- Pensel
- Cermin mata keselamatan
Langkah Perhimpunan:
- Buka bungkus dan Kenalpasti Bahagian: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Refer to the parts list in your included manual to identify each piece.
- Pasang Rangka Kabinet: Follow the diagrams in your manual to connect the side panels, bottom panel, and back panel using the provided hardware. Ensure all connections are secure.
- Pasang Slaid Laci: Attach the drawer slides to the inside of the cabinet frame according to the instructions. Ensure they are level and aligned.
- Pasang Laci: Construct the two drawers, attaching the soft-close mechanisms as specified. Insert the assembled drawers into the cabinet frame to test their function.
- Sediakan untuk Pemasangan Dinding: Determine the desired height and location for the vanity unit. Use a level and measuring tape to mark the drilling points on the wall for the mounting brackets. Ensure the wall can support the weight of the unit and its contents.
- Lekapkan Unit: Drill pilot holes at the marked locations. Secure the wall mounting brackets to the wall using appropriate fasteners for your wall type (e.g., concrete anchors, wood studs). Carefully lift the vanity unit and attach it to the wall brackets, ensuring it is level and securely fastened.
- Install the Basin: Place the ceramic basin onto the top of the vanity unit. Apply a silicone sealant around the edges of the basin where it meets the cabinet to prevent water ingress.
- Sambung Paip: Connect the water supply lines and drain to the basin and your home's plumbing system. Ensure all connections are watertight. (Professional plumbing installation is recommended).

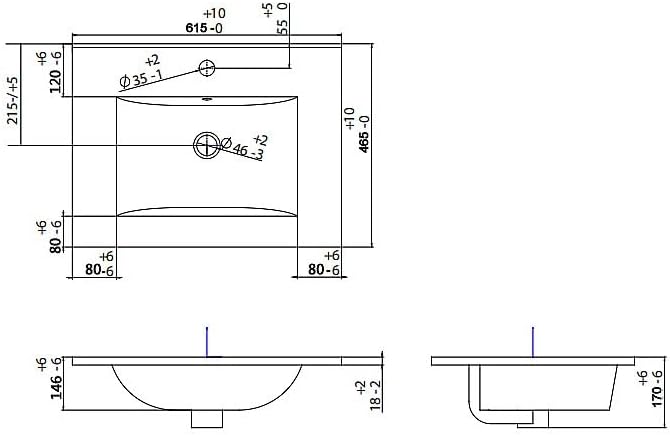

Image: Technical drawing showing the dimensions and layout for the basin and unit. This diagram provides critical measurements for installation, including length, width, height, and plumbing cut-out locations.
Imej: Depan view of the Vente-unique Kayla Single Basin Vanity Unit, showcasing the integrated basin, two drawers, and a modern faucet. This image illustrates the assembled product.
Arahan Operasi
The Vente-unique Kayla Single Basin Vanity Unit is designed for daily use in a bathroom environment.
- Penggunaan Laci: The unit features two soft-close drawers. To open, gently pull the handle. To close, push the drawer in; the soft-close mechanism will engage to ensure a quiet and smooth closure. Avoid forcing the drawers.
- Storan: Use the drawers for storing bathroom essentials. Do not overload the drawers or place excessively heavy items in them, as this may damage the slides or the unit structure.
- Basin gunakan: The ceramic basin is designed for standard bathroom use. Ensure the faucet is properly installed and functioning to prevent leaks.
Imej: Jarak dekat view of the Vente-unique Kayla Single Basin Vanity Unit, highlighting the white ceramic sink and the sleek handles of the two soft-close drawers. This image demonstrates the functional elements.
Penyelenggaraan dan Penjagaan
Proper care will ensure the longevity and appearance of your vanity unit.
- Membersihkan Unit: Wipe the unit surfaces with a dry cloth regularly to remove dust. For deeper cleaning, use a soft, damp cloth with a mild, non-abrasive cleaner. Immediately wipe dry to prevent water damage.
- Membersihkan Basin: Clean the ceramic basin with standard bathroom cleaners. Avoid abrasive pads or harsh chemicals that could scratch the surface.
- Elakkan Kelembapan: While designed for bathrooms, excessive moisture can damage the MDF. Promptly wipe up any spills or splashes. Ensure good ventilation in the bathroom.
- Semak Kelengkapan: Periksa semua skru dan kelengkapan secara berkala untuk memastikan ia kekal ketat. Ketatkan semula jika perlu, tetapi jangan terlalu ketat.
- Elakkan Haba Langsung: Do not place hot items directly on the unit's surface without protection.
Menyelesaikan masalah
If you encounter any issues with your vanity unit, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Laci tidak ditutup dengan lancar atau kaku. | Slaid laci tidak sejajar; serpihan dalam slaid; laci terlebih muatan. | Check alignment of drawer slides and adjust if necessary. Clean slides. Reduce drawer contents. |
| Unit berasa tidak stabil atau goyah. | Wall mounting not secure; loose assembly screws. | Ensure wall mounting brackets are firmly attached to a suitable wall structure. Tighten all assembly screws. |
| Water leaks from basin or plumbing. | Loose plumbing connections; inadequate sealant around basin. | Check and tighten all plumbing connections. Reapply silicone sealant around the basin if needed. Consult a plumber if leaks persist. |
| Permukaan calar atau kerosakan kecil. | Pembersihan kesan atau kasar. | For minor scratches, touch-up pens or furniture repair kits may be used. Prevent future damage by using soft cloths and avoiding abrasive materials. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nama Model | Kayla |
| ASIN | B0CVF35YS4 |
| Dimensi (L x W x H) | 60 cm x 45 cm x 47 cm |
| bahan | MDF (Medium-Density Fibreboard) |
| Selesai | Berlamina |
| warna | putih |
| Bilangan Laci | 2 |
| Mekanisme Laci | Lembut-rapat |
| Jenis Pemasangan | Wall-mounted (suspended) |
| Faucet Termasuk | Tidak |
| Perhimpunan Diperlukan | ya |
| Berat Barang | 33.5 kg |
| Arahan Penjagaan | Lap dengan kain kering |
| Negara Asal | Perancis |
Maklumat Waranti
Specific warranty details for the Vente-unique Kayla Single Basin Vanity Unit are typically provided at the point of purchase or within the product packaging. Please refer to your purchase documentation for information regarding warranty coverage, terms, and conditions. In general, Vente-unique products are manufactured in Europe and adhere to quality standards.
Sokongan Pelanggan
For assistance with assembly, missing parts, or any other inquiries regarding your Vente-unique Kayla Single Basin Vanity Unit, please contact the retailer or Vente-unique customer service directly. Contact information can usually be found on the Vente-unique webtapak atau invois pembelian anda.
When contacting support, please have your model name (Kayla) and ASIN (B0CVF35YS4) readily available.
