1. Pengenalan
This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your NorthStar c5500 Commercial-Grade Portable Generator, Model 1654400. This generator is designed to provide reliable portable power with 5500 surge watts and 4500 rated watts. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.
Rajah 1: NorthStar c5500 Commercial-Grade Portable Generator. This image shows the overall design of the generator, including its frame, wheels, and control panel.
2. Maklumat Keselamatan
Operating a generator safely is paramount. Failure to follow safety instructions can result in serious injury or death. Always operate the generator in a well-ventilated area to prevent carbon monoxide poisoning. Keep children and pets away from the generator during operation.
2.1 Keselamatan Karbon Monoksida (CO)
This generator is equipped with a Carbon Monoxide detection system that automatically shuts down the engine if CO levels become unsafe. Never operate the generator indoors, in a garage, or in any enclosed space. Ensure exhaust fumes are directed away from occupied areas.

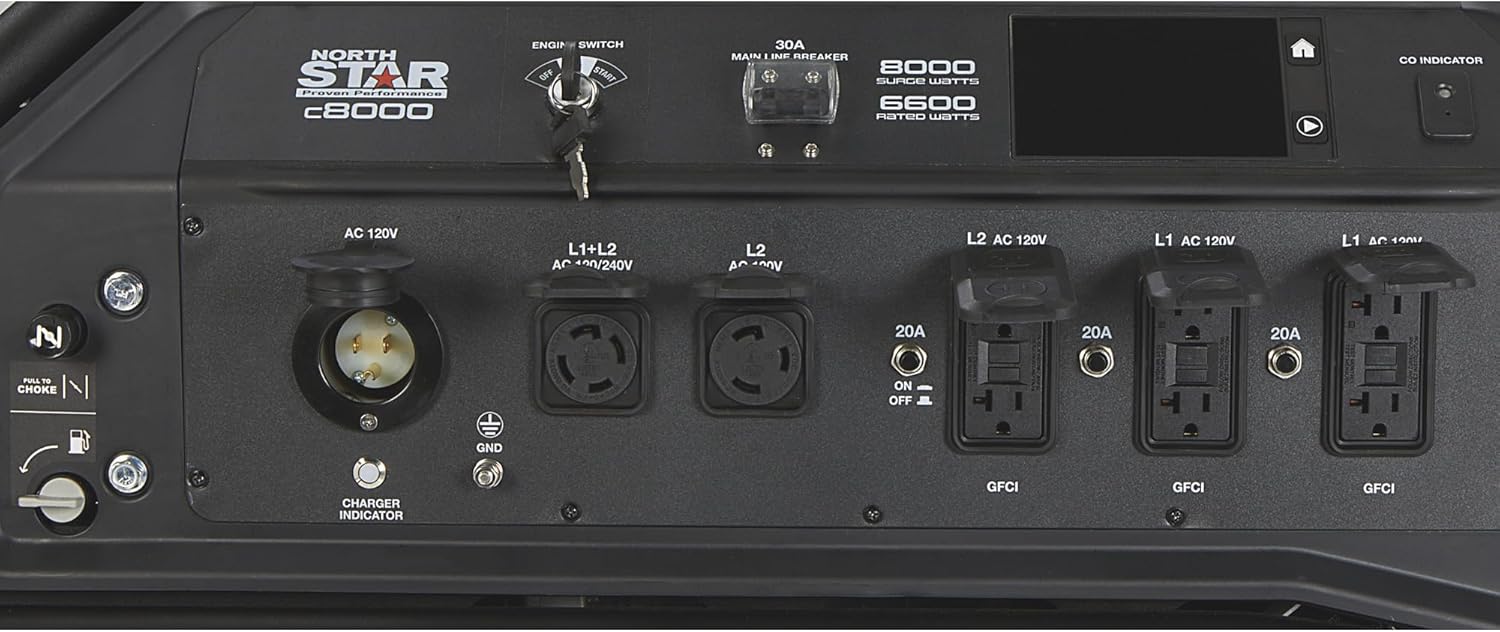

Rajah 2: Carbon Monoxide (CO) Indicator. This close-up shows the CO indicator light and sensor on the generator's control panel, which signals the presence of dangerous CO levels.
2.2 Keselamatan Elektrik
- Ensure all connected appliances and extension cords are in good condition and rated for the generator's output.
- Jangan bebankan penjana.
- All outlets are GFCI (Ground Fault Circuit Interrupter) protected for enhanced safety, especially in damp syarat.
- Never connect the generator directly to a building's electrical system without a transfer switch installed by a qualified electrician. This can cause backfeeding and electrocute utility workers.
2.3 Keselamatan Bahan Api
- Gasoline is highly flammable. Store fuel in approved containers in a well-ventilated area away from ignition sources.
- Never refuel a hot or running engine. Allow the generator to cool down before adding fuel.
- Avoid spilling fuel. If spilled, wipe it up immediately and ensure fumes dissipate before starting the generator.
3. Komponen Selesaiview
Familiarize yourself with the various parts of your NorthStar c5500 generator before operation.
Rajah 3: Key Features and Components. This diagram highlights important parts of the generator, including the control panel, outlets, engine, and frame structure.
3.1 Panel Kawalan
The control panel houses the main operational controls and indicators.
Rajah 4: Generator Control Panel. This image provides a detailed view of the control panel, showing the engine switch, main line breaker, various AC outlets, and the LCD display.
- Suis Mesin: Digunakan untuk menghidupkan dan mematikan enjin.
- Main Line Breaker: Melindungi penjana daripada beban lampau.
- Cawangan AC: Includes (6) 120V, 20A GFCI outlets, (1) 120V, 30A locking outlet, and (1) 120/240V, 60A outlet.
- Paparan LCD: Provides operational information such as hours of use, maintenance reminders (spark plug, oil, air filter), and CO sensor status.
- CO Indicator: Alerts to dangerous carbon monoxide levels.
4. Persediaan dan Pemasangan
Sebelum penggunaan pertama, beberapa pemasangan dan penyediaan diperlukan.
4.1 Unpacking and Wheel Kit Installation
- Keluarkan penjana dengan berhati-hati dari bungkusannya.
- Attach the wheels to the generator frame using the provided hardware. Ensure they are securely fastened.
- Install the handle kit for portability.
4.2 Menambah Minyak Enjin
- The generator is shipped without engine oil. Add the recommended type and amount of oil (refer to the specifications section for details) before starting.
- Letakkan penjana pada permukaan yang rata.
- Tanggalkan penutup isi minyak/dipstick.
- Slowly pour oil into the engine until it reaches the upper mark on the dipstick. Do not overfill.
- Gantikan penutup isi minyak/dipstick dengan selamat.
4.3 Menambah Bahan Api
- Gunakan petrol tanpa plumbum segar dengan penarafan oktana 87 atau lebih tinggi.
- Ensure the generator is turned off and cool before refueling.
- Open the fuel cap and slowly add fuel to the tank. Do not fill above the red indicator line or the bottom of the filler neck.
- Tutup penutup bahan api dengan kemas.
5. Operasi
Ikuti langkah ini untuk memulakan dan mengendalikan penjana anda dengan selamat.
5.1 Menghidupkan Enjin
- Ensure the generator is on a level surface and in a well-ventilated outdoor area.
- Periksa paras minyak dan bahan api.
- Putar injap bahan api ke kedudukan "ON".
- If the engine is cold, move the choke lever to the "CHOKE" position.
- Insert the key into the engine switch and turn it to the "START" position. Release the key once the engine starts.
- Once the engine warms up (a few seconds), gradually move the choke lever to the "RUN" position.
Rajah 5: Engine Switch and Electric Start. This image shows the key-operated engine switch, which facilitates convenient electric starting of the generator.
5.2 Menyambungkan Beban Elektrik
- Allow the engine to run for a few minutes before connecting any electrical devices.
- Plug in appliances or extension cords to the appropriate outlets.
- Jangan melebihi kuasa yang dianggarkan oleh penjanatage (4500 watts running, 5500 watts surge).
- Monitor the LCD display for load information and maintenance reminders.

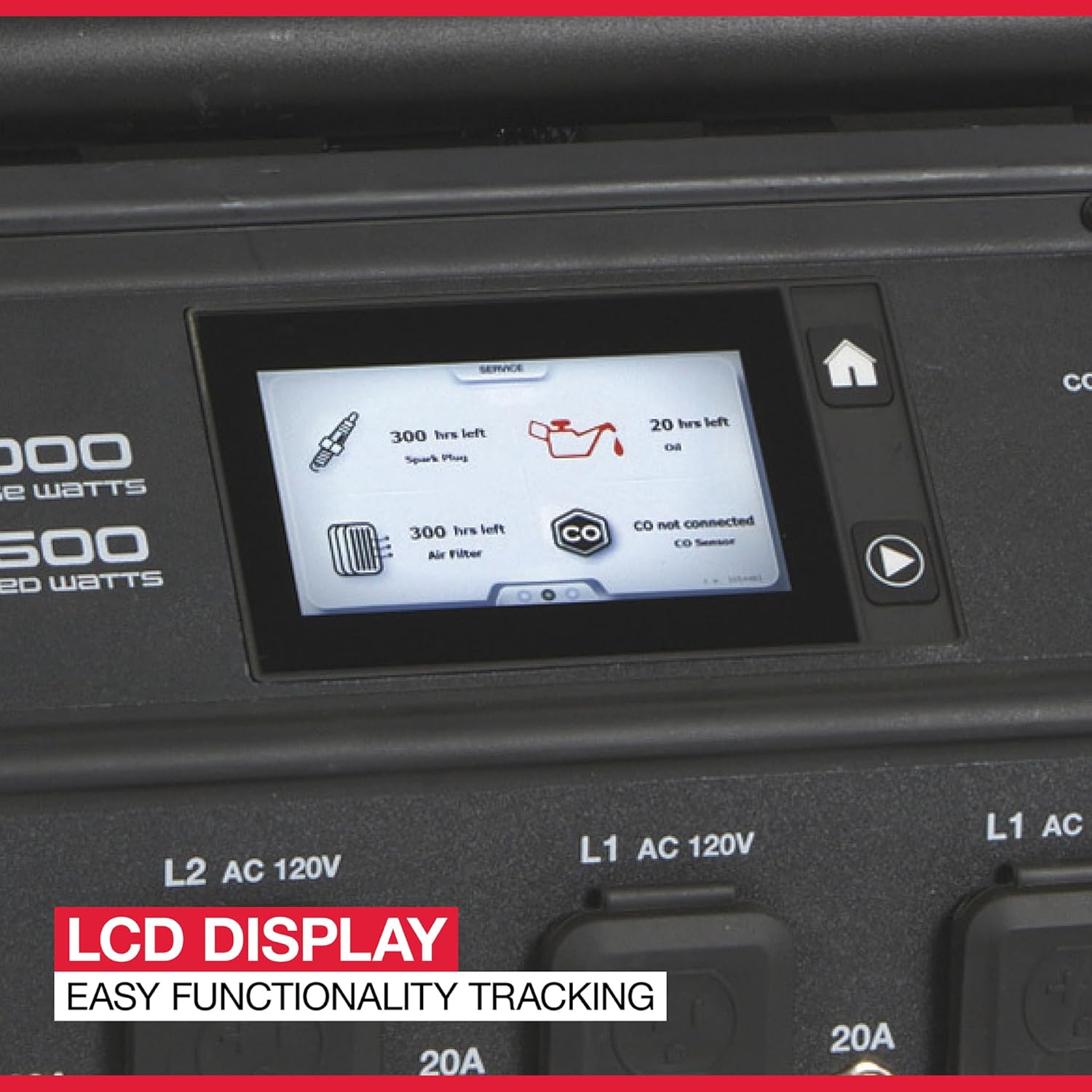

Rajah 6: LCD Display. This close-up shows the generator's LCD display, which provides real-time information on engine hours, maintenance intervals for spark plug, oil, and air filter, and CO sensor status.
5.3 Menghentikan Enjin
- Putuskan sambungan semua beban elektrik daripada penjana.
- Benarkan penjana berjalan selama beberapa minit tanpa beban menjadi sejuk.
- Putar suis enjin ke kedudukan "OFF".
- Putar injap bahan api ke kedudukan "MATI" untuk penyimpanan.
6. Penyelenggaraan
Regular maintenance ensures optimal performance and extends the life of your generator. Always perform maintenance with the engine off and cool.
6.1 Jadual Penyelenggaraan
| item | Selang waktu | Tindakan |
|---|---|---|
| Minyak Enjin | Setiap 50 jam atau setiap tahun | Check level before each use, change oil. |
| Penapis Udara | Setiap 100 jam atau setiap tahun | Inspect and clean/replace if necessary. |
| Palam Pencucuh | Setiap 300 jam atau setiap tahun | Inspect, clean, and adjust gap. Replace if worn. |
| Penapis Bahan Api | Setiap tahun atau mengikut keperluan | Inspect and replace if clogged. |
6.2 Penyimpanan
- For extended storage, drain the fuel tank and carburetor, or use a fuel stabilizer.
- Tukar minyak enjin.
- Bersihkan bahagian luar penjana.
- Store in a clean, dry area away from direct sunlight and extreme temperatures.
7. Penyelesaian masalah
Bahagian ini menyediakan penyelesaian kepada isu operasi biasa. Untuk masalah yang tidak disenaraikan di sini, hubungi khidmat pelanggan.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Enjin tidak akan dihidupkan | No fuel; Low oil; Choke not set; Engine switch off; Faulty spark plug | Add fuel; Add oil; Adjust choke; Turn engine switch to START; Inspect/replace spark plug |
| Tiada output kuasa | Circuit breaker tripped; Overload; GFCI tripped | Reset circuit breaker; Reduce load; Reset GFCI outlets |
| Enjin berjalan kasar | Bahan api basi; Penapis udara tersumbat; Palam pencucuh kotor | Drain and replace fuel; Clean/replace air filter; Clean/replace spark plug |
| CO sensor shutdown | High carbon monoxide levels | Move generator to a more open, well-ventilated area. Ensure exhaust is directed away from people and buildings. |
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | NorthStar |
| Nombor Model | 1654400 |
| Jenis Enjin | Honda GX270 OHV |
| Anjakan Enjin | 270 Sentimeter Kubik |
| Memulakan Wattage | 5500 Watt |
| Lari Wattage | 4500 Watt |
| Jenis Bahan Api | petrol |
| Isipadu Tangki | 21.6 Liter |
| Jumlah Outlet Kuasa | (6) 120V, 20A GFCI; (1) 120V, 30A locking; (1) 120/240V, 60A |
| Dimensi Produk (L x W x H) | 41" x 32" x 29" |
| Berat Barang | 246 paun |
| Ciri Khas | Quiet Armor Technology, CO Detection, GFCI Outlets, Portable |
9. Maklumat Waranti
The NorthStar c5500 Commercial-Grade Portable Generator (Model 1654400) comes with a warranty of 4 years for consumer use dan 2 years for commercial use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or visit the official NorthStar webtapak.
10. Sokongan Pelanggan
If you require assistance, have questions about your generator, or need to order replacement parts, please contact NorthStar customer support. You can typically find contact information on the NorthStar website or in the documentation provided with your generator.
