Manual Arahan Khemah Marquee PVC DELTA 30'x20'

1. Pengenalan

This manual provides detailed instructions for the safe and efficient assembly, operation, and maintenance of your DELTA 30'x20' PVC Marquee Tent. Designed for outdoor events, this tent offers a spacious and protected environment. Please read these instructions thoroughly before attempting assembly or use.

2. Maklumat Keselamatan

This product is constructed from fire-retardant PVC material and is both waterproof and UV-resistant. Proper setup and anchoring are critical to ensure stability and safety in various weather conditions. Always follow manufacturer instructions for safe use and dismantling. Failure to do so may result in damage to the tent or injury.

• Ensure the tent is securely anchored to the ground using all provided stakes and ropes.
• Do not assemble or use the tent in severe weather conditions, including strong winds, heavy rain, or snow.
• Jauhkan semua nyalaan dan sumber haba daripada fabrik khemah.
• Always supervise children around the tent.
• Regularly inspect all components for wear or damage. Do not use if damaged.

3. Kandungan Pakej

Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Galvanized Steel Frame Components (poles, connectors)
• PVC Top Cover (Fire-Retardant, Waterproof, UV-Resistant)
• Removable Window Walls
• Heavy-Duty Corner Stakes
• Roof Bar Supports
• Roof Tension Wires
• Storage Bags (6 units for cover, walls, poles, and accessories)

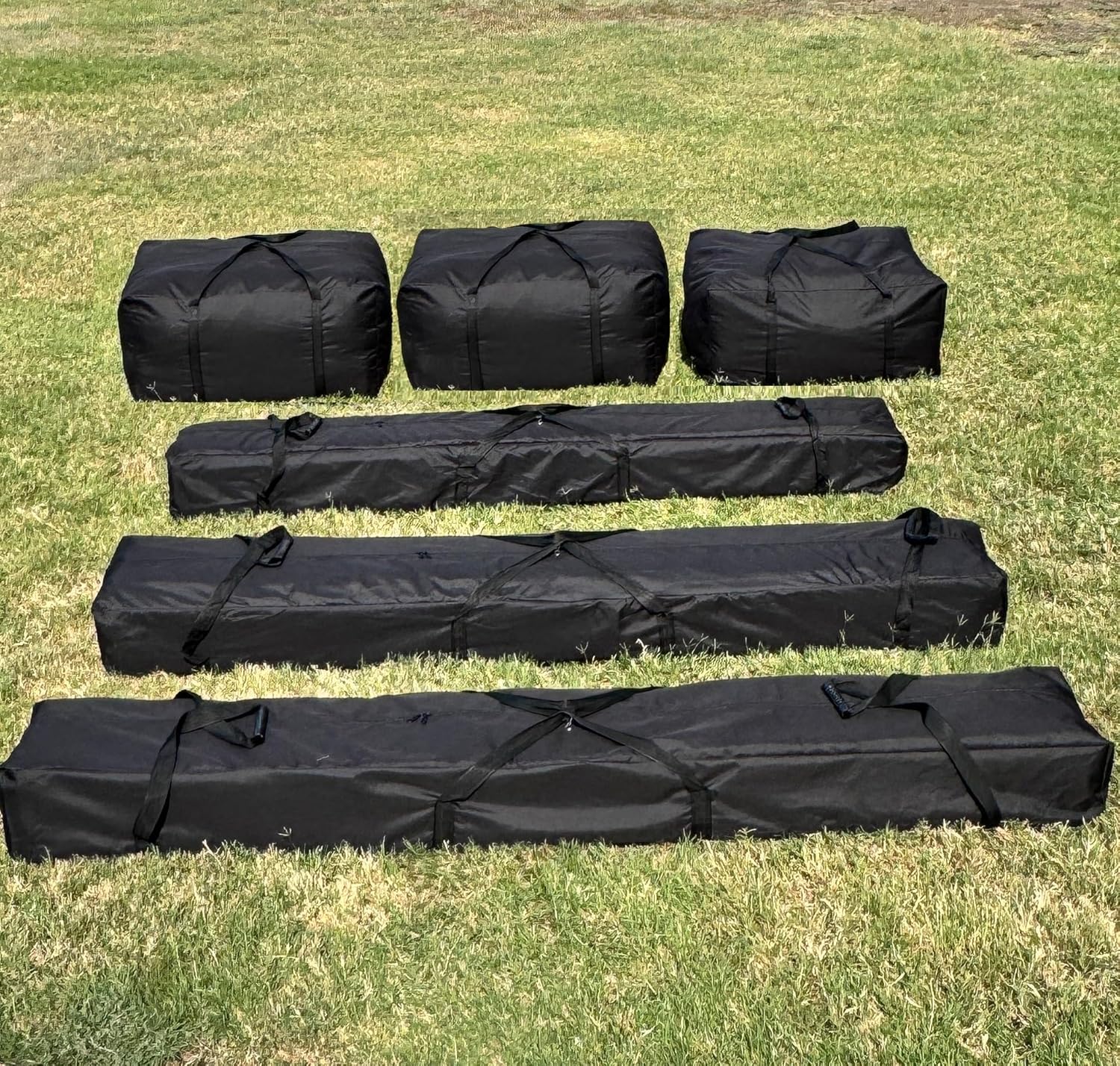

Image: Six black storage bags for organizing and transporting the tent's various components, including the top cover, walls, poles, and accessories.

4. Arahan Persediaan

Assembly requires a minimum of 3-4 people due to the size and weight of the components. Choose a flat, clear area for setup.

4.1 Pemasangan Bingkai

1. Unpack all galvanized steel frame components and lay them out according to their labels.
2. Begin by connecting the base poles to form the rectangular footprint of the tent.
3. Attach the vertical support poles to the base frame.
4. Assemble the roof structure by connecting the roof bars and ridge poles. Ensure all connections are secure.
5. Install the roof bar supports and roof tension wires to enhance structural integrity.

Image: The fully assembled galvanized steel frame of the marquee tent, ready for the cover and walls.

Imej: A terperinci view of a galvanized steel frame connection point, showing the secure attachment of poles and tension wires for added stability.

4.2 Cover and Wall Installation

1. Carefully drape the PVC top cover over the assembled roof frame. Ensure it is centered and evenly distributed.
2. Secure the top cover to the frame using the integrated fastening mechanisms.
3. Attach the removable window walls to the perimeter of the tent frame. These can be installed or removed based on weather conditions and desired airflow.
4. Ensure all wall panels are properly zipped or fastened to prevent gaps.

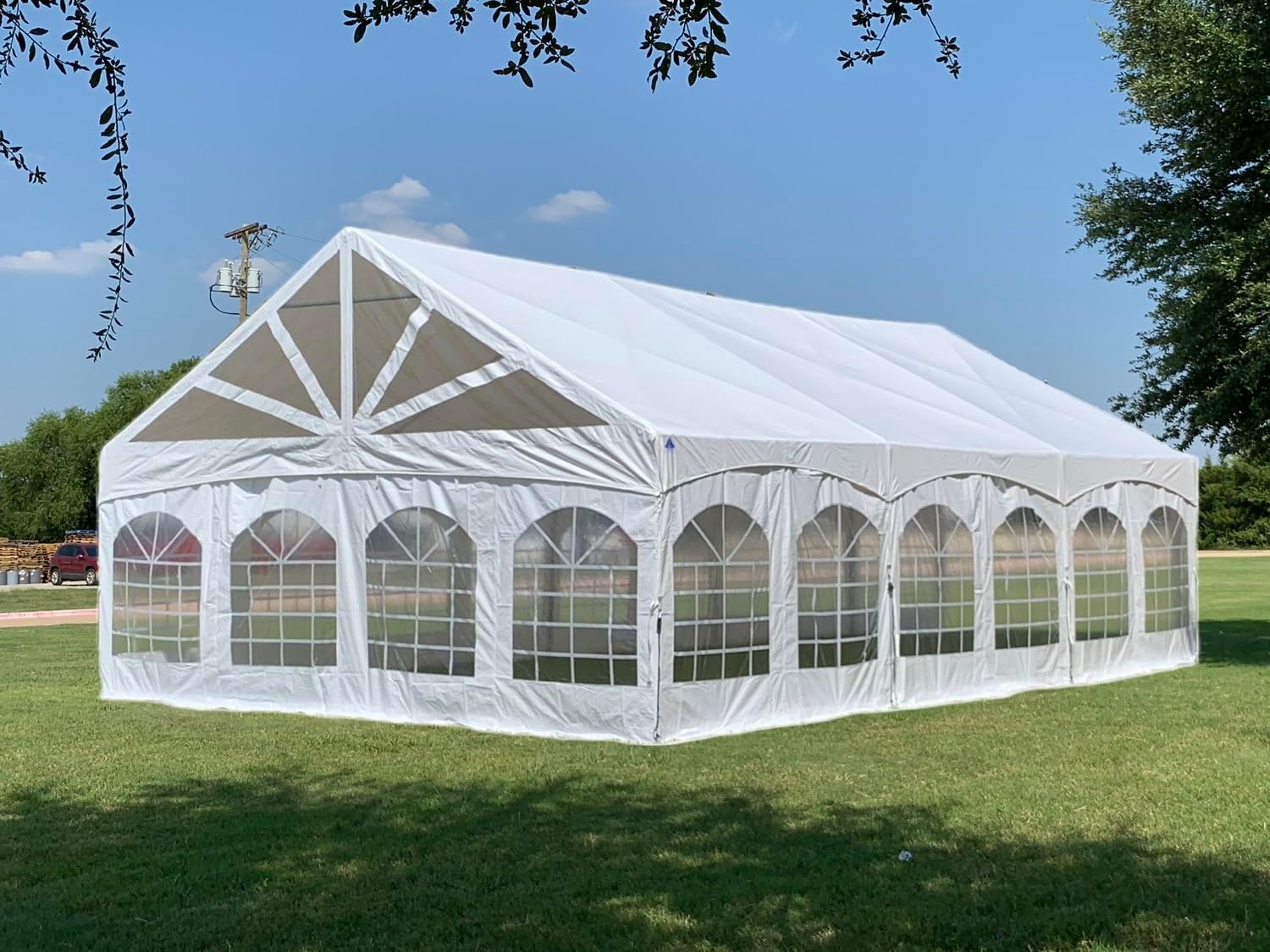

Image: The DELTA 30'x20' PVC Marquee Tent fully assembled with its white PVC top cover and transparent window walls, set up on a grassy outdoor area.

4.3 Berlabuh

1. Drive the heavy-duty corner stakes into the ground at each corner and along the sides of the tent's base frame.
2. Attach guy ropes from the tent frame to the stakes, ensuring they are taut and evenly tensioned.
3. Verify that all anchoring points are secure before leaving the tent unattended.

5. Arahan Operasi

The DELTA Marquee Tent is designed for versatility and ease of use for various outdoor events.

• Keselesaan Boleh Disesuaikan: The removable window walls allow for flexible configuration. You can open them for increased airflow and an open-air feel, or keep them closed for full enclosure and protection from elements.
• Pengudaraan: When walls are closed, ensure adequate ventilation if using heating or cooling devices inside.
• Penyesuaian Cuaca: While waterproof, it is recommended to monitor weather conditions. In anticipation of strong winds or heavy precipitation, ensure all anchoring is reinforced and consider temporary dismantling if conditions are severe.

Imej: Sebelah view of the DELTA 30'x20' PVC Marquee Tent, highlighting the transparent window walls that provide natural light and views while offering protection.

6. Penyelenggaraan

Regular maintenance will extend the lifespan of your marquee tent.

• Pembersihan: Clean the PVC top cover and walls with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material. Ensure the fabric is completely dry before storage to prevent mildew.
• Pemeriksaan Bingkai: Periodically check all galvanized steel frame connections for tightness and signs of corrosion or damage. Replace any compromised parts immediately.
• Storan: When not in use, disassemble the tent and store all components in the provided storage bags in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

• Ketidakstabilan Khemah: Ensure all frame connections are fully secured and all anchoring stakes and ropes are properly installed and taut. High winds require extra vigilance and potentially additional anchoring.
• Kebocoran air: Verify that the top cover is correctly positioned and securely fastened, with no gaps. Check for any tears or punctures in the PVC material.
• Bahagian Hilang atau Rosak: If you discover missing or damaged components upon unpacking, contact customer support immediately for assistance.

8. Spesifikasi

9. Maklumat Waranti

This product typically comes with a limited warranty. Please refer to your purchase documentation or contact the seller directly for specific details regarding warranty coverage and duration. It is generally advisable to inspect all components upon receipt and report any issues within 30 days of purchase.

10. Sokongan

For technical assistance, missing parts, or any questions regarding your DELTA 30'x20' PVC Marquee Tent, please contact the seller, WPIC-Store, through the platform where the purchase was made. Provide your order number and a detailed description of the issue for prompt support.
