YITAHOME 35 Cu Ft Horizontal Outdoor Storage Shed Instruction Manual

1. Maklumat Keselamatan Penting

Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or property damage.

• Use the shed on a stable and level surface to prevent tipping.
• Secure sharp objects inside the shed to avoid accidental injury.
• Be aware of the maximum weight capacity for the shed and any optional shelves.
• Jauhkan kanak-kanak dan haiwan peliharaan dari kawasan perhimpunan.
• Do not climb on the shed.

2. Ciri-ciri Produk

• Kapasiti Storan Besar: Exterior dimensions are 50.2 inches (L) x 29.1 inches (W) x 41.3 inches (H). Interior dimensions are 47.2 inches (L) x 25.4 inches (W) x 39 inches (H), offering a 35 cubic feet capacity. Ideal for storing gardening tools, small lawn mowers, bicycles, garden furniture, and up to two small trash cans. An optional laminate shelf (48x13 inches) can be purchased separately to maximize storage.
• All-Weatherproof Design: Constructed from durable, weatherproof resin for UV protection, ensuring suitability for all-weather use. The material is easy to clean and maintain. Features an attractive wooden texture that resists fading and an innovative lid design to keep water out. The patented dual-X front enhances aesthetic appeal and structural integrity.
• Double-Wall Panels: Equipped with dual-wall resin panels, processed with advanced technology for superior wind and impact resistance. This construction prevents easy bending or puncturing, providing a secure environment for your valuable tools and equipment.
• Fungsi Serbaguna: The flip cover can be fixed in an open position using the pre-installed support rod, allowing for multiple opening directions for quick and easy access. A padlock latch (lock not included) ensures safer storage, while a step-on lock anchors the door to the floor for added convenience and security.
• Easy Assembly & Disassembly: Comes with detailed instructions for a quick 20-minute setup. The product is shipped in two crates; the outer crate may arrive in a separate shipment.

3. Arahan Perhimpunan

Follow these steps for quick and easy assembly. Refer to the assembly video for visual guidance.

3.1 Komponen Selesaiview

Ensure all parts are present before beginning assembly. Refer to the parts list in your package.

3.2 Perhimpunan Langkah demi Langkah

1. Pasang Pangkalan: Place the base panel (B) on a flat, level surface.
2. Lampirkan Panel Sisi: Connect the side panels (E, F, C, D) to the base, ensuring they snap securely into place. Use the provided plastic fasteners (10) to secure the panels together.
3. Pasang Engsel Pintu: Attach the door hinges (1) to the door panels (G, H) using screws (11). Ensure the hinges are aligned correctly for smooth door operation.
4. Pintu Gunung: Connect the assembled doors to the side panels. Secure the hinges to the side panels using screws (11).
5. Install Top Panel Hinges: Attach the top panel hinges (1) to the top panel (A) using screws (11).
6. Mount Top Panel: Connect the top panel to the rear of the shed structure. Secure the hinges to the rear panel using screws (11).
7. Install Lid Support Rod: Attach the lid support rod (5) to the inside of the top panel and the side panel as shown in the diagram. This allows the lid to stay open.
8. Attach Latches and Locks: Install the padlock latch (4) on the top panel and the step-on lock (7) on the bottom of the doors. Secure with screws (12).
9. Pemeriksaan Akhir: Ensure all connections are secure and the doors and lid open and close smoothly.

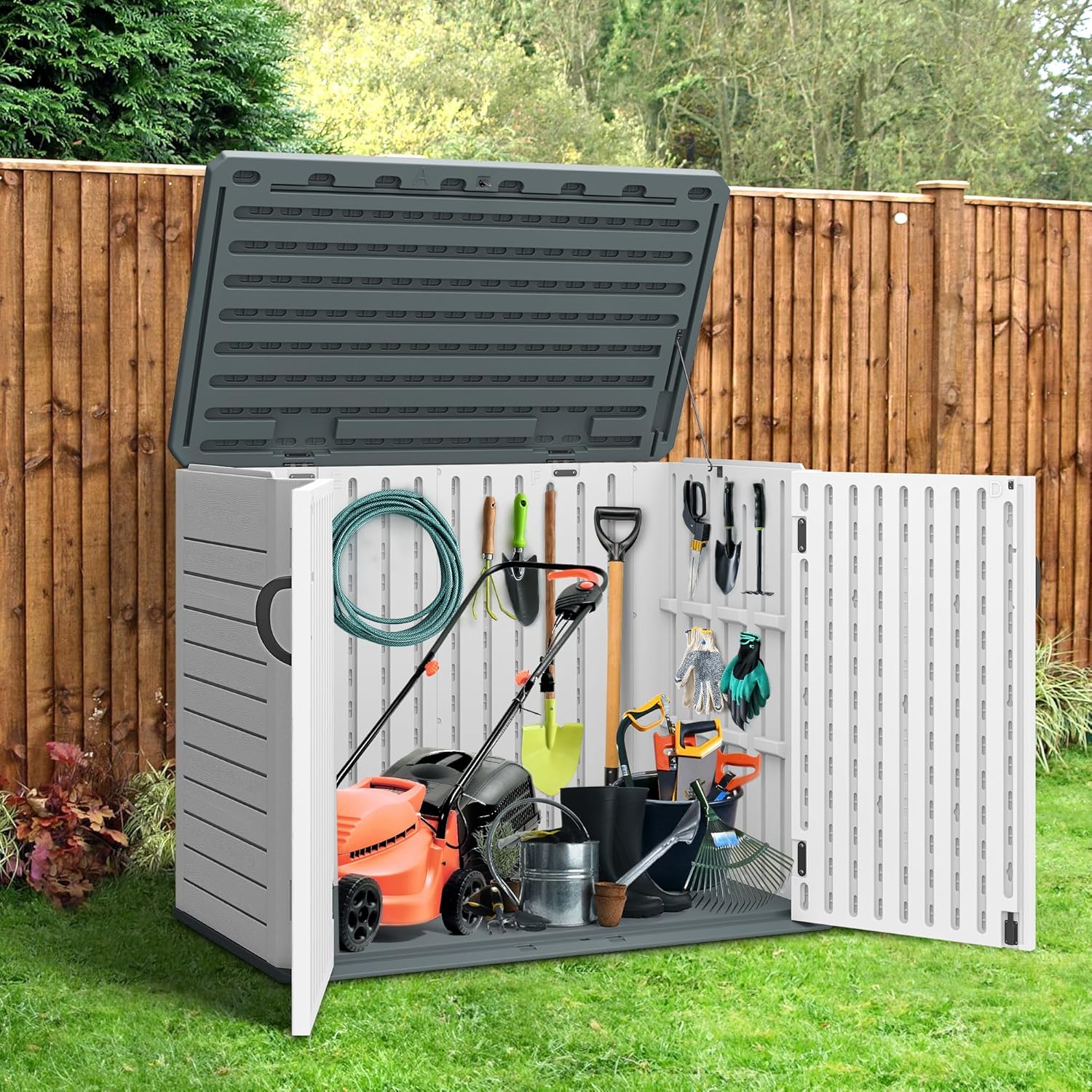

Imej: The YITAHOME 35 Cu Ft Horizontal Outdoor Storage Shed with its doors and lid fully open, showcasing a variety of garden tools and equipment neatly stored inside. The shed is situated on a green lawn with a wooden fence in the background.

Imej: A four-panel close-up view highlighting key features of the storage shed: a padlock latch for security, a step-on lock to secure the doors to the ground, a support rod to keep the lid open, and ergonomic handrails for easy opening and closing.

Imej: Sebuah dalaman view of the storage shed, emphasizing its double-layer structure. The shed is organized with various tools, including a lawnmower, toolboxes, and other garden equipment, demonstrating its robust construction and storage capabilities.

4. Arahan Operasi

• Membuka Tudung: Gently lift the lid. To keep it open, pull up the pre-installed support rod and secure it into the designated slot on the side panel.
• Menutup Tudung: Disengage the support rod from its slot and carefully lower the lid until it rests securely on the top of the doors.
• Opening the Doors: Unlatch any padlock (if installed) and release the step-on lock by pressing it upwards. Pull the door handles to open the doors.
• Closing the Doors: Push the doors closed until they meet. Engage the step-on lock by pressing it down with your foot to anchor the doors to the floor. For added security, attach a padlock to the padlock latch.
• Using Optional Shelves: If you have purchased optional shelves, ensure they are securely installed according to their separate instructions. Distribute weight evenly on shelves and within the shed.

Imej: The YITAHOME storage shed positioned in a lush garden, illustrating its versatility for various uses such as a general storage shed, a storeroom, a cover for garbage bins, or even a pet house. The image highlights its integration into an outdoor living space.

5. Penyelenggaraan dan Penjagaan

• Pembersihan: The resin material is easy to clean. Use mild soap and water with a soft cloth or sponge. Avoid abrasive cleaners or harsh chemicals that could damage the surface.
• Pemeriksaan: Periodically check all fasteners and connections to ensure they remain tight and secure. Tighten any loose screws as needed.
• Perlindungan Cuaca: While weatherproof, prolonged exposure to extreme weather conditions may affect the product's lifespan. Consider placing the shed in a partially shaded area to minimize UV exposure over time.
• Penjagaan Musim Sejuk: In areas with heavy snowfall, clear snow from the lid to prevent excessive weight accumulation.

Imej: Bahagian luar view of the storage shed, highlighting its construction features. Insets show a dual-layer structure, water cascading off the waterproof resin surface, and a hand cleaning the shed, emphasizing its durability and ease of maintenance.

6. Penyelesaian masalah

• Pintu tidak ditutup dengan betul:
  • Ensure the shed is on a level surface. Uneven ground can cause misalignment.
  • Check that all internal items are not obstructing the doors.
  • Verify that all panel connections and hinges are securely fastened.
• Lid not staying open:
  • Ensure the support rod is correctly engaged in its slot.
  • Inspect the support rod and its attachment points for any damage.
• Kebocoran air:
  • Confirm all panels are tightly connected and the lid closes completely.
  • Check for any cracks or damage to the resin panels.

7. Spesifikasi

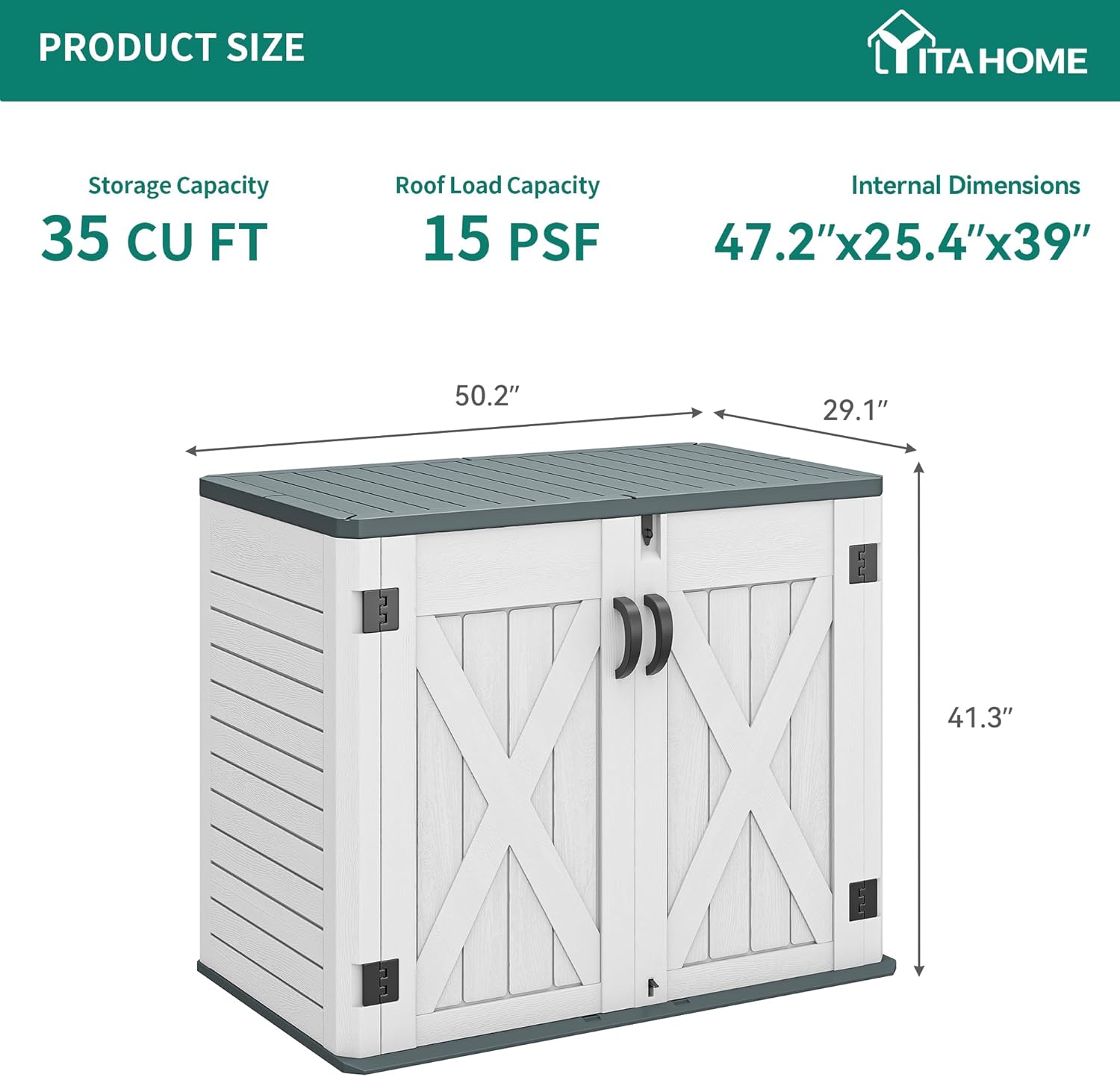

Imej: A diagram illustrating the exterior dimensions (50.2"L x 29.1"W x 41.3"H) and internal dimensions (47.2"L x 25.4"W x 39"H) of the YITAHOME 35 Cu Ft storage shed, along with its 15 PSF roof load capacity.

Imej: A visual comparison showing how the shed's color (Light Gray) may appear differently under indoor lighting (Dark Gray + Light Gray) versus outdoor lighting. A warning indicates that the actual product color may vary under different lighting or equipment.
