1. Produk Lebihview
The BAOFENG UV-17R is a versatile dual-band ham radio designed for reliable communication. It features 999 channels, a robust 1800mAh battery, USB-C charging, and an IP54 water-resistant rating. This manual provides essential information for the safe and effective use of your radio.
Rajah 1: BAOFENG UV-17R Radio Components. This image displays the front view of the radio with key components labeled, including the antenna, power/volume knob, LED indicator, flashlight button, PTT (Push-To-Talk) button, menu button, FM button, keypad, speaker, LED screen, 2-pin K jack, mic, exit button, and flashlight.
Ciri-ciri Utama:
- Operasi Dwi-Jalur: Supports UHF (420-450MHz) and VHF (144-148MHz) frequencies, plus FM radio.
- 999 Saluran: Extensive channel capacity for various communication needs.
- Pengecasan USB-C: Convenient charging via Type-C cable from multiple power sources.
- Fungsi Salinan Frekuensi: Directly copy frequencies from one radio to another without a PC.
- Amaran Cuaca NOAA: Access 10 U.S.A. NOAA weather forecast channels for alerts.
- Tahan Air IP54: Provides protection against dust and splashing water.
- Bateri 1800mAh: Extended battery life for long standby times.
- Lampu suluh terbina dalam: Strong light flashlight for illumination.
2. Persediaan

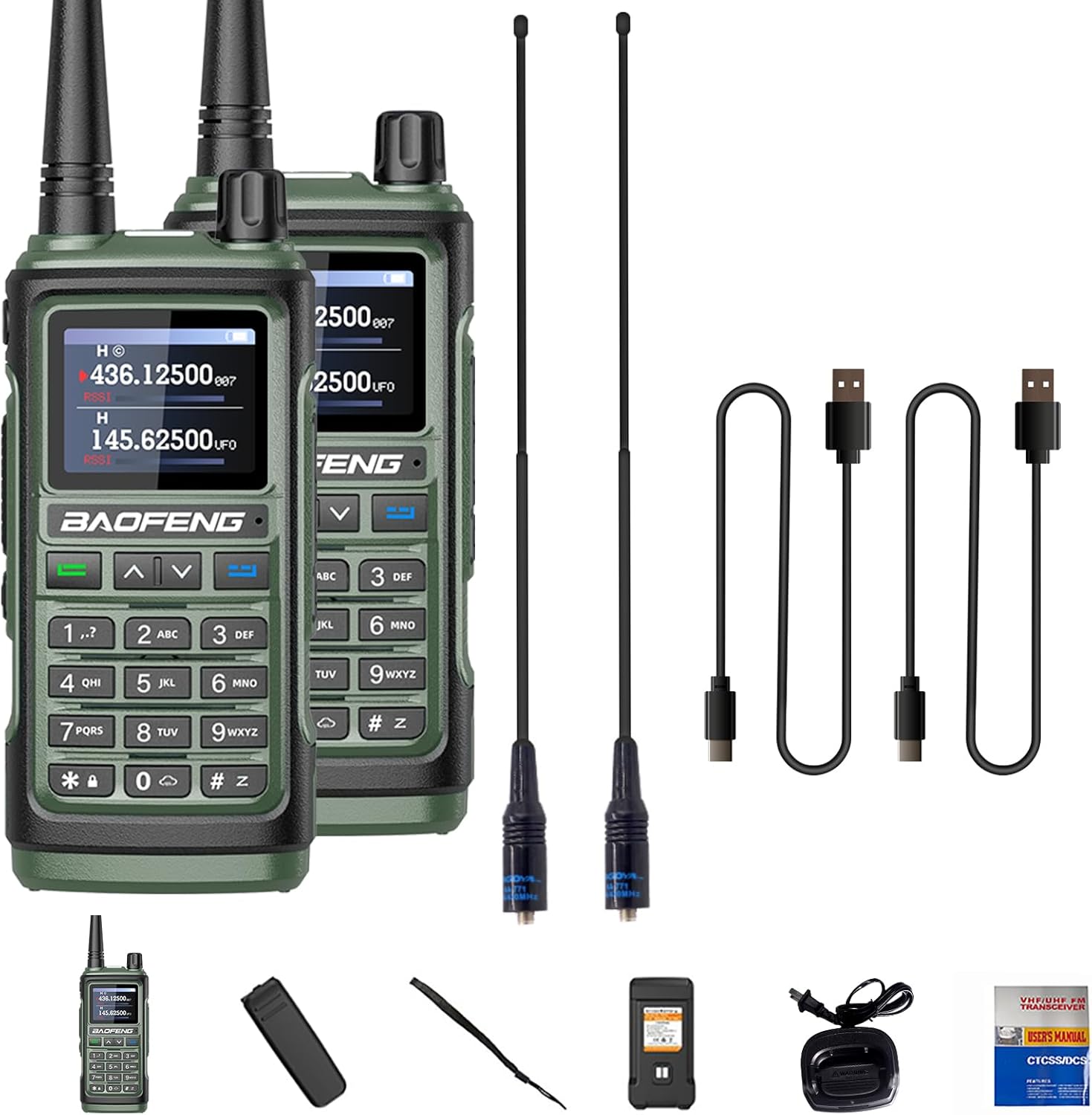

2.1 Kandungan Pakej
Sebelum memulakan, pastikan semua item terdapat dalam pakej:
- BAOFENG UV-17R Portable Radio
- Bateri 1800mAh
- High Gain Antenna (e.g., 771 Antenna)
- Pangkalan Pengecas
- Klip Tali Pinggang
- Tali Tangan
- Manual Pengguna (dokumen ini)
- Kabel Jenis-C
2.2 Pemasangan Bateri
- Sejajarkan bateri 1800mAh dengan petak bateri di bahagian belakang radio.
- Tolak perlahan bateri ke tempatnya sehingga ia berbunyi dengan selamat.
- Ensure the battery is firmly attached. The design includes an added fixing screw for enhanced firmness.
Rajah 2: Battery Installation. This image illustrates the process of inserting the 1800mAh battery into the radio's compartment, highlighting the secure fit and the fixing screw mechanism.
2.3 Lampiran Antena
Skrukan antena bergain tinggi yang disediakan mengikut arah jam pada penyambung antena di bahagian atas radio sehingga ia ketat separas jari. Jangan terlalu ketatkan.
2.4 Pengecasan Awal
Before first use, fully charge the radio's battery. The UV-17R offers two charging methods:
- Kabel USB-C: Connect the Type-C cable to the radio's USB-C port and to a compatible USB power source (e.g., car charger, PC USB port, power bank).
- Pangkalan Pengecas: Place the radio in the provided charger base. Ensure the charging contacts align.
A full charge typically takes approximately 3 hours. The LED indicator will show charging status (e.g., red for charging, green for fully charged).
Rajah 3: USB-C Charging. This image demonstrates the radio connected to a USB-C cable for charging, indicating compatibility with various USB power sources and approximate battery life, standby time, and charging duration.
3. Arahan Operasi
3.1 Kuasa Hidup/Mati dan Kawalan Kelantangan
- Untuk menghidupkan kuasa, putar tombol Kuasa/Kelantangan mengikut arah jam sehingga anda mendengar bunyi klik.
- Teruskan memutar tombol mengikut arah jam untuk meningkatkan kelantangan, dan lawan arah jam untuk mengurangkan kelantangan.
- Untuk mematikan kuasa, putar tombol lawan arah jam sehingga anda mendengar bunyi klik.
3.2 Pemilihan Saluran dan Mod Frekuensi
The UV-17R supports both channel mode and frequency mode. Use the keypad to enter frequencies directly or navigate through programmed channels.
- Mod Saluran: Allows selection of pre-programmed channels (up to 999). Use the up/down arrow keys or the keypad to select a channel number.
- Mod Kekerapan (VFO): Allows direct input of frequencies within the radio's operating range (UHF: 420-450MHz, VHF: 144-148MHz).
Rajah 4: Dual Band Operation. This image highlights the radio's capability to operate on both UHF (420-450MHz) and VHF (144-148MHz) bands, along with FM radio, emphasizing anti-interference and noise cancellation features.
3.3 Menghantar dan Menerima
- Untuk menghantar, tekan dan tahan butang PTT (Tekan Untuk Bercakap) di sisi radio. Bercakap dengan jelas ke dalam mikrofon.
- Lepaskan butang PTT untuk berhenti menghantar dan kembali ke mod menerima.
- Pastikan anda berada pada frekuensi atau saluran yang sesuai sebelum menghantar.
3.4 Fungsi Salinan Frekuensi
The UV-17R features a wireless frequency copy function, allowing direct programming from one radio to another without a computer or programming cable.
- Pastikan kedua-dua radio dihidupkan dan berada berdekatan.
- Follow the specific menu instructions on the UV-17R to initiate the frequency copy process. Refer to the on-screen prompts for guidance.
Rajah 5: Direct Frequency Copy. This image illustrates two radios wirelessly copying frequencies from each other, eliminating the need for a programming cable.
3.5 Amaran Cuaca NOAA
The radio can scan and provide alerts from 10 U.S.A. NOAA weather forecast channels. This feature is useful for receiving weather warnings, especially for outdoor activities.
- Access the NOAA function through the radio's menu.
- Select the desired NOAA channel or enable automatic scanning for alerts.
3.6 Fungsi Lampu Suluh
The UV-17R includes a strong light flashlight for illumination in low-light conditions.
- Press the dedicated Flashlight button (refer to Figure 1) to turn the flashlight on or off.
Rajah 6: Strong Light Flashlight. This image depicts the radio's powerful flashlight illuminating an outdoor scene at night, highlighting its utility for night use and large area irradiation.
3.7 Other Functions (VOX, CTCSS/DCS)
- VOX (Pertukaran Dikendalikan Suara): Allows hands-free transmission when voice is detected. Adjust VOX sensitivity in the menu.
- CTCSS/DCS (Sistem Squelch Berkod Nada Berterusan / Squelch Berkod Digital): Used to filter out unwanted transmissions and allow communication only with radios using the same tone/code. Configure these settings via the menu.
4. Penyelenggaraan
4.1 Penjagaan Bateri
- Untuk memaksimumkan hayat bateri, elakkan daripada kerap mencas sepenuhnya bateri.
- Cas bateri dalam persekitaran yang sejuk dan kering.
- Jika menyimpan radio untuk tempoh yang lama, cas bateri sehingga kira-kira 50% dan keluarkannya dari radio.
4.2 Pembersihan
- Lap bahagian luar radio dengan lembut, damp kain.
- Jangan gunakan bahan kimia atau pembersih kasar.
- Ensure the USB-C port and other connectors are free of dust and debris.
4.3 Tahan Air
The UV-17R has an IP54 rating, meaning it is protected against dust ingress and splashing water from any direction. It is not designed for submersion. Avoid exposing the radio to heavy rain or direct water jets.
5. Penyelesaian masalah
If you encounter issues with your BAOFENG UV-17R, refer to the following common troubleshooting steps:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Radio tidak dihidupkan | Bateri lemah atau tidak dipasang dengan betul. | Cas bateri sepenuhnya. Pastikan bateri dipasang dengan kukuh. |
| Tidak boleh menghantar atau menerima | Incorrect frequency/channel. Antenna not attached. VOX/CTCSS/DCS settings. | Verify frequency/channel. Ensure antenna is securely attached. Check VOX, CTCSS, and DCS settings. |
| Kualiti audio yang lemah | Low battery. Obstructions. Incorrect volume. | Cas bateri. Bergerak ke kawasan lapang. Laraskan kelantangan. |
| Mengecas tidak berfungsi | Faulty cable/charger. Improper connection. | Try a different USB-C cable or charger base. Ensure connections are secure. |
6. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Nombor Model | UV-17R |
| Julat Kekerapan | VHF: 144-148MHz, UHF: 420-450MHz, FM |
| Bilangan Saluran | 999 |
| Kapasiti Bateri | 1800mAh Litium Ion |
| Input Voltage | DC 7.4V |
| Tahap Ketahanan Air | IP54 (Water Repellent) |
| Suhu Operasi | -10°C hingga 60°C |
| Impedans Antena | 50 Ω |
| Julat Percakapan Maksimum | 3 Batu (anggaran, berbeza mengikut rupa bumi) |
| Berat Barang | Approx. 2.93 pounds (package weight) / 46.91 ounces (item weight) |
| Dimensi Pakej | 8.26 x 8.07 x 4.64 inci |
7. Waranti dan Sokongan
7.1 Maklumat Waranti
Produk ini disertakan dengan a Waranti 1 tahun provided exclusively through "Shiqun Electronics Co., Ltd." The warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.
7.2 Sokongan Pelanggan
For technical assistance, warranty claims, or further inquiries, please contact the seller, Shiqun Electronics Co., Ltd., directly through your purchase platform or their official contact channels. Ensure you have your product model (UV-17R) and purchase details ready when contacting support.
