Manual Pengguna Basikal Elektrik JANSNO X70

1. Pengenalan

Welcome to the JANSNO X70 Electric Bike user manual. This document provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric bike. The JANSNO X70 is a powerful electric bike designed for adults, featuring a 750W brushless motor, 48V 34Ah removable dual batteries for an extra-long cruising range, and a 7-speed transmission. It is UL Certified, ensuring high standards of safety and quality.

Figure 1: JANSNO X70 Electric Bike, showcasing its robust design and fat tires.

2. Maklumat Keselamatan

Your safety is paramount. Please read and understand all safety warnings and instructions before operating the JANSNO X70 Electric Bike. Always wear a helmet and appropriate safety gear. Be aware of your surroundings and obey all local traffic laws.

• Penggunaan topi keledar: Sentiasa pakai topi keledar yang diperakui semasa menunggang.
• Semakan Pra-Tunggangan: Before each ride, check tire pressure, brake function, and battery charge level.
• Had Kelajuan: The original speed is locked at 25 km/h (approximately 15.5 mph). Instructions to lift the speed limit can be provided upon request to customer service. Always ride at a safe speed appropriate for conditions.
• Keadaan Cuaca: Exercise caution when riding in wet or slippery conditions.
• Kapasiti Berat: Jangan melebihi berat maksimum yang disyorkan iaitu 120 kilogram (kira-kira 265 paun).

3. Persediaan dan Pemasangan

The JANSNO X70 Electric Bike requires assembly upon arrival. Included components such as a screwdriver, anti-theft lock, and pump will assist in the setup process. For detailed, step-by-step assembly instructions, please refer to the comprehensive PDF user manual provided with your purchase or available for download from the product page.

Figure 2: Dimensions of the JANSNO X70 Electric Bike, including rider height recommendations and weight capacity.

4. Mengendalikan Basikal Elektrik Anda

The JANSNO X70 offers versatile riding modes and powerful performance for various terrains.

4.1 Mod Menunggang

Your electric bike supports both pedelec (pedal-assist) and throttle modes. In pedelec mode, the motor provides assistance as you pedal, extending your range and reducing effort. In throttle mode, the bike can be propelled solely by the motor without pedaling.

4.2 Power and Range

Equipped with a 750W high-speed brushless motor, the X70 can reach a top speed of 30 mph/h. The dual 48V/14/20Ah lithium batteries provide an extra-long cruising range of up to 120 miles per full charge, depending on riding conditions and assist level. The batteries are removable for convenient recharging at home or office.

Figure 3: Illustration of the large capacity dual battery system, highlighting its 48V/34Ah capacity, 6-8 hour charging time, USB charge port, and removable design.

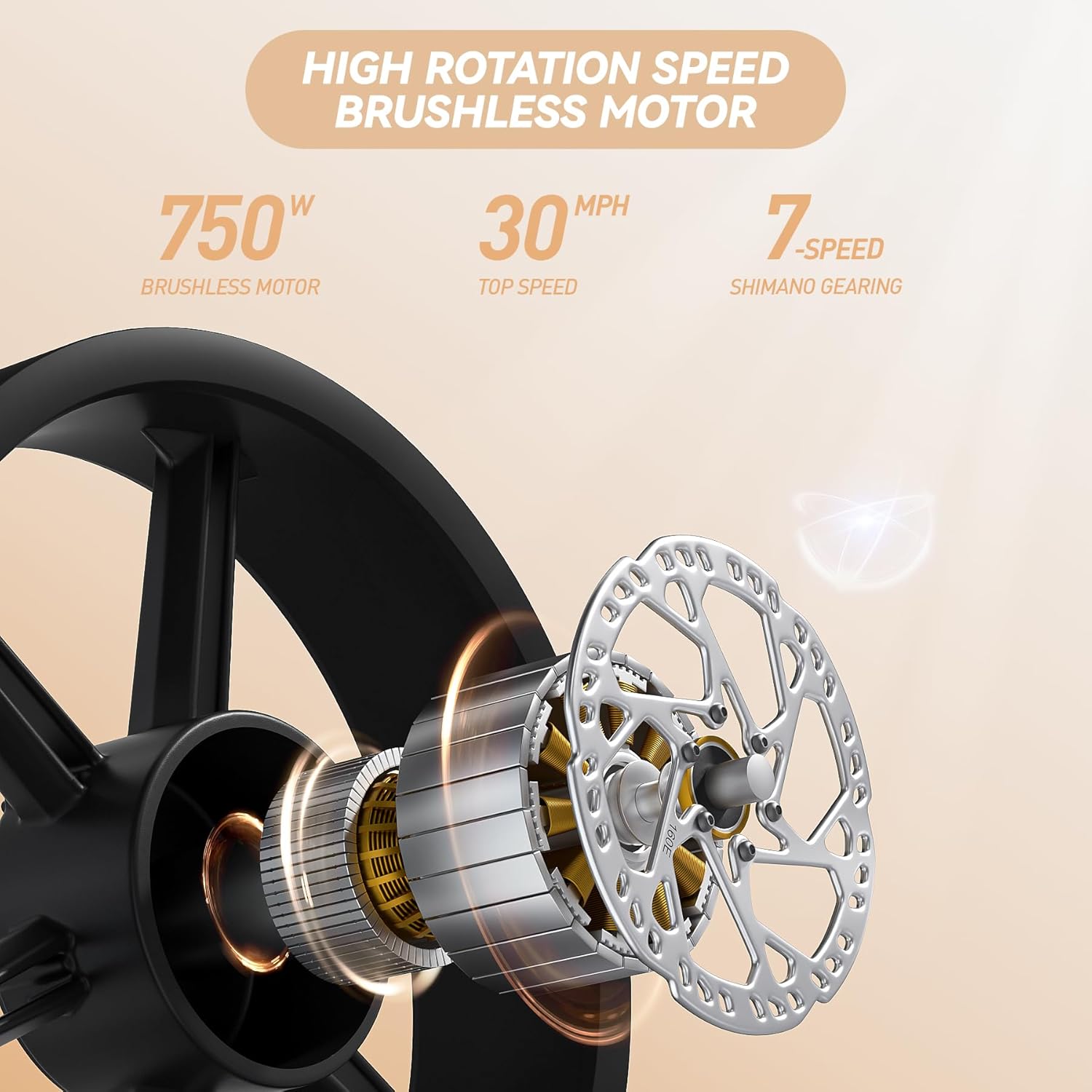

Figure 4: Depiction of the high rotation speed 750W brushless motor, capable of reaching 30 MPH top speed, paired with 7-speed Shimano gearing.

4.3 Penghantaran

The 7-speed transmission allows you to adjust your pedaling effort and speed to match various terrains and riding preferences.

4.4 Terrain Adaptability

The 20" x 4.0 snow tires are enhanced for anti-skidding and wear-resistance, making the bike adaptable to complex topographies including snow, sand, and gravel roads. The high-carbon steel frame is designed to easily climb inclines up to 30 degrees.

Figure 5: Close-up of the 20-inch upgraded tires, emphasizing their durable, anti-skid, and anti-puncture properties with 4mm thickened slab-proof, 50cm tire diameter, and 10cm extra wide tread.

4.5 Ciri Bersepadu

The bike features front and rear mechanical disc brakes for reliable stopping power and dual suspension for a comfortable ride across varied surfaces. An integrated lighting system ensures visibility.

Figure 6: The integrated lighting system of the JANSNO X70, designed for enhanced visibility and safety.

Figure 7: Illustration of the dual suspension system, providing a smoother ride.

Figure 8: Close-up of the mechanical disc brakes, ensuring reliable stopping power.

4.6 Rear Tail Rack

The highly expandable rear tail rack allows for the installation of multi-functional luggage racks, suitcases, and shelves (purchased separately) to carry luggage and tools, or a backpack for urban use.

Rajah 9: View of the 25kg capacity rear rack and trail-specific mudguards, designed for practicality and durability.

4.7 Video Produk

5. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your JANSNO X70 Electric Bike.

• Penjagaan Bateri: Recharge batteries regularly. A full charge takes 6-8 hours. Store the bike and batteries in a cool, dry place.
• Tekanan Tayar: Maintain recommended tire pressure for optimal performance and safety.
• Sistem Brek: Periodically inspect brake pads and discs for wear. Adjust or replace as needed to ensure effective braking.
• Pembersihan: Bersihkan basikal dengan kerap dengan iklanamp kain. Elakkan mencuci tekanan tinggi terus pada komponen elektrik.
• Pemeriksaan Am: Check all bolts and fasteners for tightness before each ride.

6. Penyelesaian masalah

This section addresses common issues you might encounter with your JANSNO X70 Electric Bike.

• Isu Kuasa: If the bike does not power on, check the battery connection and charge level. Ensure the battery is properly seated and locked.
• Motor Tidak Terlibat: Verify that the riding mode is correctly selected (pedal-assist or throttle). Check for any error codes on the display.
• Brake Noise/Ineffectiveness: Inspect brake pads for wear and ensure discs are clean. Adjust brake cables if necessary.
• Had Kelajuan: The original speed is locked at 25km/h. If you require instructions to lift this limit, please contact JANSNO customer service.
• Bunyi Luar Biasa: Investigate any new or unusual noises. This could indicate loose components or issues with the drivetrain.

For issues not covered here, or for professional assistance, please contact our customer service team.

7. Spesifikasi

Below are the detailed specifications for the JANSNO X70 Electric Bike:

8. Waranti dan Sokongan

JANSNO provides a 1-year warranty for the X70 Electric Bike. For any inquiries, technical support, or warranty claims, our professional customer service team is available 24 hours a day.

You can visit the official JANSNO store for more information and support: JANSNO Store
