KikkaBoo CALDO 4-in-1 Electric Bottle Warmer Instruction Manual

1. Pengenalan

The KikkaBoo CALDO 4-in-1 Electric Bottle Warmer is a versatile appliance designed to simplify daily baby care. This device offers four essential functions: rapid milk warming, food warming, sterilization, and defrosting. It features an intuitive touch screen, precise temperature control, and a keep-warm function, ensuring your baby's milk or food is always at the ideal temperature. Constructed from high-quality, BPA-free materials, the CALDO meets all safety standards. Its compact design and compatibility with most standard bottles and jars make it a practical tool for any parent.

2. Arahan Keselamatan

Sila baca semua arahan dengan teliti sebelum menggunakan perkakas. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

• Sentiasa letakkan perkakas pada permukaan yang stabil dan tahan haba.
• Jangan rendam perkakas, kord, atau palam ke dalam air atau cecair lain.
• Jauhkan daripada kanak-kanak. Perkakas ini bukan mainan.
• Cabut plag dari saluran keluar apabila tidak digunakan dan sebelum membersihkan.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• Gunakan hanya aksesori yang disyorkan oleh pengilang.
• Sentiasa periksa suhu susu atau makanan yang telah dipanaskan sebelum memberi makan bayi anda.
• Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage sebelum menyambung.
• Jangan gunakan perkakas di luar rumah.

3. Komponen Produk

The KikkaBoo CALDO 4-in-1 Electric Bottle Warmer includes the following components:

• Main heating unit with touch control panel
• Basket for bottles/jars
• Penutup pelindung

Image: The KikkaBoo CALDO 4-in-1 Electric Bottle Warmer, showing the main unit, the basket inside, and the protective cover.

4. Persediaan dan Penggunaan Pertama

1. Bongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
2. Bersih: Before first use, clean the basket and cover with warm soapy water. Wipe the main unit with a damp kain. Jangan rendam unit utama dalam air.
3. penempatan: Place the appliance on a flat, stable, and dry surface, away from heat sources and direct sunlight.
4. Isi dengan Air: Pour clean water into the heating chamber, ensuring it does not exceed the maximum fill line. The water level should be appropriate for the item being warmed or sterilized.
5. Sambungkan Kuasa: Pasangkan kord kuasa ke soket elektrik yang sesuai. Paparan akan menyala.

5. Arahan Operasi

The CALDO features an intuitive touch screen for easy operation. The main functions are:

Image: Display illustrating the four primary functions of the CALDO warmer: Milk Warming (35-60°C), Food Warming (50-80°C), Defrosting (32-42°C), and Sterilization (100°C).

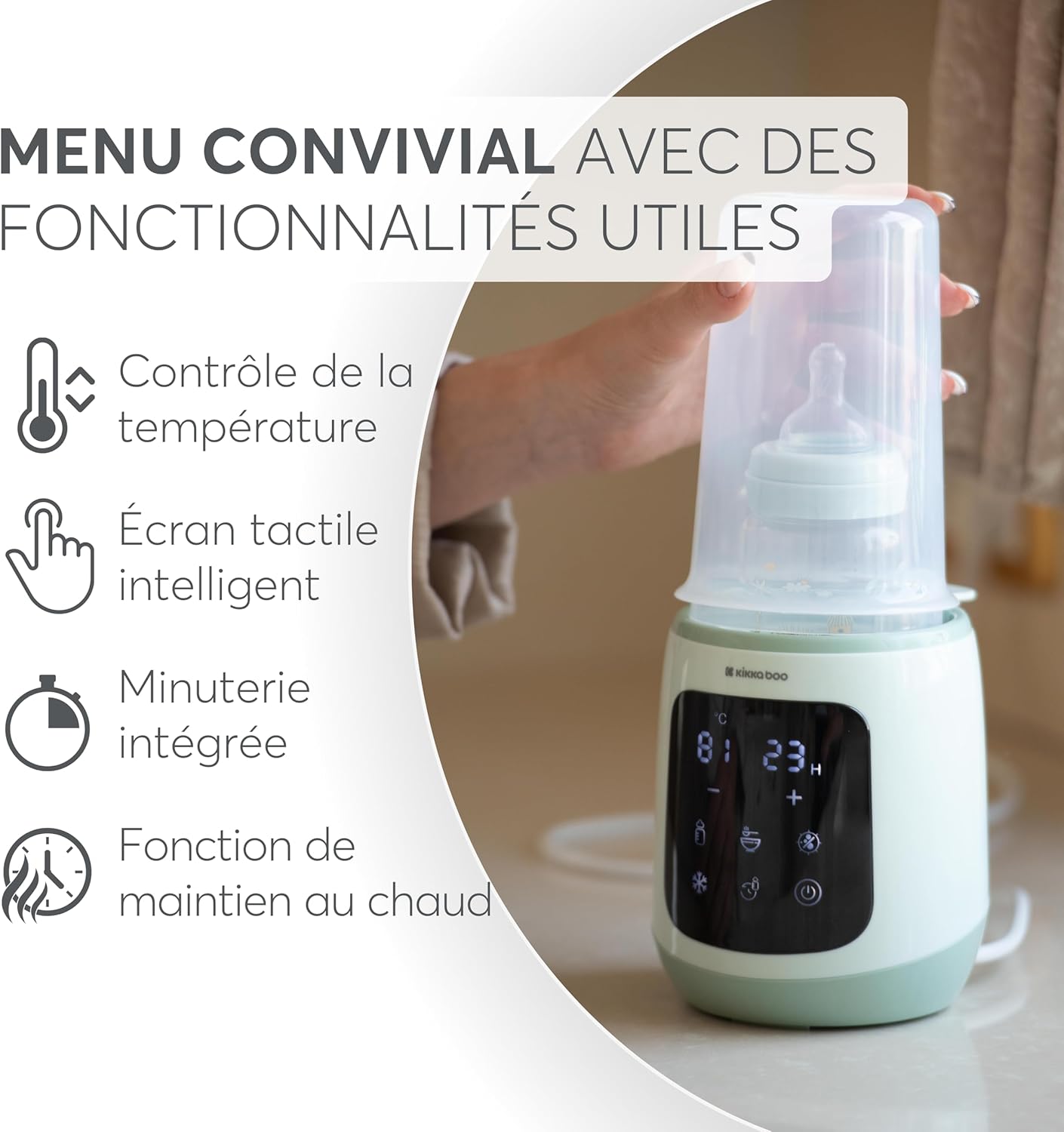

Image: Close-up of the control panel highlighting features like temperature control, smart touch screen, integrated timer, and keep-warm function.

5.1. Rapid Milk Warming

This mode is ideal for quickly warming breast milk or formula to a suitable feeding temperature (typically 35-60°C).

1. Place the bottle with milk into the basket and then into the heating chamber.
2. Add water to the chamber, ensuring it reaches the level of the milk in the bottle.
3. Select the "Milk Warming" icon on the touch screen.
4. Adjust the desired temperature using the +/- buttons.
5. The device will begin warming and automatically switch to the keep-warm function once the target temperature is reached.

5.2. Food Warming

Use this function to warm baby food jars or containers (typically 50-80°C).

1. Place the baby food jar or container into the basket and then into the heating chamber.
2. Add water to the chamber, ensuring it surrounds the food container.
3. Select the "Food Warming" icon on the touch screen.
4. Adjust the desired temperature using the +/- buttons.
5. The device will warm the food and maintain the set temperature.

Image: The CALDO warmer demonstrating its compatibility with various items: baby food jars, breast milk storage bags, and standard baby bottles.

5.3. Pencairan api

This mode gently thaws frozen breast milk or baby food (typically 32-42°C).

1. Place the frozen item (bottle or container) into the basket and then into the heating chamber.
2. Add water to the chamber.
3. Select the "Defrosting" icon on the touch screen.
4. The device will gently defrost the contents. Monitor the process to ensure even thawing.

5.4. Pensterilan

Sterilize baby bottles, nipples, and small accessories using steam (100°C).

1. Ensure bottles and accessories are clean before sterilization.
2. Place the items upside down in the basket.
3. Pour approximately 100ml of clean water into the heating chamber.
4. Place the basket with items into the chamber and cover with the protective lid.
5. Select the "Sterilization" icon on the touch screen.
6. The device will heat the water to produce steam for sterilization. The cycle duration is preset.
7. After the cycle, allow items to cool before handling. Use tongs to remove hot items.

Image: The CALDO warmer with a bottle and basket, illustrating its use for sterilization and cleaning accessories.

5.5. Kekalkan Fungsi Panas

This function automatically activates after warming cycles or can be set independently to maintain a desired temperature for an extended period.

• After a warming cycle, the device will automatically enter keep-warm mode at the set temperature.
• To activate independently, place the bottle/food in the chamber with water, select the "Keep Warm" icon, and set the desired temperature and duration.

6. Penyelenggaraan dan Pembersihan

Regular cleaning ensures optimal performance and hygiene of your KikkaBoo CALDO warmer.

1. Cabut plag: Sentiasa cabut plag perkakas dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
2. Unit Utama: Lap bahagian luar unit utama dengan iklanamp kain. Jangan gunakan pembersih yang melelas atau rendam unit di dalam air.
3. Heating Chamber: To clean the heating chamber, wipe it with a damp cloth. For mineral deposits (limescale), use a descaling solution suitable for baby products or a mixture of white vinegar and water. Fill the chamber with the solution, let it sit for 30 minutes (or as per descaler instructions), then rinse thoroughly.
4. Basket and Cover: The basket and cover can be washed in warm soapy water or placed on the top rack of a dishwasher. Rinse thoroughly.
5. Storan: Simpan perkakas yang bersih dan kering di tempat yang sejuk dan kering.

7. Penyelesaian masalah

8. Spesifikasi

• Nombor Model: 31304020016
• Fungsi: Rapid Milk Warming, Food Warming, Defrosting, Sterilization, Keep Warm
• Bahan: Polypropylene, Stainless Steel, ABS (BPA-free)
• Dimensi (L x W x H): 12.6 x 13.7 x 29.8 cm
• Berat: 630 gram
• Input Voltage: (Not specified in JSON, assume standard for region)
• Penggunaan Kuasa: (Not specified in JSON)
• Keserasian Botol: Fits most standard bottles and jars (7.5 cm diameter)

9. Waranti dan Sokongan

For warranty information, please refer to the documentation provided with your purchase or contact KikkaBoo customer support. If you encounter any issues not covered in this manual, please reach out to the retailer or manufacturer for assistance.

KikkaBoo Official Webtapak: kikkaboo.com
