1. Pengenalan
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your REDFOX Akari APT-RH-20 Hammer Drill. Please read these instructions carefully before using the tool and keep them for future reference. This industrial-grade hammer drill is designed for drilling into various materials, including concrete and masonry, with a rated input power of 650W and a free speed of 850 RPM.
2. Arahan Keselamatan
Sentiasa ikuti langkah berjaga-jaga keselamatan asas untuk mengurangkan risiko kebakaran, kejutan elektrik dan kecederaan diri semasa mengendalikan alatan kuasa.
- Keselamatan Kawasan Kerja: Pastikan kawasan kerja bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
- Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan alur keluar. Jangan sekali-kali mengubah suai palam dalam apa jua cara. Elakkan sentuhan badan dengan permukaan yang dibumikan atau dibumikan seperti paip, radiator, julat dan peti sejuk.
- Keselamatan Diri: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Wear a dust mask if drilling generates dust. Dress properly; avoid loose clothing or jewelry.
- Penggunaan dan Penjagaan Alat: Jangan paksa alat kuasa. Gunakan alat kuasa yang betul untuk aplikasi anda. Putuskan sambungan palam daripada sumber kuasa sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.
- Perkhidmatan: Minta alat kuasa anda diservis oleh pembaikan bertauliah dengan hanya menggunakan alat ganti yang sama. Ini akan memastikan keselamatan alat kuasa dikekalkan.
3. Kandungan Pakej
Carefully unpack the contents and ensure all items are present and undamaged. If any items are missing or damaged, contact customer support immediately.
- 1 x REDFOX Akari APT-RH-20 Hammer Drill Machine
- 3 x Mata Gerudi
- 1 x Pemegang Bantu
Image: The REDFOX Akari APT-RH-20 Hammer Drill, auxiliary handle, and drill bits neatly organized within its protective carrying case.

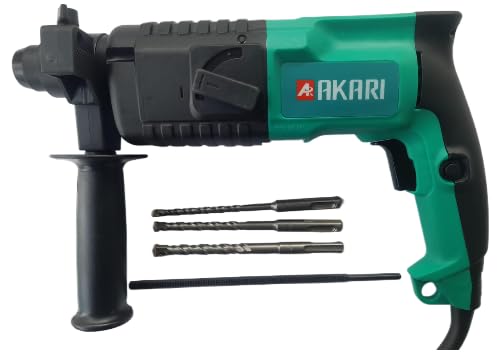

Image: The REDFOX Akari APT-RH-20 Hammer Drill displayed with its detachable auxiliary handle and the three included drill bits.
4. Persediaan
4.1 Memasang Pemegang Bantu
- Longgarkan pemegang tambahan dengan memutarkannya melawan arah jam.
- Slide the handle over the front of the drill's body until it is in the desired position.
- Rotate the handle clockwise to tighten it securely. Ensure it is firm before operation.
4.2 Memasukkan Mata Gerudi
- Pastikan gerudi dicabut dari sumber kuasa.
- Pull back the chuck collar on the front of the drill.
- Insert the desired drill bit into the chuck until it clicks into place.
- Release the chuck collar. Gently pull on the drill bit to ensure it is securely locked.

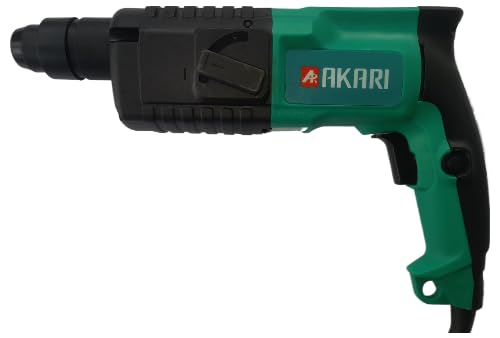

Imej: Sebelah view of the REDFOX Akari APT-RH-20 Hammer Drill, showing the chuck and auxiliary handle attachment point.
5. Arahan Operasi
5.1 Sambungan Kuasa
Connect the drill to a suitable power outlet. The drill operates on a rated voltage of 220/110V. Ensure your power supply matches this requirement.
5.2 Memilih Mod Pengendalian
The APT-RH-20 features a mode selector switch, typically located on the side of the drill body. Rotate this switch to select between drilling and hammer drilling modes, depending on your application.
- Mod Gerudi: For drilling into wood, metal, or plastic.
- Mod Gerudi Tukul: For drilling into concrete, brick, or masonry, combining rotation with a hammering action.
5.3 Bermula dan Berhenti
- Untuk memulakan gerudi, tekan suis picu.
- Untuk menghentikan gerudi, lepaskan suis pencetus.
- For continuous operation, press the trigger and then press the lock-on button (if present). To release, press the trigger again.
5.4 Drilling Technique
- Hold the drill firmly with both hands, using the auxiliary handle for stability.
- Position the drill bit on the desired drilling point.
- Start the drill and apply steady, even pressure. Do not force the drill.
- Maintain a firm grip and control throughout the drilling process.

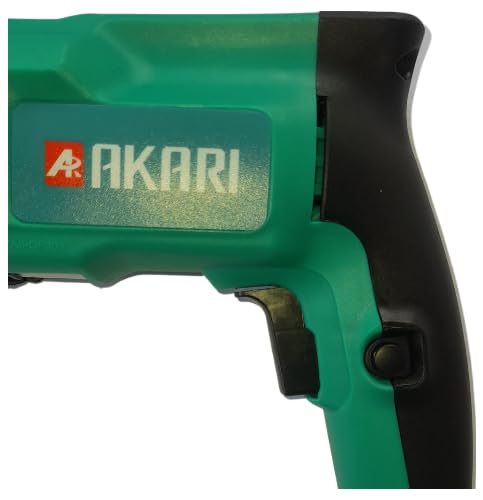

Imej: A terperinci view of the main handle and trigger mechanism of the REDFOX Akari APT-RH-20 Hammer Drill, highlighting controls.
6. Penyelenggaraan
Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat alat anda.
- Pembersihan: After each use, unplug the tool and clean the exterior with a soft, damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar. Pastikan bukaan pengudaraan bersih daripada habuk dan serpihan.
- Penyelenggaraan Chuck: Bersihkan chuck secara berkala untuk memastikan pemasukan dan penyingkiran mata gerudi berjalan lancar.
- Storan: Store the drill in a dry, secure place, out of reach of children. Use the provided carrying case for protection.
- Berus Karbon: If the motor sparks excessively or the drill loses power, the carbon brushes may need inspection or replacement. This should be performed by a qualified service technician.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Gerudi tidak bermula. | No power supply; faulty switch; carbon brushes worn. | Check power connection. Test outlet. Contact service center if switch or brushes are suspected. |
| Reduced drilling power. | Worn drill bit; incorrect mode selected; carbon brushes worn. | Replace drill bit. Ensure correct mode (e.g., hammer drill for masonry). Contact service center. |
| Getaran atau bunyi yang berlebihan. | Loose components; damaged internal parts. | Stop operation immediately. Contact a qualified service technician. |
For issues not listed here, or if solutions do not resolve the problem, please contact customer support.
8. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Nombor Model | APT-RH-20 |
| Jenama | REDFOX / Akari |
| Jenis Gerudi | Bor Hammer |
| Kuasa Input Dinilai | 650W |
| Kelajuan Percuma | 850 RPM |
| Max Hole Opening | 20mm (Note: Product title mentions 26mm, but detailed specifications and description state 20mm) |
| Dinilai Voltage | 220/110V (Versatile) / 220 Volts (Specific) |
| Amppemadam | 2.83 Amps |
| Saiz Chuck Maksimum | 0.5 Inci |
| Dimensi Produk | 35L x 8W x 20H Sentimeter |
| Berat Barang | 2.45 Kilogram |
| bahan | plastik |
| warna | hijau |

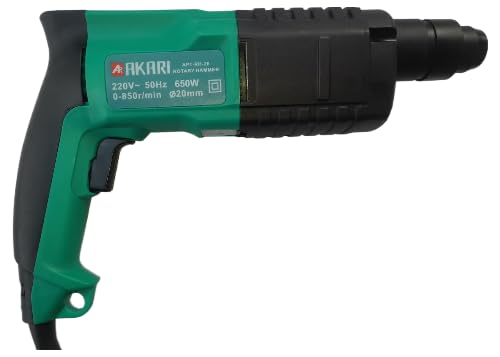

Image: The side of the REDFOX Akari APT-RH-20 Hammer Drill, displaying the product label with specifications like voltage, frequency, power, and RPM.
Image: The product packaging box for the Akari APT-RH-20 Rotary Hammer, featuring key specifications and branding.
9. Waranti
This REDFOX Akari APT-RH-20 Hammer Drill comes with a Waranti 6 Bulan from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, abuse, unauthorized repairs, or normal wear and tear. Please retain your proof of purchase for warranty claims.
10. Sokongan Pelanggan
For technical assistance, warranty claims, or any other inquiries regarding your REDFOX Akari APT-RH-20 Hammer Drill, please contact:
- Pengeluar: Akari India Pvt Ltd.
- Packer/Support: Royal Equipment
- Alamat: Trichy-621009
- e-mel: royalequipment19@gmail.com
- telefon: +91 9842002997
When contacting support, please have your model number (APT-RH-20) and purchase details ready.
