1. Pengenalan
The Micnaron 3800V Electric Mosquito Zapper is designed to attract and eliminate flying insects such as mosquitoes, gnats, moths, and flies indoors. It utilizes ultraviolet light to lure insects to an electrified grid, providing an effective method of pest control.

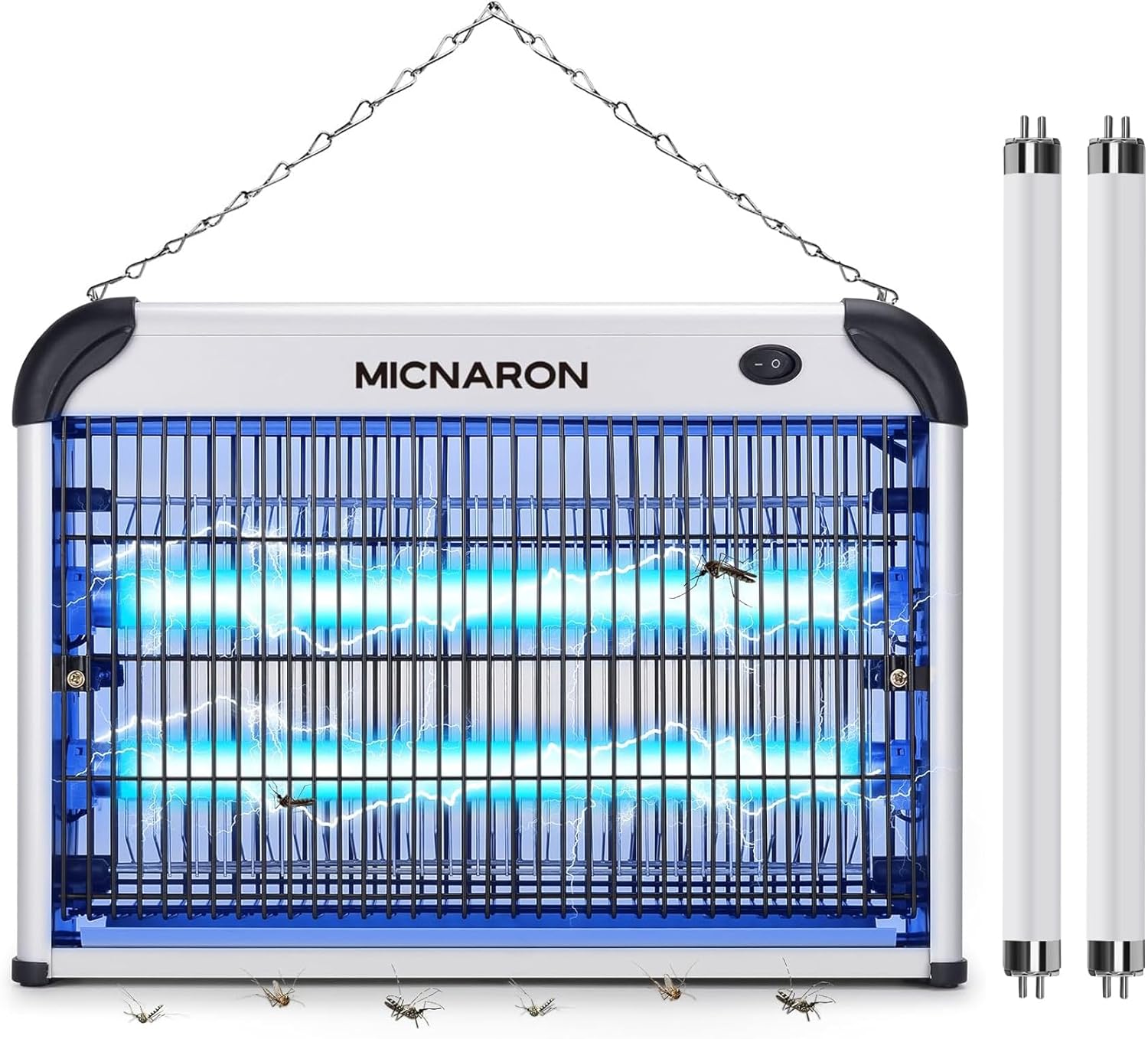

Figure 1: Micnaron 3800V Electric Mosquito Zapper with two replacement bulbs.
2. Arahan Keselamatan Penting
WARNING: Read all instructions before using this appliance to reduce the risk of fire, electric shock, or injury.
- This appliance is for indoor use only. Do not use outdoors or in wet locations.
- Keep out of reach of children and pets. The high-voltage grid can cause electric shock.
- Do not insert foreign objects into the zapper while it is connected to power.
- Always unplug the unit before cleaning, performing maintenance, or replacing bulbs. Wait at least one hour after unplugging before touching the internal grid to allow residual charge to dissipate.
- Jangan gunakan berhampiran cecair atau gas yang mudah terbakar.
- Do not operate if the cord or plug is damaged, or if the unit malfunctions or has been dropped or damaged. Contact customer support for assistance.
- Jangan cuba mengubah suai atau membaiki unit ini sendiri. Rujuk semua servis kepada kakitangan yang berkelayakan.
- Ensure the unit is placed on a stable, flat surface or securely hung to prevent it from falling.
3. Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- 1 x Micnaron 3800V Electric Mosquito Zapper Unit
- 1 x Power Cord (3.2 ft)
- 1 x Steel Hanging Chain
- 1 x Detachable Insect Collection Tray
- 4 x 10W T8 UV Bulbs (2 pre-installed, 2 replacement)
- 1 x Manual Pengguna (dokumen ini)
Figure 2: Contents included in the Micnaron 3800V Electric Mosquito Zapper package.
4. Komponen Produk
Familiarize yourself with the main parts of your Micnaron Electric Mosquito Zapper:
- Suis ON / OFF: Mengawal kuasa ke unit.
- Protective Mesh: Outer grid designed to prevent accidental contact with the internal high-voltage grid.
- UV Bulbs: Two 10W T8 ultraviolet bulbs attract flying insects.
- Vol-Tinggitagdan Grid: Electrified grid that zaps insects.
- Dulang boleh tanggal: Located at the bottom for collecting dead insects, facilitating easy cleaning.
- Hanging Loops: Points on the top of the unit for attaching the steel hanging chain.
- Kord Kuasa: Menyambungkan unit ke soket elektrik.
Figure 3: Key components of the Micnaron Electric Mosquito Zapper.
5. Persediaan dan Pemasangan
The Micnaron Electric Mosquito Zapper offers versatile placement options:
5.1 Placement on a Flat Surface
Place the unit on a stable, flat surface such as a table or floor. Ensure it is away from areas where it might be easily knocked over and out of reach of children and pets.
5.2 Pemasangan Gantung
- Attach the provided steel hanging chain to the two hanging loops on top of the zapper unit.
- Securely hang the unit from a sturdy hook or fixture. Ensure the hanging point can support the weight of the zapper and is positioned to maximize coverage without obstruction.
Gambar 4: Cthamples of placing the zapper on a surface or hanging it.
5.3 Sambungan Kuasa
Once the unit is placed or hung, plug the power cord into a standard electrical outlet. The unit is designed for indoor use and covers an area of up to 2100 sq. ft.
6. Arahan Operasi
To operate the Micnaron Electric Mosquito Zapper:
- Ensure the unit is properly set up and plugged into a power outlet.
- Locate the ON/OFF switch on the top of the unit.
- Flip the switch to the 'ON' position. The UV bulbs will illuminate, and the high-voltage grid will become active.
- To turn off the unit, flip the switch to the 'OFF' position.
For optimal results, operate the zapper in a dark environment, as UV light is more effective at attracting insects when there are no competing light sources.
7. Penyelenggaraan dan Pembersihan
Regular maintenance ensures the longevity and effectiveness of your zapper.
7.1 Cleaning the Insect Collection Tray
- ALWAYS UNPLUG THE UNIT FROM THE POWER OUTLET BEFORE CLEANING.
- Gently pull out the detachable tray located at the bottom of the unit.
- Empty the collected insects into a waste bin.
- Lap dulang bersih dengan iklanamp cloth or rinse with water. Ensure the tray is completely dry before reinserting.
- Slide the tray back into its position until it clicks securely.
7.2 Cleaning the High-Voltage Grid
WARNING: Ensure the unit has been unplugged for at least one hour before attempting to clean the grid to allow any residual electrical charge to dissipate.
- After unplugging and waiting, use a small, non-metallic brush (e.g., an old toothbrush) to gently brush away any insect debris from the high-voltage grid.
- Do not use water or cleaning solutions directly on the grid.
7.3 Penggantian Mentol
The unit comes with two replacement bulbs. Bulbs may need replacement after extended use (typically 2000-3000 hours).
WARNING: Always unplug the unit and wait at least one hour before replacing bulbs.
- Unplug the zapper from the power outlet.
- Wait for at least one hour to ensure no residual charge remains.
- Unscrew the outer protective grid. This usually involves small screws on the sides or top/bottom.
- Carefully remove the old UV bulb by gently twisting and pulling it from its sockets.
- Insert a new 10W T8 UV bulb into the sockets, ensuring it is seated firmly.
- Reattach the outer protective grid and secure it with screws.
Figure 5: Steps for easy bulb replacement.
8. Penyelesaian masalah
If you encounter issues with your Micnaron Electric Mosquito Zapper, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan. | Tiada bekalan kuasa. | Pastikan kord kuasa dipasang dengan kukuh pada soket elektrik yang berfungsi. Periksa sama ada suis ON/OFF berada dalam kedudukan 'ON'. |
| UV bulbs are not lighting up. | Bulbs are burnt out or loose. | Unplug the unit, wait one hour, and check if bulbs are properly seated. Replace bulbs if necessary (refer to Section 7.3). |
| Serangga tidak dizapped. | Vol-tinggitage grid is dirty or damaged. | Unplug the unit, wait one hour, and clean the high-voltage grid (refer to Section 7.2). If the problem persists, contact customer support. |
| Zapper is less effective than before. | UV bulbs have aged. | UV bulbs lose effectiveness over time. Replace bulbs (refer to Section 7.3). Ensure the area is dark for optimal attraction. |
9. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | BZ-240104 |
| Dimensi Produk | 15 x 3.1 x 11 inci (L x P x H) |
| Berat Barang | 5.5 paun |
| Kuasa Dinilai | 20W |
| Keluaran Voltage | 3800V |
| Kuasa Input | 110V |
| Panjang gelombang UV | 360-400nm |
| Bahan Perumahan | Aloi Aluminium |
| Kawasan Liputan | Sehingga 2100 kaki persegi. |
| Panjang Kord Kuasa | 3.2 kaki |
| Jenis Mentol | 10W T8 UV Bulbs (2 included, 2 replacement) |
Rajah 6: Dimensi produk dan panjang kabel.
10. Waranti dan Sokongan Pelanggan
Micnaron products are manufactured to high-quality standards. For warranty information, technical assistance, or if you have any questions regarding your product, please contact Micnaron customer support. Please have your model number (BZ-240104) and purchase information ready when contacting support.
Contact information can typically be found on the product packaging or the official Micnaron webtapak.
