VECELO KHD-BSD05-BLK-JP

VECELO Semi-Double Bed Frame with 2-Port Outlet & USB Charging

Model: KHD-BSD05-BLK-JP

pengenalan

This instruction manual provides important information regarding the assembly, operation, maintenance, and troubleshooting of your VECELO Semi-Double Bed Frame. Please read this manual thoroughly before assembly and retain it for future reference.

Maklumat Keselamatan

  • Pastikan semua bahagian ada dan tidak rosak sebelum memulakan pemasangan. Jangan gunakan jika mana-mana bahagian hilang atau pecah.
  • Pasang bingkai katil pada permukaan yang lembut dan bersih untuk mengelakkan calar.
  • Ketatkan semua skru dan bolt dengan selamat. Periksa dan ketatkan semula pengikat secara berkala untuk memastikan kestabilan.
  • Jangan melebihi kapasiti berat maksimum 340 kg (750 lbs).
  • Jauhkan kanak-kanak dari kawasan perhimpunan. Bahagian kecil boleh menjadi bahaya tercekik.
  • Use the integrated power outlets and USB ports only for their intended purpose. Do not overload the outlets.

Kandungan Pakej

Verify that all components listed below are included in your package. If any parts are missing, please contact customer support.

  • Headboard with integrated power outlets and USB charging ports
  • Bed frame side rails (steel)
  • Bed frame support legs
  • Steel slat system
  • Assembly hardware (screws, bolts, washers)
  • Alat pemasangan (sepana, pemutar skru)
  • Instruction Manual (Japanese language included)

Arahan Persediaan dan Pemasangan

Follow these steps carefully for proper assembly. An instruction manual in Japanese is included to guide you through the process.

Diagram showing the dimensions of the VECELO Semi-Double Bed Frame
Imej: Overall dimensions of the VECELO Semi-Double Bed Frame. The frame measures 121.5 cm wide, 219 cm long, and 71 cm high. The under-bed clearance is 31 cm.
Assembly step 1: Attaching the side rails to the headboard and footboard
Imej: Begin by connecting the side rails to the headboard and footboard using the provided hardware. Ensure all connections are firm.
Assembly step 2: Installing the central support beam and legs
Imej: Install the central support beam and its corresponding legs. These provide crucial stability for the bed frame.
Assembly step 3: Attaching the steel slats to the bed frame
Imej: Secure the steel slats across the frame. Ensure each slat is properly seated and fastened to provide a stable base for your mattress.

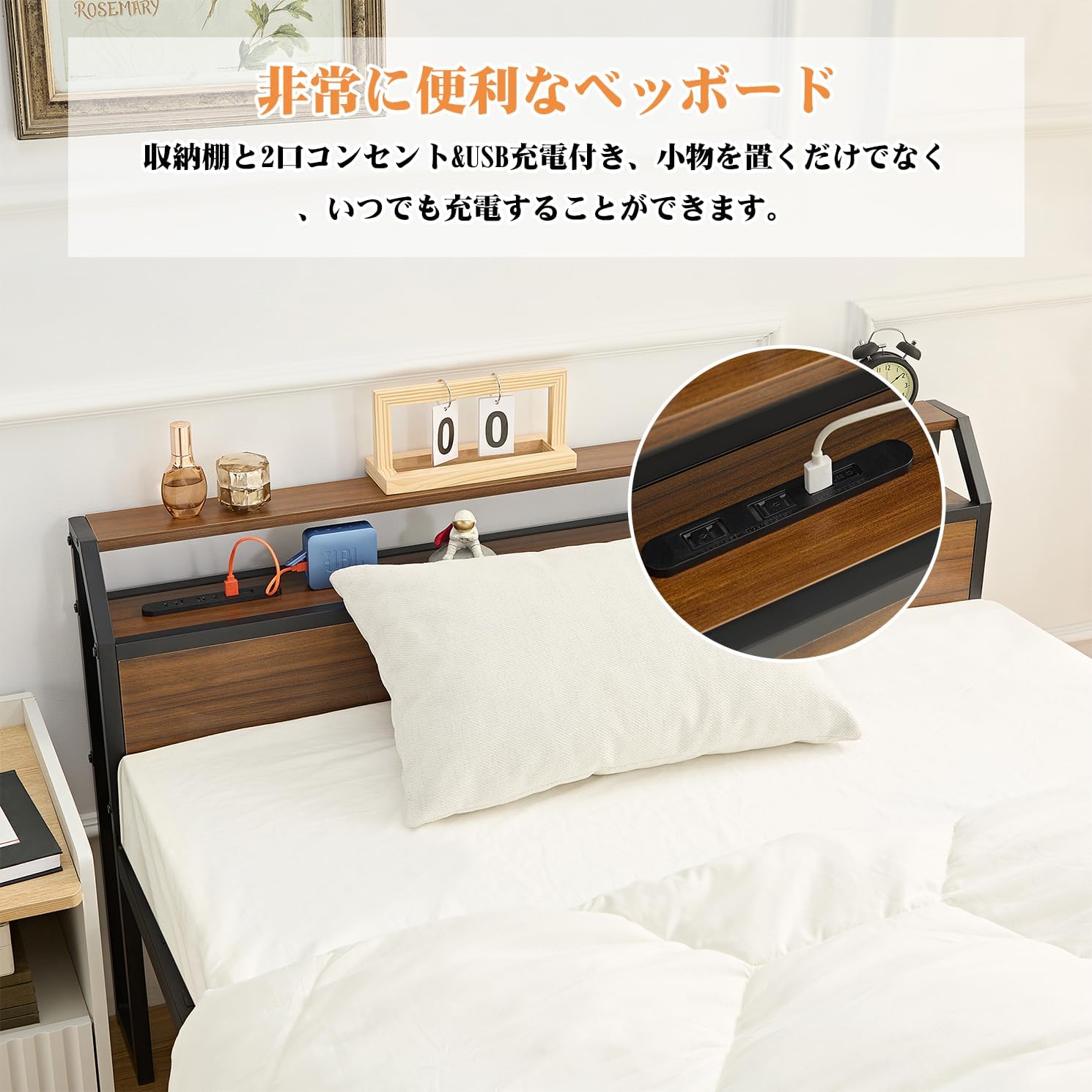

Close-up of the headboard with integrated power outlets and USB ports
Imej: The headboard features a 15cm wide shelf for small items and includes two power outlets and two USB charging ports. A sliding cover protects the outlets from dust.
  1. Buka bungkusan semua komponen dan letakkannya di atas permukaan yang bersih dan lembut.
  2. Identify all parts according to the parts list in the included manual.
  3. Attach the side rails to the headboard and footboard using the designated bolts and nuts. Do not fully tighten yet.
  4. Install the central support beam and its support legs. Ensure they are centered and stable.
  5. Place the steel slats onto the frame. Secure them using the provided fasteners.
  6. Setelah semua komponen dipasang, ketatkan sepenuhnya semua bolt dan skru.
  7. Connect the power cord from the headboard to a wall outlet.

Arahan Operasi

Soket Kuasa Bersepadu dan Port USB

The headboard of your VECELO bed frame is equipped with two standard power outlets and two USB charging ports for your convenience.

  • To use, slide open the protective cover on the headboard to reveal the outlets.
  • Plug your devices into the appropriate power outlet or USB port.
  • After use, slide the cover back to protect the outlets from dust and debris.
  • Ensure the bed frame's power cord is securely plugged into a functioning wall outlet.

Caution: Do not exceed the maximum electrical load capacity of the integrated outlets. Avoid using high-power appliances simultaneously.

Penyelenggaraan

Pembersihan

  • Wipe the steel frame and MDF surfaces with a dry cloth.
  • Untuk tanda degil, gunakan sedikit damp cloth with mild soap, then dry immediately.
  • Elakkan menggunakan bahan kimia yang keras atau pembersih yang kasar, kerana ini boleh merosakkan kemasan.

Penjagaan Am

  • Periodically check all bolts and screws and re-tighten them as necessary to maintain stability.
  • The mesh design of the bed base promotes ventilation, preventing moisture buildup and mold. Ensure adequate airflow around the bed.
  • The 30 cm under-bed clearance allows for easy cleaning with a vacuum cleaner or robot vacuum.
Image highlighting the mesh design for ventilation and moisture prevention
Imej: The bed frame features a mesh design for optimal ventilation, preventing moisture accumulation and mold growth, ensuring comfortable sleep year-round.

Menyelesaikan masalah

Bed Frame Wobbles

  • Penyelesaian: Check all assembly bolts and screws. Tighten any loose fasteners. Ensure the bed is on a level surface.

Power Outlets/USB Ports Not Working

  • Penyelesaian: Verify that the bed frame's power cord is securely plugged into a functional wall outlet. Check if the wall outlet itself is working by plugging in another device. Ensure the sliding cover is fully open.

Bahagian Hilang atau Rosak

  • Penyelesaian: Do not proceed with assembly. Contact VECELO customer support immediately for replacement parts.

Spesifikasi

CiriPerincian
Nombor ModelKHD-BSD05-BLK-JP
SaizSemi-Double (121.5 cm W x 219 cm L x 71 cm H)
Pelepasan Bawah Katil31 sm
bahanSteel Frame, MDF Board
Kapasiti BeratSehingga 340 kg (750 lbs)
Saluran Kuasa2 (Integrated in headboard)
Port Pengecasan USB2 (Integrated in headboard)
Perhimpunan Diperlukanya
Arahan PenjagaanLap kering
GTIN/UPC840408904780

Maklumat Waranti

The VECELO Semi-Double Bed Frame comes with a Waranti 1 tahun from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from improper assembly, misuse, accidents, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Sokongan Pelanggan

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact VECELO customer support. Refer to your purchase documentation or the retailer's webtapak untuk butiran hubungan khusus.

We are committed to providing a comfortable and satisfactory experience with your VECELO product.
