Manual Arahan Sisipan Perapian Elektrik Innoflame 28"

pengenalan

This manual provides essential information for the safe operation, installation, and maintenance of your Innoflame 28" Electric Fireplace Insert. Please read all instructions carefully before use and retain this manual for future reference.

Maklumat Keselamatan Penting

AMARAN: Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan, baca dan ikuti semua arahan sebelum menggunakan perkakas ini.

• Perkakas ini adalah untuk kegunaan dalaman sahaja.
• Jangan kendalikan mana-mana pendiang api dengan kord atau palam yang rosak, atau jika pemanas telah rosak, terjatuh atau rosak dalam apa jua cara.
• Simpan bahan mudah terbakar, seperti perabot, bantal, peralatan tempat tidur, kertas, pakaian dan langsir sekurang-kurangnya 3 kaki (0.9 m) dari bahagian hadapan pemanas dan jauh dari sisi dan belakang.
• Jangan masukkan atau benarkan objek asing memasuki mana-mana pengudaraan atau bukaan ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pemanas.
• Untuk mengelakkan kebakaran yang mungkin berlaku, jangan sekat saluran masuk atau ekzos udara dalam apa jua cara. Jangan gunakan pada permukaan lembut, seperti katil, di mana bukaan mungkin tersumbat.
• The front tempered glass remains cool to the touch, designed for kid-safe and pet-friendly households.
• The unit features dual safety protection with overheat protection, automatically cutting off at high temperatures.
• CSA/UL Certified for safety.

Kandungan Pakej

• 1 x Innoflame Electric Fireplace Insert
• 1 x Remote Control (requires 2 AAA batteries, not included)
• 1 x Manual Arahan
• Removable Trim Kit (for 28" model)

Persediaan dan Pemasangan

The Innoflame Electric Fireplace Insert is designed for easy installation with two primary methods: flush mounting on a wall (with or without the trim kit) or building into a TV stand/cabinet. No assembly is required for the main unit.

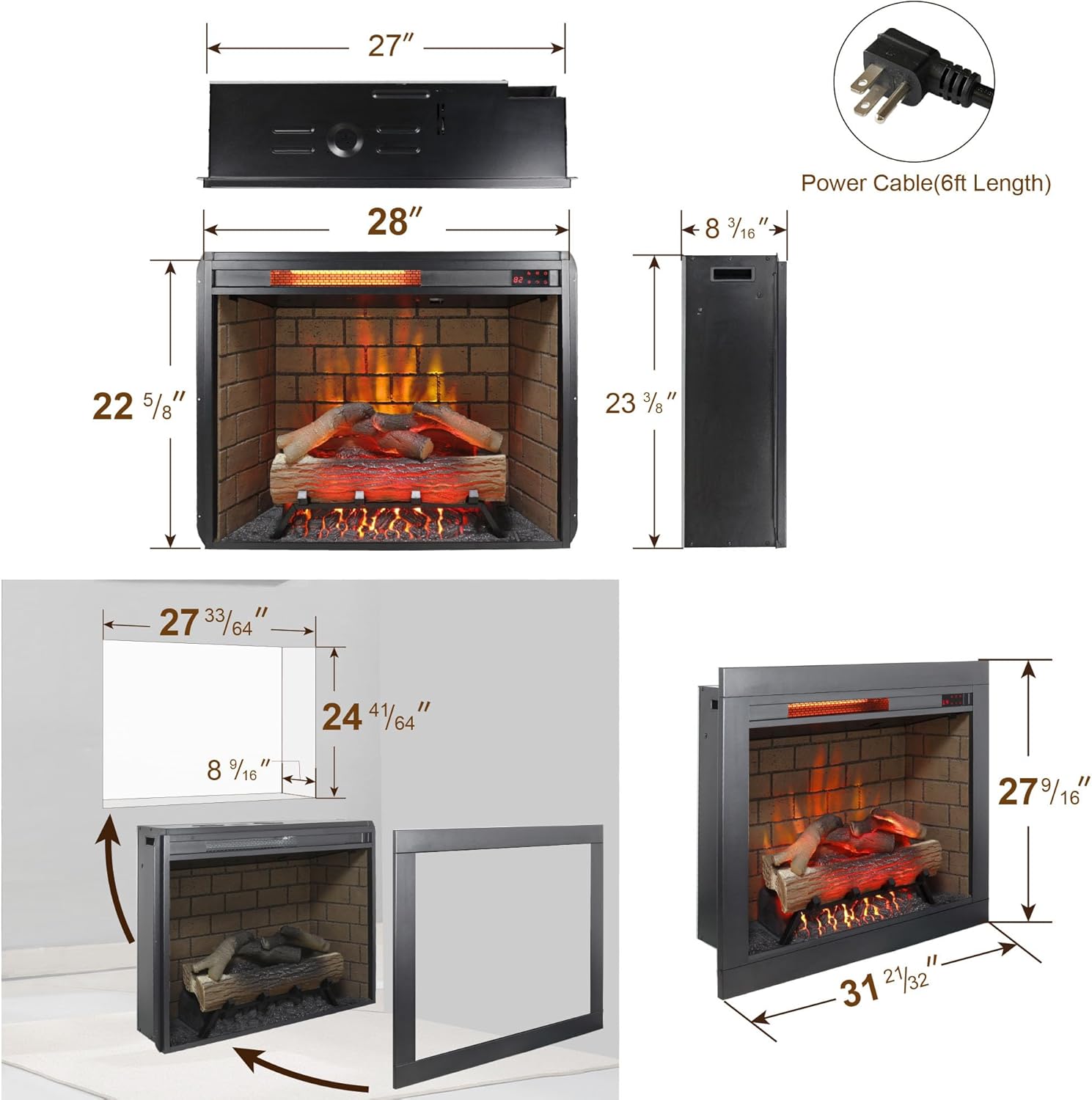

Dimensi dan Keperluan Potongan

• Dimensi Produk: 8.2"D x 31.7"W x 27.7"H
• Wall Cutout Dimensions: 27 33/64" W x 24 41/64" H
• TV Stand Cutout Dimensions: 28 15/64" W x 22 53/64" H

Ensure the chosen location has adequate clearance and ventilation. Refer to the diagram below for detailed measurements.

Sambungan Kuasa

The fireplace offers both plug-in and hardwired options.

• Pemalam: The unit comes with a pre-wired 120V plug (6ft length). Simply plug it into a standard 120V outlet.
• Berwayar keras: For a permanent installation, the unit can be hardwired. Consult a qualified electrician for this option to ensure proper and safe connection.

Ensure the power source is 120V and can support 1500W (12.5 Amps) to avoid overloading circuits.

Arahan Operasi

Your Innoflame Electric Fireplace Insert can be operated using the included remote control or the touch control panel located on the unit.

Remote Control and Touch Panel Overview

The digital display and touch buttons on the unit will go dark after 10 seconds of inactivity.

Fungsi Asas

• HIDUP/MATI Kuasa: Press the power button (red circle with line) on the remote or touch panel to turn the unit on or off.
• Pemanas HIDUP/MATI: Press the heater button (three wavy lines) to activate or deactivate the heating function.
• Pelarasan Suhu: Use the '+' and '-' buttons to adjust the desired temperature between 64°F and 82°F.
• Tetapan Pemasa: Press the timer button (clock icon) to set the automatic shut-off timer from 1 to 9 hours.

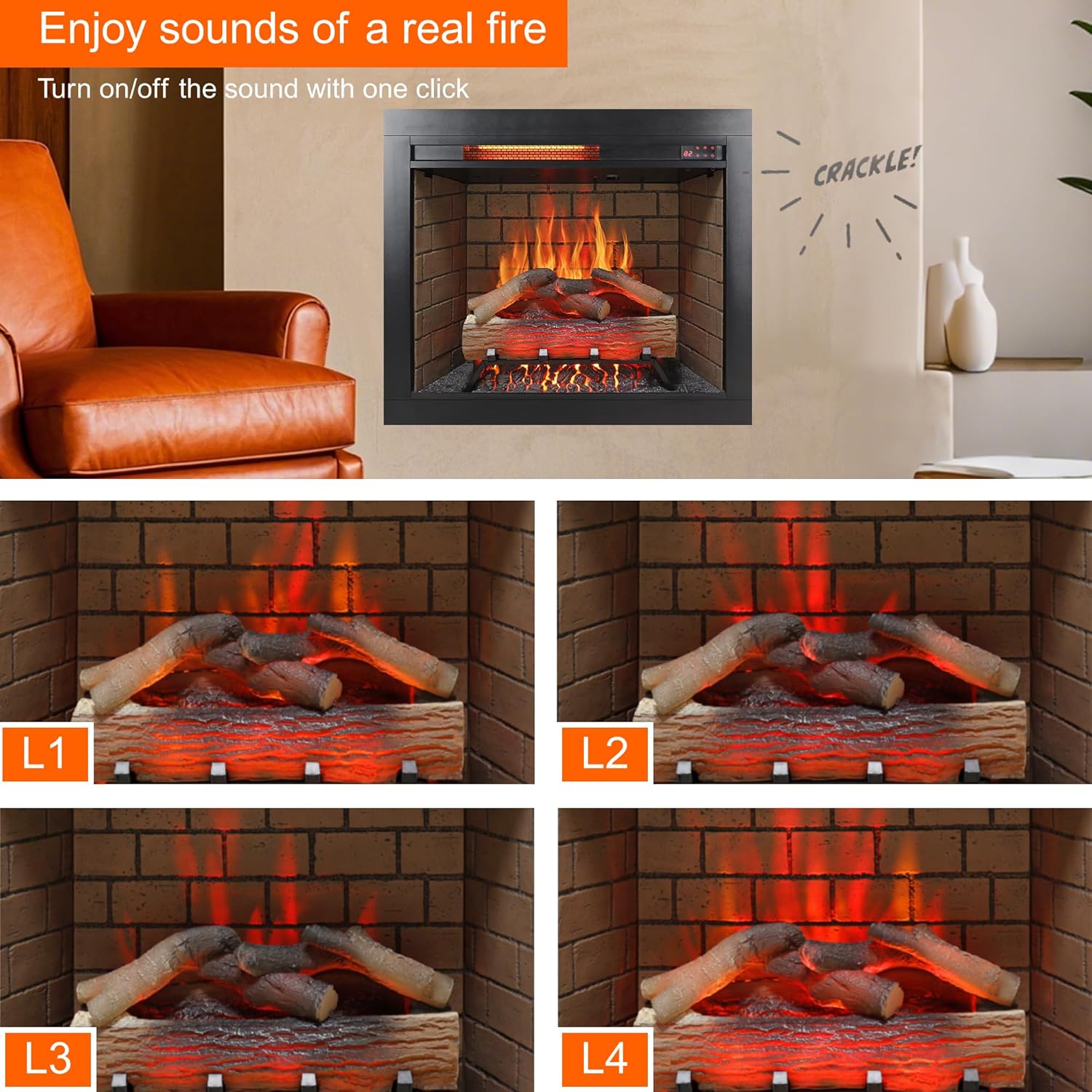

Flame and Sound Effects

• Kesan Nyalaan: Press the flame effects button (flame icon) to cycle through 4 different flame effects.
• Kecerahan Api: Press the flame brightness button (sun icon) to adjust between 5 customizable brightness levels.
• Kelajuan Nyalaan: Press the flame speed button (swirl icon) to adjust the speed of the flame animation (3 settings).
• Bunyi berderak: Press the sound button (speaker icon) to turn the realistic crackling log sounds on or off.

The flame effect can be used independently of the heating function, allowing for year-round ambiance.

Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your electric fireplace insert.

• Pembersihan: Pastikan unit dimatikan dan dicabut daripadanya sebelum membersihkan. Gunakan kain lembut danamp cloth to wipe surfaces. Do not use abrasive cleaners or sprays.
• Bolong Udara: Periodically check and clean the air inlet and outlet vents to ensure they are free from dust and debris. Blocked vents can reduce heating efficiency and pose a safety risk.
• Mentol lampu: The flame effect uses LED technology, which typically does not require bulb replacement.

Menyelesaikan masalah

If you experience issues with your fireplace, refer to the following common solutions:

Jika masalah berterusan, hubungi sokongan pelanggan.

Spesifikasi

Waranti dan Sokongan

Your Innoflame Electric Fireplace Insert comes with a Limited Warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical assistance, troubleshooting, or warranty claims, please contact Innoflame customer service. Contact information can typically be found on the product packaging or the official Innoflame webtapak.

Produk Selesaiview Video

Watch this video for a visual guide to the Innoflame 28" Electric Fireplace Insert's features and operation.
