Manual Pengguna Hud Hiasan Putih Corberó VICTORIA760W 70 cm

1. Pengenalan

1.1 Produk Selesaiview

The Corberó VICTORIA760W decorative hood is designed to enhance your kitchen with both elegance and functionality. Featuring a 70 cm white glass design and 165W power, this appliance seamlessly integrates into modern kitchen aesthetics. It provides efficient smoke and odor extraction with a high airflow capacity of 594.2 m3/h.

Imej 1.1: Depan view of the Corberó VICTORIA760W 70 cm white decorative hood.

1.2 Ciri-ciri Utama

• Powerful and Efficient: Offers 165W power and an airflow of 594.2 m3/h for effective smoke and odor removal.
• Reka Bentuk Elegan: Features white tempered glass, adding a modern and sophisticated touch to any kitchen.
• Kawalan Sentuh: Intuitive touch controls allow for easy adjustment of the 3 available speed settings.
• Energy Efficiency A: High energy efficiency rating helps reduce electricity consumption.
• Sistem Penapisan Dwi: Includes an aluminum filter and a carbon filter for effective air purification.

2. Persediaan dan Pemasangan

2.1 Membongkar

Carefully remove the hood from its packaging. Inspect the unit for any signs of damage during transit. Retain all packaging materials until installation is complete and the unit is confirmed to be in working order.

2.2 Komponen Termasuk

• Corberó VICTORIA760W Decorative Hood Unit

Additional installation hardware (screws, wall plugs, ducting) may be included or required separately. Refer to the full installation guide for a complete list.

2.3 Garis Panduan Pemasangan

This decorative hood is designed for wall-mounted installation. Ensure the mounting surface is structurally sound and capable of supporting the hood's weight. Maintain appropriate clearance distances from the cooking surface as specified in the detailed installation manual to ensure optimal performance and safety. Professional installation is recommended.

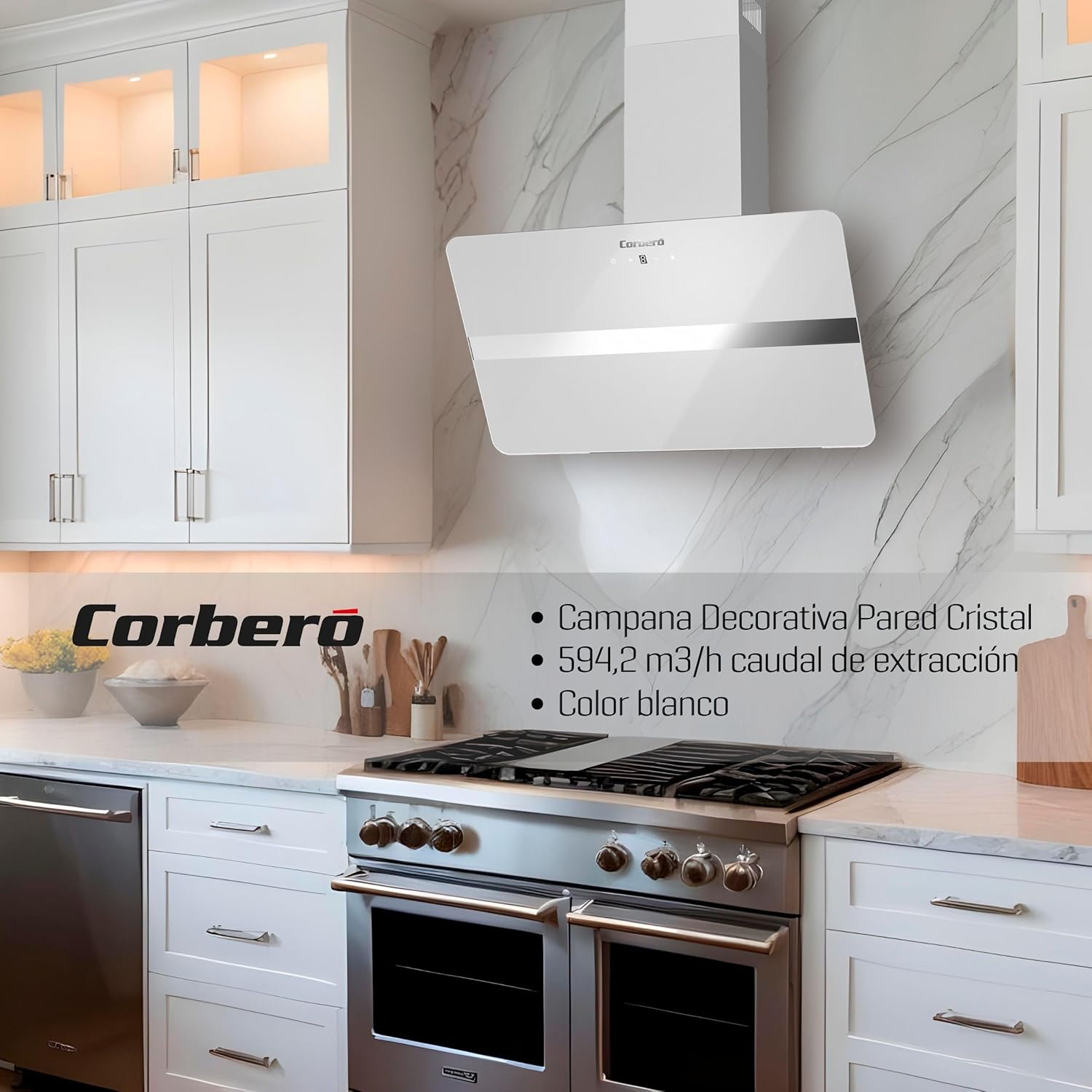

Image 2.1: The Corberó VICTORIA760W hood integrated into a kitchen environment.

3. Operasi

3.1 Panel Kawalan

The hood features a touch control panel located on the front glass surface. This panel allows for easy selection of extraction speeds and control of the lighting.

Image 3.1: Detail of the touch control interface on the hood.

3.2 Tetapan Kelajuan

The hood offers three distinct speed settings to accommodate various cooking needs. Use the touch controls to cycle through the speeds:

• Kelajuan 1 (Rendah): Ideal for simmering or light cooking, providing quiet operation.
• Kelajuan 2 (Sederhana): Suitable for general cooking and moderate steam/odor production.
• Kelajuan 3 (Tinggi): For intense cooking, frying, or when significant smoke and odors are present.

3.3 Pencahayaan

The integrated LED lighting illuminates your cooking area. Activate or deactivate the lights using the dedicated touch control button. The LED lights are energy-efficient and provide clear visibility.

Imej 3.2: View of the hood's LED lighting and air intake area.

4. Penyelenggaraan

Regular maintenance ensures optimal performance and longevity of your Corberó decorative hood.

4.1 Pembersihan dan Penggantian Penapis

The hood is equipped with an aluminum grease filter and a carbon filter (for recirculation mode).

• Penapis Gris Aluminium: This filter traps grease particles from cooking fumes. It should be cleaned regularly (e.g., monthly, depending on usage) by hand with warm soapy water or in a dishwasher. Ensure it is completely dry before re-installing.
• Penapis Karbon: If your hood operates in recirculation mode, the carbon filter removes odors from the air. Carbon filters are not washable and must be replaced periodically (typically every 3-6 months, depending on usage). Refer to the full manual for specific replacement instructions and compatible filter models.

4.2 Pembersihan Permukaan

Clean the exterior surfaces of the hood, especially the tempered glass, with a soft cloth and a mild, non-abrasive cleaning agent. Avoid harsh chemicals or abrasive pads that could scratch the surface. Ensure the hood is switched off and cool before cleaning.

5. Penyelesaian masalah

This section addresses common issues you might encounter with your decorative hood.

• Hud tidak menyala: Check if the power cord is securely plugged into a working outlet. Verify the circuit breaker has not tripped.
• Prestasi pengekstrakan yang lemah: Ensure the filters are clean and not clogged. Check that the ducting is properly installed and free of obstructions. Verify the hood is set to an appropriate speed for the cooking activity.
• Bunyi yang berlebihan: Inspect for loose components or improper installation. Ensure filters are correctly seated. If operating in recirculation mode, check the carbon filter for proper installation.
• Lampu tidak berfungsi: Check if the light switch is on. If individual bulbs are replaceable, check if they need replacement.

For issues not resolved by these steps, consult the comprehensive user manual or contact customer support.

6. Spesifikasi Teknikal

Image 6.1: Energy efficiency label for the Corberó VICTORIA760W hood.

7. Waranti dan Sokongan

For detailed information regarding the product warranty, terms, and conditions, please refer to the warranty card included with your product or visit the official Corberó website. For technical support, spare parts, or service inquiries, please contact Corberó customer service through the channels provided in your product documentation.
