1. Pengenalan
Thank you for choosing the LivePure LP500 3-in-1 Clean Heat Air Purifier & Electric Heater. This device combines an air purifier, fan, and electric heater into a single unit, designed to enhance your indoor environment. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new appliance. Please read all instructions carefully before operation and retain this manual for future reference.
2. Maklumat Keselamatan Penting
Semasa menggunakan peralatan elektrik, langkah berjaga-jaga asas harus sentiasa dipatuhi untuk mengurangkan risiko kebakaran, renjatan elektrik dan kecederaan kepada orang ramai. Baca semua arahan sebelum menggunakan pemanas ini.
- Do not use this heater with a damaged cord or plug, or after the heater malfunctions, has been dropped or damaged in any manner.
- Jangan gunakan di luar rumah.
- Pemanas ini tidak dimaksudkan untuk digunakan di bilik mandi, kawasan dobi, dan lokasi dalaman yang serupa. Jangan sekali-kali mencari pemanas di mana ia boleh jatuh ke dalam tab mandi atau bekas air yang lain.
- Jangan gunakan tali di bawah permaidani. Jangan tutup tali dengan permaidani lempar, pelari, atau penutup yang serupa. Susun kord jauh dari kawasan lalu lintas dan di mana ia tidak akan tersandung.
- Untuk memutuskan sambungan pemanas, matikan kawalan kepada MATI, kemudian tanggalkan palam dari alur keluar.
- Jangan masukkan atau benarkan objek asing memasuki mana-mana pengudaraan atau bukaan ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pemanas.
- Untuk mengelakkan kebakaran yang mungkin berlaku, jangan sekat saluran masuk atau ekzos udara dalam apa jua cara. Jangan gunakan pada permukaan lembut, seperti katil, di mana bukaan mungkin tersumbat.
- Pemanas mempunyai bahagian panas dan arka atau percikan api di dalamnya. Jangan gunakannya di kawasan di mana petrol, cat, atau cecair mudah terbakar digunakan atau disimpan.
- Gunakan pemanas ini hanya seperti yang diterangkan dalam manual ini. Sebarang penggunaan lain yang tidak disyorkan oleh pengilang boleh menyebabkan kebakaran, kejutan elektrik atau kecederaan kepada orang.
- Sentiasa pasangkan pemanas terus ke salur keluar dinding/bekas. Jangan sekali-kali gunakan dengan kord sambungan atau paip kuasa yang boleh dipindahkan (alur keluar/jalur kuasa).
- This heater includes an automatic tip-over safety switch that shuts off the unit if it is accidentally knocked over.
3. Kandungan Pakej
- LivePure LP500 3-in-1 Clean Heat Air Purifier & Electric Heater
- Alat Kawalan Jauh
- Manual Pengguna
4. Produk Lebihview
Familiarize yourself with the components and controls of your LivePure LP500 unit.
Panel Kawalan dan Penunjuk
This image illustrates the control panel of the LivePure LP500. Key features include the On/Off Power button, Fan Speed & Sleep Mode button, Heating Mode button, Accent Light button, Timer button, Rotation Mode button, and Filter Indicator Light. These controls allow you to manage all functions of the device.
Air Purification Capabilities
The LivePure LP500 is designed to address various airborne particles and odors. This image highlights its effectiveness against smoke & odors, pollen, household dust, mold spores, pet hair & dander, and bacteria, contributing to cleaner indoor air.
Fungsi Utama
This image summarizes the primary functions of the LivePure LP500: it acts as a powerful air purifier and heater, offers Low, High, and Auto heat modes, includes a remote control for convenience, and features a space-saving design suitable for various room sizes.
5. Persediaan
- Membongkar: Keluarkan unit daripada pembungkusannya dengan berhati-hati. Simpan pembungkusan untuk penyimpanan atau pengangkutan pada masa hadapan.
- penempatan: Place the unit on a firm, level surface. Ensure there is at least 12 inches (30 cm) of clear space around the unit to allow for proper airflow. Do not place the unit directly under a power outlet.
- Sambungan Kuasa: Plug the power cord directly into a 120V AC, 60Hz electrical outlet. Do not use extension cords or power strips.
- Penggunaan Awal: The unit is ready for operation once plugged in.
6. Arahan Operasi
The LivePure LP500 can be operated using the control panel on the unit or the included remote control.
Hidupkan/Mati Kuasa
- Tekan ke Hidup/Mati button once to turn the unit on. The unit will start in fan mode.
- Tekan ke Hidup/Mati butang sekali lagi untuk mematikan unit.
Penyesuaian Kelajuan Kipas
- Tekan ke Kelajuan Kipas button repeatedly to cycle through Low, Medium, High, and Turbo fan speeds.
- The corresponding indicator light on the display will illuminate.
Mod Haba
- Tekan ke Mod Pemanasan button to activate the heating function.
- Press repeatedly to cycle through Low Heat, High Heat, and Auto Heat modes.
- The unit will display the current temperature setting.
Mod Putaran
- Tekan ke Putaran button to activate oscillation, distributing air across a wider area.
- Tekan sekali lagi untuk menghentikan ayunan.
Fungsi Pemasa
- Tekan ke Pemasa button to set the operating duration.
- Each press will increase the timer by 1 hour, up to a maximum of 8 hours. The unit will automatically turn off once the set time expires.
Cahaya Aksen
- Tekan ke Cahaya Aksen button to turn the ambient light on or off.
Alat Kawalan Jauh
The remote control provides access to all functions available on the main control panel. Ensure the remote has working batteries and is pointed towards the unit for effective operation.
7. Sistem Penapisan
The LivePure LP500 utilizes a 2-stagSistem penyaringan untuk membersihkan udara.
This image details the two stages of filtration: the Coconut Carbon Pre-Filter and the True HEPA Filter.
- Coconut Carbon Pre-Filter: This filter captures larger particles such as dust, pet dander, and pollen before they reach the HEPA filter. It also helps reduce odors from cooking, smoking, and pets.
- Penapis HEPA Benar H13: This filter removes up to 99.97% of airborne particles as small as 0.3 microns, including smoke, dust, pollen, pet hair, dander, mold spores, and dust mites.
8. Penyelenggaraan
Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat unit anda.
Penggantian Penapis
The Filter Indicator Light will illuminate when it is time to replace the filter. Filter life varies depending on usage and air quality.
- Cabut palam unit daripada salur keluar kuasa.
- Locate the filter compartment, typically at the base of the unit.
- Buka petak dan keluarkan penapis lama.
- Insert a new LivePure LP500 replacement filter, ensuring it is correctly oriented.
- Tutup petak penapis dengan selamat.
- Plug the unit back in. To reset the filter indicator, press and hold the Filter Indicator button for 3-5 seconds until the light turns off.
Membersihkan Unit
- Sentiasa cabut plag unit sebelum membersihkan.
- Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
- Use a vacuum cleaner with a brush attachment to gently clean the air intake and exhaust vents.
- Do not allow water to enter the internal components.
Penyimpanan
Jika menyimpan unit untuk tempoh yang lama, cabut plagnya, bersihkan dengan teliti, dan simpan di tempat yang sejuk dan kering, sebaik-baiknya di dalam pembungkusan asalnya.
9. Penyelesaian masalah
Rujuk bahagian ini untuk isu biasa dan penyelesaiannya.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan. | No power supply; Unit tipped over; Power cord not fully plugged in. | Check power outlet; Ensure unit is upright on a flat surface; Plug power cord firmly into outlet. |
| Tiada keluaran haba. | Heating mode not selected; Temperature setting too low. | Press the Heating Mode button to select a heat setting; Increase the desired temperature. |
| Weak airflow or purification. | Filter is dirty or clogged; Air intake/exhaust blocked. | Replace the filter; Ensure no obstructions around air vents. |
| Unit mengeluarkan bunyi yang luar biasa. | Foreign object inside; Unit not on a level surface. | Unplug and inspect for foreign objects (if safe); Place unit on a stable, level surface. |
| Alat kawalan jauh tidak berfungsi. | Batteries are dead; Obstruction between remote and unit. | Replace remote control batteries; Ensure clear line of sight to the unit. |
Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.
10. Spesifikasi
Detailed technical specifications for the LivePure LP500.
- Nombor Model: LP500APHTR
- Dimensi Produk: 8.38"D x 8.38"W x 24.5"H (21.3 cm D x 21.3 cm W x 62.2 cm H)
- Berat Barang: 9.37 paun (4.25 kg)
- Sumber Kuasa: Elektrik Bertali
- Voltage: 120V AC, 60Hz
- Jenis Penapis: H13 True HEPA with Coconut Carbon Pre-Filter
- Kawasan Liputan: Sehingga 400 kaki persegi
Coverage and Air Exchange
This image indicates that the LivePure LP500 can clean the air in rooms up to 400 sq ft, exchanging the air 28 times per day under optimal conditions.

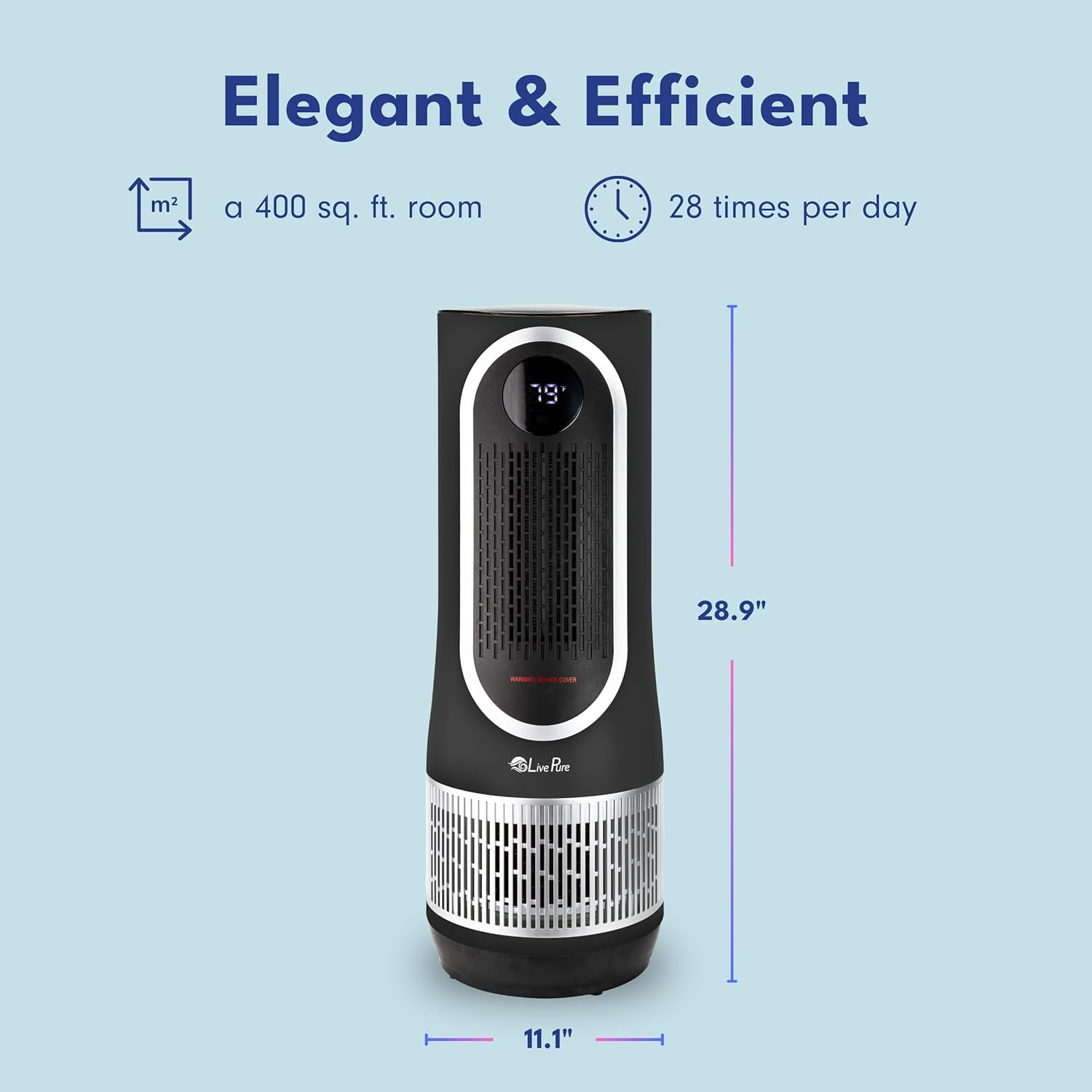

Dimensi Unit
This image provides a visual representation of the unit's dimensions, showing a height of 28.9 inches and a base width of 11.1 inches.
Room Size Chart
This chart illustrates the approximate air exchange rates per hour for different room sizes (assuming an 8-foot ceiling height). For example, a 10'x15' bedroom has an exchange rate of 3.2 times per hour, while a 20'x20' living room has an exchange rate of 1.2 times per hour.
11. Waranti dan Sokongan
For warranty information and customer support, please refer to the warranty card included with your product or visit the official LivePure website. Please have your model number (LP500APHTR) and purchase date available when contacting support.
