Manual Pengguna Fon Telinga Tanpa Wayar Bluetooth 5.3 Renimer BK11

pengenalan

Selamat datang

Thank you for choosing the Renimer BK11 Bluetooth 5.3 Wireless Earbuds. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new earbuds. Please read this guide thoroughly before use to ensure optimal performance and longevity of your device.

Kandungan Pakej

• Renimer BK11 Wireless Earbuds
• Kes Pengecasan
• Kabel Pengecas USB-C
• Manual Pengguna
• S/M/L Eartips

Produk Selesaiview

Earbud and Charging Case Diagram

Familiarize yourself with the components of your Renimer BK11 earbuds and charging case.

This image displays the Renimer BK11 wireless earbuds placed inside their charging case. The case features an LED display showing "100" and battery indicators, suggesting a full charge. The earbuds themselves have a sleek, dark design with a blue indicator light and a fingerprint-like icon on the touch control area. Model number BK11 and FCC ID are visible on the inside of the case.

Kawalan Sentuh

The earbuds feature touch-sensitive controls for various functions. The exact touch areas are indicated by the fingerprint icon on each earbud.

• Ketik sekali: Play/Pause music, Answer/End a phone call.
• Double tap (Right earbud): Trek seterusnya.
• Double tap (Left earbud): Lagu sebelumnya.
• Triple tap (Right earbud): Naikkan kelantangan.
• Triple tap (Left earbud): Perlahankan suara.
• Tekan lama (lebih kurang 2 saat): Activate voice assistant, Reject an incoming call.

Persediaan

Mengecas Fon telinga dan Sarung

Before first use, fully charge the earbuds and charging case to ensure maximum battery life.

This image illustrates the Renimer BK11 charging case being charged via a USB-C cable. The case's LED display shows the battery level, indicating the charging status.

• Connect the provided USB-C cable to the charging port on the case and to a standard USB power adapter (not included).
• The LED display on the case will indicate the charging status and current battery percentage.
• Cas penuh untuk bekas pengecas mengambil masa kira-kira 1.5 jam.
• The earbuds provide 6-8 hours of playtime on a single charge.
• The 350 mAh charging case provides multiple recharges, extending total playtime up to 40 hours.

Berpasangan Bluetooth

Follow these steps to pair your Renimer BK11 earbuds with your device.

This image illustrates the Bluetooth pairing process, showing a smartphone's Bluetooth settings with "BK11" listed as an available device to connect to. The Renimer BK11 charging case and earbuds are also visible.

Gandingan Awal

1. Pastikan kedua-dua fon telinga dicas.
2. Buka bekas pengecas. Fon telinga akan dihidupkan secara automatik dan memasuki mod berpasangan.
3. Pada peranti anda (telefon pintar, tablet, komputer, dll.), dayakan Bluetooth.
4. Cari untuk "BK11" in the list of available Bluetooth devices and select it to connect.
5. Setelah disambungkan, gesaan suara akan mengesahkan gandingan yang berjaya.

Menyambung semula

Once paired, the earbuds will automatically reconnect to the last paired device when taken out of the charging case, provided Bluetooth is enabled on the device and it is within range.

Menetapkan semula Earbud

If you experience pairing issues or only one earbud is connecting, you can reset the earbuds:

• Letakkan kedua-dua fon telinga kembali ke dalam bekas pengecasan.
• Close the case lid and wait for approximately 5 seconds.
• Open the case lid again. The earbuds should re-synchronize and enter pairing mode.
• If issues persist, try forgetting "BK11" from your device's Bluetooth list and repeat the initial pairing process.

Arahan Operasi

Memakai Earbud

For optimal sound quality, comfort, and secure fit, choose the correct eartip size.

This image highlights the ergonomic design of the Renimer BK11 earbuds, showing how they fit securely in the ear. It also displays three sizes of soft silicone eartips (S/M/L) to ensure a comfortable and secure fit for different users.

• Select the eartips (S/M/L) that provide the best seal and comfort for your ears.
• Gently insert the earbuds into your ear canal and twist slightly to secure them in place.

Fungsi Panggilan

The earbuds feature CVC8.0 noise reduction and 4 microphones (ENC Mic, Talk Mic) for clear phone calls, minimizing background noise.

This image details the noise-cancelling capabilities, showing the placement of ENC (Environmental Noise Cancellation) and Talk microphones on the earbuds. A graph demonstrates the reduction of noise frequencies "Before" and "After" processing, indicating clearer phone calls.

• Jawab/Tamatkan Panggilan: Ketik sekali sama ada fon telinga.
• Tolak Panggilan: Long press either earbud for approximately 2 seconds.

Main balik Muzik

Control your music directly from the earbuds.

• Main/Jeda: Ketik sekali sama ada fon telinga.
• Lagu Seterusnya: Ketik dua kali pada fon telinga kanan.
• Trek Sebelumnya: Ketik dua kali pada fon telinga kiri.
• Kelantangan: Ketik tiga kali pada fon telinga kanan.
• Perlahankan suara: Ketik tiga kali pada fon telinga kiri.

Kualiti Bunyi

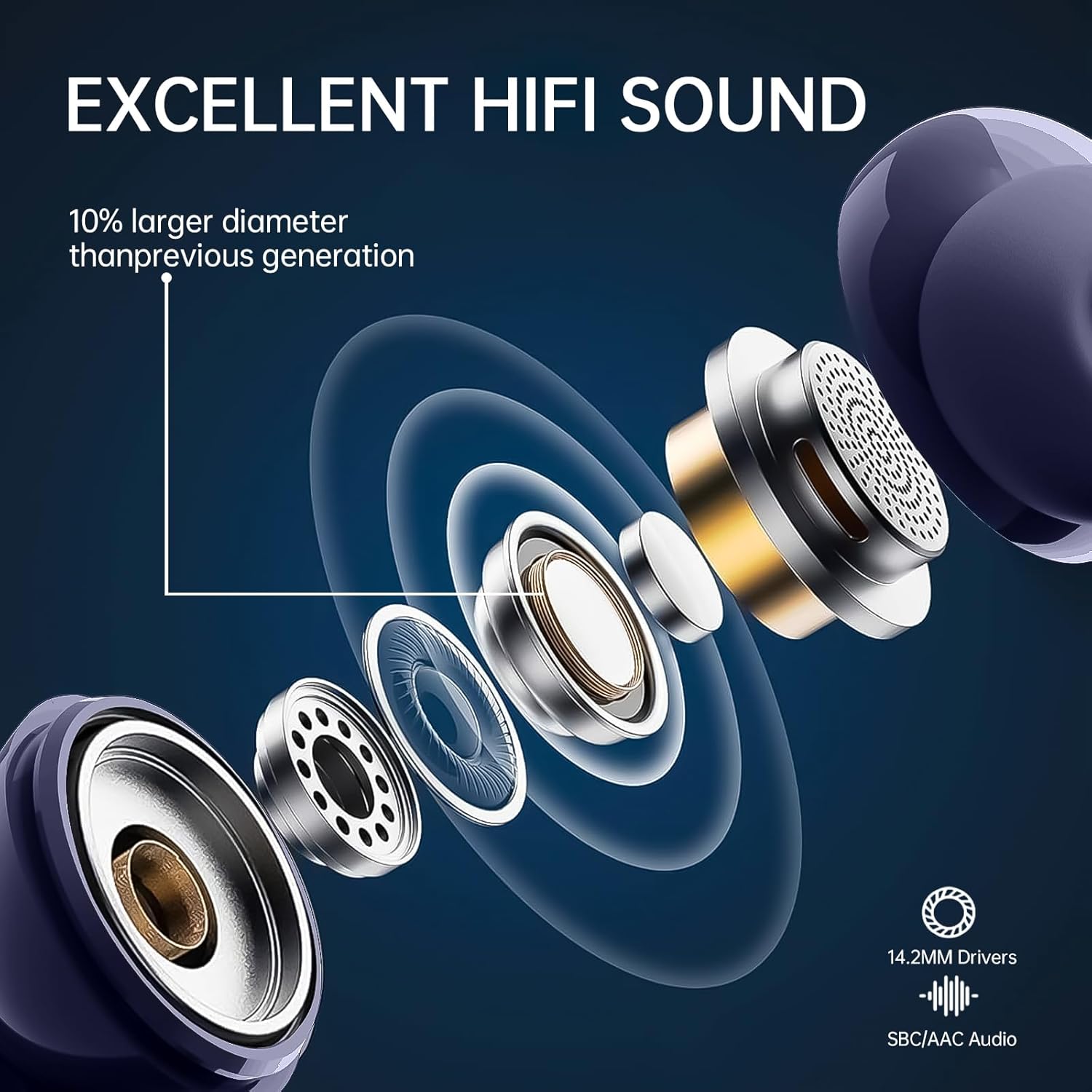

The Renimer BK11 earbuds feature 14.2mm drivers for excellent HiFi sound reproduction.

Imej ini menyediakan dalaman view of the earbud's driver, highlighting its 14.2mm size and various components, indicating a focus on high-fidelity sound reproduction.

Penyelenggaraan

Pembersihan

• Bersihkan fon telinga dan bekas pengecas dengan kerap menggunakan kain yang lembut, kering dan tidak berbulu.
• Do not use harsh chemicals, abrasive materials, or liquids directly on the earbuds or case.
• Perlahan-lahan keluarkan sebarang tahi telinga atau serpihan dari hujung telinga dan jaring pembesar suara menggunakan berus kecil yang lembut atau sapu kapas.

Penyimpanan

• When not in use, always store the earbuds in their charging case to protect them from damage and keep them charged.
• Store the device in a cool, dry place, away from extreme temperatures, direct sunlight, and humidity.

Menyelesaikan masalah

Isu dan Penyelesaian Biasa

1. Fon telinga tidak berpasangan:
   • Pastikan kedua-dua fon telinga dicas dengan secukupnya.
   • Place them back in the case, close the lid, then reopen to re-initiate pairing mode.
   • Matikan dan kemudian hidupkan Bluetooth peranti anda.
   • Forget "BK11" from your device's Bluetooth list and attempt to re-pair.
2. Hanya satu fon telinga berfungsi:
   • Pastikan kedua-dua fon telinga dicas.
   • Place both earbuds back in the charging case, close the lid, wait a few seconds, then open the lid again. This often resynchronizes them.
   • If the issue persists, try resetting the earbuds as described in the "Resetting Earbuds" section.
3. Kualiti bunyi yang lemah:
   • Pastikan hujung telinga ditutup rapat di saluran telinga anda. Cuba saiz hujung telinga yang berbeza.
   • Bersihkan mana-mana serpihan daripada jaring pembesar suara.
   • Ensure the earbuds are within Bluetooth range (typically 10 meters) of your device and there are no significant obstructions.
   • Check your device's audio settings and volume levels.
4. Isu pengecasan:
   • Pastikan kabel USB-C disambungkan dengan selamat pada bekas pengecas dan sumber kuasa.
   • Try a different USB-C cable or power adapter to rule out cable/adapter issues.
   • Bersihkan sesentuh pengecasan pada fon telinga dan bahagian dalam sarung dengan kapas kering.

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi khidmat pelanggan untuk bantuan lanjut.

Spesifikasi

Spesifikasi Teknikal

Waranti dan Sokongan

Maklumat Waranti

Renimer products are designed for reliability and performance. For detailed warranty information, please refer to the warranty card included in your product packaging or visit the official Renimer website for the most up-to-date policy.

Sokongan Pelanggan

If you have any questions, require technical assistance, or encounter any issues with your Renimer BK11 earbuds, please do not hesitate to contact our dedicated customer support team. Contact information can typically be found on the product packaging, the warranty card, or our official webtapak.
