pengenalan
This manual provides essential information for the safe and efficient use of your Dopesplay DR158W 15.6-inch Portable Laptop Screen. Please read these instructions thoroughly before operating the device and retain them for future reference.
The Dopesplay DR158W is a versatile 15.6-inch portable touchscreen display designed to extend your workspace or enhance your mobile computing experience. It features a built-in battery, wireless charging capabilities, and multiple connectivity options, allowing you to transform your smartphone, mini-computer, or game console into a powerful workstation.
Produk Selesaiview
The Dopesplay DR158W combines a compact, portable design with a high-resolution display and integrated features for enhanced productivity and entertainment on the go.
Ciri-ciri Utama:
- 15.6-inch FHD 1080p IPS Display: Offers a clear and vibrant visual experience with a 1920 x 1080 resolution.
- Fungsi skrin sentuh: Provides intuitive interaction with compatible devices.
- Integrated Keyboard and Trackpad: Transforms your mobile device into a laptop-like setup.
- Bateri 12900 mAh terbina dalam: Ensures extended usage without external power.
- Pengecasan Tanpa Wayar: Conveniently charge compatible smartphones.
- Kesambungan Berwayar & Wayarles: Supports USB Type-C, Mini HDMI, Bluetooth, and Wi-Fi.
- 360-Degree Convertible Design: Membolehkan untuk fleksibel viewdalam mod.
Image: Visual representation of the Dopesplay DR158W's display specifications, highlighting its 1920x1080 resolution, 15.6-inch IPS panel, 300 Nits brightness, 800:1 contrast ratio, HDR support, Low Blue Light feature, 16.7 million colors, 100% sRGB color gamut, and 60Hz refresh rate.
Image: The Dopesplay DR158W portable monitor displayed in multiple configurations, illustrating its 360-degree rotating capability for flexible use as a laptop, tablet, or presentation display.
Persediaan
Identifying Ports:
Familiarize yourself with the available ports on your Dopesplay DR158W to ensure correct connections.
Imej: A terperinci view of the Dopesplay DR158W's connectivity ports. Labels indicate: A) Power on/off button, B) Micro SD card slot, C) Standard USB port, D) Headphone jack, E) USB-C port for charging, F) USB-C port for data input, and G) Mini HDMI input port.
Menyambungkan Peranti Anda:
The DR158W offers both wired and wireless connection options.

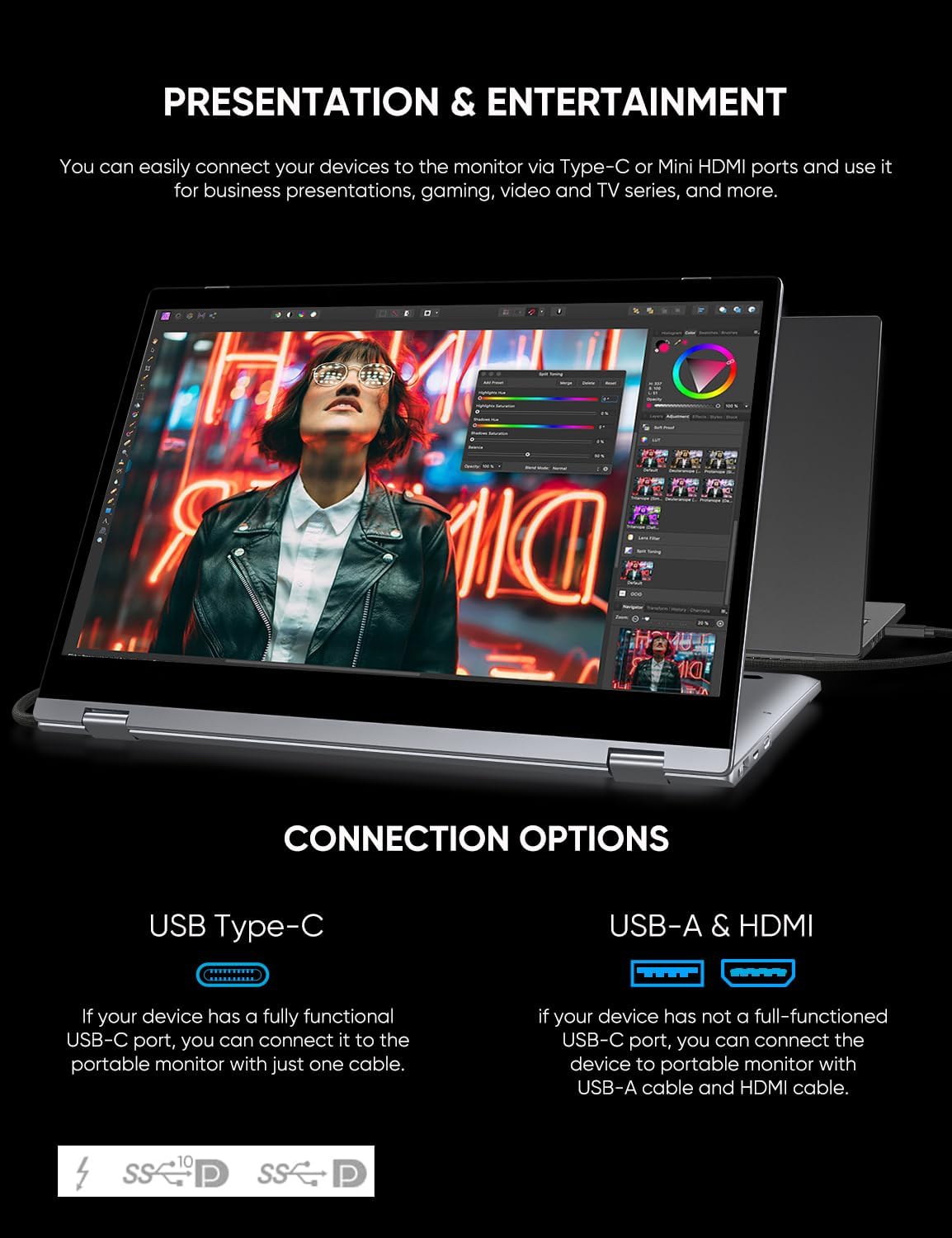

Image: Illustration detailing the wired connection methods for the Dopesplay DR158W. It shows that devices with a full-functional USB-C port can connect with a single USB-C cable, while devices without can use a USB-A and HDMI cable combination.
- Sambungan USB Jenis-C: If your device has a fully functional USB-C port (supporting video output and power delivery), connect it directly to the monitor using a single USB-C cable. This provides both power and display signal.
- Sambungan HDMI & USB-A: For devices without a full-functional USB-C port, connect the monitor via a Mini HDMI cable for video and a USB-A cable for power and touch functionality.
- Sambungan Wayarles: The DR158W supports fast wireless connection via Bluetooth 4.1 and Wi-Fi 5.8 GHz. Refer to the 'Operating Instructions' section for detailed steps on wireless pairing.
Menghidupkan:
Press and hold the Power On/Off button (A) located on the side of the device until the screen illuminates.
Arahan Operasi
Kesambungan Tanpa Wayar:
The DR158W allows for seamless wireless connection to your mobile devices, eliminating cable clutter.
Image: A user interacting with the Dopesplay DR158W, which is wirelessly connected to a smartphone, demonstrating its use for productivity. The image emphasizes its Wi-Fi 5.8 GHz and Bluetooth 4.1 wireless connection features.
- Ensure both the DR158W and your mobile device (smartphone, tablet) have their wireless functions (Bluetooth, Wi-Fi) enabled.
- On your mobile device, search for available Bluetooth or Wi-Fi devices and select the DR158W.
- Ikuti mana-mana gesaan pada skrin untuk melengkapkan proses berpasangan.
- Once connected, your mobile device's display will be mirrored or extended to the DR158W.
Note: Touch functionality may vary or be unavailable for certain operating systems or devices when connected wirelessly (e.g., Mac and iPhone).
Using the Integrated Keyboard and Touchscreen:
The DR158W features an integrated keyboard and a 10-point touchscreen for intuitive control.
Image: A user operating the Dopesplay DR158W portable monitor, demonstrating its 10-point touchscreen and integrated keyboard for efficient work on a productivity application.
- papan kekunci: Use the physical keyboard for typing and text input, similar to a standard laptop.
- Skrin sentuh: Interact directly with the display using touch gestures. The 10-point touchscreen allows for multi-touch commands.
- Pad jejak: The integrated trackpad provides mouse-like control for navigation and selection.
Pengecasan Tanpa Wayar:
The DR158W includes a wireless charging pad for compatible devices.
Image: The Dopesplay DR158W portable monitor in use, with a smartphone placed on its keyboard area, actively charging wirelessly. This image also highlights the device's built-in 11.4V/12900mAh battery.
- Place your Qi-compatible smartphone on the designated wireless charging area, typically located on the keyboard deck.
- Ensure the phone is properly aligned for charging to begin. A charging indicator may appear on your phone's screen.
Note: Wireless charging speed may vary. For optimal charging, ensure the phone is centered on the charging pad.
Penyelenggaraan
- Pembersihan: Gunakan kain lembut dan tidak berbulu untuk membersihkan skrin dan bahagian luar. Untuk calitan degil, sedikit dampen kain dengan air atau pembersih selamat skrin. Elakkan bahan kimia yang keras atau bahan yang melelas.
- Storan: Apabila tidak digunakan, simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
- Pengendalian: Handle the device with care to prevent drops or impacts. Avoid placing heavy objects on top of the screen.
- Penjagaan Bateri: Untuk memanjangkan hayat bateri, elakkan daripada menyahcas sepenuhnya bateri dengan kerap. Cas peranti dengan kerap, walaupun tidak digunakan secara berterusan.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Screen does not turn on. | Low battery; Power cable not connected; Device not powered on. | Charge the device; Ensure power cable is securely connected; Press and hold the power button. |
| No display signal. | Incorrect cable connection; Source device not outputting video; Incorrect input selected. | Check USB-C or HDMI cable connections; Ensure source device is configured for external display; Select correct input source on the monitor (if applicable). |
| Wireless connection issues. | Bluetooth/Wi-Fi not enabled; Device out of range; Interference. | Ensure wireless functions are enabled on both devices; Move devices closer; Reduce interference from other wireless devices. |
| Skrin sentuh tidak bertindak balas. | Incompatible device/OS; Loose USB connection (for wired); Software glitch. | Verify device/OS compatibility for touch; Reconnect USB cable; Restart both devices. |
| Screen is too dim. | Brightness settings; Power saving mode. | Adjust brightness settings on the monitor or connected device. Ensure power saving mode is not active. |
| Pengecasan tanpa wayar tidak berfungsi. | Phone not Qi-compatible; Incorrect placement; Foreign objects. | Ensure phone supports Qi wireless charging; Realign phone on the charging pad; Remove any objects between phone and pad. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Dopesplay |
| Nombor Model | DR158W |
| Saiz Skrin Paparan | 15.6 inci |
| Resolusi Paparan Maksimum | 1920 x 1080 Piksel (FHD 1080p) |
| Nisbah Aspek | 16:9 |
| Penerangan Permukaan Skrin | Berkilat |
| Nisbah Kontras Imej | High (specific value not provided) |
| Masa Tindak Balas | 5 milisaat |
| Kadar Segar Semula | 60 Hz |
| Ciri Khas | Glossy screen, Touchscreen, Portable, Built-in speakers |
| warna | Perak |
| Faktor Bentuk | Laptop (referring to its convertible nature) |
| Dimensi Produk | 37.34 x 26.8 x 6.4 cm |
| Berat Barang | 2.83 Kilogram |
| Jenis Wayarles | 5.8 GHz Radio Frequency (Wi-Fi), Bluetooth 4.1 |
| Voltage | 5 Volt |
| Bateri Terbina dalam | 12900 mAh (11.4V) |
Waranti dan Sokongan
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Dopesplay webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
