HITBOX Plasma Cutter 55Amp Manual Pengguna

pengenalan

This manual provides comprehensive instructions for the safe and effective operation and maintenance of your HITBOX Plasma Cutter 55Amp. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

Maklumat Keselamatan

WARNING: Plasma cutting involves high voltage, high temperatures, and intense light. Always follow safety precautions to prevent serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including welding helmet with proper shade, safety glasses, welding gloves, and protective clothing.
• Ensure adequate ventilation to disperse fumes.
• Do not operate in wet conditions or near flammable materials.
• Pastikan peralatan dibumikan dengan betul.
• Putuskan sambungan kuasa sebelum melakukan sebarang penyelenggaraan atau menukar bahan habis pakai.
• Jauhkan kanak-kanak dan kakitangan yang tidak dibenarkan dari kawasan kerja.

Produk Selesaiview

The HITBOX Plasma Cutter 55Amp is a high-frequency non-touch pilot arc air plasma cutting machine designed for efficient metal cutting. It features dual voltage compatibility (110V/220V) and advanced IGBT inverter technology for stable performance.

Ciri-ciri Utama:

• Non-Touch Pilot Arc Function: Enables cutting without direct metal contact, improving cut quality and extending consumable life. Effective on rough, painted, and rusty surfaces.
• Powerful Cutting Performance: Advanced IGBT inverter technology with 50/60Hz high frequency and 60% duty cycle. Achieves 12mm ideal clean cut and 21mm maximum severance cut under 220V; 8mm ideal clean cut and 10mm maximum severance cut under 110V.
• Easy Setup: Pre-installed air filter regulator and industrial-style quick gas connection for hassle-free setup and 100% air non-leakage.
• Automatic Cutting (2T/4T): Features 2T semi-automatic and 4T automatic cutting control for hands-free operation.
• Versatile Application: Suitable for Stainless Steel, Alloy Steel, Mild Steel, Copper, Aluminum, and other metals.
• Portable Design: Weighs only 6kg, making it easy to transport to any workplace.

Komponen dan Aksesori

Your HITBOX Plasma Cutter package includes the following:

• HITBOX Plasma Cutter Machine (HBC5500)
• AG60 Cutting Torch (1 pcs)
• Bumi Clamp (1 pcs)
• Air Hose (1 pcs)
• Nozzles (2 pcs)
• Electrodes (2 pcs)
• Selang Clamps (2 pcs)
• 220V~110V Adapter (1 pcs)
• Manual Arahan

Figure 1: Included Components and Accessories

Arahan Persediaan

Follow these steps to set up your plasma cutter:

1. Sambungan Kuasa

The machine supports dual voltage (110V/220V). Use the appropriate power outlet and adapter if necessary.

2. Obor dan Tanah Clamp Sambungan

Connect the cutting torch and earth clamp to the designated ports on the front panel of the machine. Ensure connections are secure.

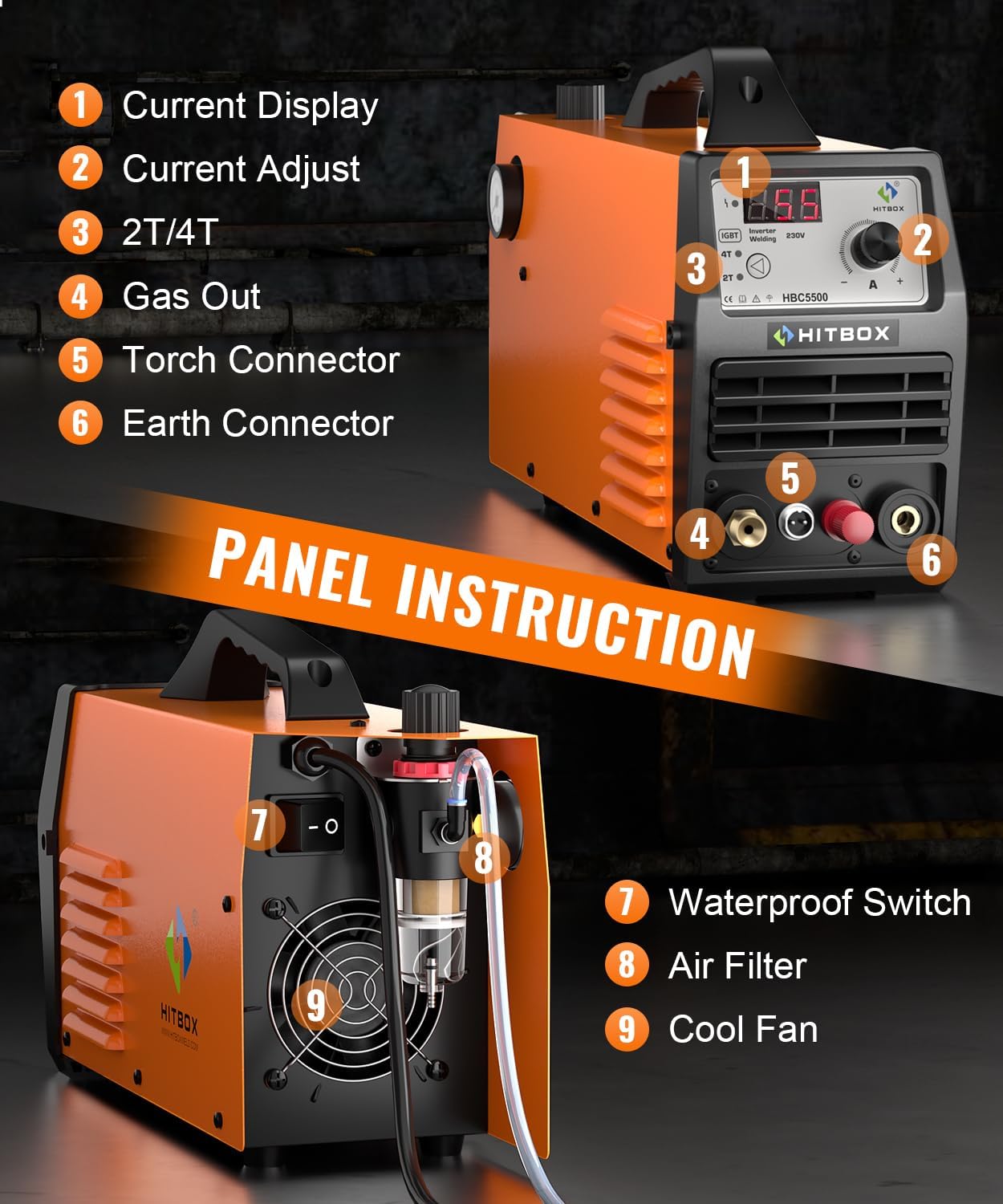

Figure 2: Front Panel Connections (1: Current Display, 2: Current Adjust, 3: 2T/4T, 4: Gas Out, 5: Torch Connector, 6: Earth Connector)

3. Sambungan Udara

Connect the air hose to the pre-installed air filter regulator on the rear of the machine. Ensure a secure, non-leaking connection. An air compressor is required (not included).

Figure 3: Rear Panel Features (7: Waterproof Switch, 8: Air Filter, 9: Cool Fan)

It is recommended to set the air pressure between 42 to 57 PSI for optimal performance.

Arahan Operasi

1. Power On and Adjust Settings

Turn on the power switch located on the rear panel. Use the current adjust knob on the front panel to set the desired amperage for your cutting task. The digital display will show the current setting.

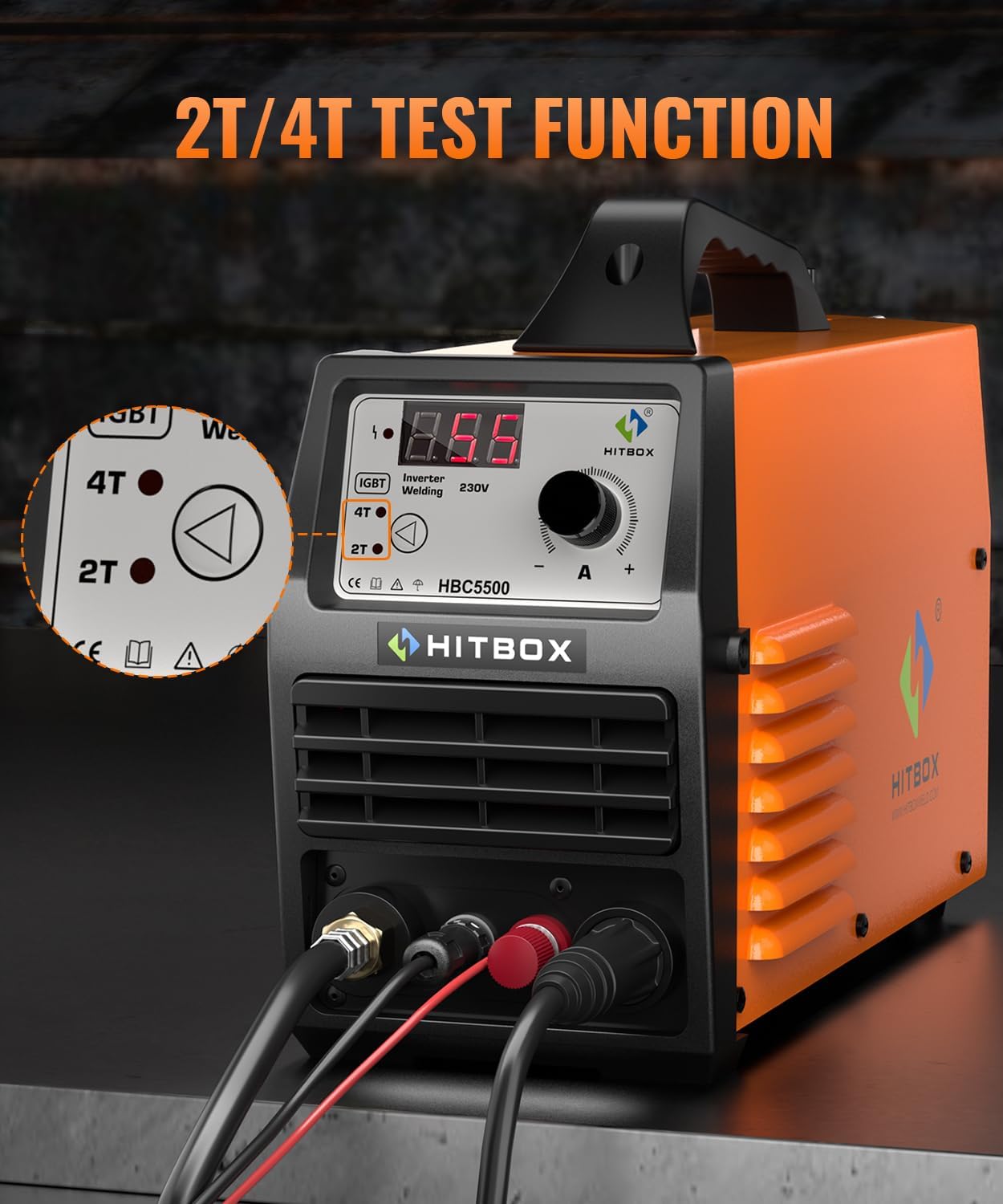

Figure 4: Digital Display and 2T/4T Selection

2. Select 2T/4T Mode

Press the 2T/4T button to toggle between semi-automatic (2T) and automatic (4T) cutting modes based on your preference and task requirements.

3. Perform Cutting

Position the torch over the material to be cut. The non-touch pilot arc allows for cutting without direct contact. Maintain a consistent distance for a clean cut. The machine is capable of cutting various materials including Stainless Steel, Alloy Steel, Mild Steel, Copper, and Aluminum.

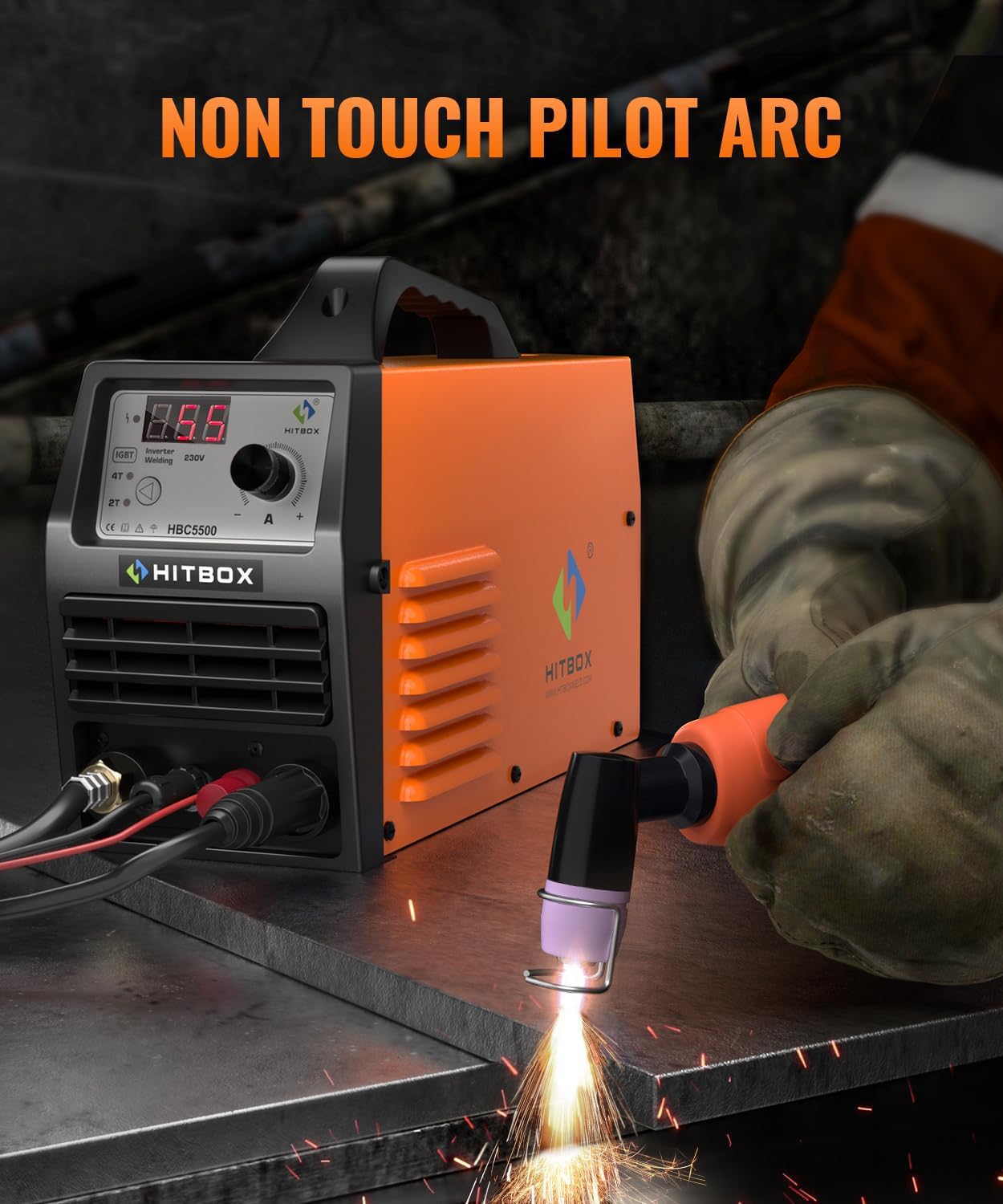

Figure 5: Non-Touch Pilot Arc in Operation

Figure 6: Cutting Thickness Capabilities (12mm clean cut, 21mm max severance at 220V)

Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum pemotong plasma anda.

• **Air Filter:** Periodically check and drain the moisture from the air filter regulator. Replace the filter element if it becomes clogged or damaged.
• **Consumables:** Inspect the torch nozzles and electrodes regularly. Replace them when they show signs of wear to maintain cut quality. The package includes extra consumables.
• **Cleaning:** Keep the machine clean and free from dust and debris. Ensure the cooling fan is unobstructed for proper heat dissipation.
• **Connections:** Verify all electrical and air connections are tight and secure before each use.

Menyelesaikan masalah

If you encounter issues with your HITBOX Plasma Cutter, consider the following common solutions:

• **No Arc/Poor Cut:**
  • Check power supply and ensure it matches the machine's requirements (110V/220V).
  • Verify air pressure is within the recommended range (42-57 PSI).
  • Inspect torch consumables (nozzle, electrode) for wear and replace if necessary.
  • Pastikan bumi clamp mempunyai sambungan yang baik ke bahan kerja.
• **Overheat Protection:** The machine has overload protection and will shut down if it overheats or experiences an overcurrent situation. Allow the machine to cool down before resuming operation. Ensure proper ventilation.
• **Air Leakage:** Check all air hose connections, especially the quick gas connection, for any leaks.

For persistent issues or technical support, please contact HITBOX customer service.

Spesifikasi

Waranti dan Sokongan

HITBOX is committed to providing quality products. If you encounter any problems during operation, please contact us at the first time for assistance. Your satisfaction is our priority.
