pengenalan
Thank you for choosing the FEELNEEDY FN-C02 Automatic Foaming Soap Dog Bath Brush. This innovative device is designed to simplify pet bathing, providing a deep cleaning and comfortable massage experience for your furry companion. Please read this manual thoroughly before use to ensure proper operation and maintenance.
Maklumat Keselamatan
- Jauhkan peranti daripada kanak-kanak dan haiwan peliharaan apabila tidak digunakan.
- Do not immerse the main unit of the device in water. The device is IPX6 waterproof, meaning it is resistant to high-pressure water jets, but not full submersion.
- Use only pet-safe shampoos and ensure they are diluted according to instructions to prevent skin irritation.
- Inspect the device for any damage before each use. Do not operate if damaged.
- Charge the device using the provided Type-C cable and a compatible power adapter.
Kandungan Pakej
- 1 x FEELNEEDY Automatic Foaming Soap Dog Bath Brush (Main Unit)
- 1 x Soft Silicone Massage Brush Head
- 1 x 300ml Soap Dispenser Bottle
- 1 x Kabel Pengecas Jenis-C
- 1 x Manual Pengguna
Produk Selesaiview
Familiarize yourself with the components of your Automatic Foaming Soap Dog Bath Brush:
- Kepala Berus: Soft silicone bristles for massage and cleaning.
- Unit Utama: Mengandungi motor, bateri dan butang kawalan.
- Butang Kuasa: To turn the device on/off and switch foaming modes.
- Paparan Digital: Shows battery level and current foaming mode.
- Soap Dispenser Bottle: For shampoo and water mixture.
- Gravity Suction Head: Ensures efficient soap delivery.
- Port Pengecasan Jenis-C: Untuk mengecas semula peranti.
Rajah 1: Komponen Produk
Persediaan
1. Mengecas Peranti
Before first use, fully charge the device. The digital display will show the battery percentage.
- Connect the Type-C charging cable to the charging port on the main unit.
- Plug the other end of the cable into a USB power adapter (not included).
- The digital display will show the charging status. A full charge is indicated by '100'.
Rajah 2: Port Pengecasan Jenis-C
2. Filling the Soap Dispenser
The device is designed to save shampoo by diluting it with water.
- Unscrew the soap dispenser bottle from the main unit.
- Add your preferred pet shampoo up to the 'Shampoo MAX 30ml' line.
- Fill the rest of the bottle with water, maintaining a 1:10 shampoo to water ratio (e.g., 25ml shampoo to 250ml water).
- Securely screw the dispenser bottle back onto the main unit.
Figure 3: Dilution Guide (1:10 Ratio)
3. Memasang Kepala Berus
Align the soft silicone brush head with the main unit and twist it clockwise until it locks securely in place.
Figure 4: Soft Silicone Massage Brush Head
Arahan Operasi
1. Hidupkan/Mati Kuasa dan Pemilihan Mod
- Press and hold the power button for 2 seconds to turn the device ON. The digital display will light up.
- Press the power button briefly to switch between the two foaming modes (standard foam and spray foam).
- Press and hold the power button for 2 seconds again to turn the device OFF.
2. Bathing Your Pet
- Wet your pet's coat thoroughly with water.
- Turn on the foaming brush and select your desired mode.
- Gently brush your pet's coat, allowing the rich foam to penetrate deep into the fur. The silicone bristles will provide a soothing massage while cleaning.
- Ensure all areas are covered with foam for an effective clean.
- Rinse your pet thoroughly with clean water until all foam and shampoo residue are gone.

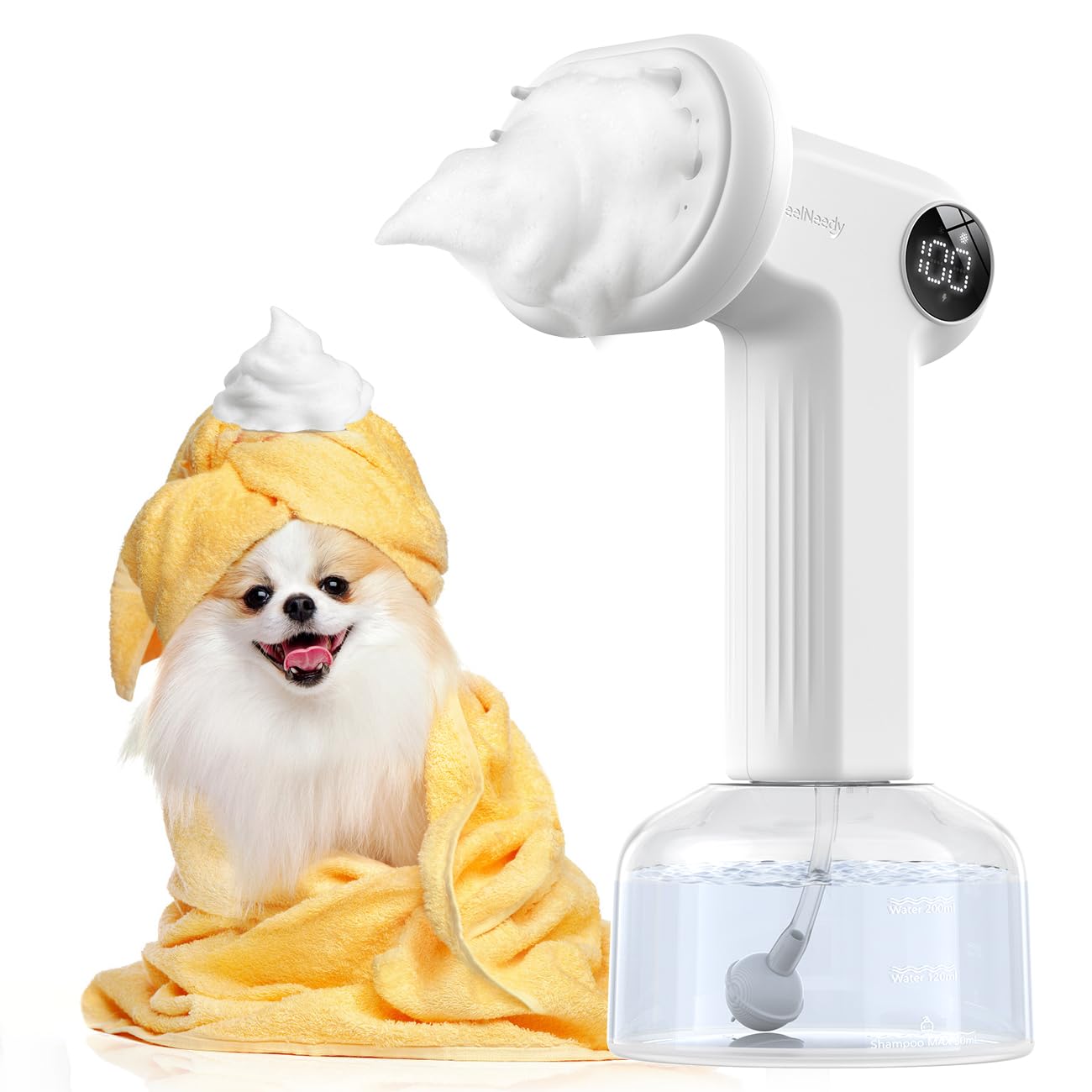

Figure 5: Applying Foam to Pet's Coat
Figure 6: Two Foaming Modes
Official Product Video: Automatic Foaming Soap Dog Bath Brush in Action
Video 1: This official video demonstrates the FEELNEEDY Automatic Foaming Soap Dog Bath Brush, showcasing its foaming capabilities and ease of use during a dog bath. It highlights the rich foam and the massage bristles.
Official Product Video: Automatic Foaming Soap Dog Bath Brush Features
Video 2: This video provides a detailed look at the Automatic Foaming Soap Dog Bath Brush, demonstrating its various features including the foaming action, massage bristles, and overall design for an improved pet bathing experience.
Penyelenggaraan
1. Cleaning the Brush Head and Bottle
- After each use, detach the brush head and rinse it thoroughly under running water to remove any hair or soap residue.
- Unscrew the soap dispenser bottle and rinse it out completely.
- Allow all components to air dry before reassembling or storing.
2. Membersihkan Unit Utama
- Lap unit utama dengan iklanamp kain. Jangan gunakan pembersih yang kasar atau rendamkannya di dalam air.
- Pastikan penutup port pengecas ditutup rapat untuk mengelakkan kemasukan air.
3. Penyimpanan
Simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| No foam is dispensed. | Low battery; Insufficient shampoo/water; Blocked suction head. | Charge the device; Refill the bottle with correct ratio; Clean the suction head. |
| Foam is too thin/thick. | Incorrect shampoo/water ratio. | Adjust the shampoo to water ratio (recommended 1:10). |
| Peranti tidak dihidupkan. | Bateri lemah; Kerosakan peranti. | Cas peranti sepenuhnya; Hubungi khidmat pelanggan jika masalah berterusan. |
| Brush head detaches during use. | Brush head not securely attached. | Ensure the brush head is twisted clockwise until it locks firmly. |
Spesifikasi
- model: FN-C02
- Jenama: PERASAAN
- Berat Barang: 350 Gram (12.3 auns)
- Dimensi Produk: 5.2 x 3.94 x 9.13 inci
- Bahan: Akrilonitril Butadiena Stirena (ABS)
- warna: putih
- Bateri: 1 bateri Polimer Litium (termasuk)
- Penilaian Kalis Air: IPX6
- Kapasiti Dispenser: 300ml
Waranti dan Sokongan
FEELNEEDY products are designed for quality and durability. For warranty information, technical support, or any questions regarding your product, please refer to the contact information provided on the product packaging or visit the official FEELNEEDY webtapak.
For customer support, please email us at support@feelneedy.com.
