Maklumat Keselamatan Penting
Produk ini mungkin mengandungi bahan kimia yang diketahui oleh Negeri California boleh menyebabkan kanser dan kecacatan kelahiran atau kemudaratan pembiakan yang lain. Untuk maklumat lanjut, sila lawati www.P65Warnings.ca.gov.
Produk Selesaiview
The Barska Trend Compact Binoculars 8x21 (Model AB10124) are designed for portability and ease of use, suitable for various outdoor activities such as bird watching, hunting, and travel. These binoculars feature an 8x magnification and 21mm objective lenses, providing clear and vivid images. The ergonomic design includes non-slip rubber armor for a comfortable and secure grip.

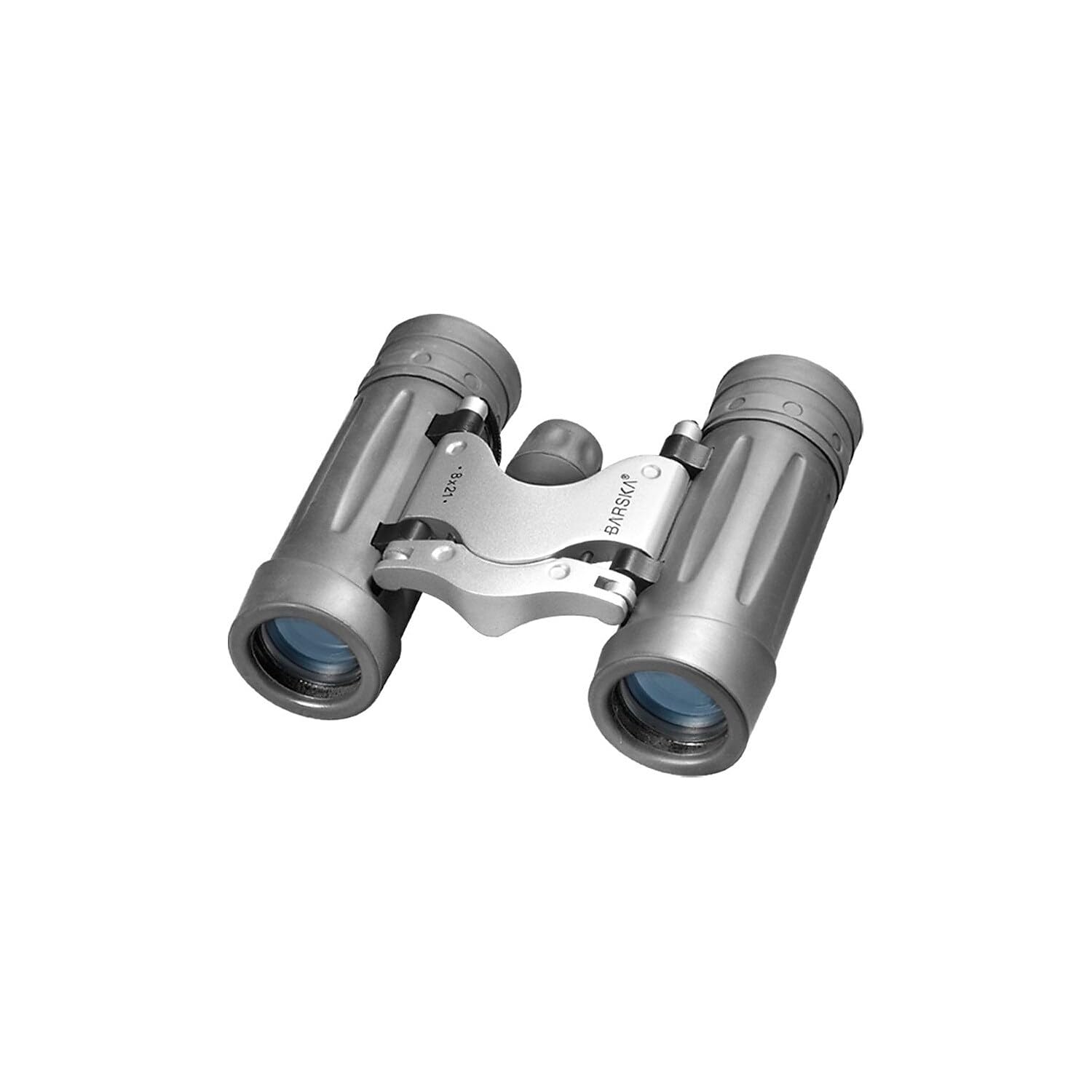

Image: Barska Trend Compact Binoculars 8x21, showcasing their compact design and front view.
Image: Barska Trend Compact Binoculars 8x21, illustrating the side profile and ergonomic grip.
Ciri-ciri Utama:
- Reka bentuk padat: Handy optic suitable for outdoor events, travel, and as a gift.
- Optik Kualiti: 8x magnification, 21mm objective lenses, and fully-coated premium optics for bright and clear views.
- Pengendalian Keselesaan: Sleek, stylish, and ergonomic with non-slip rubber armor.
- Kemudahan: Compact folding dual-hinge bridge design and centered focus knob for a secure and comfortable hold.
- Aksesori yang disertakan: Carrying case, lens cloth, and neck strap.
Persediaan
- Membongkar: Keluarkan teropong dan semua aksesori dengan berhati-hati dari pembungkusan.
- Memasang Tali Leher: Thread the provided neck strap through the strap lugs on the sides of the binoculars. Ensure it is securely fastened to prevent accidental drops.
- Membersihkan Kanta: Use the included lens cloth to gently wipe any dust or smudges from the objective and eyepiece lenses. Avoid using abrasive materials.
- Menyimpan Teropong: When not in use, store the binoculars in the provided carrying case to protect them from dust, moisture, and impacts.
Arahan Operasi
- Melaraskan Jarak Interpupillary: Hold the binoculars with both hands and look through the eyepieces. Bend the binoculars at the hinge until you see a single, clear circular field of viewIni melaraskan jarak antara kanta mata agar sepadan dengan jarak antara mata anda.
- Memfokuskan:
- Central Focus: Look through the binoculars at a distant object. Rotate the central focus knob until the image in the left eyepiece is sharp.
- Diopter Adjustment (if applicable): While keeping your left eye closed, look through the right eyepiece and rotate the diopter ring (usually on the right eyepiece) until the image is sharp. Once set, you will only need to use the central focus knob for future adjustments.
- Viewing: Once focused, you can observe objects by simply using the central focus knob to adjust for different distances.
Penyelenggaraan
- Pembersihan Kanta: Use only a soft, clean lens cloth (like the one provided) or a specialized lens cleaning solution and cloth. Gently wipe the lenses to remove dust, dirt, or fingerprints. Avoid harsh rubbing or using abrasive materials, which can scratch the lens coatings.
- Pembersihan Badan: The exterior of the binoculars can be wiped with a soft, damp cloth. Avoid using strong chemicals or solvents.
- Storan: Simpan teropong dalam beg bawanya di tempat yang sejuk dan kering apabila tidak digunakan. Elakkan suhu yang melampau dan kelembapan yang tinggi.
- Perlindungan: Keep lens caps on when not viewing to protect the lenses from dust and scratches.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Imej kabur atau tidak fokus. | Pelarasan fokus yang salah. | Adjust the central focus knob. If applicable, also adjust the diopter setting for your right eye. |
| Two overlapping images or eye strain. | Jarak antara pupil yang salah. | Adjust the hinge of the binoculars until a single, clear circular field of view tercapai. |
| Dark spots or smudges visible in the view. | Dirty lenses. | Clean the objective and eyepiece lenses gently with the provided lens cloth. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Pembesaran | 8x |
| Diameter Kanta Objektif | 21mm |
| Jenis Prisma | bumbung |
| Kaca Prisma | BK-7 |
| Murid Keluar | 2.6mm |
| Salutan Optik | Bersalut Penuh |
| Sistem Fokus | Pusat |
| Bidang View (pada 1,000 ela) | 383 kaki |
| Dekat Jarak Fokus | 16 kaki |
| Pelepasan Mata | 10.5mm |
| Berat badan | 6.35 auns |
| Dimensi Produk | 3.6 x 3.9 x 1.5 inci |
| Nombor Model | AB10124 |
Maklumat Waranti
These Barska Trend Compact Binoculars come with a Waranti Seumur Hidup Terhad. Please refer to the official Barska website or contact customer support for full details regarding warranty coverage and terms.
Sokongan dan Hubungan
For further assistance, replacement parts, or accessories, please visit the official Barska website or contact their customer support. You can find more information and contact details on their brand store page:
For general inquiries, you may also refer to the FAQs section on the Barska brand story page, which can be accessed via the brand store link.
