1. Pengenalan
Thank you for choosing the neza Portable Bluetooth Speaker S1. This speaker is designed to provide high-quality audio with dynamic RGB lighting, making it ideal for various settings, from home use to outdoor adventures. Its robust design and versatile connectivity options ensure an enjoyable listening experience.
Figure 1.1: neza Portable Bluetooth Speaker S1 in a waterproof setting.
2. Apa yang ada di dalam Kotak
Sila semak kandungan pakej semasa dibuka:
- neza Portable Bluetooth Speaker S1 x 1
- Kabel Pengecas USB-C x 1
- Manual Pengguna x 1
- Auxiliary Audio Cable x 1 (Optional, may vary by package)
Figure 2.1: Package contents and product dimensions.
3. Produk Lebihview
Ciri-ciri Utama
- Bunyi Stereo HD 20W: Equipped with two 10W speakers for clear and powerful audio.
- Vibrant RGB Lighting: Dynamic light effects that sync with music, creating an immersive atmosphere.
- Kalis Air IPX7: Designed to withstand submersion in water, making it suitable for various environments.
- Masa Main Lama: Up to 18 hours of continuous music playback on a single charge (at 50% volume with lights off).
- Bluetooth 5.1: Ensures fast, stable, and efficient wireless connection up to 100 feet.
- Berbilang Mod Main: Supports Bluetooth, FM radio, USB drive, and AUX input.
- Mikrofon terbina dalam: For convenient hands-free calling.
- Reka Bentuk Mudah Alih: Compact and lightweight with an integrated strap for easy carrying.
Internal Structure and Sound
The speaker features an optimized internal design with dual drivers to deliver balanced audio with crisp highs, powerful mids, and ample bass.
Figure 3.1: Internal structure and sound components.
Reka Bentuk Mudah Alih dan Tahan Lama
Weighing approximately 1.01 pounds and standing 6.69 inches tall, the speaker is designed for portability. Its IPX7 rating ensures protection against water, dust, and shock, making it suitable for outdoor use.
Figure 3.2: Portable and durable design for outdoor use.
4. Persediaan
Mengecas Speaker
Before first use, fully charge the speaker. Connect the provided USB-C charging cable to the speaker's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status.
- Kapasiti Bateri: 4400mAh
- Masa Pengecasan: Lebih kurang 3-4 jam untuk cas penuh.
- Playtime: Up to 18 hours (at 50% volume, lights off).
Rajah 4.1: Maklumat bateri dan pengecasan.
Hidupkan/Mati Kuasa
To power on the speaker, long press the Power button. You will hear an audible prompt. To power off, long press the Power button again.
5. Arahan Operasi
Fungsi Butang
Pembesar suara ini mempunyai butang intuitif untuk kawalan mudah:
Figure 5.1: Speaker button functions.
- Butang kuasa (⏻):
- Long press: Power on/off, Reject calls.
- Short press: Play/Pause, Answer/Hang up calls.
- Previous Track / Volume Down (⏴⏴ / V-):
- Long press: Previous song.
- Short press: Volume down.
- Butang Mod (M):
- Short press: Mode switching (Bluetooth, FM, USB, AUX).
- Long press: Clear pairing information (in Bluetooth mode).
- Next Track / Volume Up (⏵⏵ / V+):
- Long press: Next song.
- Short press: Volume up.
- Butang Suis Lampu (💡):
- Short press: Switch RGB colorful light show modes.
Berpasangan Bluetooth
1. Power on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing light and an audible prompt.
2. On your device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
3. Select "S1" from the list of devices. Once connected, you will hear a confirmation sound.
4. The speaker will automatically reconnect to the last paired device when powered on, if within range.
Berbilang Mod Main
The neza S1 speaker supports various audio input methods:
- Mod Bluetooth: Connect wirelessly to your Bluetooth-enabled devices.
- Mod Radio FM: Short press the 'M' button to switch to FM mode. The speaker will automatically scan and save available radio stations. Use the Previous/Next track buttons to navigate stations.
- Mod Cakera USB: Insert a USB flash drive into the USB port. The speaker will automatically play audio files daripada pemacu.
- Mod AUX: Connect an external audio device using a 3.5mm auxiliary cable (not included) to the AUX port. The speaker will automatically switch to AUX mode.

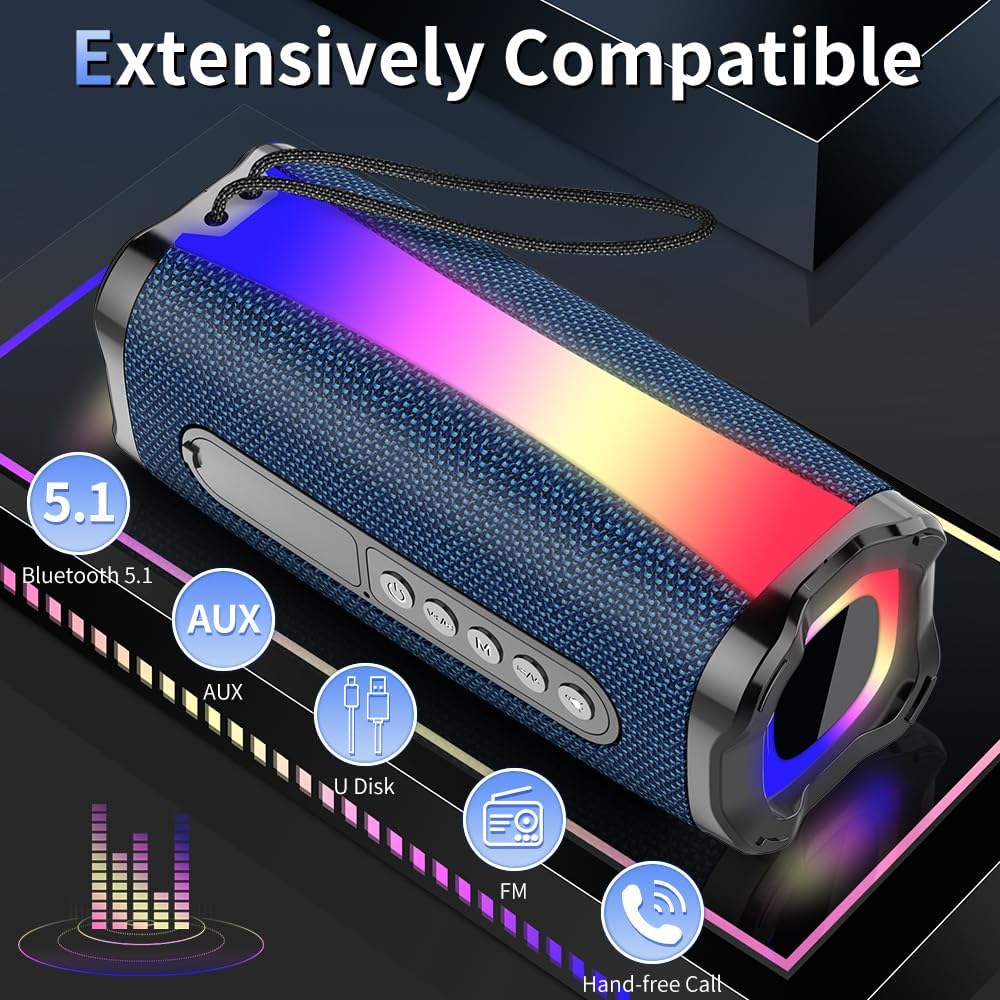

Figure 5.2: Multiple connectivity options.
Kawalan Pencahayaan RGB
The speaker features dynamic RGB lighting. Short press the Light Switch button to cycle through different light modes or turn the lights off. The lights flash and shine to the beat of the music, enhancing the listening experience.

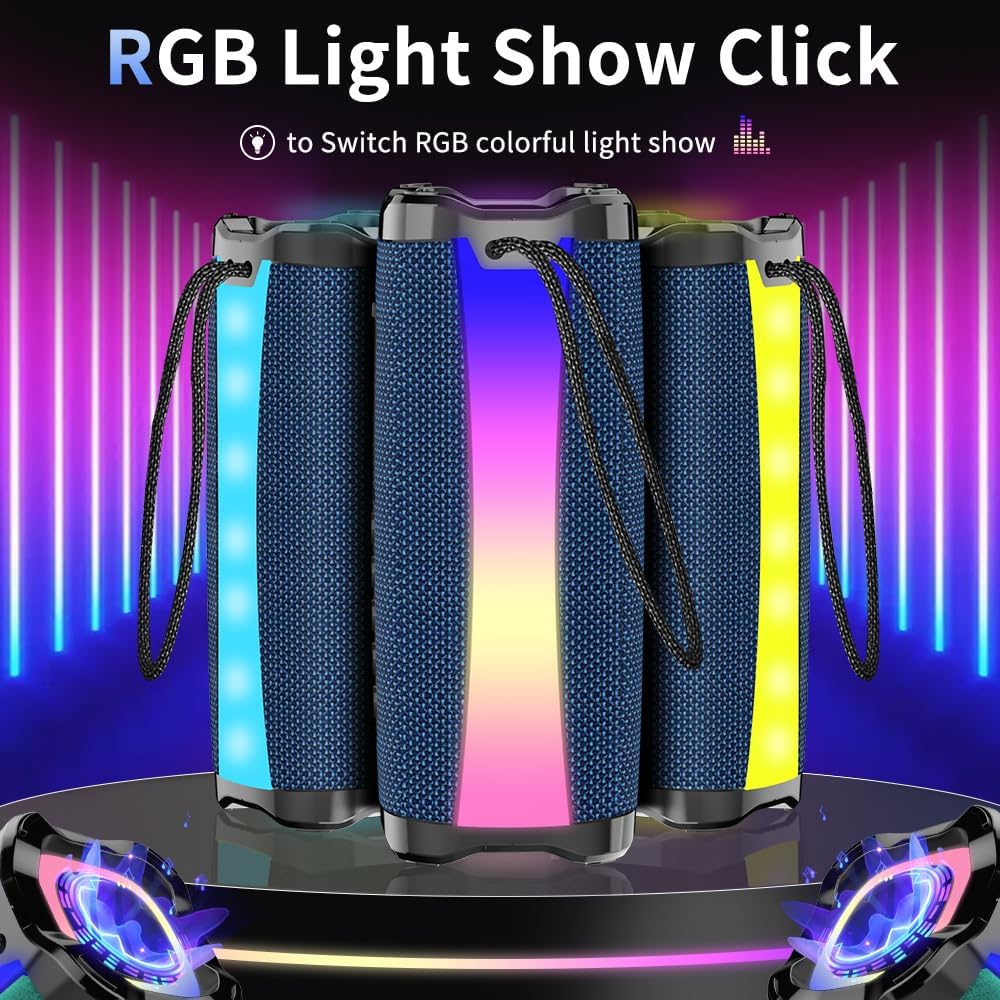

Figure 5.3: RGB light show demonstration.
6. Penyelenggaraan
Pembersihan
Lap pembesar suara dengan lembut, damp cloth. Do not use abrasive cleaners, alcohol, or other chemical solvents, as these may damage the surface or internal components.
Penyimpanan
Simpan pembesar suara di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau. Jika menyimpan untuk tempoh yang lama, cas bateri setiap 3 bulan untuk mengekalkan jangka hayatnya.
Kalis air
The speaker is IPX7 waterproof, meaning it can be submerged in up to 1 meter of water for 30 minutes. Ensure the charging port cover is securely closed before exposing the speaker to water. Do not expose to saltwater or other chemicals.
7. Penyelesaian masalah
If you encounter issues with your neza Portable Bluetooth Speaker S1, please refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Speaker tidak dihidupkan. | Bateri hampir habis atau habis. | Cas pembesar suara sepenuhnya menggunakan kabel USB-C yang disediakan. |
| Tidak boleh berpasangan dengan peranti Bluetooth. | Speaker is not in pairing mode; device's Bluetooth is off; too far from speaker; previously paired device is connected. | Ensure speaker is in pairing mode (flashing light). Turn on Bluetooth on your device. Move device closer to speaker. Disconnect from other Bluetooth devices or long press 'M' button to clear pairing info. |
| Tiada bunyi atau kelantangan rendah. | Volume too low on speaker or device; incorrect mode selected; audio cable not fully inserted. | Increase volume on both speaker and device. Press 'M' button to cycle through modes. Ensure AUX cable is fully inserted. |
| Lampu RGB tidak berfungsi. | Lampu dimatikan atau dalam mod statik. | Short press the Light Switch button to activate or change light modes. |
| Penerimaan radio FM yang lemah. | Isyarat lemah; gangguan persekitaran. | Move the speaker to a location with better signal. Extend the antenna if available (not explicitly mentioned but common for FM). |
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nama Model | S1 |
| Jenama | neza |
| Jenis Pembesar Suara | Pembesar Suara Bluetooth Mudah Alih |
| Kuasa Output Maksimum Pembesar Suara | 20 Watt (2 x 10W) |
| Teknologi Ketersambungan | Bluetooth 5.1, USB, AUX, FM Radio |
| Julat Bluetooth | Sehingga 100 meter (330 kaki) |
| Kapasiti Bateri | Polimer Lithium 4400mAh |
| Masa bermain | Up to 18 hours (at 50% volume, lights off) |
| Penilaian Kalis Air | IPX7 |
| Dimensi Produk (D x W x H) | 2.36" x 2.36" x 6.6" (60mm x 60mm x 168mm lebih kurang) |
| Berat Barang | 1.48 paun (0.67 kg) |
| Mikrofon Terbina dalam | ya |
| Pencahayaan RGB | Yes, with multiple modes |
9. Waranti dan Sokongan
Waranti Terhad
The neza Portable Bluetooth Speaker S1 comes with a limited warranty. Please refer to the official user guide (PDF) or contact neza customer support for detailed warranty terms and conditions. This warranty typically covers manufacturing defects and workmanship under normal use.
Sokongan Pelanggan
For any questions, technical assistance, or warranty claims, please contact neza customer support through the retailer's platform or the official neza website. Please have your product model (S1) and purchase information ready when contacting support.
