mollie A03-RV-002-30W-WH Robot Vacuum and Mop User Manual

1. Pengenalan

Thank you for choosing the mollie A03-RV-002-30W-WH Robot Vacuum and Mop. This device is designed to provide efficient and convenient cleaning for your home, featuring both vacuuming and mopping capabilities, strong 2800Pa suction, and smart navigation. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your robot vacuum. Please read it thoroughly before use and retain it for future reference.

2. Arahan Keselamatan

To reduce the risk of injury or damage, read these safety instructions carefully and keep them accessible for future reference.

• Perkakas ini boleh digunakan oleh kanak-kanak berumur 8 tahun ke atas dan orang yang kurang keupayaan fizikal, deria atau mental atau kurang pengalaman dan pengetahuan jika mereka telah diberi penyeliaan atau arahan mengenai penggunaan perkakas dengan cara yang selamat dan memahami bahaya yang terlibat .
• Kanak-kanak harus diawasi untuk memastikan bahawa mereka tidak bermain dengan perkakas.
• Pembersihan dan penyelenggaraan pengguna tidak boleh dibuat oleh kanak-kanak tanpa pengawasan.
• Hanya gunakan penyesuai kuasa asal yang disediakan oleh pengilang.
• Do not use the robot in environments with open flames or fragile objects.
• Ensure the charging dock is placed against a wall on a level surface, free from obstacles.
• Before cleaning, remove loose cables, small objects, or anything that could entangle the robot.
• Jangan biarkan robot mengutip objek, cecair atau bahan yang besar atau tajam.
• Do not immerse the robot or its electronic components in water.
• Robot ini direka bentuk untuk kegunaan dalaman sahaja.

3. Kandungan Pakej

Verify that all components are present and in good condition. If any items are missing or damaged, please contact customer support.

• Pembersih Vakum Robot
• Dok Pengecasan
• Penyesuai AC
• Berus Sampingan (2x)
• Berus Pembersih
• Tangki Air
• Dry Mop
• Alat Kawalan Jauh
• Manual Pengguna

4. Produk Lebihview

Familiarize yourself with the main components of your mollie robot vacuum.

Rajah 4.1: Meletup view showing the robot vacuum's internal and external components, including the swivel wheel, dual side brushes, main brush, drive suspension tires, 500ml dustbin, 150ml water tank, and mopping cloth.

• Unit Utama: The primary body of the robot, housing the motor, sensors, and control systems.
• Dustbin (500ml): Collects dust and debris during vacuuming.
• Tangki Air (150ml): Holds water for mopping functionality.
• Berus Sisi: Sweep debris from edges and corners into the robot's path.
• Berus Utama: Agitates and lifts dirt from floors and carpets.
• Roda Pemacu: Propel the robot across various surfaces.
• Swivel Wheel: Provides directional control and maneuverability.
• Penderia: Anti-fall, anti-collision, and navigation sensors for safe and efficient operation.

5. Persediaan

5.1 Penempatan Dok Pengecasan

Place the charging dock against a wall in an open area, ensuring there are no obstacles within 1 meter (3 feet) to the front and 0.5 meters (1.5 feet) to the sides. Connect the AC adapter to the charging dock and plug it into a power outlet.

Rajah 5.1: The robot vacuum automatically returns to its charging dock when the battery is low or cleaning is complete.

5.2 Pengecasan Awal

Before first use, fully charge the robot vacuum. Place the robot onto the charging dock, ensuring the charging contacts align. The indicator light on the robot will show charging status. A full charge typically takes 4-6 hours.

5.3 Memasang Berus Sisi

Press the side brushes onto the posts at the bottom of the robot until they click into place. Ensure they are securely attached.

5.4 Preparing for Mopping (Optional)

To use the mopping function, fill the 150ml water tank with clean water. Attach the dry mop cloth to the water tank. Insert the filled water tank assembly into the designated slot at the rear of the robot until it clicks.

Rajah 5.2: The robot vacuum with its 150ml water tank and mopping cloth attached, ready for simultaneous sweeping and mopping.

5.5 Wi-Fi/App Connection

Download the Tuya Smart app from your mobile device's app store. Follow the in-app instructions to connect your robot vacuum to your home Wi-Fi network. This enables remote control, scheduling, and real-time monitoring.

Rajah 5.3: The robot vacuum can be managed using either the included remote control or the Tuya Smart application on a smartphone.

6. Arahan Operasi

6.1 Memulakan dan Menghentikan Pembersihan

• Permulaan Manual: Press the power button on the robot or the "Clean" button on the remote control.
• Permulaan Aplikasi: Use the Tuya Smart app to initiate a cleaning cycle.
• Jeda/Berhenti: Press the power button again or the pause button on the remote/app to pause or stop cleaning.

6.2 Mod Pembersihan

The robot offers multiple cleaning modes to suit different needs:

• Mod Auto: The robot intelligently navigates and cleans the entire floor area using its GYRO-based localization system.
• Mod Spot: Fokus pada kawasan kotor tertentu, pembersihan dalam corak lingkaran.
• Mod Tepi: Membersihkan sepanjang dinding dan tepi perabot.
• Mod Jadual: Set specific times for the robot to automatically start cleaning via the Tuya Smart app.

Rajah 6.1: The robot vacuum utilizes adaptive navigation to efficiently clean and avoid obstacles in various room layouts.

6.3 Suction Power and Floor Types

With 2800Pa suction, the robot effectively cleans various floor types, including hardwood, marble, ceramic tile, and low-to-medium pile carpets.

Rajah 6.2: The robot vacuum's 2800Pa strong suction ensures thorough cleaning and efficiency on hard surfaces.

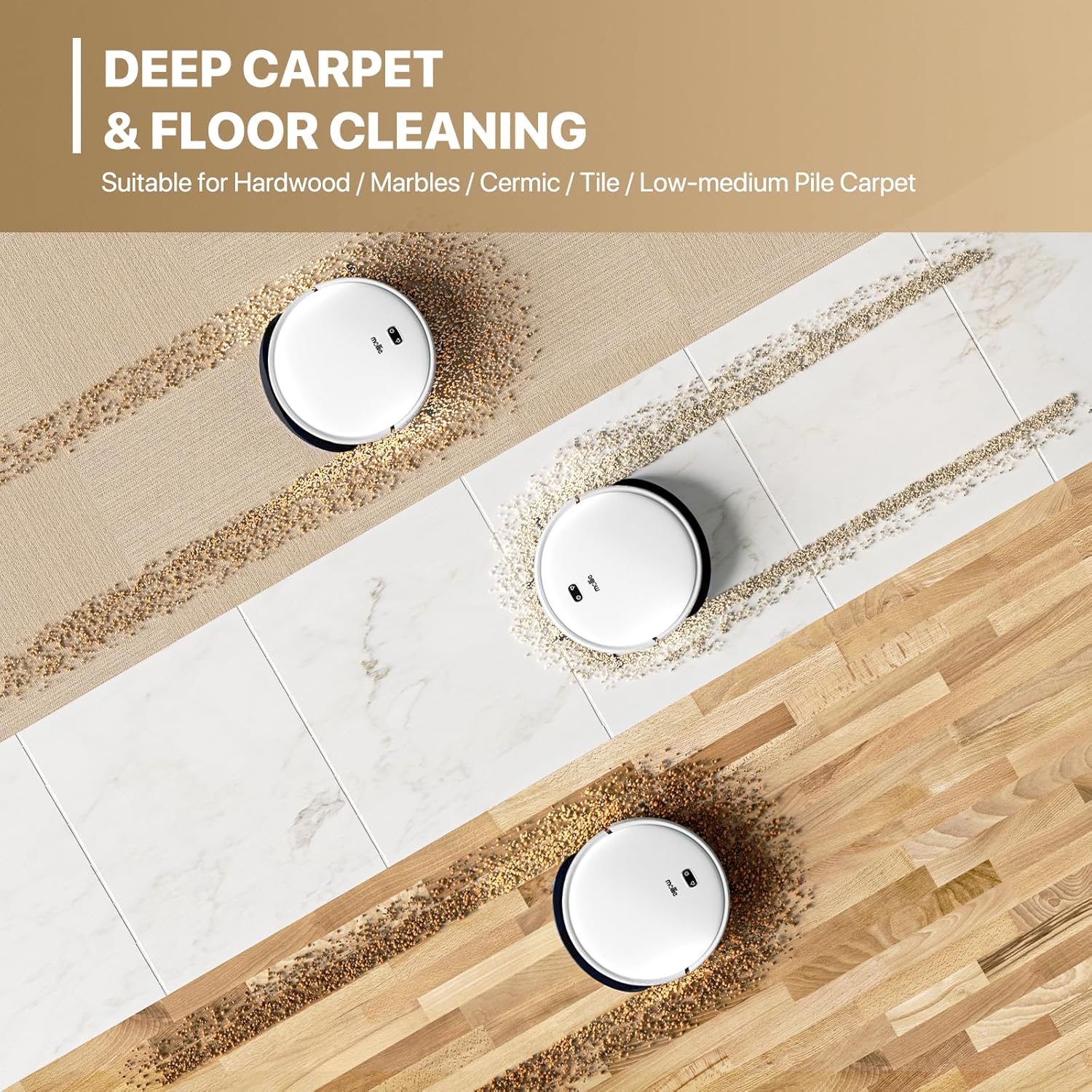

Rajah 6.3: The mollie robot vacuum is suitable for deep cleaning on various surfaces including hardwood, marble, ceramic tile, and low-to-medium pile carpets.

6.4 Anti-Fall and Anti-Collision Features

The robot is equipped with sensors to detect cliffs and obstacles, preventing falls down stairs and collisions with furniture.

Rajah 6.4: Cliff detection technology prevents the robot vacuum from falling down stairs, ensuring safe operation.

7. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat vakum robot anda.

7.1 Mengosongkan Tong Sampah

After each cleaning cycle, or when the dustbin is full, remove it from the robot and empty its contents into a trash bin.

7.2 Membersihkan Penapis

The HEPA filter should be cleaned regularly (e.g., weekly) using the provided cleaning brush. Tap the filter gently to remove dust. Replace the filter every 3-6 months, depending on usage.

7.3 Berus Pembersih

• Berus Sisi: Periodically remove and clean any hair or debris wrapped around them. Replace if damaged.
• Berus Utama: Remove the main brush cover and lift out the brush. Use the cleaning tool to cut and remove tangled hair or fibers.

7.4 Cleaning the Water Tank and Mop Cloth

After mopping, empty any remaining water from the tank and rinse it thoroughly. Remove the mop cloth, wash it by hand or machine, and allow it to air dry completely before reattaching.

7.5 Membersihkan Penderia dan Mengecas Kenalan

Wipe the anti-fall sensors, anti-collision sensors, and charging contacts on both the robot and the charging dock with a clean, dry cloth to ensure proper function.

8. Penyelesaian masalah

If your robot vacuum encounters issues, refer to this section for common solutions.

9. Spesifikasi

10. Waranti dan Sokongan

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official mollie webtapak. Simpan resit pembelian anda sebagai bukti pembelian.

Pengeluar: mollie
