SENXIN K8 Wireless Lavalier Microphone User Manual

1. Pengenalan

Thank you for choosing the SENXIN K8 Wireless Lavalier Microphone. This device is designed to provide clear audio recording for various applications, including video shooting, live broadcasts, interviews, and online teaching. It features plug-and-play functionality, intelligent noise cancellation, and wireless transmission up to 20 meters (65 feet).

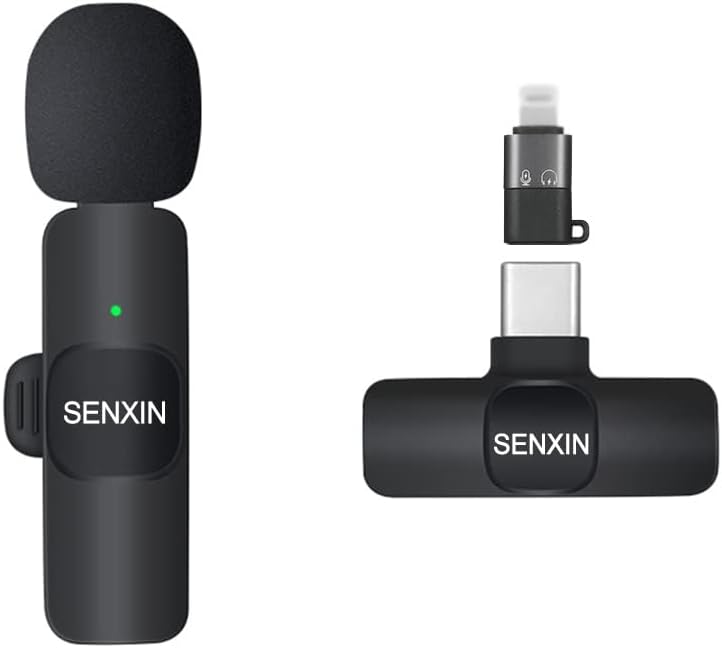

Image 1.1: The SENXIN K8 Wireless Lavalier Microphone (left) and its receiver (right), showcasing reka bentuk yang padat.

2. Kandungan Pakej

Sila semak pakej untuk memastikan semua item ada:

• Microphone Transmitter (1 unit)
• Receiver (1 unit)
• Kabel Pengecas (1 unit)
• Manual Pengguna (1 unit)

Image 2.1: The complete package contents, including the microphone, receiver, charging cable, and manual.

3. Produk Lebihview

The SENXIN K8 system consists of a microphone transmitter and a receiver. Key components include:

• Collar Clip: For stable and reliable attachment of the microphone.
• Anti-spray Sponge: High-density sponge to prevent plosives and improve audio clarity.
• Penerima: Connects to your smartphone for barrier-free transmission and stable reception.

Image 3.1: Close-up of the microphone's collar clip, anti-spray sponge, and the receiver unit.

4. Arahan Persediaan

The SENXIN K8 Wireless Lavalier Microphone is designed for simple plug-and-play operation.

1. Turn on the Microphone: Press and hold the power button on the microphone transmitter until the indicator light illuminates.
2. Pasangkan Penerima: Insert the receiver into your smartphone's charging port (USB Type-C for Android, Lightning for iPhone). The indicator light on the receiver will flash and then turn solid, indicating a successful connection.
3. Mulakan Rakaman: Open your camera or recording application and begin shooting or recording. No Bluetooth pairing or additional app installation is required.

Note: This product is intended for video and audio recording only. It is not compatible with phone calls or FaceTime.

Image 4.1: Visual guide for the two-step auto-pairing process: turning on the microphone and plugging in the receiver.

5. Arahan Operasi

5.1 Ciri-ciri Utama

• Pembatalan Bunyi Pintar: The microphone features a built-in noise reduction chip and 360° omni-directional radio, effectively recognizing original sound and providing clear recording even in noisy environments.
• Penghantaran Tanpa Wayar: Utilizes 2.4GHz wireless technology for low latency and high interference immunity, transmitting clear audio up to 20 meters (65 feet) without obstructions.
• Hayat Bateri yang Panjang: The built-in 60 mAh battery provides approximately 4-5 hours of continuous operation on a single charge. Charging time is approximately 1 hour.

Image 5.1: Summary of the microphone's core functionalities and performance metrics.

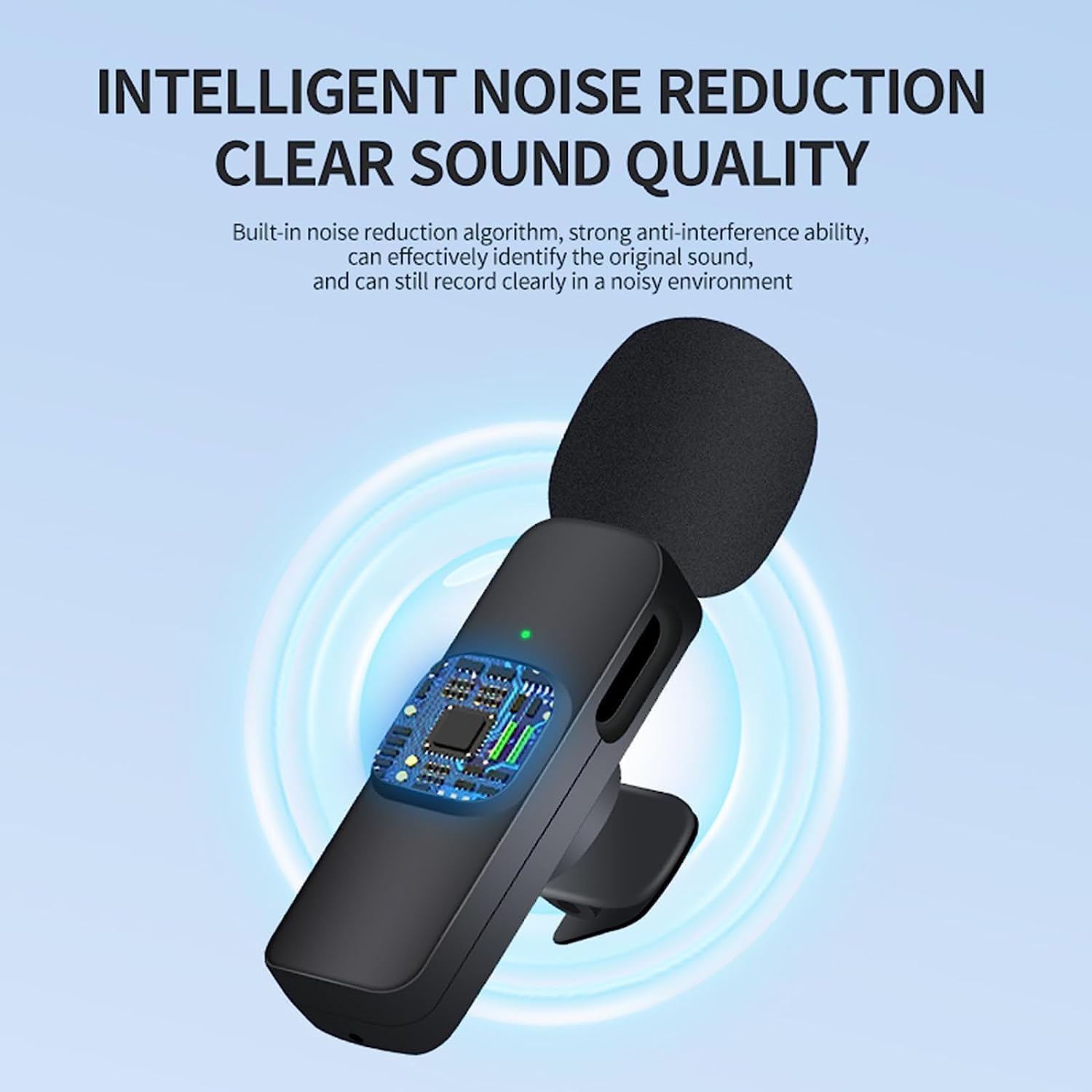

Image 5.2: Visual representation of the intelligent noise reduction technology, highlighting the internal processing chip.

Image 5.3: A graphical comparison demonstrating the effectiveness of smart noise reduction on audio quality.

5.2 Pemantauan Masa Nyata

For real-time audio monitoring, you can plug a Type-C earphone into the receiver (if your receiver model supports this feature). This allows you to hear your own voice as it is being recorded.

Image 5.4: Illustration of connecting a Type-C earphone to the receiver for real-time audio monitoring.

5.3 Senario Penggunaan

The SENXIN K8 is versatile and suitable for various recording needs:

• Bilik Darjah Dalam Talian
• Vlog Creation
• Live Broadcasts
• Interviews
• Short Video Shooting

Imej 5.5: Cthamples of the microphone being used in various professional and casual recording environments.

6. Penyelenggaraan

To ensure the longevity and optimal performance of your SENXIN K8 Wireless Lavalier Microphone, follow these maintenance guidelines:

• Pembersihan: Use a soft, dry cloth to clean the microphone and receiver. Avoid using liquid cleaners or solvents.
• Storan: Simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• mengecas: Use the provided charging cable. Do not overcharge the battery.
• Pengendalian: Elakkan daripada menjatuhkan atau meletakkan peranti kepada kesan yang kuat.

7. Penyelesaian masalah

If you encounter issues with your SENXIN K8 microphone, please refer to the following common solutions:

• Tiada Bunyi/Kualiti Audio Teruk:
  • Ensure the microphone is turned on and fully charged.
  • Verify the receiver is securely plugged into your phone and its indicator light is solid.
  • Check your phone's audio input settings to ensure the external microphone is selected.
  • Ensure you are within the 20-meter (65-foot) transmission range and there are no significant obstructions.
  • For Android users, note that Samsung phone compatibility may be lower. Test with different recording apps if issues persist.
• Intermittent Audio/Signal Dropouts:
  • Kurangkan jarak antara mikrofon dan penerima.
  • Minimize physical obstructions between the devices.
  • Avoid environments with strong 2.4GHz interference (e.g., multiple Wi-Fi networks, other wireless devices).
  • Ensure the microphone battery is not low.
• Mikrofon Tidak Berpasangan:
  • Pastikan kedua-dua mikrofon dan penerima dihidupkan.
  • Unplug and re-plug the receiver into your phone.
  • Mulakan semula telefon pintar anda.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information and customer support, please refer to the documentation included in your product package or contact SENXIN customer service directly through their official webtapak atau peruncit tempat produk itu dibeli.
