Manual Pengguna Bar Bunyi Dolby Atmos Nova S50 ULTIMEA

1. Pengenalan

Terima kasih kerana membeliasing the ULTIMEA Nova S50 Dolby Atmos Soundbar. This 2.1 channel sound system, featuring a powerful 190W output and a dedicated subwoofer, is designed to deliver an immersive audio experience for your home theater, PC, or TV. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance.

Figure 1.1: ULTIMEA Nova S50 Soundbar delivering immersive Dolby Atmos sound.

2. Persediaan

2.1 Kandungan Pakej

Sebelum anda mula, sila sahkan bahawa semua barang ada di dalam bungkusan:

• Bar bunyi (x1)
• Wired Subwoofer (x1)
• Penyesuai Kuasa (x1)
• Kabel HDMI (x1)
• HDMI Adapter (x1)
• Remote Control (x1, batteries not included)
• Optical Cable (x1)
• Kabel Audio 3.5mm (x1)
• Wall Mounting Kit (x1)
• Manual Pengguna (x1)

Rajah 2.1: Termasuk aksesori dan komponen.

2.2 Penempatan Fizikal

The Nova S50 soundbar features a compact and slim design, allowing for flexible placement options. It can be placed on a TV stand, a tabletop, or wall-mounted. Ensure the soundbar is positioned centrally in front of your TV for the best audio experience. The subwoofer can be placed on the floor near the soundbar.

Figure 2.2: Compact design allows for placement under a TV without obstructing the view.

Figure 2.3: Dimensions of the soundbar and subwoofer.

2.3 Sambungan

The Nova S50 offers multiple connectivity options. Choose the method that best suits your device.

Rajah 2.4: Sambungan panel belakang.

2.3.1 HDMI eARC Connection

For the highest quality audio transmission, connect your TV to the soundbar using the HDMI eARC port.

1. Connect one end of the provided HDMI cable to the HDMI eARC port on your TV.
2. Connect the other end of the HDMI cable to the HDMI eARC port on the soundbar.
3. On the soundbar's remote control, press the 'eARC' button to select the HDMI eARC input mode.
4. Ensure your TV's audio output settings are configured for HDMI eARC (usually found under TV Settings > Sound > Digital Audio Output > Auto).

Figure 2.5: HDMI eARC connection steps.

2.3.2 Sambungan Optik

Use the optical cable for digital audio connection if your TV does not support HDMI eARC.

1. Connect one end of the optical cable to the optical output port on your TV.
2. Connect the other end of the optical cable to the optical input port on the soundbar.
3. Select the 'OPT' input mode on the soundbar using the remote control.

2.3.3 Sambungan AUX

Untuk peranti audio analog, gunakan kabel AUX 3.5mm.

1. Connect one end of the 3.5mm audio cable to the audio output of your device (e.g., PC, smartphone).
2. Connect the other end to the AUX input port on the soundbar.
3. Select the 'AUX' input mode on the soundbar using the remote control.

2.3.4 Sambungan Bluetooth

Connect your mobile devices wirelessly via Bluetooth 5.3.

1. Turn on the soundbar and select 'BT' input mode using the remote control. The soundbar will enter pairing mode.
2. On your mobile device, enable Bluetooth and search for 'Nova S50'.
3. Select 'Nova S50' from the list of available devices to pair. Once connected, you will hear an audible confirmation.

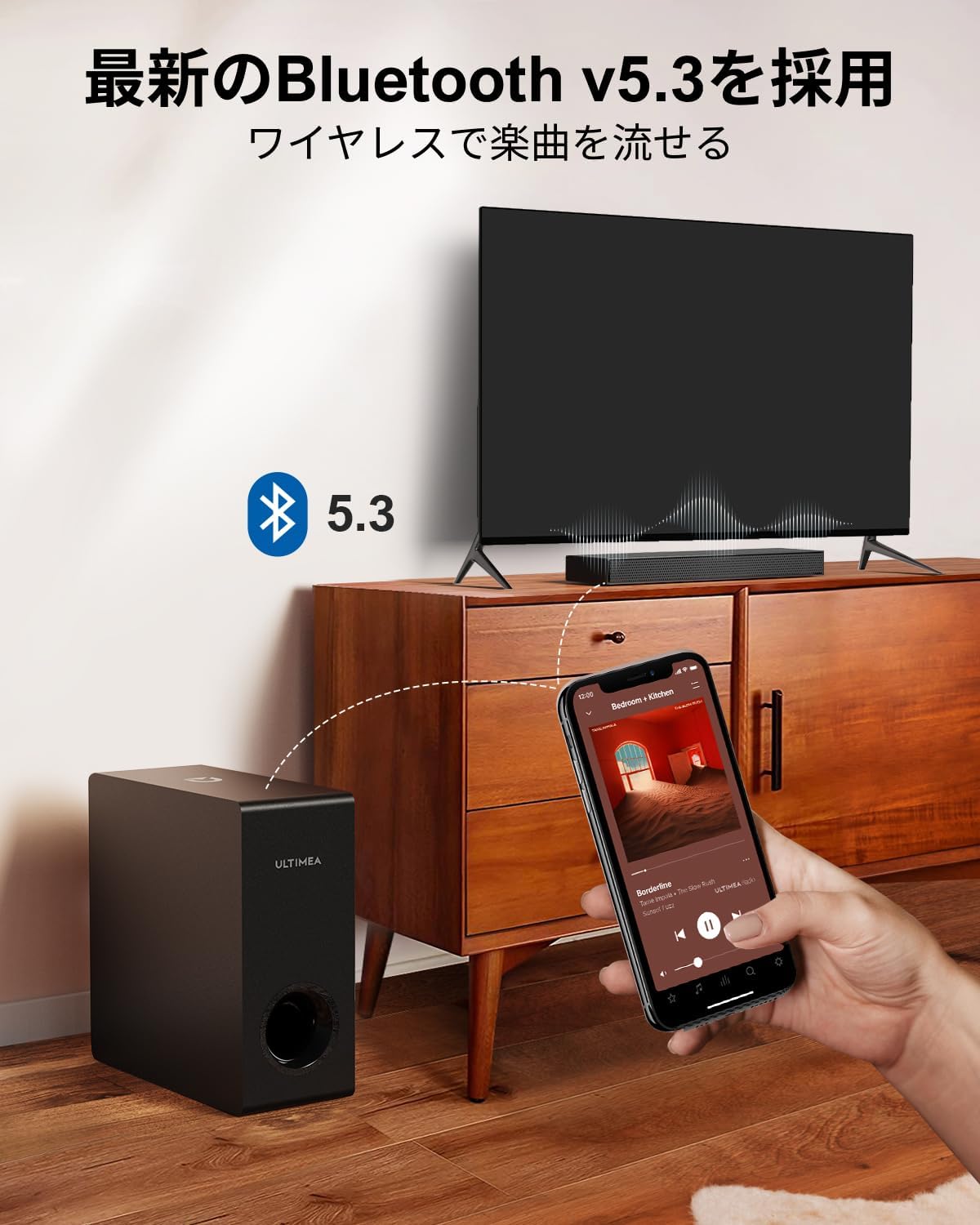

Figure 2.6: Wireless audio streaming via Bluetooth 5.3.

3. Arahan Operasi

3.1 Hidupkan/Mati Kuasa

Tekan butang kuasa pada bar bunyi atau alat kawalan jauh untuk menghidupkan atau mematikan unit.

3.2 Pemilihan Input

Use the dedicated input buttons (HDMI eARC, OPT, AUX, BT, USB) on the remote control to switch between audio sources.

3.3 Kawalan Kelantangan

Adjust the volume using the Volume Up (+) and Volume Down (-) buttons on the remote control or the soundbar. The soundbar also supports HDMI-CEC, allowing you to control its volume with your TV remote if your TV supports this feature.

Figure 3.1: Remote control with HDMI-CEC support.

3.4 Mod Bunyi

The Nova S50 features audio algorithms and machine learning technology to optimize sound based on content. Use the remote control to select from the following sound modes:

• PERGERAKAN: Enhances cinematic sound for movies and TV shows, emphasizing vocals and dynamic scenes.
• PERMAINAN: Optimized for gaming, providing clear sound effects and immersive spatial audio.
MUZIK: Balanced audio for music playback, ensuring rich tones and clear vocals.

3.5 BassMX Adjustment

The dedicated subwoofer and ULTIMEA's proprietary BassMX technology provide powerful and adjustable bass. Use the BassMX button on the remote to cycle through different bass levels (Weak, Medium, Strong) to suit your preference.

Figure 3.2: BassMX technology for enhanced bass.

4. Penyelenggaraan

4.1 Pembersihan

To maintain the appearance and performance of your soundbar, regularly clean it with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as these can damage the finish or internal components.

4.2 Penyimpanan

Jika menyimpan bar bunyi untuk tempoh yang lama, putuskan sambungannya daripada sumber kuasa dan simpan di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.

5. Penyelesaian masalah

If you encounter issues with your ULTIMEA Nova S50 soundbar, refer to the following common problems and solutions:

• Tiada Bunyi:
  • Pastikan bar bunyi dihidupkan dan sumber input yang betul dipilih.
  • Pastikan semua sambungan kabel (HDMI, Optik, AUX) selamat.
  • Verify the TV's audio output settings are correctly configured for the chosen connection type (e.g., HDMI eARC, PCM for Optical).
  • Tingkatkan kelantangan pada bar bunyi dan peranti anda yang disambungkan.
  • If using HDMI eARC, ensure HDMI-CEC is enabled on your TV.
• Isu Sambungan Bluetooth:
  • Pastikan bar bunyi berada dalam mod berpasangan Bluetooth.
  • Lumpuhkan dan aktifkan semula Bluetooth pada peranti mudah alih anda.
  • Move your device closer to the soundbar to ensure it is within the 10-meter range.
  • Kosongkan gandingan Bluetooth sebelumnya pada peranti anda dan cuba gandingan sekali lagi.
• Bunyi Herot:
  • Reduce the volume on both the soundbar and the connected device.
  • Check for any physical obstructions or interference near the soundbar or subwoofer.
  • Pastikan kabel tidak rosak atau tersambung longgar.
• Alat Kawalan Jauh Tidak Berfungsi:
  • Gantikan bateri dalam alat kawalan jauh.
  • Pastikan tiada halangan antara alat kawalan jauh dan penderia bar bunyi.
  • Halakan alat kawalan jauh terus pada bar bunyi.

6. Spesifikasi

Figure 6.1: Ultra-thin driver technology for high-fidelity sound.

7. Waranti & Sokongan

7.1 Waranti Terhad

ULTIMEA products come with a limited warranty. Please refer to the warranty card included in your package or visit the official ULTIMEA webtapak untuk terma dan syarat jaminan terperinci.

7.2 Sokongan Pelanggan

For any questions, technical assistance, or support needs, please contact ULTIMEA customer service. We offer 365-day support and a 30-day free return policy. You can find contact information on our official webtapak atau melalui platform pembelian anda.
