Manual Arahan Pembesar Suara Bluetooth Tanpa Wayar Skullcandy Ounce

1. Produk Lebihview

The Skullcandy Ounce is a compact and durable wireless Bluetooth speaker designed for portability and outdoor use. It features IPX7 waterproofing, a 16-hour battery life, and a downward-firing passive radiator for enhanced audio quality. The integrated ballistic nylon carry strap allows for easy transport and attachment.

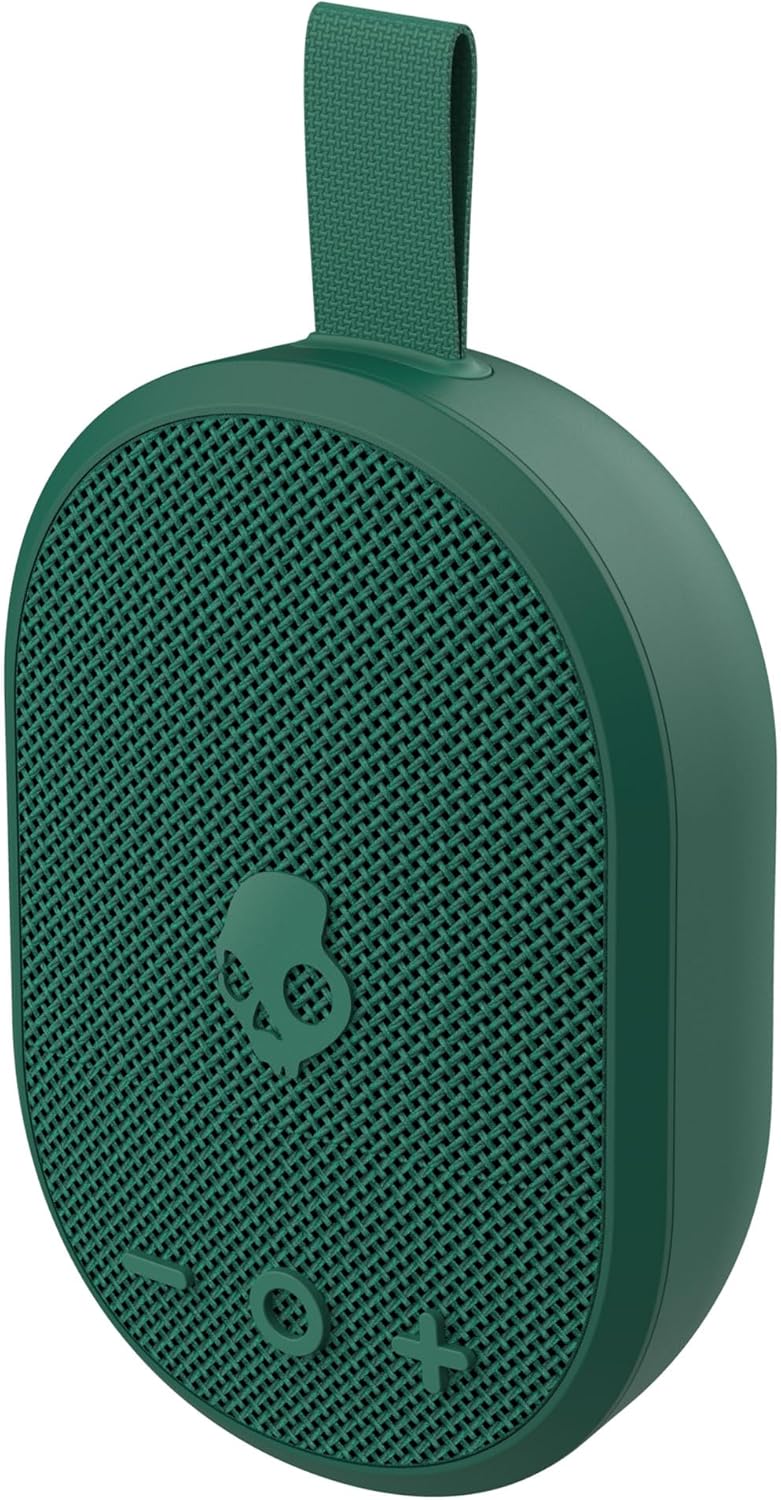

Image 1.1: The Skullcandy Ounce Wireless Bluetooth Speaker, showcasing its compact design and green color.

Ciri-ciri Utama:

• Ultra-Portable and Lightweight: Direka untuk mudah dibawa.
• 16 Hour Battery Life: Extended playtime on a single charge.
• Bunyi Jelas: Achieved through a downward-firing passive radiator and engineered fabric mesh.
• Kalis Air IPX7: Can be submerged in up to 1 meter of water for up to 30 minutes.
• Nylon Carry Strap: Built-in strap for convenient carrying and attachment.
• Bluetooth 5.3: For reliable wireless connectivity.

Image 1.2: Visual representation of the speaker's main features: IPX7 waterproof rating, 16-hour battery life, and Bluetooth 5.3 connectivity.

2. Apa yang ada di dalam Kotak

Your Skullcandy Ounce package includes the following items:

• SKDY Ounce™ Wireless Speaker
• Kabel Pengecas USB
• Panduan Mula Pantas
• Stickers (may vary)

3. Persediaan

3.1 Mengecas Speaker

Before first use, fully charge your Skullcandy Ounce speaker. Connect the provided USB charging cable to the speaker's charging port and a compatible USB power source. The LED indicator will show charging status.

Image 3.1: The USB-C charging port located on the speaker, with a small green LED indicating power or charging status.

3.2 Berpasangan Bluetooth

1. Pastikan pembesar suara dicas dan dimatikan.
2. Press and hold the power button (usually the central button with the Skullcandy logo) until you hear an audible cue or see the LED indicator flash, indicating pairing mode.
3. On your device (smartphone, tablet), navigate to Bluetooth settings.
4. Pilih "Skullcandy Ounce" daripada senarai peranti yang tersedia.
5. Sebaik sahaja disambungkan, pembesar suara akan memberikan pengesahan yang boleh didengar dan penunjuk LED akan bertukar kepada warna padu.

Image 3.2: A smartphone screen showing music playing, with wireless signals indicating connection to the Skullcandy Ounce speaker.

4. Arahan Operasi

4.1 Kawalan

The Skullcandy Ounce features intuitive touch controls on its front surface:

• Power Button (Skullcandy Logo): Press and hold to power on/off. Single press to play/pause music.
• Kelantangan Naik (+): Tingkatkan kelantangan.
• Perlahankan suara (-): Kurangkan volum.
• Track Skip: Specific combinations of presses on volume buttons may skip tracks (refer to Quick Start Guide for details).

Imej 4.1: Perincian view of the speaker's front panel, showing the Skullcandy logo power button, volume controls, and the integrated nylon carry strap.

4.2 Mudah Alih dan Penggunaan

The speaker's compact size and ballistic nylon carry strap make it ideal for on-the-go use. Attach it to your backpack, bike, or hang it in a convenient location. Its IPX7 waterproof rating ensures durability in various environments, including near water.

Image 4.2: The speaker shown attached to a person's clothing via its carry strap and a carabiner, demonstrating its portability.

5. Penyelenggaraan

5.1 Pembersihan

To clean your Skullcandy Ounce speaker, use a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners. For sand or dirt, gently brush it off before wiping. Ensure the charging port cover is securely closed before cleaning with water.

5.2 Penjagaan Kalis Air (IPX7)

While the speaker is IPX7 waterproof, meaning it can withstand submersion in up to 1 meter of water for 30 minutes, it is recommended to dry the speaker thoroughly after exposure to water. Always ensure the charging port cover is sealed to maintain its waterproof integrity.

Image 5.1: The speaker shown partially submerged in water, illustrating its IPX7 waterproof capability.

6. Penyelesaian masalah

• Tiada Kuasa: Ensure the speaker is fully charged. Connect to a power source and check the LED indicator.
• Tidak Dapat Menggandingkan Bluetooth:
  1. Pastikan pembesar suara berada dalam mod berpasangan (LED berkelip).
  2. Matikan dan hidupkan Bluetooth peranti anda.
  3. Forget "Skullcandy Ounce" from your device's Bluetooth list and attempt to re-pair.
  4. Pastikan tiada peranti lain disambungkan ke pembesar suara pada masa ini.
• Kelantangan Rendah atau Bunyi Herot:
  1. Laraskan kelantangan pada kedua-dua pembesar suara dan peranti anda yang disambungkan.
  2. Pastikan pembesar suara tidak terhalang.
  3. Check for any debris in the speaker grille.
• Water Damage Concerns: If the speaker has been submerged or heavily splashed, ensure it is completely dry before charging or prolonged use.

7. Spesifikasi

Image 7.1: A visual representation of the speaker's dimensions for reference.

8. Waranti dan Sokongan

8.1 Maklumat Waranti

The Skullcandy Ounce Wireless Bluetooth Speaker comes with a Waranti Terhad. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official Skullcandy webtapak.

8.2 Sokongan Pelanggan

For further assistance, technical support, or warranty claims, please contact Skullcandy customer service through their official webtapak atau maklumat hubungan yang diberikan dalam pembungkusan produk anda.

rasmi Webtapak: www.skullcandy.com
