Cozion 3-in-1 40K Ultrasonic Cavitation and Radio Frequency Machine User Manual

1. Pengenalan

Thank you for choosing the Cozion 3-in-1 40K Ultrasonic Cavitation and Radio Frequency Machine. This device is designed for body sculpting, skin tightening, and facial care, utilizing advanced 40KHz ultrasonic cavitation and multipolar radio frequency technologies. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.

2. Maklumat Keselamatan

• Baca Manual Keseluruhan: Before operating the device, thoroughly read and understand all instructions and safety warnings.
• Bimbingan Profesional: Consult with a healthcare professional or aesthetician before use, especially if you have pre-existing medical conditions, are pregnant, or breastfeeding.
• Gunakan Gel Konduktif: Always apply a sufficient amount of water-based conductive gel to the treatment area before using any of the probes. Do not use oil-based products with the RF heads, as this can cause burns.
• Avoid Bony Areas: When using the 40KHz cavitation head, avoid direct contact with bony areas, joints, and sensitive regions like the ears, as this may cause discomfort or pain.
• Monitor Skin Temperature: During Radio Frequency (RF) treatments, continuously monitor the skin temperature. The target temperature is typically 40-41°C. If the skin feels uncomfortably hot, reduce the intensity or move the probe. Do not hold the RF probe stationary on one spot for extended periods to prevent burns.
• Tempoh Rawatan: Do not exceed 15-20 minutes of treatment on a single body area per session.
• Hydration and Exercise: After cavitation treatment, it is crucial to drink plenty of water (3-4 liters per day for at least 3 days) and engage in at least 45 minutes of moderate physical activity to support lymphatic drainage and fat metabolism.
• Kebersihan: Ensure the device and probes are clean before and after each use.
• Sumber Kuasa: Gunakan hanya penyesuai kuasa yang disediakan.

3. Produk Lebihview

The Cozion 3-in-1 machine combines three distinct technologies for comprehensive aesthetic treatments:

• Unit Utama: The central control panel with a touchscreen interface for selecting modes, adjusting intensity, and setting time.
• 40KHz Ultrasonic Cavitation Head: Designed for body sculpting, this head emits strong ultrasonic waves to target specific areas, promoting cellular activity and circulation.
• Hexapole RF Body Head: Features six poles for radio frequency treatment on the body, aiming to accelerate heat movement, promote circulation, and enhance skin elasticity.
• Tripole RF Face Head: Equipped with three poles for radio frequency treatment on the face, designed to stimulate collagen production, improve skin density, and reduce the appearance of wrinkles.

Image 3.1: The Cozion 3-in-1 machine with its main unit and three connected treatment heads.

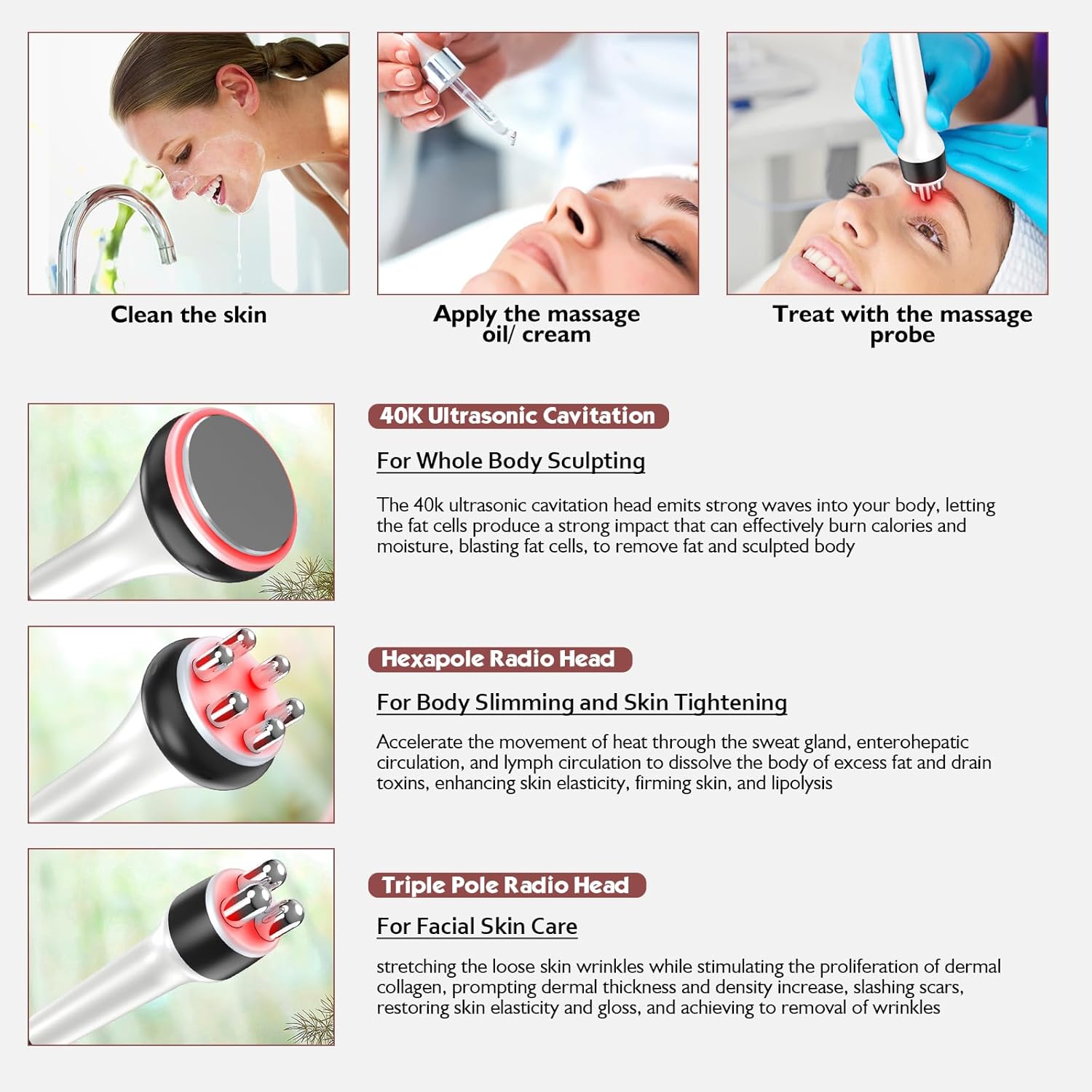

Imej 3.2: Terperinci view of the three treatment heads and their specific applications.

4. Persediaan

1. Bongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
2. Sambung Probe: Identify the three treatment heads (40KHz Cavitation, Hexapole RF, Tripole RF). Connect each head to its corresponding port on the main unit. Ensure connections are secure.
3. Sambungan Kuasa: Plug the power adapter into the main unit's power input, then connect it to a suitable electrical outlet.
4. Hidupkan kuasa: Press the power button on the main unit to turn on the device. The touchscreen display will illuminate.

Image 4.1: Main unit with all probes properly connected and ready for operation.

5. Arahan Operasi

Always ensure your skin is clean before treatment. Apply a generous layer of water-based conductive gel to the treatment area before using any probe.

5.1. 40KHz Ultrasonic Cavitation Treatment (Body)

1. Pilih Mod: On the main unit's touchscreen, select the 'Cavitation' mode.
2. Sapukan Gel: Apply conductive gel to the target body area (e.g., abdomen, thighs, arms).
3. Rawatan: Place the 40KHz cavitation head firmly on the skin. Move the probe in slow, continuous circular motions over the treatment area. Avoid bony areas.
4. Duration & Frequency: Treat each area for a maximum of 15-20 minutes. It is recommended to use this head once or twice a week, with at least 5 days between sessions on the same area.
5. Selepas Rawatan: After the session, wipe off excess gel. Drink 3-4 liters of water daily for the next 3 days and perform at least 45 minutes of moderate exercise to aid in the elimination of released fats.

Image 5.1: Application of the 40KHz ultrasonic cavitation head on the abdomen.

5.2. Hexapole RF Body Treatment

1. Pilih Mod: Choose the 'Body RF' mode on the touchscreen.
2. Sapukan Gel: Apply conductive gel to the body treatment area.
3. Rawatan: Place the Hexapole RF head on the skin. Move it in continuous circular or sweeping motions. The goal is to gradually heat the skin to 40-41°C. Do not stop moving the probe to avoid overheating.
4. Duration & Frequency: Once the target temperature is reached, maintain it for 1-3 minutes. Treat each body area once a month.

Image 5.2: Application of the Hexapole RF body head on the back.

5.3. Tripole RF Face Treatment

1. Pilih Mod: Select the 'Face RF' mode on the touchscreen.
2. Sapukan Gel: Apply conductive gel to the facial treatment area.
3. Rawatan: Gently place the Tripole RF head on the face. Move it in small, continuous circular or upward sweeping motions. Monitor skin temperature carefully to avoid discomfort. The target temperature is 40-41°C.
4. Duration & Frequency: Once the target temperature is reached, maintain it for 1-3 minutes. Treat each facial area once a month.

Image 5.3: Application of the Tripole RF face head on the cheek area.

5.4. General Operating Steps Overview

Image 5.4: Visual summary of the general operating steps for the device.

6. Penyelenggaraan

• Pembersihan Probe: After each use, wipe the treatment heads with a soft, damp cloth to remove any residual gel. Do not use harsh chemicals or abrasive cleaners.
• Membersihkan Unit Utama: Wipe the main unit and touchscreen with a soft, dry cloth. Avoid direct water contact.
• Storan: Store the device and its components in a cool, dry place, away from direct sunlight and moisture. Keep out of reach of children.
• Penjagaan Kabel: Elakkan membengkokkan atau memusingkan kabel secara berlebihan untuk mengelakkan kerosakan.

7. Penyelesaian masalah

8. Spesifikasi

9. Waranti dan Sokongan

The Cozion 3-in-1 40K Ultrasonic Cavitation and Radio Frequency Machine comes with a jaminan kualiti satu tahun dari tarikh pembelian.

Should you encounter any issues or require assistance with your device, please contact Cozion customer service. Our support team is committed to resolving all inquiries within 24 hours.

For warranty claims or technical support, please refer to the contact information provided with your product packaging or visit the official Cozion webtapak.
