Diydeg 18000 LM Diving Flashlight Instruction Manual

pengenalan

This manual provides detailed instructions for the safe and effective use of your Diydeg 18000 LM Diving Flashlight. Please read this manual thoroughly before operating the device and retain it for future reference.

The Diydeg diving flashlight is designed for underwater activities, offering high brightness and multiple lighting modes. Its robust construction ensures performance in challenging underwater environments.

Image: The Diydeg diving flashlight provides excellent illumination for various underwater activities, including diving, caving, and photography, with a high color rendering index for realistic visuals.

Maklumat Keselamatan

• Integriti Kalis Air: Ensure all seals are clean and properly seated before submerging the flashlight. Improper sealing can lead to water ingress and damage.
• Keselamatan Bateri: Use only the specified rechargeable lithium batteries. Do not attempt to open or modify the battery pack. Charge the battery using the provided USB cable.
• Penjanaan Haba: The flashlight may generate heat during prolonged use, especially at high brightness settings. Avoid direct contact with skin when operating out of water for extended periods.
• Perlindungan Mata: Do not shine the light directly into eyes. The high intensity light can cause temporary vision impairment.
• Storan: Simpan lampu suluh di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Pelupusan: Dispose of batteries and the flashlight according to local regulations.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah terdapat dalam pakej anda:

• 1 x Diving Flashlight
• 1 x Pemegang
• 1 x Kabel USB
• 1 x sepana heksagon
• 1 x Plat Logam
• 1 x Skru Panjang
• 1 x Short Screw
• 1 x Column Head (Ball Joint)

Image: The complete package contents of the Diydeg diving flashlight, including the main unit and various accessories for assembly and charging.

Spesifikasi

Image: Physical dimensions of the Diydeg diving flashlight.

Persediaan

1. Caj Permulaan: Before first use, fully charge the flashlight using the provided USB cable. Connect the USB cable to the charging port on the flashlight and a compatible USB power source. The charging indicator will show the charging status.
2. Handle Installation (Optional):
   • Attach the handle to the flashlight body using the hexagonal wrench and screws provided.
   • If using for camera fill light, attach the column head (ball joint) to the handle or directly to the flashlight if applicable, using the metal plate and screws.
3. Pemeriksaan Pra-Selam: Before each dive, inspect the flashlight for any visible damage. Ensure the charging port cover is securely closed to maintain waterproof integrity.

Image: Handle and ball joint accessory for mounting or enhanced grip.

Imej: Selesaiview of the flashlight showing the two control buttons and their functions.

Arahan Operasi

The Diydeg diving flashlight features two independent buttons for controlling different light modes.

Imej: Jarak dekat view of the two distinct control buttons.

Button 1: White Light Modes

Press Button 1 to cycle through the white light brightness settings:

1. First press: High brightness white light
2. Second press: Medium brightness white light
3. Third press: Low brightness white light
4. Fourth press: Turn off white light

Button 2: Red and Blue Light Modes

Press Button 2 to cycle through the red and blue light settings. These modes are often used for observing marine life as many aquatic creatures are less sensitive to red and blue light.

1. First press: Constant red light
2. Second press: Flashing red light
3. Third press: Constant blue light
4. Fourth press: Turn off red/blue light

Nota: Both white light and red/blue light modes can be operated independently or simultaneously.

Imej: Cthamples of the white and red light output from the flashlight.

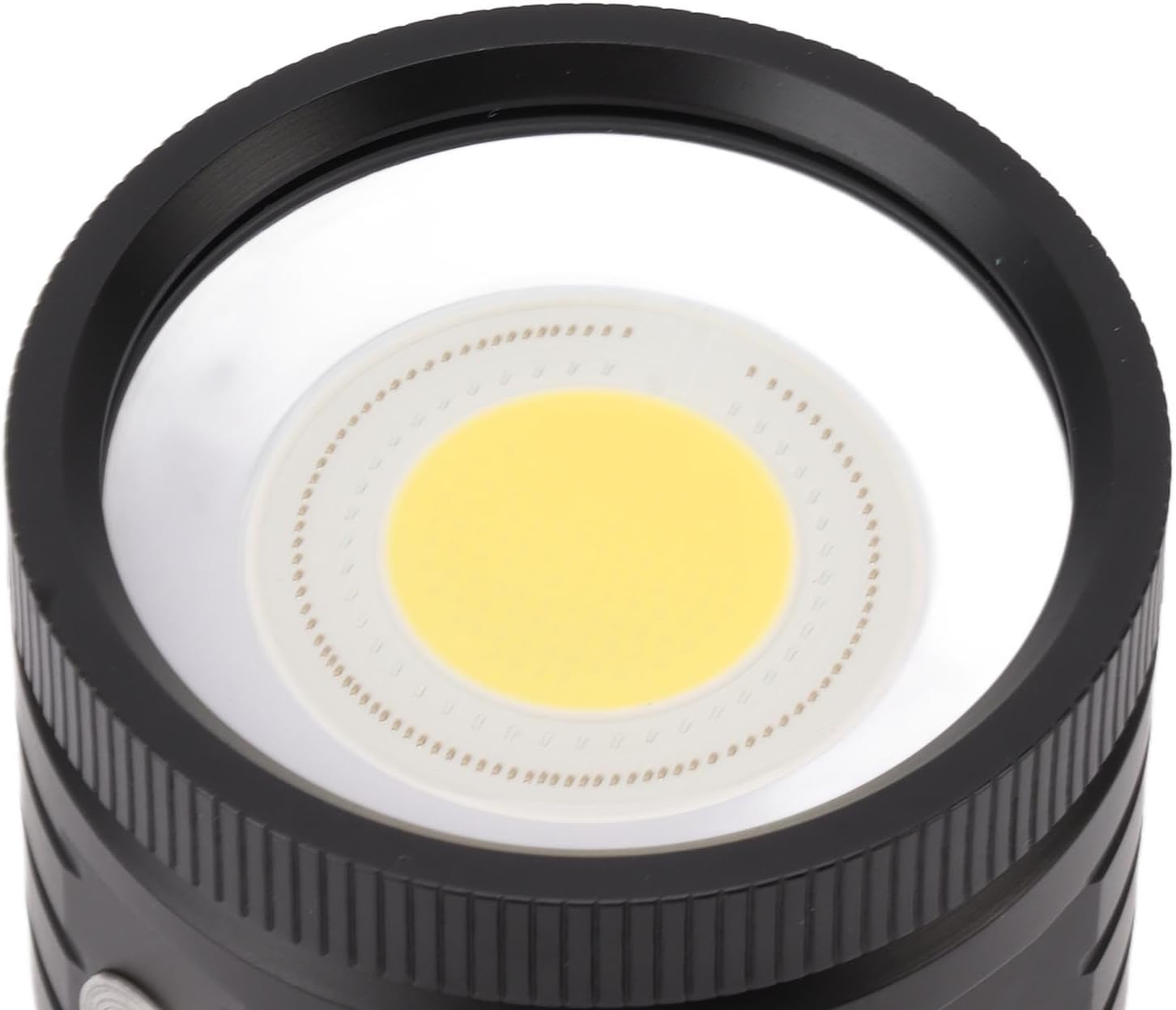

Imej: Terperinci view of the COB LED light source.

Penyelenggaraan

• Bilas: After each dive, rinse the flashlight thoroughly with fresh water to remove salt, sand, and other debris.
• Pengeringan: Dry the flashlight completely with a soft cloth before storage.
• Penjagaan O-Ring: Periodically inspect the O-rings for cracks, tears, or signs of wear. Clean them and apply a thin layer of silicone grease if necessary to maintain a watertight seal. Replace damaged O-rings immediately.
• Port Pengecasan: Ensure the charging port is clean and dry before connecting the USB cable. Keep the port cover securely closed when not charging.
• Hayat Bateri: For optimal battery life, avoid fully discharging the battery frequently. Recharge the flashlight regularly, especially if it will be stored for an extended period.

Menyelesaikan masalah

Waranti dan Sokongan

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Diydeg webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.

If you have any questions about your underwater LED flashlight, please contact us. We aim to reply within 24 hours and provide a satisfactory solution.
