ZunDian Q7 3000A Peak Car Battery Jump Starter

1. Pengenalan

The ZunDian Q7 is a versatile 4-in-1 portable device designed for automotive emergencies and convenience. It functions as a powerful car jump starter, a tire inflator with an air compressor, an LED flashlight with multiple modes, and a portable power bank for charging mobile devices. This manual provides essential information for safe and effective use of your ZunDian Q7.

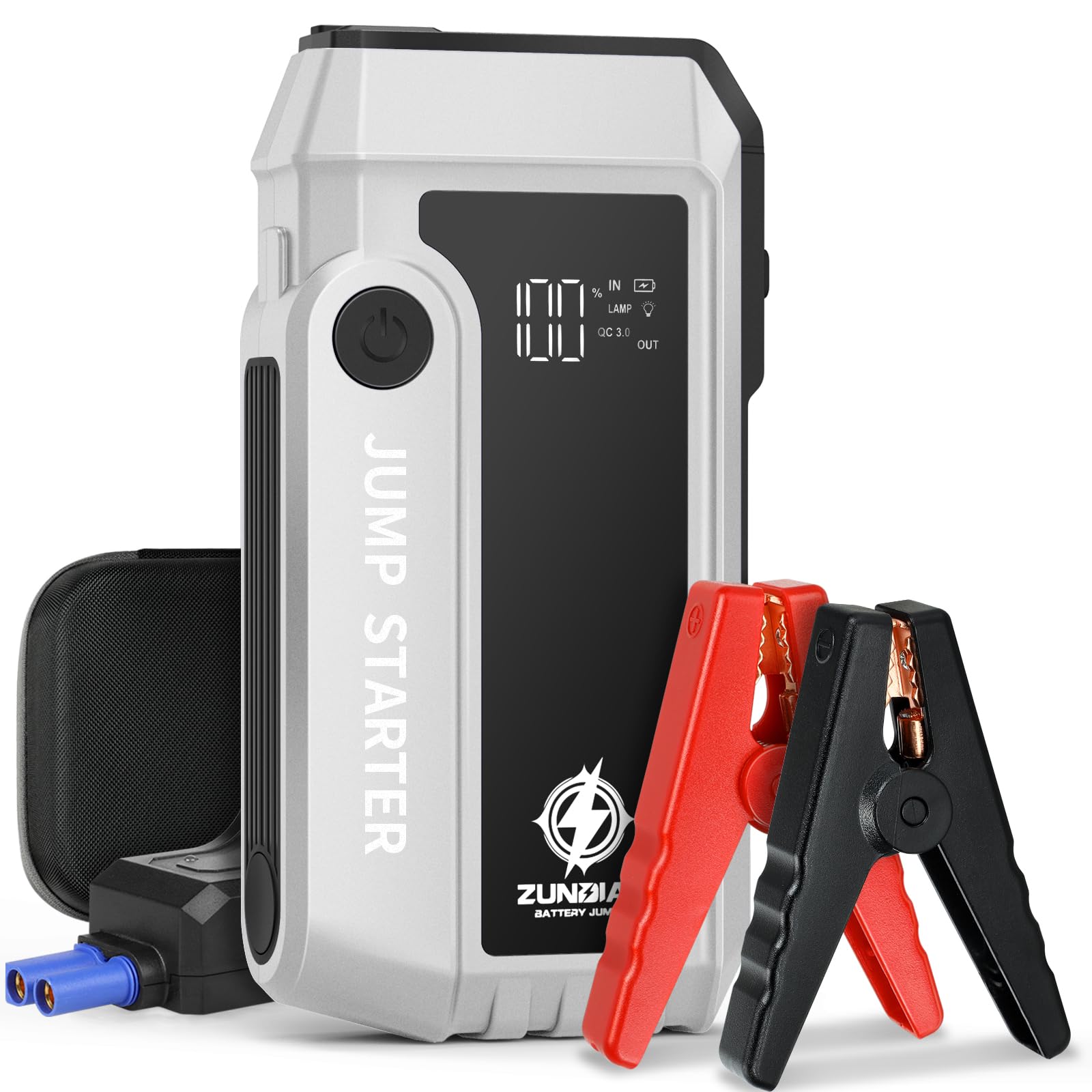

Figure 1: ZunDian Q7 3000A Peak Car Battery Jump Starter

2. Maklumat Keselamatan

Always read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Jangan rendam produk dalam air.
• Jangan kendalikan produk dalam atmosfera mudah meletup, seperti dalam kehadiran cecair mudah terbakar, gas atau habuk.
• Jauhkan produk daripada kanak-kanak.
• Use only the smart jump cables provided with the device.
• Ensure proper polarity when connecting to a vehicle battery (red clamp kepada positif, cl hitamamp kepada negatif).
• Jangan lompat bateri beku.
• Disconnect the smart clamps from the jump starter immediately after successfully starting the vehicle.

3. Kandungan Pakej

Sahkan bahawa semua item disertakan dalam pakej anda:

• 1 x ZunDian Q7 Jump Starter
• 1 x Smart Jump Cables
• 1 x Kabel Pengecas USB Jenis-C
• 1 x Kotak Penyimpanan
• 3 x Muncung Udara
• 1 x Manual Pengguna

4. Produk Lebihview

The ZunDian Q7 features a robust design with multiple ports and indicators for various functions.

• Butang Kuasa: Activates the device and controls flashlight modes.
• Lampu Penunjuk Bateri: Shows the remaining battery charge level.
• Pelabuhan Mula Lompat: Connects the smart jump cables for vehicle starting.
• Port Output USB-A: For charging mobile devices (5V3A, 9V2A, 12V1.5A).
• Port Input/Output USB-C: For charging the jump starter or other devices.
• Lampu suluh LED: Provides illumination, strobe, and SOS signals.
• Air Compressor Hose & Nozzles: Integrated for tire inflation.
• Skrin LCD: Displays tire pressure status for the air compressor.

Figure 2: USB Output Ports and USB-C Port for charging devices.

5. Persediaan

Before first use, fully charge your ZunDian Q7 jump starter.

1. Connect the provided USB Type-C charging cable to the USB-C input/output port on the jump starter.
2. Connect the other end of the USB Type-C cable to a suitable USB wall adapter (not included).
3. The battery indicator lights will illuminate, showing the charging progress. All lights will be solid when fully charged.

It is recommended to fully charge the device every 3-6 months to maintain battery health.

6. Arahan Operasi

6.1. Lompat Memulakan Kenderaan

The ZunDian Q7 can restart 12V vehicles (up to 10L Gas / 8.0L Diesel engines) in 3-5 seconds.

1. Pastikan jump starter dicas secukupnya (sekurang-kurangnya 50% disyorkan).
2. Connect the smart jump cables to the jump start port on the ZunDian Q7.
3. Lekatkan cl (+) merahamp ke terminal positif bateri kenderaan.
4. Lekatkan hitam (-) clamp ke terminal negatif bateri kenderaan.
5. cl yang bijakamp indicator light will show green when connected correctly and ready to jump start. If it shows red, check connections for reverse polarity or short circuit.
6. Mulakan kenderaan anda.
7. Sebaik sahaja kenderaan dihidupkan, segera tanggalkan lampu pintarampdaripada bateri kenderaan, kemudian tanggalkannya daripada jump starter.

Figure 3: Connecting the smart jump cables to a vehicle battery.

Figure 4: Smart clamps dengan penunjuk perlindungan keselamatan.

6.2. Menggunakan Pemampat Udara

The integrated air compressor provides 35L/min airflow and features 4 preset inflation modes.

1. Pull out the air hose from the side of the jump starter.
2. Attach the appropriate air nozzle to the hose and connect it to the item you wish to inflate (e.g., tire valve).
3. Turn on the air compressor function. The LCD screen will display the current pressure.
4. Select a preset mode (bicycle, motorcycle, car, ball) or manually set the desired pressure using the control buttons.
5. Start inflation. The compressor will automatically stop once the target pressure is reached.
6. Disconnect the hose and store it back in the device.

6.3. Charging Mobile Devices (Power Bank)

Use the USB output ports to charge your electronic devices.

1. Connect your device's charging cable to one of the USB-A output ports or the USB-C port on the ZunDian Q7.
2. Pemula lompat akan mula mengecas peranti anda secara automatik.
3. The ZunDian Q7 supports fast charging outputs (5V3A, 9V2A, 12V1.5A).

6.4. Menggunakan Lampu Suluh LED

Lampu suluh LED terbina dalam menawarkan tiga mod untuk pelbagai situasi.

1. Press and hold the power button for a few seconds to turn on the flashlight (Normal mode).
2. Press the power button again to cycle through the modes: Normal > Strobe > SOS.
3. Tekan dan tahan butang kuasa sekali lagi untuk mematikan lampu suluh.

Figure 5: Emergency LED light in use.

7. Penyelenggaraan

Proper maintenance ensures the longevity and performance of your ZunDian Q7.

• Pastikan peranti bersih dan kering. Lap dengan lembut, damp kain jika perlu.
• Store the jump starter in its protective case in a cool, dry place when not in use.
• Recharge the device every 3-6 months, even if not used, to prevent deep discharge and prolong battery life.
• Avoid exposing the device to extreme temperatures (below -4°F or above 140°F) for extended periods.

8. Penyelesaian masalah

If you encounter issues with your ZunDian Q7, refer to the following common problems and solutions:

9. Spesifikasi

10. Waranti

The ZunDian Q7 Jump Starter comes with a 1-Year Warranty. Please retain your proof of purchase for warranty claims.

11. Sokongan Pelanggan

For any questions, concerns, or technical assistance regarding your ZunDian Q7 Jump Starter, please contact the seller or manufacturer directly through the platform where the product was purchased. Refer to your purchase documentation for specific contact details.
