Manual Pengguna Penyahlembap AIRPLUS

pengenalan

Thank you for choosing the AIRPLUS Dehumidifier. This appliance is designed to efficiently remove excess moisture from the air, creating a more comfortable and healthier environment in your home or office. By reducing humidity, it helps prevent the growth of mold, mildew, and dust mites, and protects your belongings from moisture damage. Please read this manual thoroughly before operating the unit and keep it for future reference.

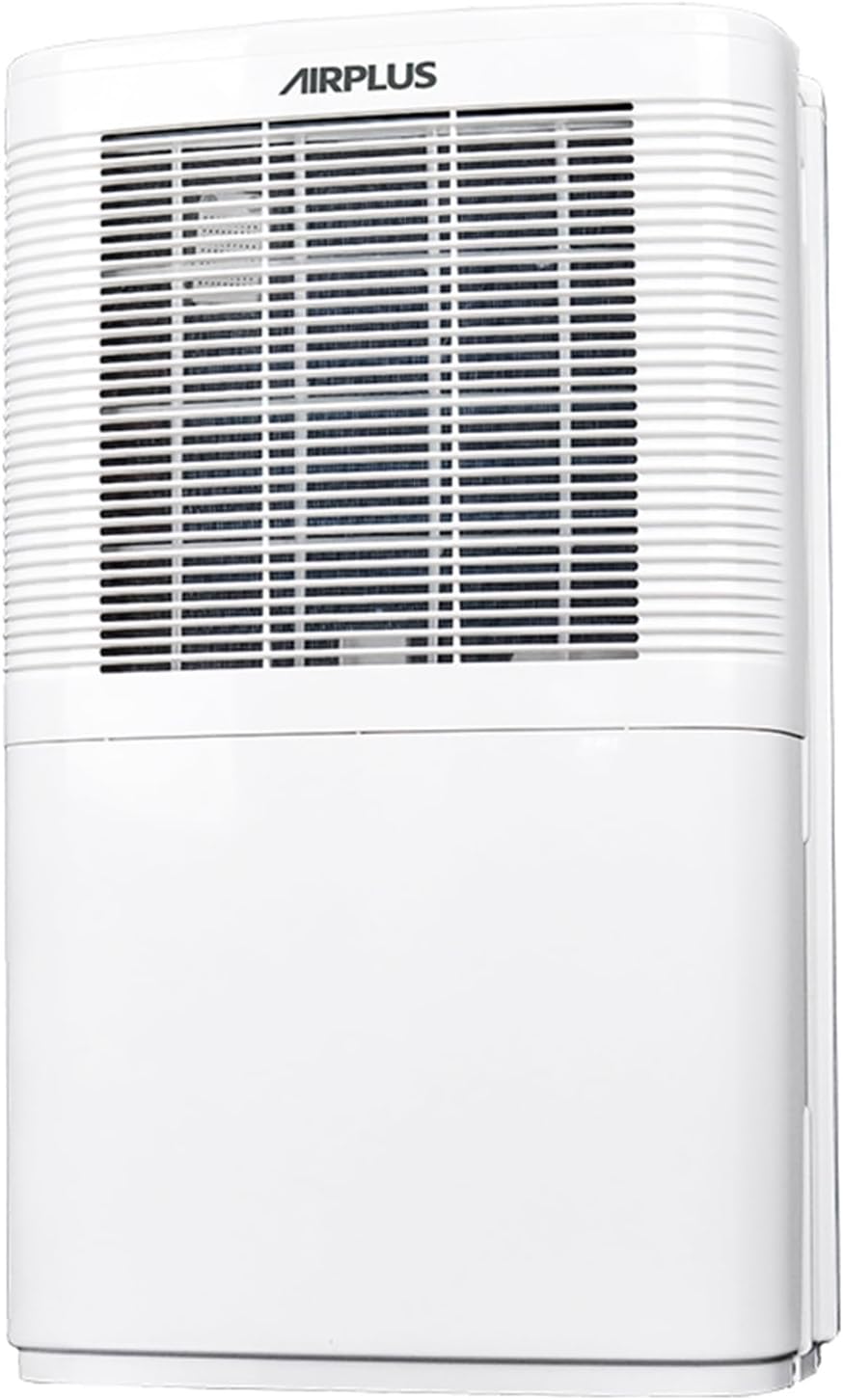

Rajah 1: Depan view Penyahlembap AIRPLUS, tunjukkanasing its compact design and air intake grille.

Arahan Keselamatan Penting

Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan semasa menggunakan penyahlembap anda, ikuti langkah berjaga-jaga asas ini:

• Baca semua arahan sebelum menggunakan perkakas.
• Only use the dehumidifier with a properly grounded electrical outlet.
• Jangan kendalikan unit jika kord kuasa atau palam rosak.
• Keep the dehumidifier away from heat sources and direct sunlight.
• Ensure proper clearance around the unit for adequate airflow (at least 8 inches from walls or furniture).
• Jangan masukkan jari atau benda asing ke dalam saluran masuk atau keluar udara.
• Sentiasa matikan dan cabut plag unit sebelum membersihkan atau melakukan sebarang penyelenggaraan.
• Do not use the dehumidifier in areas where water is likely to splash onto it.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.

Produk Selesaiview

Komponen

Familiarize yourself with the main parts of your AIRPLUS Dehumidifier:

• Panel Kawalan: Located on the top, for setting modes, humidity, and timer.
• Gril Masuk Udara: Front-facing grille where air enters the unit.
• Saluran Udara: Top-facing vent where dehumidified air exits.
• Tangki Air: Tangki boleh tanggal di bahagian bawah untuk mengumpul air pekat.
• Saluran Pembuangan: Located at the back for continuous drainage.
• Penapis Udara Boleh Basuh: Located behind the air inlet grille, designed to capture dust.
• Concave Handle: Pemegang bersepadu untuk mudah dibawa.

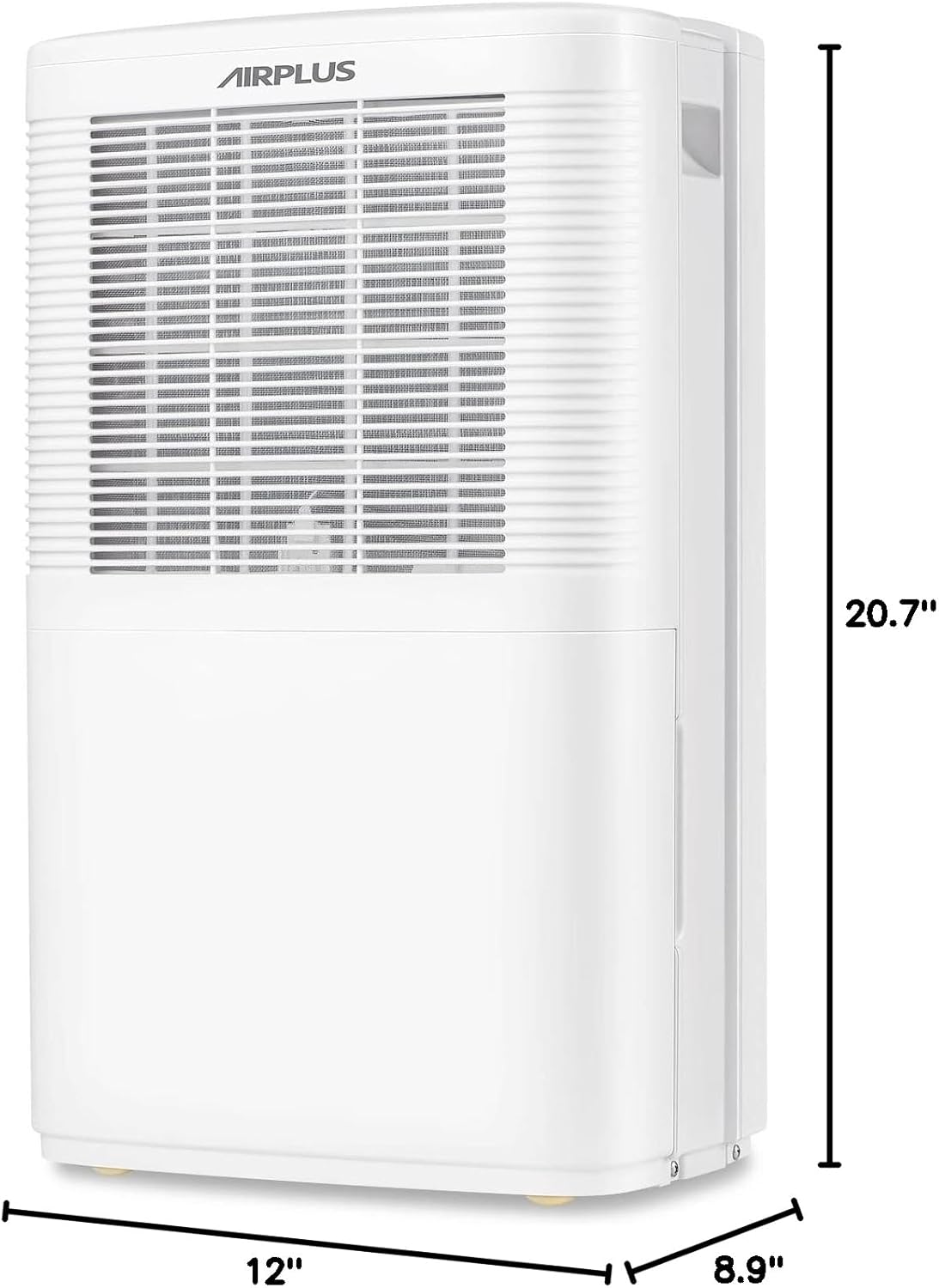

Rajah 2: Sisi view of the AIRPLUS Dehumidifier with key dimensions (12"D x 8.9"W x 20.7"H) indicated, highlighting its compact size for various room placements.

Rajah 3: Jarak dekat view of the integrated concave handle on the side of the dehumidifier, designed for easy lifting and transport.

Panel Kawalan

The control panel allows you to manage all functions of your dehumidifier:

• HUM (Humidity): Displays current humidity and allows setting target humidity.
• PEMASA: Activates the 24-hour timer for scheduled operation.
• LAJU: Adjusts fan speed between Low and High.
• ARAHAN: Cycles through Dehumidifier, Anion, and Fan modes.
• Butang Kuasa: Menghidupkan atau Mematikan unit.

Rajah 4: Terperinci view of the control panel with buttons for Humidity, Timer, Speed, Mode, and Power, along with a digital display for settings.

Persediaan

Membongkar

1. Keluarkan dehumidifier dengan berhati-hati daripada pembungkusnya.
2. Tanggalkan semua bahan pembungkusan, pita pelekat dan filem pelindung.
3. Periksa unit untuk sebarang kerosakan penghantaran. Jika rosak, jangan kendalikan dan hubungi khidmat pelanggan.

Penempatan

For optimal performance, place the dehumidifier in a central location within the area you wish to dehumidify. Ensure:

• The unit is on a flat, stable surface.
• There is at least 8 inches (20 cm) of space around all sides for proper air circulation.
• All windows and doors in the room are closed to maximize efficiency.
• Jangan letakkan unit berhampiran peralatan penjana haba atau di bawah cahaya matahari langsung.

Figure 5: The AIRPLUS Dehumidifier shown in different environments, including a living room, basement, bedroom, and office, illustrating its versatility for various spaces.

Pilihan Saliran

Your AIRPLUS Dehumidifier offers two methods for water removal:

Figure 6: Illustration of the two drainage methods: manual drainage using the 2.8L water tank and continuous drainage via a connected hose.

Manual Drainage (Water Tank)

The unit will automatically shut off when the water tank is full. The "Full Tank" indicator light will illuminate. To empty:

1. Tarik keluar tangki air perlahan-lahan dari hadapan unit.
2. Bawa tangki ke sinki atau longkang dengan berhati-hati.
3. Tuangkan air yang terkumpul.
4. Slide the empty water tank back into the dehumidifier until it clicks into place.

Continuous Drainage (Drain Hose)

For continuous operation without needing to empty the tank, you can connect a drain hose (not included) to the unit's drain outlet.

1. Locate the drain outlet at the back of the dehumidifier.
2. Remove the rubber stopper from the drain outlet.
3. Connect a standard garden hose (or suitable tubing) to the drain outlet. Ensure the connection is secure to prevent leaks.
4. Route the hose downwards to a floor drain, large bucket, or other suitable drainage point. Ensure there are no kinks or blockages in the hose.
5. The unit will now drain continuously, bypassing the water tank.

Figure 7: Step-by-step visual guide showing the removal of the drain plug and connection of a continuous drain hose to the dehumidifier's rear outlet.

Arahan Operasi

Hidupkan/Mati Kuasa

Palamkan kord kuasa ke salur keluar elektrik yang dibumikan. Tekan ke kuasa butang pada panel kawalan untuk menghidupkan atau mematikan unit.

Pemilihan Mod

Tekan ke MODE butang untuk melihat mod pengendalian yang tersedia:

• Mod Penyahlembapan: The primary mode for moisture removal. The unit will operate based on your set humidity level.
• Anion Mode: Activates the anion function, which helps purify the air. Press and hold the MODE button for 5 seconds to activate.
• Mod Kipas: The unit operates as a fan, circulating air without dehumidifying.

Tetapan Kelembapan

In Dehumidifier Mode, press the HUM button to adjust the desired humidity level. The humidity can be set in 5% increments. The unit will automatically turn on or off to maintain the set humidity.

Penyesuaian Kelajuan Kipas

Tekan ke LAJU button to switch between Low and High fan speeds. Higher fan speed results in faster dehumidification.

Fungsi Pemasa

The timer function allows you to set the unit to automatically turn ON or OFF after a specified period (0-24 hours).

1. Tekan ke PEMASA butang.
2. Gunakan HUM or LAJU buttons to adjust the desired time in hours.
3. The timer will activate after a few seconds of inactivity.

Figure 8: Visual representation of the 24-hour two-way timing feature, allowing users to preset both boot-up and shutdown times for automated operation.

Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat penyahlembap anda.

Membersihkan Penapis Udara

Penapis udara hendaklah dibersihkan setiap dua minggu atau lebih kerap bergantung pada penggunaan dan kualiti udara.

1. Matikan penyahlembap dan cabut plagnya dari salur keluar kuasa.
2. Cari penapis udara di belakang gril salur masuk udara hadapan.
3. Gently pull down the filter to remove it.
4. Wash the filter with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinstalling.
5. Alternatively, you can use a vacuum cleaner with a brush attachment to remove dust from the filter.
6. Once dry, slide the filter back into its slot until it is securely in place.

Figure 9: Diagram illustrating how to pull down and remove the washable air filter from the dehumidifier for cleaning.

Mengosongkan Tangki Air

If you are not using the continuous drainage option, the water tank will need to be emptied regularly. Refer to the "Manual Drainage" section under Setup for detailed steps.

Penyimpanan

When storing the dehumidifier for an extended period:

• Empty the water tank completely and ensure it is dry.
• Bersihkan penapis udara.
• Balut kord kuasa dengan kemas.
• Simpan unit secara tegak di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.

Menyelesaikan masalah

Sebelum menghubungi perkhidmatan pelanggan, sila rujuk jadual berikut untuk isu biasa dan penyelesaiannya:

Spesifikasi

Waranti dan Sokongan

AIRPLUS products are manufactured to the highest quality standards. For warranty information, technical support, or any questions regarding your dehumidifier, please refer to the contact information provided with your purchase or visit the official AIRPLUS website. Please have your model number (AP16-601EE) and purchase date ready when contacting support.
