1. Pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your Steinel L 810 SC Outdoor LED Wall Light. Please read this manual carefully before installation and use to ensure proper function and safety.
The Steinel L 810 SC is an intelligent up- and downlight designed for outdoor use, featuring an invisible 160° iHF motion detector and app control via Bluetooth Mesh technology. It offers energy-efficient lighting with customizable settings for various outdoor areas.
2. Arahan Keselamatan
- Pemasangan mesti dijalankan oleh juruelektrik yang berkelayakan mengikut peraturan pendawaian kebangsaan dan kod bangunan tempatan.
- Ensure the power supply is disconnected before installation, maintenance, or repair.
- Jangan ubah suai produk dalam apa jua cara. Pengubahsuaian tanpa kebenaran boleh membatalkan waranti dan menimbulkan risiko keselamatan.
- This product is designed for outdoor use. Ensure it is installed in a location protected from direct water jets if not rated for such exposure (check IP rating in specifications).
- Jangan melihat terus ke sumber cahaya LED apabila diterangi.
- Jauhkan bahan pembungkusan daripada kanak-kanak.
3. Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- Steinel L 810 SC Outdoor LED Wall Light
- Mounting material (screws, wall plugs)
- Manual Arahan
Figure 3.1: The Steinel L 810 SC Outdoor LED Wall Light.
4. Pemasangan
Ikuti langkah ini untuk pemasangan yang selamat dan betul:
- Penyediaan: Matikan bekalan kuasa utama pada pemutus litar sebelum memulakan sebarang kerja elektrik.
- Lokasi Pemasangan: Choose a suitable outdoor location for the wall light. Consider the desired light coverage and motion detection area.
- Penandaan dan Penggerudian: Use the mounting plate as a template to mark the drilling points on the wall. Drill holes and insert the provided wall plugs.
- Pendawaian: Connect the electrical wires (Live, Neutral, Earth) from your mains supply to the corresponding terminals on the light fixture. Ensure secure connections.
- Memasang Lekapan: Secure the light fixture to the wall using the provided screws.
- Hidupkan kuasa: Restore power at the circuit breaker. The light should briefly illuminate to indicate successful installation.
Gambar 4.1: Cthample of the L 810 SC installed on an exterior wall, providing up and down lighting.
Figure 4.2: The L 810 SC illuminating a house facade at night.
Figure 4.3: The L 810 SC highlighting its Bluetooth Mesh capability and an optional remote switch.
5. Arahan Operasi
5.1 Persediaan Awal dan Sambungan Apl
The Steinel L 810 SC is controlled via the free STEINEL Connect app. Download the app from your device's app store (Google Play or Apple App Store).
- Open the STEINEL Connect app.
- Follow the on-screen instructions to add your L 810 SC light. The light connects wirelessly via Bluetooth.
- Once connected, you can access all functions and settings through the app.

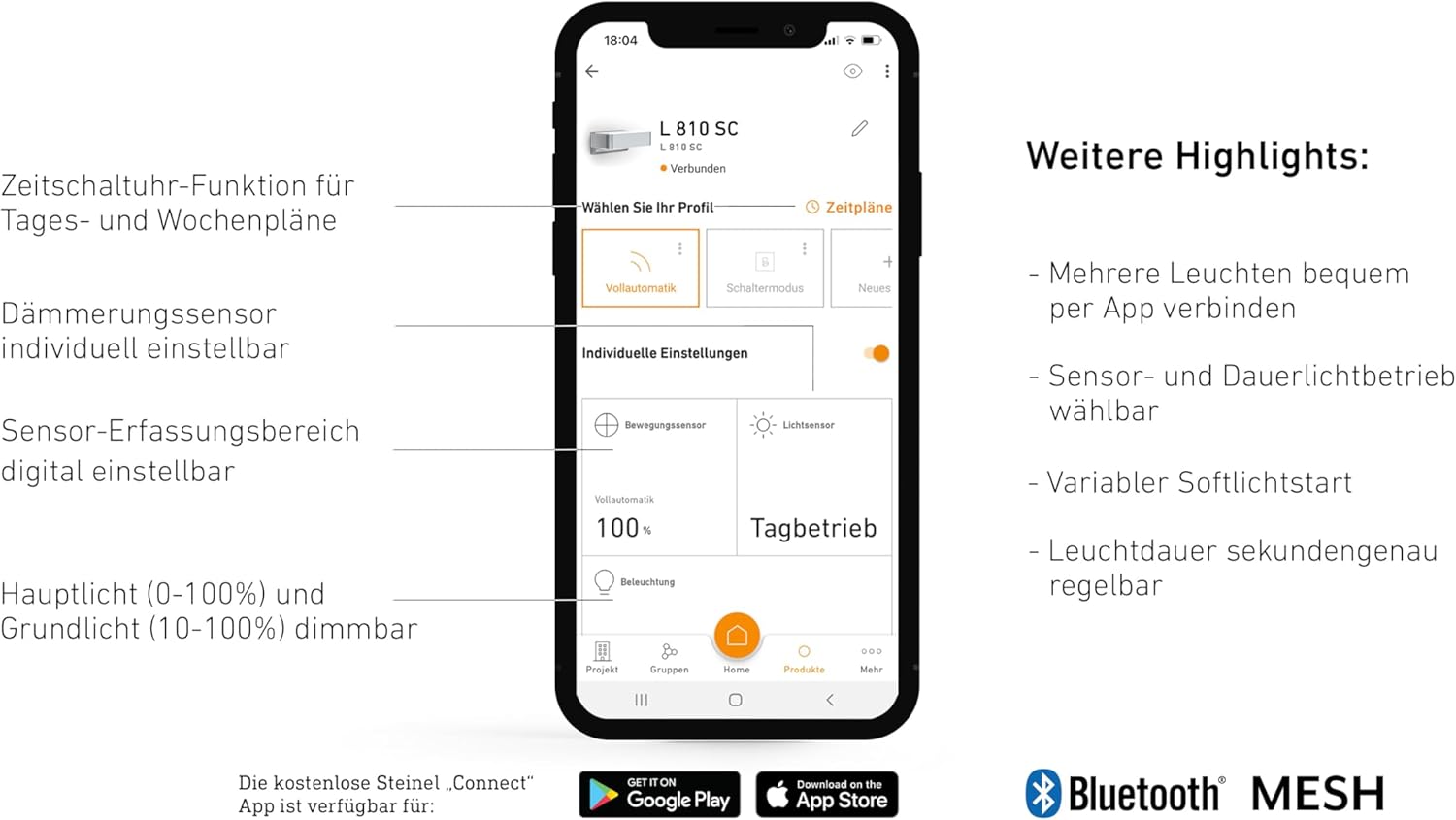

Figure 5.1: The STEINEL Connect app interface for controlling light settings.
5.2 Key Features and App Functions
- Main and Night Light Dimmable: Adjust the brightness of both the main light and the night light (0-100%) via the app.
- Fungsi Pemasa: Set daily and weekly schedules for lighting operation.
- Cahaya Kekal: Option to switch on permanent lighting.
- Tempoh Pencahayaan: Configure the duration the light stays on after detection.
- Latar Senja: Adjust the ambient light level at which the sensor activates.
- Precise Detector: The invisible 160° high-frequency sensor is flexibly adjustable on two axes via the app and detects movements up to 5 meters.
- Rangkaian Tanpa Wayar: Create groups of lights and network them wirelessly via Bluetooth Mesh without an additional bridge.
- Permulaan Cahaya Lembut: The light gradually increases to full brightness for a more pleasant experience.
Gambar 5.2: Lebihview of the light's intelligent features.
Figure 5.3: Illustration of the 160° iHF motion detection area.
Figure 5.4: The iHF sensor's ability to detect motion through certain materials.
Gambar 5.5: Cthample of the motion detection coverage around a building.
6. Penyelenggaraan
- Clean the light fixture regularly with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
- Ensure the sensor lens is kept clean for optimal performance.
- The LED light source is integrated and not user-replaceable. Do not attempt to open the light housing beyond what is necessary for installation.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. | No power supply; incorrect wiring; sensor settings too high (twilight). | Check circuit breaker and wiring connections. Adjust twilight setting in the app. |
| Lampu kekal menyala secara berterusan. | Permanent light function activated; continuous motion in detection area; faulty sensor. | Deactivate permanent light in the app. Check for obstructions or constant movement. Contact support if sensor is faulty. |
| Light turns on without apparent motion. | Sensor sensitivity too high; environmental factors (e.g., strong wind, small animals). | Reduce sensor sensitivity or detection range in the app. Adjust sensor angle if possible. |
| Tidak dapat bersambung ke aplikasi. | Bluetooth off; light not in pairing mode; app issue. | Ensure Bluetooth is enabled on your device. Restart the light (power cycle). Reinstall the app if necessary. |
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 087562 |
| Dimensi (L x W x H) | 23 x 14.6 x 9.1 cm (9.06 x 5.75 x 3.58 inci) |
| Berat badan | 1.04 kg (2.29 lbs) |
| Bekalan Kuasa | 220-240V / 50-60Hz |
| Penggunaan Kuasa | 9.8 Watt |
| Fluks Bercahaya | 679 lm |
| Suhu Warna | 3000 Kelvin (Putih Hangat) |
| Pengesan Pergerakan | 160° iHF (High-Frequency) |
| Julat Pengesanan | Sehingga 5 meter |
| bahan | Aluminium, Plastik |
| warna | Perak |
| Ciri Khas | Dimmable, Motion Sensor, Energy Efficient, App Control, Bluetooth Mesh |
| Pensijilan | CE, RoHS, UKCA |
| Kelas Kecekapan Tenaga Sumber Cahaya | D |
Figure 8.1: Technical dimensions of the L 810 SC.
9. Waranti dan Sokongan
Steinel products are manufactured to the highest quality standards. For warranty information and customer support, please refer to the official Steinel webtapak atau hubungi pengedar tempatan anda.
Regular software updates for the STEINEL Connect app ensure continuous improvement and new features for your lighting system.
