pengenalan
Thank you for choosing the AMZBABYCHEF 4-in-1 Baby Bottle Steamer and Dryer. This appliance is designed to provide efficient and hygienic care for your baby's feeding essentials. It utilizes natural steam for sterilization and hot air for drying, offering a comprehensive solution for bottles, pacifiers, and accessories. Please read this manual thoroughly before first use to ensure safe and optimal operation.
Maklumat Keselamatan Penting
- Sentiasa jauhkan perkakas daripada kanak-kanak.
- Jangan rendam unit asas ke dalam air atau cecair lain.
- Use only distilled water to prevent mineral buildup and ensure efficient operation.
- Pastikan perkakas diletakkan di atas permukaan yang stabil dan tahan haba.
- Cabut plag perkakas apabila tidak digunakan dan sebelum membersihkan.
- Do not operate the appliance if it has a damaged cord or plug, or if it malfunctions. Contact customer support.
- Steam is hot. Exercise caution when opening the lid after a cycle.
- The auto shut-off function monitors water level. Do not override this safety feature.
Produk Selesaiview

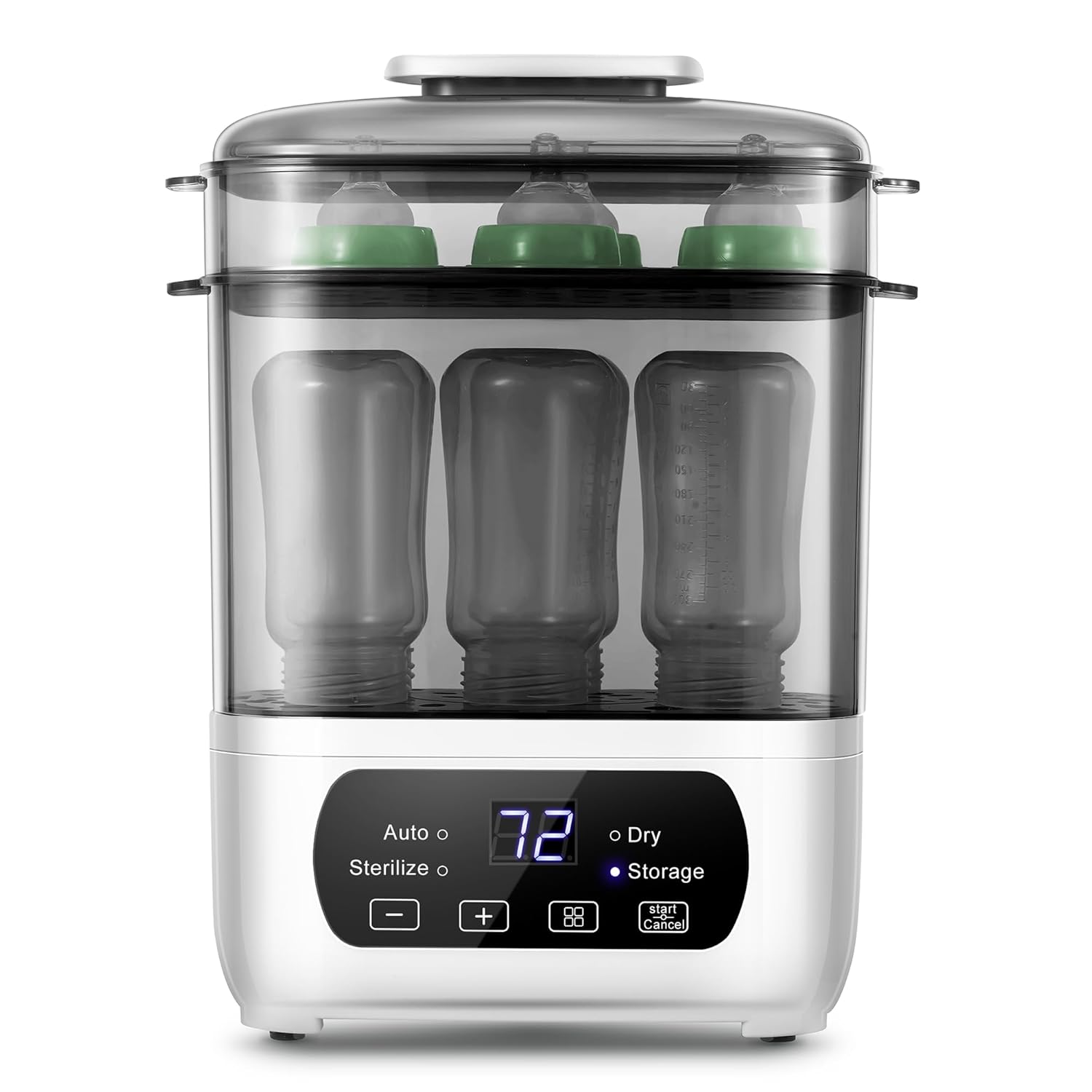

The AMZBABYCHEF Baby Bottle Steamer and Dryer features a modular design for versatile use and an intuitive LED touch control panel.
Figure 2: Modular Design Components
This image illustrates the individual parts of the steamer and dryer, including the lid, small basket, large basket, and the main base unit with the control panel.
Figure 3: LED Touch Control Panel
This image highlights the user interface, featuring touch-sensitive buttons for various functions, a digital time display, and an indicator for the auto shut-off safety feature.
Komponen:
- Tudung: Covers the baskets during operation.
- Small Basket: For smaller items like pacifiers, nipples, and bottle caps.
- Large Basket: For baby bottles and larger pump parts.
- Unit Asas: Contains the heating element, water reservoir, and LED touch control panel.
Persediaan dan Penggunaan Pertama
- Bongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
- Bersih: Wash all baskets and the lid with warm soapy water, then rinse thoroughly. Wipe the base unit with a damp kain. Pastikan semua bahagian kering sebelum pemasangan.
- Berhimpun: Place the large basket onto the base unit, then the small basket on top of the large basket. Finally, place the lid on the small basket.
- jawatan: Place the assembled unit on a flat, stable, heat-resistant surface, away from walls or other objects to allow for proper ventilation.
- Initial Cleaning Cycle (Recommended): Before first use with baby items, perform a full "Steam & Dry" cycle with only water to clean any manufacturing residues.
Rajah 4: Panduan Permulaan Pantas
This image provides a visual summary of the initial steps for using the appliance: adding water, loading items, and selecting a function.
Arahan Operasi
The AMZBABYCHEF Steamer and Dryer offers four primary functions: Steam, Dry, Steam & Dry, and Storage.
Figure 5: 4-in-1 Multi-function Overview
This image details the four operational modes: Auto (automatic steam and default 50-minute drying), Steam (duration depends on water volume), Dry (adjustable 1-60 minutes, default 50 minutes), and Storage (72-hour cycle with 15 minutes drying every 2 hours).
Langkah Operasi Am:
- Sediakan Barangan: Wash bottles, nipples, and accessories thoroughly before placing them in the baskets.
- Tambah Air: Pour 120ml of distilled water into the heating plate reservoir in the base unit. Do not overfill.
- Bakul Muatan: Place bottles upside down in the large basket. Arrange smaller items like nipples, pacifiers, and caps in the small basket. Ensure items are not overcrowded to allow steam and air circulation.
- Tutup Tudung: Securely place the lid on top of the small basket.
- Pilih Fungsi: Plug in the appliance. The LED screen will illuminate. Use the touch controls to select your desired function:
- Auto: Automatically steams based on water volume and then dries for a default of 50 minutes.
- Steam Only: Steams items. The duration depends on the water volume.
- Kering Sahaja: Dries items. Default 50 minutes, adjustable from 1 to 60 minutes using the '+' and '-' buttons.
- Storan: After a steam or dry cycle, this mode maintains hygiene by drying for 15 minutes every 2 hours for up to 72 hours.
- Mulakan Kitaran: Press the "Start/Cancel" button to begin the selected cycle. The LED display will show a countdown.
- penyiapan: The appliance will automatically shut off when the cycle is complete. Allow items to cool before handling.
Figure 6: Large Capacity Example
This image shows the appliance accommodating up to six standard baby bottles and several nipples, highlighting its ability to process multiple items simultaneously.
Penyelenggaraan dan Pembersihan
Regular cleaning is essential to maintain the performance and hygiene of your AMZBABYCHEF Steamer and Dryer.
Figure 7: Easy Cleaning of Heating Plate
This image shows the simple process of wiping the heating element area in the base unit, emphasizing the importance of timely cleaning after use to prevent mineral buildup.
- Cabut dan Sejukkan: Sentiasa cabut plag perkakas dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
- Clean Baskets and Lid: Wash the small basket, large basket, and lid with warm soapy water. Rinse thoroughly and allow to air dry. These parts are generally top-rack dishwasher safe, but hand washing is recommended for longevity.
- Unit Pangkalan Bersih: Lap bahagian luar unit asas dengan iklanamp kain. Jangan rendam unit asas dalam air.
- Descaling the Heating Plate: Over time, mineral deposits (limescale) may accumulate on the heating plate.
- Mix 50ml of white vinegar with 100ml of distilled water.
- Pour the solution onto the heating plate.
- Let it soak for 30 minutes to 1 hour, or until the deposits loosen. For stubborn deposits, gently scrub with a soft brush or sponge.
- Pour out the solution and wipe the heating plate clean with a damp cloth. Rinse with a small amount of clean water and wipe dry.
- Perform a "Steam Only" cycle with clean distilled water to remove any residual vinegar smell.
- Storan: Store the clean and dry appliance in a cool, dry, and well-ventilated area when not in use.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perkakas tidak dihidupkan. | Tidak dipasang; isu salur keluar kuasa. | Pastikan kord kuasa dipasang dengan selamat ke soket yang berfungsi. |
| Cycle stops prematurely. | Insufficient water in the reservoir; auto shut-off activated. | Ensure 120ml of distilled water is added before starting a steam cycle. |
| Items are not completely dry after a dry cycle. | Overcrowding of items; insufficient drying time selected; high humidity. | Ensure items are spaced out. Increase drying time (up to 60 minutes). Consider running an additional dry cycle if needed. |
| White/brown residue on heating plate. | Mineral buildup from tap water. | Descale the heating plate using a vinegar and water solution as described in the Maintenance section. Always use distilled water. |
| Bau yang tidak menyenangkan semasa operasi. | New appliance odor (temporary); residue from previous use. | Run an initial cleaning cycle. Ensure all parts are thoroughly cleaned and descaled. |
Spesifikasi
- model: BBS001-01
- Bahan: BPA-free PP Plastic
- Fungsi: 4-in-1 (Steam, Dry, Steam & Dry, Storage)
- kapasiti: Up to 6 standard baby bottles, pump parts, and accessories
- Kawalan: Skrin Sentuh LED
- Ciri-ciri Keselamatan: Automatikan
- Dimensi: Kira-kira 13.54 x 12.99 x 7.87 inci (Saiz Pakej)
- Berat: Kira-kira 4.86 paun
Figure 8: BPA-Free Material
This image highlights the use of BPA-free plastic, ensuring the product is safe for contact with baby feeding items.
Waranti dan Sokongan
For warranty information, product support, or to report any issues, please contact AMZBABYCHEF customer service. Refer to the product packaging or the official AMZBABYCHEF webtapak untuk butiran hubungan terkini.
