1. Pengenalan
Thank you for choosing the RAF R.5233 Air Fryer. This appliance is designed to provide a healthier way to cook your favorite meals, using little to no oil. With its 7.6-liter capacity and 1700W power, it is suitable for preparing family-sized meals efficiently. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your air fryer.
Imej: Depan view of the RAF R.5233 Air Fryer, showcasing its sleek black design and rose gold accents.
2. Arahan Keselamatan Penting
Please read all instructions carefully before using the appliance to prevent personal injury or damage to the air fryer. Keep this manual for future reference.
- Sentiasa pastikan voltage yang ditunjukkan pada perkakas sepadan vol utama tempatan andatage sebelum menyambung.
- Do not immerse the cord, plug, or the appliance housing in water or any other liquid to prevent electric shock.
- Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
- Cabut plag dari alur keluar apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian.
- Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
- Jangan letakkan perkakas pada dinding atau pada perkakas lain. Tinggalkan sekurang-kurangnya 10 cm ruang kosong di bahagian belakang dan sisi dan 10 cm ruang kosong di atas perkakas.
- Hot air is released through the air outlet opening. Keep your hands and face at a safe distance from the openings.
- Do not fill the pan with oil. This appliance works by circulating hot air.
- Always place ingredients to be fried in the basket to prevent them from coming into contact with the heating elements.
3. Komponen Produk
Familiarize yourself with the main parts of your RAF R.5233 Air Fryer:
- Perumahan Unit Utama
- Digital Control Panel (Top)
- Tombol Kawalan Suhu
- Tombol Kawalan Pemasa
- Bakul Goreng Boleh Ditanggalkan
- Frying Pan (Drawer)
- pegang
- Lubang Masuk dan Keluar Udara

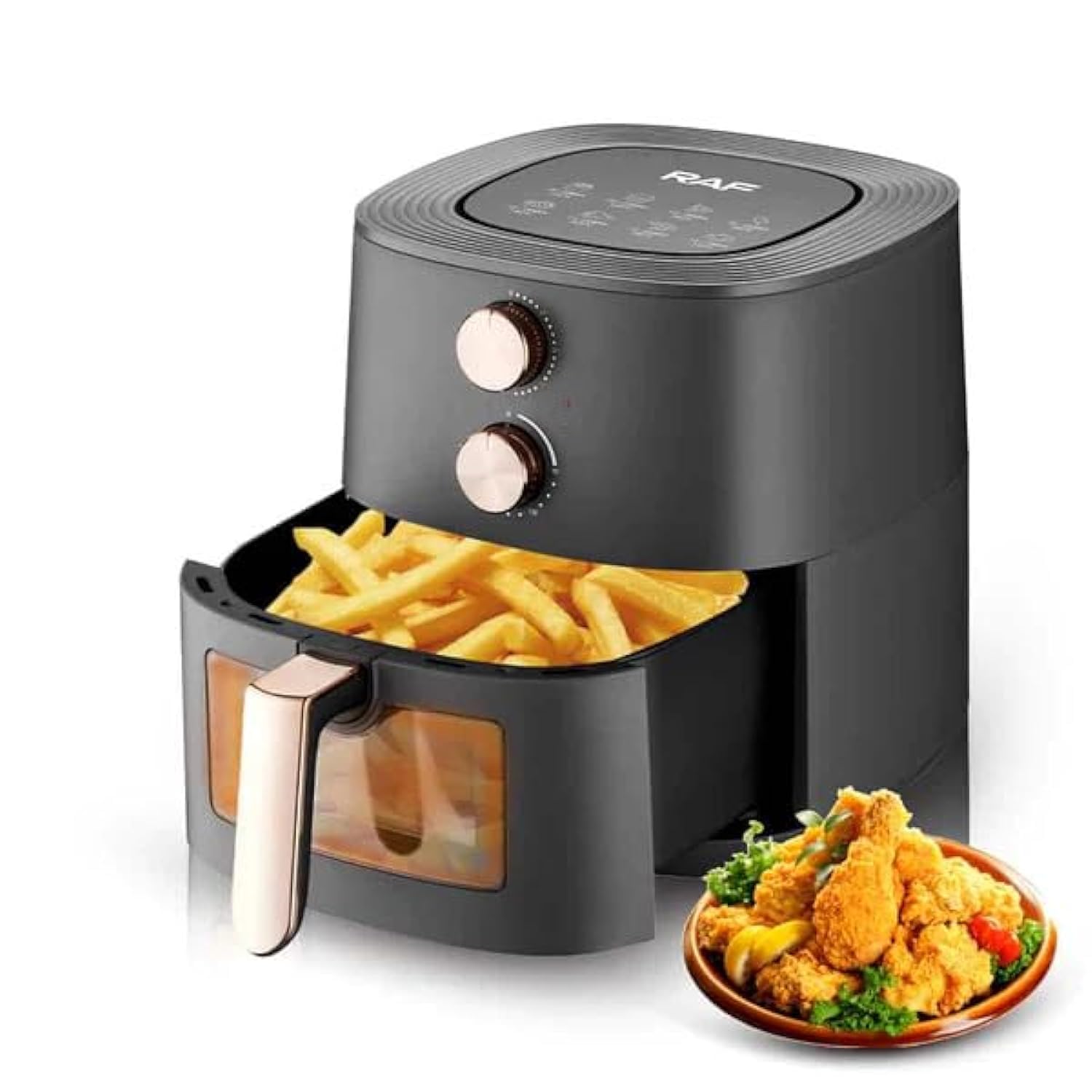

Image: The RAF R.5233 Air Fryer with its frying basket pulled out, showing the interior.
Imej: Jarak dekat view of the temperature and timer control knobs on the RAF R.5233 Air Fryer.
4. Persediaan
4.1 Membongkar
Carefully remove the air fryer and all packaging materials. Ensure all components are present and undamaged. Dispose of packaging materials responsibly.
4.2 Sebelum Penggunaan Pertama
- Lap unit utama dengan iklanamp kain.
- Clean the frying basket and pan with hot water, dish soap, and a non-abrasive sponge. These parts are also dishwasher safe.
- Keringkan semua bahagian dengan teliti sebelum digunakan.
4.3 Penempatan
Place the air fryer on a stable, heat-resistant surface. Ensure there is adequate ventilation around the appliance (at least 10 cm clearance on all sides and above) to allow for proper air circulation.
5. Arahan Operasi
The RAF R.5233 Air Fryer features an easy-to-use digital control panel and intuitive knobs for precise cooking.
5.1 Preheating (Optional)
For best results, especially with certain foods, preheating the air fryer for 3-5 minutes at the desired temperature is recommended.
5.2 Proses Memasak
- Place the food in the frying basket. Do not overfill the basket; ensure hot air can circulate. The XL capacity can accommodate up to 1.2 kg of food.
- Slide the frying pan with the basket back into the main unit.
- Pasang alat ke soket dinding yang dibumikan.
- Use the digital control panel or the temperature knob to set the desired cooking temperature. The temperature control feature allows precise adjustment.
- Use the timer knob to set the required cooking time. The air fryer will automatically turn off when the timer reaches zero.
- Alternatively, select one of the pre-set programs from the digital panel for common foods like fries, nuggets, roasted chicken, pizza, meat, fish, vegetables, or desserts.
- During cooking, for even results, pull out the pan and shake the basket or flip the food halfway through the cooking time.
- Once cooking is complete, carefully pull out the pan and basket. Use heat-resistant tongs to remove the food.

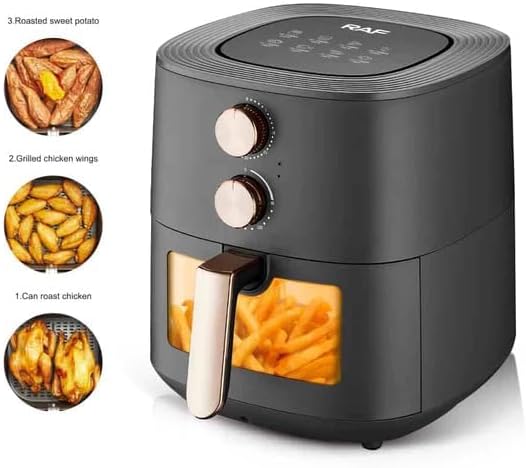

Image: The RAF R.5233 Air Fryer displaying examples of food that can be cooked, such as roasted sweet potato, grilled chicken wings, and roasted chicken.

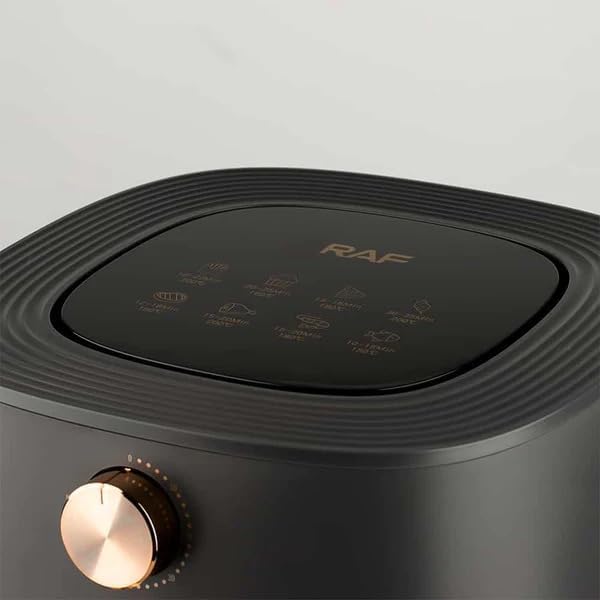

Image: Close-up of the digital control panel on top of the RAF R.5233 Air Fryer, showing various pre-set cooking icons.
6. Pembersihan dan Penyelenggaraan
Regular cleaning ensures the longevity and hygienic operation of your air fryer.
6.1 Pembersihan Selepas Setiap Penggunaan
- Cabut plag penggoreng udara dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
- Remove the frying basket and pan. Clean them with hot water, dish soap, and a non-abrasive sponge. They are also dishwasher safe.
- Lap bahagian luar perkakas dengan iklanamp kain. Jangan gunakan pembersih atau penyental yang kasar.
- Bersihkan bahagian dalam perkakas dengan iklanamp kain dan detergen lembut jika perlu.

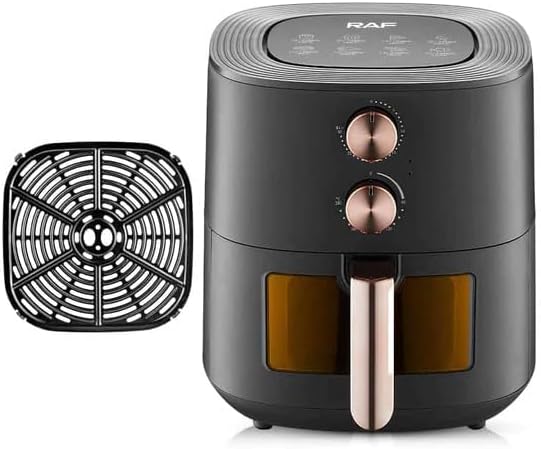

Image: The RAF R.5233 Air Fryer shown alongside its removable cooking rack, which can be cleaned separately.
6.2 Penyimpanan
Store the air fryer in a cool, dry place when not in use. Ensure it is clean and dry before storing.
7. Penyelesaian masalah
Jika anda menghadapi sebarang masalah dengan penggoreng udara anda, rujuk masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Penggoreng udara tidak dihidupkan. | Appliance not plugged in; power outlet not working; timer not set. | Pastikan kord kuasa dipasang dengan kukuh ke soket yang berfungsi. Tetapkan pemasa pada tempoh memasak yang diingini. |
| Makanan tidak dimasak sekata. | Bakul terlalu sesak; makanan tidak digoncang/dibalikkan. | Masak makanan dalam kelompok yang lebih kecil. Goncang atau balikkan makanan pada separuh masa memasak. |
| Asap putih datang dari perkakas. | Sisa gris daripada penggunaan sebelumnya; bahan-bahan berlemak. | Clean the pan and basket thoroughly after each use. Remove excess oil from fatty foods. |
| Makanan tidak rangup. | Too much moisture in food; not enough oil (if desired). | Pat food dry before air frying. Lightly brush or spray with oil for extra crispiness. |
Jika masalah berterusan, sila hubungi sokongan pelanggan.
8. Spesifikasi
Detailed technical specifications for the RAF R.5233 Air Fryer:

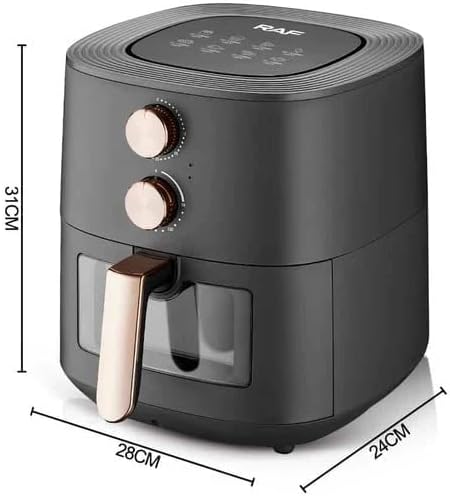

Image: The RAF R.5233 Air Fryer with its dimensions clearly marked: 31cm height, 28cm width, and 24cm depth.
- model: R.5233
- Jenama: RAF
- kapasiti: 7.6 Liter
- Output Kuasa: 1700 Watt
- Kuasa Elektrik: 1700 Watt
- warna: Hitam
- Bahan: aluminium
- Berat Barang: 3 Kilogram
- Dimensi Produk (Dalam x Lebar x Tinggi): 30 cm x 30 cm x 30 cm (Note: Image shows 24cm depth, 28cm width, 31cm height. Please refer to physical product for exact measurements.)
- Ciri Khas: Kawalan Suhu
- Penggunaan yang Disyorkan: Reheating, Baking, Steaming
9. Waranti dan Sokongan
For warranty information, please refer to the documentation provided with your purchase or contact the retailer. Keep your proof of purchase for any warranty claims.
For technical support or service inquiries, please contact the RAF customer service department through the contact information provided on the product packaging or the official RAF webtapak.
