SZELAM SZ-8853A-GD Digital Alarm Clock User Manual

pengenalan

The SZELAM SZ-8853A-GD Digital Alarm Clock is designed to provide clear time display, customizable lighting, and convenient charging capabilities. This manual provides instructions for setup, operation, and maintenance to ensure optimal performance of your device.

Figure 1: SZELAM SZ-8853A-GD Digital Alarm Clock.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• 1 x SZELAM Digital Alarm Clock (Model SZ-8853A-GD)
• 1 x Penyesuai Kuasa
• 1 x Kabel Pengecas USB (Jenis-C)
• 1 x Manual Produk

Figure 2: Contents of the SZELAM Alarm Clock package.

Produk Selesaiview

The SZELAM Digital Alarm Clock features a 7.4-inch mirror display with large, easy-to-read digits. It includes multiple buttons on the top for various settings and two charging ports on the side.

Ciri-ciri Utama:

• 11-Color RGB Digital Display: Choose from 4 dynamic RGB modes and 7 fixed color modes for the time display.
• 10-Color Modes Night Light: Integrated LED light with 3 dynamic RGB colors and 7 fixed color modes, adjustable to 5 brightness levels.
• Port Pengecasan USB-C: Equipped with one USB Type-C and one USB-A output port for simultaneous charging of two electronic devices.
• 7.4-Inch Mirror Display: High-definition display with large digital fonts, also functions as a makeup mirror.
• Automatic/Manual Dimming: 6 levels of brightness adjustment. Automatic light sensing mode adjusts display brightness based on ambient light.
• 5 Levels Volume Adjustable: Alarm volume options from 55-95dB, suitable for various sleep depths.
• Snooze + 12/24h Mode: Snooze function (5-60 minutes) and selectable 12-hour or 24-hour time display.

Rajah 3: Depan view of the alarm clock.

Persediaan

1. Sambungan Kuasa: Connect the provided USB Type-C charging cable to the "INPUT" port on the side of the alarm clock and plug the power adapter into a standard wall outlet. The display will illuminate.
2. Tetapan Masa Awal: Upon first power-on, the clock may display a default time. Refer to the "Operating Instructions" section for detailed steps on setting the correct time.
3. Bateri Memori: The clock includes a memory battery to retain time settings during power outages. Ensure the protective strip is removed from the battery compartment (located on the bottom) if applicable.

Arahan Operasi

1. Setting Time and 12/24h Mode

1. Press and hold the "SET" button (usually located on the top) for 2 seconds to enter time setting mode. The hour digits will flash.
2. Gunakan butang "+" atau "-" untuk melaraskan jam.
3. Press "SET" again to confirm the hour and move to minute setting. The minute digits will flash.
4. Gunakan butang "+" atau "-" untuk melaraskan minit.
5. Press "SET" a third time to confirm minutes and enter 12/24h mode selection.
6. Use the "+" or "-" buttons to switch between 12-hour and 24-hour display.
7. Press "SET" to exit time setting.

Figure 4: Time display with various color modes.

2. Adjusting RGB Digital Display Colors

In normal time display mode, press the "Light" button (often combined with snooze) to cycle through the 11 available color modes for the time digits. These include 4 dynamic RGB modes and 7 fixed color modes.

3. Setting RGB Night Light Modes

The clock features a bottom atmosphere light. Press the "Light" button (separate from the display color button, or a long press on the same button depending on model) to cycle through 10 night light modes (3 dynamic RGB, 7 fixed colors). The brightness of the night light can also be adjusted through 5 levels.

Figure 5: Various 10-color RGB night light modes.

4. Brightness Adjustment (Auto/Manual)

The display brightness has 6 adjustable levels. In manual mode, repeatedly press the "Brightness" button (often combined with snooze) to cycle through the levels. For automatic adjustment, activate the auto-dimming feature (refer to specific button functions in the included manual) which adjusts brightness based on ambient light.

Figure 6: Six levels of brightness adjustment for the display.

5. Alarm Setting, Snooze, and Volume

1. Tetapkan Penggera: Press and hold the "AL" (Alarm) button for 2 seconds. The hour digits will flash. Use "+" or "-" to set the alarm hour. Press "AL" again to set minutes, then use "+" or "-" to adjust. Press "AL" a third time to set snooze duration (5-60 minutes). Press "AL" to save and exit.
2. Aktifkan / Nyahaktifkan Penggera: Briefly press the "AL" button to turn the alarm on or off. An alarm icon will appear/disappear on the display.
3. Fungsi Tunda: When the alarm sounds, press the large "SNOOZE" button on top to activate snooze. The alarm will sound again after the set snooze duration.
4. Laraskan Kelantangan Penggera: In normal time display mode, press the "VOL" button to cycle through 5 volume levels (55-95dB).

Figure 7: Snooze button on top of the alarm clock.

6. Port Pengecasan USB

The alarm clock is equipped with one USB Type-C output port and one USB-A output port. These ports can be used to charge compatible electronic devices simultaneously.

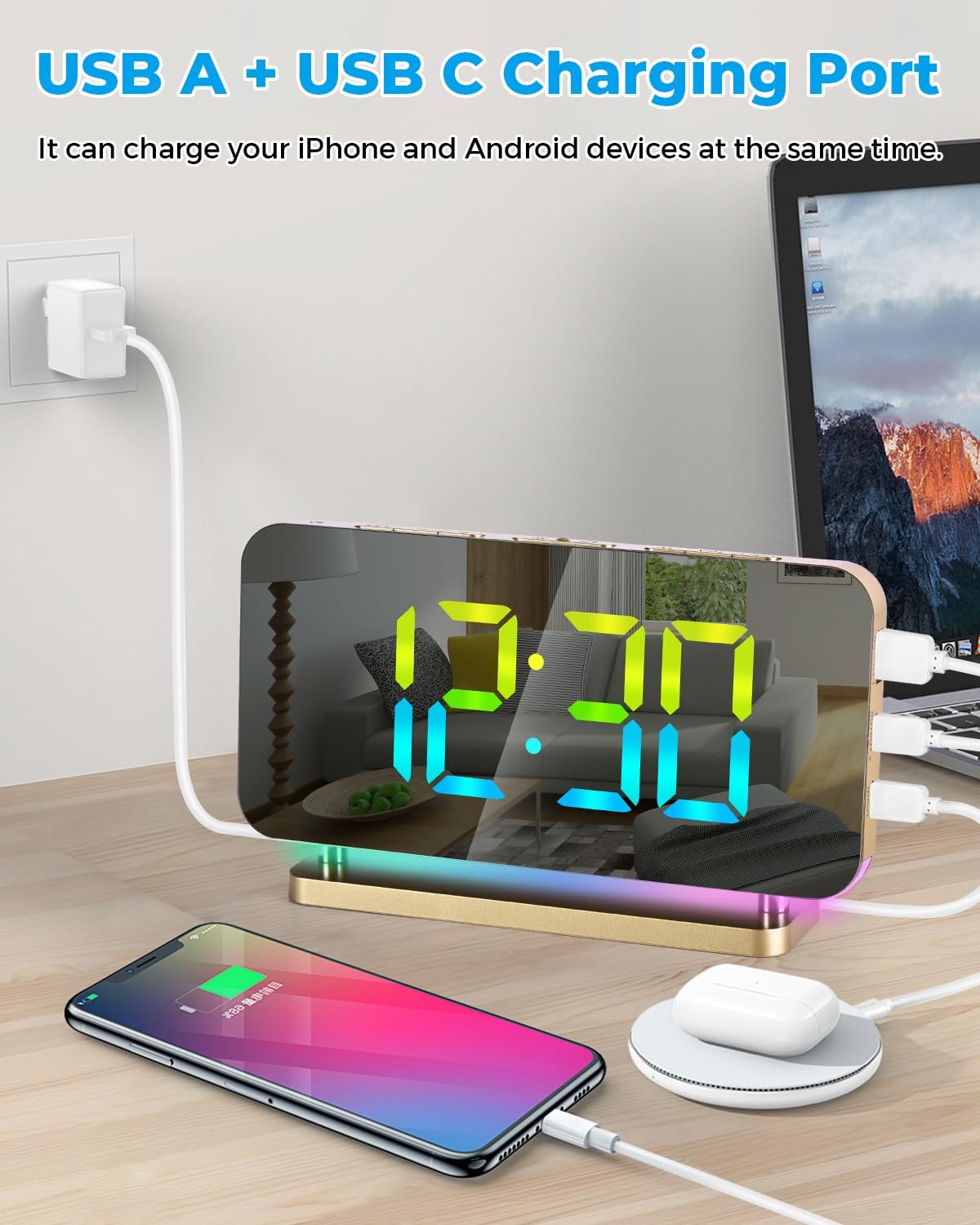

Figure 8: USB A and USB C charging ports on the side of the clock.

Penyelenggaraan

• Clean the mirror display and body with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• Jauhkan peranti daripada air dan kelembapan yang tinggi.
• Jangan buka peranti ini. Rujuk kepada kakitangan yang berkelayakan untuk pembaikan.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

The SZELAM SZ-8853A-GD Digital Alarm Clock comes with a 30-day unconditional money-back/exchange policy dan a Waranti 1 tahun daripada pengilang.

For any product inquiries, issues, or support needs, please contact SZELAM customer service via email. A solution will be provided within 24 hours.
