1. Pengenalan
Thank you for choosing the Yaheetech Vintage Metal Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read it thoroughly before beginning assembly and keep it for future reference.
This bed frame is designed for comfort and durability, featuring a robust metal structure and a slatted base for optimal mattress support. Its vintage style adds a touch of elegance to any bedroom.
2. Maklumat Keselamatan
Sila patuhi langkah keselamatan berikut untuk mengelakkan kecederaan atau kerosakan pada produk:
- Sentiasa pasang rangka katil di atas permukaan yang lembut dan bersih untuk mengelakkan calar.
- Pastikan semua skru dan bolt diketatkan dengan kukuh sebelum digunakan. Periksa secara berkala dan ketatkan semula jika perlu.
- Jangan melebihi kapasiti berat maksimum 136 kg (300 lbs).
- Jauhkan bahagian kecil daripada kanak-kanak semasa pemasangan untuk mengelakkan bahaya tercekik.
- Jangan berdiri atau melompat di atas rangka katil.
- Gunakan hanya saiz tilam yang dinyatakan untuk rangka katil ini (90 x 200 cm).
- Jika mana-mana bahagian hilang atau rosak, jangan teruskan pemasangan. Hubungi khidmat pelanggan dengan segera.
3. Senarai Bahagian
Before starting assembly, verify that all components are present and undamaged. Refer to the assembly diagram for visual identification of parts.
| Bahagian | Penerangan | Kuantiti |
|---|---|---|
| Kepala katil | Main headboard section with decorative elements. | 1 |
| Papan Kaki | Main footboard section with decorative elements. | 1 |
| Rel Sisi | Rel logam panjang yang menghubungkan kepala katil dan kaki katil. | 2 |
| Sokong Kaki | Central support legs for the bed frame. | 6 |
| Bilah | Metal bars forming the mattress support base. | (Varies, refer to manual) |
| Pek Perkakasan | Screws, bolts, washers, and Allen key. | 1 set |
4. Persediaan dan Pemasangan
Follow these step-by-step instructions for assembling your Yaheetech bed frame. It is recommended to have two people for assembly.
Langkah 1: Buka Pembungkusan dan Kenalpasti Bahagian
Carefully unpack all components and lay them out on a soft, clean surface. Compare them with the parts list to ensure everything is present.
Image: All components laid out for inspection.
Langkah 2: Pasang Kepala dan Papan Kaki
Attach the decorative elements and any necessary support bars to the headboard and footboard sections as per the detailed diagram in your physical manual. Ensure all connections are firm.
Image: Detail of L-shaped plate connections for enhanced stability.
Step 3: Attach Side Rails
Connect the side rails to the headboard and footboard using the provided bolts and the Allen key. Make sure the rails are properly aligned and secured. The U-shaped corner plates enhance structural stability.
Image: Illustration of U-shaped corner plates for stability and built-in slats to prevent mattress sliding.
Step 4: Install Slats and Support Legs
Insert the metal slats into the designated slots on the side rails. Ensure each slat is firmly seated. Attach the central support legs to the frame, ensuring they are perpendicular to the floor for maximum stability.

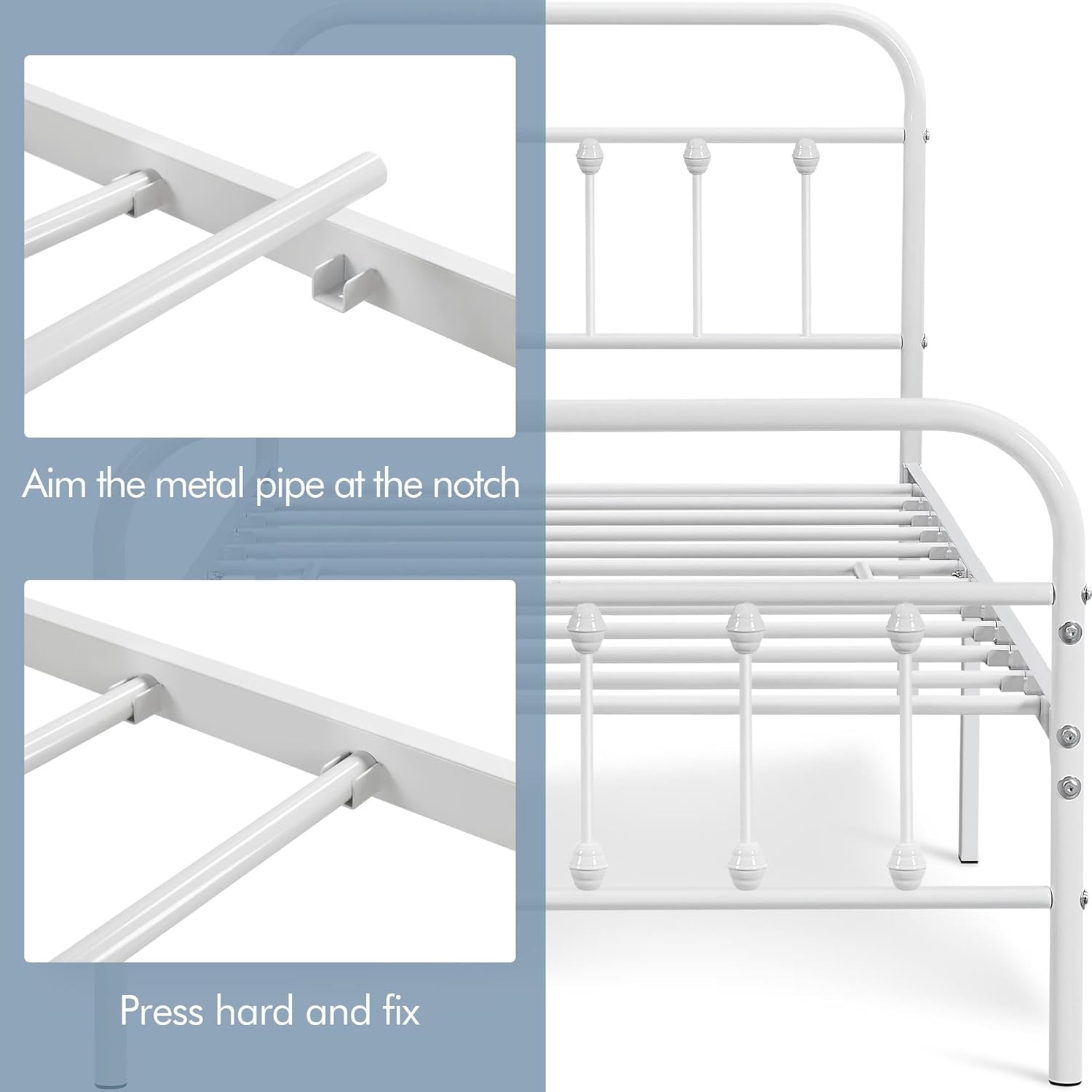

Imej: Terperinci view of slat installation, showing how to align and secure the metal pipes into notches.
Once all components are assembled, double-check all connections to ensure they are tight and secure before placing your mattress on the frame.
Image: The fully assembled Yaheetech Vintage Metal Bed Frame.
5. Operating Your Bed Frame
The Yaheetech Vintage Metal Bed Frame is designed for straightforward use and provides excellent support for your mattress.
Penempatan Tilam
Carefully place your 90 x 200 cm mattress onto the assembled slat base. The built-in slats are designed to prevent the mattress from sliding, ensuring it stays securely in place.
Simpanan Bawah Katil
This bed frame offers a generous 32.5 cm (12.8 inches) of clearance underneath, providing valuable storage space for boxes, luggage, or other items. Utilize this area to maximize your room's organization.
Image: Demonstrating the ampruang storan bawah katil.
6. Penyelenggaraan
Penjagaan yang betul akan memanjangkan hayat dan penampilan rangka katil anda.
- Pembersihan: Lap bingkai logam dengan lembut, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
- Mengetatkan: Periodically (every 3-6 months) check all bolts and screws and re-tighten them to ensure the frame remains stable and squeak-free.
- Perlindungan: The bed frame is equipped with protective pads on the feet to prevent scratching your floors. Ensure these pads remain intact.
- Pergerakan: If you need to move the bed frame, lift it rather than dragging it to prevent damage to the frame or your flooring.
Image: Detail of protective pads on the bed frame feet.
7. Penyelesaian masalah
Berikut ialah penyelesaian kepada isu biasa yang mungkin anda hadapi:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Rangka katil goyah/tidak stabil. | Bolt longgar atau lantai tidak rata. | Ensure all bolts are tightened. Check if the floor is level; use shims if necessary. |
| Bunyi-bunyi berdecit. | Sambungan longgar atau geseran antara bahagian logam. | Ketatkan semula semua bolt. Sapukan sedikit semburan silikon atau lilin pada titik sambungan jika bunyi berderit berterusan. |
| Tilam gelongsor pada bingkai. | Incorrect mattress size or insufficient friction. | Ensure your mattress is the correct size (90 x 200 cm). The built-in slats are designed to prevent sliding; check if they are properly installed. |
| Bahagian yang hilang semasa pemasangan. | Ralat pembungkusan atau hilang semasa membuka bungkusan. | Double-check all packaging materials. Contact Yaheetech customer support for replacement parts. |
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Yaheetech |
| Nombor Model | YA-00122373 |
| warna | putih |
| bahan | logam |
| Dimensi Keseluruhan (L x W x H) | 207.5 x 102.5 x 95.5 cm (81.7 x 40.4 x 37.6 inci) |
| Berat Barang | 16.4 Kilogram (36.2 lbs) |
| Pembersihan Tanah | 32.5 cm (12.8 inci) |
| Saiz Tilam Serasi | 90 x 200 cm (35.4 x 78.7 inci) |
| Ciri Khas | Light-resistant, Squeak-resistant |
| Jenis Selesai | Salutan Serbuk |
Image: Dimensional diagram of the bed frame.
9. Waranti dan Sokongan
For warranty information, please refer to the documentation included with your purchase or visit the official Yaheetech website. If you have any questions, require assistance with assembly, or need to order replacement parts, please contact Yaheetech customer support.
Yaheetech Customer Support:
- Webtapak: www.yaheetech.com (Sila semak pegawai weblaman web untuk maklumat hubungan terkini.)
- Email: Refer to your purchase invoice or the Yaheetech webtapak.
- Phone: Refer to your purchase invoice or the Yaheetech webtapak.
Sila sediakan nombor model anda (YA-00122373) dan tarikh pembelian semasa menghubungi sokongan.
