pengenalan
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Hudson Valley Lighting Edmonton 8121-AGB 5-Light Lantern. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Edmonton 5-Light Lantern features an Aged Brass finish and a clear, handblown glass shade, designed for indoor use. It requires incandescent lamp jenis.
Maklumat Keselamatan Penting
WARNING: RISK OF ELECTRIC SHOCK. Ensure power is turned off at the main circuit breaker or fuse box before installation or servicing.
Always consult a qualified electrician for installation if you are unsure about the process. Follow all local electrical codes and ordinances.
- Jangan pasang lekapan ini di tempat basah atauamp lokasi.
- Gunakan hanya jenis mentol dan wat yang ditentukantage.
- Jangan melebihi wat maksimumtage ditunjukkan pada lekapan.
- Kendalikan komponen kaca dengan berhati-hati untuk mengelakkan pecah.
- Jauhkan bahan mudah terbakar dari lekapan lampu.
Kandungan Pakej
Sahkan bahawa semua komponen ada sebelum memulakan pemasangan. Jika mana-mana bahagian hilang atau rosak, hubungi khidmat pelanggan.
- Fixture Assembly (Canopy, Rods, Frame, Socket Cluster)
- Teduh Kaca
- Mounting Hardware (Crossbar, Screws, Wire Nuts)
- Manual Arahan

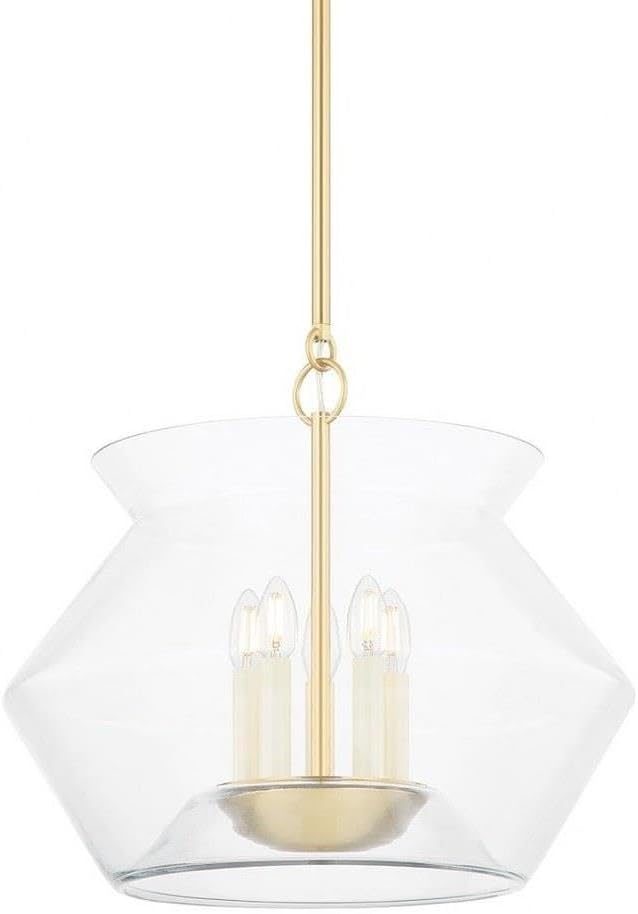

Figure 1: Complete Edmonton 5-Light Lantern assembly.
Persediaan dan Pemasangan
Pemasangan profesional disyorkan. Pastikan kuasa pada pemutus litar telah diputuskan sebelum meneruskan.
- Sediakan untuk Pemasangan: Turn off power at the main electrical panel. Clear the work area.
- Pasang Palang Palang: Attach the mounting crossbar to the junction box using the provided screws. Ensure it is securely fastened.
- Adjust Rod Length (if applicable): Determine the desired hanging height and assemble the appropriate length of extension rods.
- Dawai Lekapan: Connect the fixture's wires to the house wires according to standard electrical practices (black to black, white to white, ground to ground). Secure connections with wire nuts.
- Selamatkan Kanopi: Carefully push the wired fixture up to the ceiling, tucking wires into the junction box. Secure the canopy to the mounting crossbar with the provided screws.
- Pasang Mentol Lampu: Screw in the recommended incandescent bulbs (not included) into the sockets. Do not exceed the maximum wattage.
- Pasang Teduh Kaca: Carefully place the handblown glass shade over the fixture and secure it according to the design (specific mechanism not detailed in product description, assume a common securing method like screws or a collar).
Figure 2: Detail of the fixture's internal components and Aged Brass finish.
Operasi
Once installed and power is restored, the Edmonton 5-Light Lantern operates like any standard ceiling fixture. Use a wall switch (not included) to turn the light on and off.
- Pastikan semua mentol diskrukan dengan kukuh ke dalam soketnya.
- If using a dimmer switch, ensure it is compatible with incandescent bulbs and the total wattage daripada lekapan.
Penyelenggaraan
Regular cleaning will help maintain the appearance and performance of your fixture.
- Membersihkan Perlawanan: Turn off power before cleaning. Wipe the metal parts with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish.
- Cleaning the Glass Shade: The clear handblown glass shade can be gently wiped with a soft, damp cloth. For stubborn marks, use a mild glass cleaner applied to the cloth, not directly to the glass. Ensure the glass is completely dry before restoring power.
- Penggantian mentol: Turn off power before replacing bulbs. Allow bulbs to cool completely. Replace with the same type and wattage of incandescent bulbs.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. |
|
|
| Cahaya berkelip-kelip. |
|
|
| Senapang perlawanan. |
|
|
Spesifikasi
| Atribut | Perincian |
|---|---|
| Nombor Model | 8121-AGB |
| Jenama | Pencahayaan Lembah Hudson |
| Dimensi Produk | 20.75"L x 20.75"W x 18.5"H |
| Jenis Selesai | Tembaga Berusia |
| bahan | Keluli Aloi |
| warna | Tembaga |
| Berat Barang | 19.25 paun |
| Jenis Pemasangan | Up Lighting |
| Penggunaan Dalaman/Luar | Dalaman |
| Sumber Kuasa | Elektrik Bertali |
| Voltage | 120 Volt |
| Wattage | Max 8 watts per bulb (incandescent) |
| Lamp taip | pijar |
| Komponen yang Disertakan | Perkakasan Pemasangan |
| UPC | 806134144029 |
Waranti dan Sokongan
This Hudson Valley Lighting product is covered by a Waranti pengeluar terhad 1 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.
For warranty claims, technical support, or replacement parts, please contact Hudson Valley Lighting customer service. Refer to the official Hudson Valley Lighting webtapak untuk maklumat hubungan semasa.
Webtapak: www.hudsonvalleylighting.com
