pengenalan
Si Hitamview MP20 Mini PC is a compact and powerful desktop computer designed for both home and office use. Featuring an Intel Twin Lake N150 processor, 8GB DDR4 RAM, and a 256GB SSD, it delivers smooth performance for multitasking, 4K streaming, and various applications. Its ultra-portable design, versatile connectivity options including WiFi 6 and Bluetooth 5.2, and support for dual 4K displays make it an ideal solution for a clean, efficient workspace or entertainment hub.
Imej: Si Hitamview MP20 Mini PC, showcasing its compact form factor and modern aesthetic.
Apa yang ada dalam Kotak
Please check the package contents carefully upon unboxing:
- Hitamview MP20 Mini PC (1 unit)
- Penyesuai Kuasa (1 unit)
- Kabel HDMI (1 unit)
- VESA Bracket with Screws (1 set)
- Panduan Pengguna (1 unit)
Panduan Persediaan
Sambungan Awal
- Sambung ke Paparan: Use the provided HDMI cable to connect the Mini PC to your monitor or TV. The MP20 supports dual 4K displays via HDMI 2.0 and DisplayPort.
- Sambung Peranti: Plug in your keyboard and mouse to the available USB 3.0 or USB 2.0 ports.
- Sambungkan Kuasa: Connect the power adapter to the DC Jack on the Mini PC and then plug it into a power outlet.
- Hidupkan kuasa: Tekan butang kuasa yang terletak di hadapan Mini PC.
Imej: Terperinci view daripada Hitamview MP20 Mini PC's versatile I/O ports for easy connectivity.
Persediaan Sistem Pengendalian
Si Hitamview MP20 comes pre-installed with Windows 11 Pro. Follow the on-screen instructions to complete the initial Windows setup, including language, region, network connection (WiFi 6 or Ethernet), and user account creation.
VESA Mounting (Optional)
To save desk space, you can mount the Mini PC behind a compatible monitor or TV using the included VESA bracket. Attach the bracket to the Mini PC, then secure it to the VESA mounting holes on your display.
Imej: Si Hitamview MP20 Mini PC shown mounted on the rear of a monitor, illustrating its VESA mounting capability for a clutter-free workspace.
Arahan Operasi
Pengurusan Kuasa
- Hidupkan kuasa: Tekan butang kuasa sekali.
- Mod tidur: Briefly press the power button while the PC is on, or select "Sleep" from the Windows Start menu.
- Tutup: Go to the Windows Start menu, select "Power," and then "Shut down."
- Mulakan semula: Go to the Windows Start menu, select "Power," and then "Restart."
Ketersambungan
The MP20 offers robust connectivity for various needs:
- Wi-Fi 6: For high-speed wireless internet access. Ensure your router supports Wi-Fi 6 for optimal performance.
- Bluetooth 5.2: Connect wireless peripherals such as keyboards, mice, headphones, and speakers.
- Gigabit Ethernet (RJ45): For stable wired network connections.
- Port USB: Utilize the USB 3.2 and USB 2.0 ports for external drives, flash drives, and other USB devices.
- USB-C Berciri Penuh: Supports data transfer, video output, and power delivery (check specific device compatibility).
Image: Demonstrating the seamless connectivity of the Blackview MP20 Mini PC with Wi-Fi 6 and Bluetooth 5.2 for various applications.
Peluasan Storan
The MP20 Mini PC allows for easy storage expansion. You can add up to a 2TB 2.5-inch SSD/HDD. The base can be removed without tools for convenient access to the expansion slot.
Imej: Dalaman view daripada Hitamview MP20, illustrating the RAM and SSD, and the potential for 2TB storage expansion.
Penyelenggaraan
- Jaga kebersihan: Regularly clean the exterior of the Mini PC with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions.
- Kemas Kini Perisian: Pastikan sistem pengendalian dan pemacu Windows anda dikemas kini untuk memastikan prestasi dan keselamatan yang optimum.
- Pengudaraan yang Betul: Place the Mini PC in a well-ventilated area to prevent overheating. Avoid blocking the air vents.
- Penutupan Selamat: Sentiasa matikan Mini PC dengan betul melalui sistem pengendalian untuk mengelakkan kerosakan data.
Imej: Meletup view daripada Hitamview MP20's cooling system, highlighting the copper tube and efficient fan for heat dissipation.
Menyelesaikan masalah
Jika anda menghadapi masalah dengan Hitam andaview MP20 Mini PC, refer to the following common troubleshooting steps:
- Tiada Kuasa:
- Pastikan penyesuai kuasa disambungkan dengan selamat ke PC Mini dan salur keluar kuasa yang berfungsi.
- Cuba salur keluar kuasa yang berbeza.
- Tiada Paparan:
- Verify that the HDMI or DisplayPort cable is firmly connected to both the Mini PC and the monitor.
- Check if the monitor is set to the correct input source (HDMI/DP).
- Cuba kabel paparan atau monitor lain jika tersedia.
- Tiada Sambungan Internet (Wi-Fi):
- Pastikan Wi-Fi didayakan dalam tetapan Windows.
- Mulakan semula penghala dan Mini PC anda.
- Semak sama ada kata laluan Wi-Fi dimasukkan dengan betul.
- Prestasi Perlahan:
- Tutup aplikasi yang tidak perlu berjalan di latar belakang.
- Semak dan pasang sebarang kemas kini Windows yang belum selesai.
- Pastikan terdapat ruang kosong yang mencukupi pada SSD.
- Periferi Tidak Dikesan:
- Cuba sambungkan persisian ke port USB yang berbeza.
- Pastikan pemacu peranti periferal dipasang dan dikemas kini.
- Mulakan semula PC Mini.
For further assistance, please contact Blackview sokongan pelanggan.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | MP20 N150 |
| Pemproses | Intel Twin Lake N150 (4 Cores, up to 3.6 GHz Turbo) |
| Grafik | Intel UHD Graphics (Supports dual 4K displays) |
| RAM | 8GB DDR4 2666MHz (Expandable up to 16GB) |
| Penyimpanan | 256GB SSD (Expandable up to 2TB 2.5-inch SSD/HDD) |
| Sistem Operasi | Windows 11 Pro |
| Kesambungan Wayarles | Wi-Fi 6 (802.11ax), Bluetooth 5.2 |
| Kesambungan Berwayar | Gigabit Ethernet (RJ45) |
| Pelabuhan | 2x USB 3.2, 2x USB 2.0, 1x HDMI 2.0, 1x DisplayPort, 1x Audio In/Out Jack, 1x DC Jack, 1x Security Lock |
| Dimensi | 3.94 x 3.94 x 1.39 inci (10 x 10 x 3.5 cm) |
| Berat badan | 9.3 auns (265g) |
| Sistem Penyejukan | Twofold Heat Dissipation System (Copper Tube, Silent Fan) |

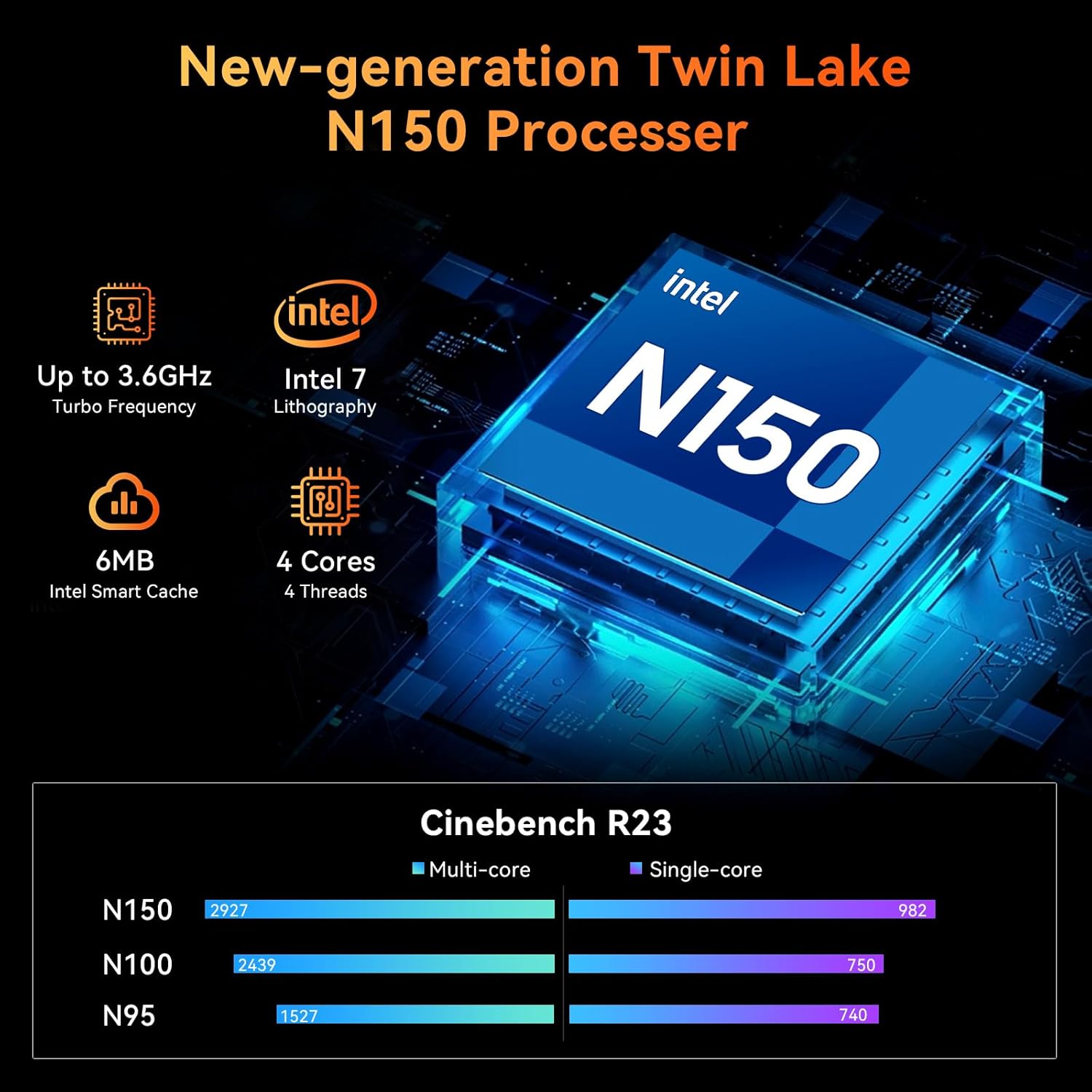

Image: Visual representation of the Intel Twin Lake N150 processor and its performance metrics.
Video Produk Rasmi
Video: Tayangan video produk rasmicasing the Blackview MP20 Mini PC, its compact design, powerful Intel Twin Lake N150 processor, versatile ports, dual 4K display support, and efficient cooling system. It highlights the device's suitability for home and office environments.
Waranti dan Sokongan
Si Hitamview MP20 Mini PC comes with a comprehensive two-year warranty covering parts and labor for manufacturing defects. This ensures quick replacement or repair if any issues arise within the warranty period.
Beyond the warranty period, Blackview provides lifelong technical support. Our expert team is available to assist you with software updates, troubleshooting, and optimization suggestions via email, live chat, or phone. We are committed to ensuring your device operates without any malfunctions for many years to come.
Image: Blackview Care information, detailing warranty and support commitments.
