1. Pengenalan
The VILTROX DC-550 Pro is a high-brightness 5.5-inch 4K external field monitor designed for professional camera setups. It features a Full HD 1920x1080 IPS display with 1200 Nits brightness, 3D LUT support, and HDMI 1.4 input/output, making it an ideal tool for precise monitoring during video production.
1.1 Kandungan Pakej
Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda. Jika ada barang yang hilang atau rosak, sila hubungi peruncit anda.

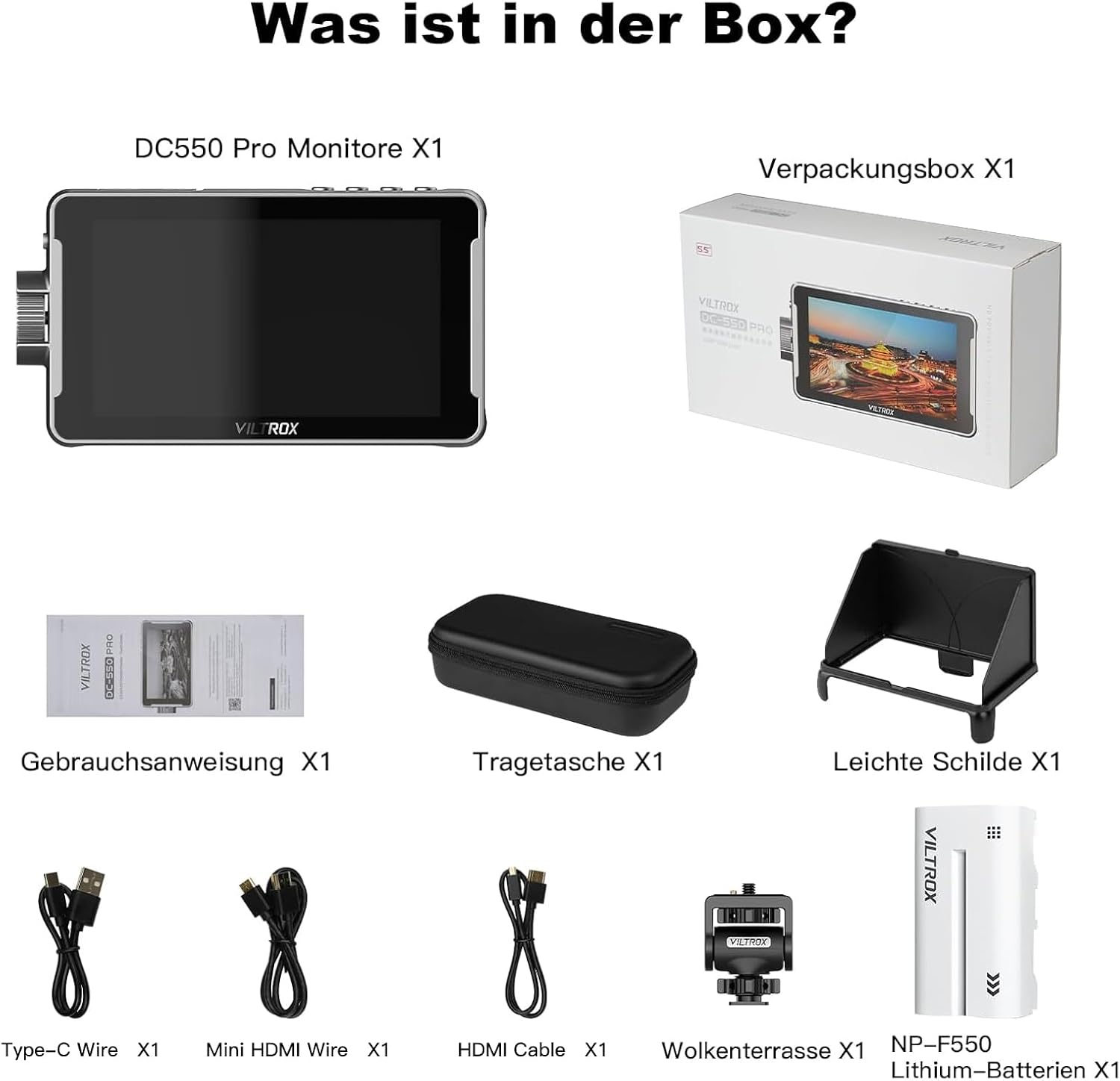

Image: Contents of the VILTROX DC-550 Pro package, including the monitor, carrying case, sun hood, user manual, Type-C cable, Mini HDMI cable, HDMI cable, hot shoe mount, and NP-F550 battery.
- DC-550 Pro Monitor x1
- Sarung Pembawa x1
- Sun Hood x1
- Manual Pengguna x1
- Kabel Jenis-C x1
- Mini HDMI Cable x1
- Kabel HDMI x1
- Hot Shoe Mount x1
- NP-F550 Lithium-ion Battery x1
2. Ciri-ciri Utama
- High Brightness & Full HD Display: 5.5-inch IPS screen with 1920x1080 resolution and 1200 Nits brightness for clear viewdalam pelbagai keadaan pencahayaan.
- Professional Monitoring Tools: Features include 3D LUT, Parade Waveform, Vector Graph, Brightness Histogram, Focus Assist, Audio Column, Image Flip, False Color, and more.
- 4K HDMI Input/Loop Out: Supports 4K 30Hz signal input and output for lossless HD transmission.
- Accurate Color Reproduction: Conforms to the international REC.709 color standard for precise color rendering.
- Detachable Sun Hood: Quick-release design to effectively block light interference.
- Antara muka skrin sentuh: Intuitive full-screen touch control for easy navigation and settings adjustment.
2.1 Kualiti Paparan
Image: Comparison showing the clarity of 1920x1080 resolution and the wide 178-degree viewing angle of the VILTROX DC-550 Pro monitor.
The monitor's 1920x1080 Full HD resolution ensures that every detail is accurately restored, providing high-definition monitoring. The IPS panel offers a wide 178-degree viewing angle, maintaining consistent image quality from various perspectives.
2.2 Professional Monitoring Software
Image: Screenshot of the VILTROX DC-550 Pro display showing various monitoring tools such as 3D LUT, waveform, histogram, and focus assist.
The DC-550 Pro series is equipped with a comprehensive suite of monitoring functions. These tools assist photographers and videographers in achieving precise exposure, focus, and color accuracy during shooting.
2.3 Color Accuracy

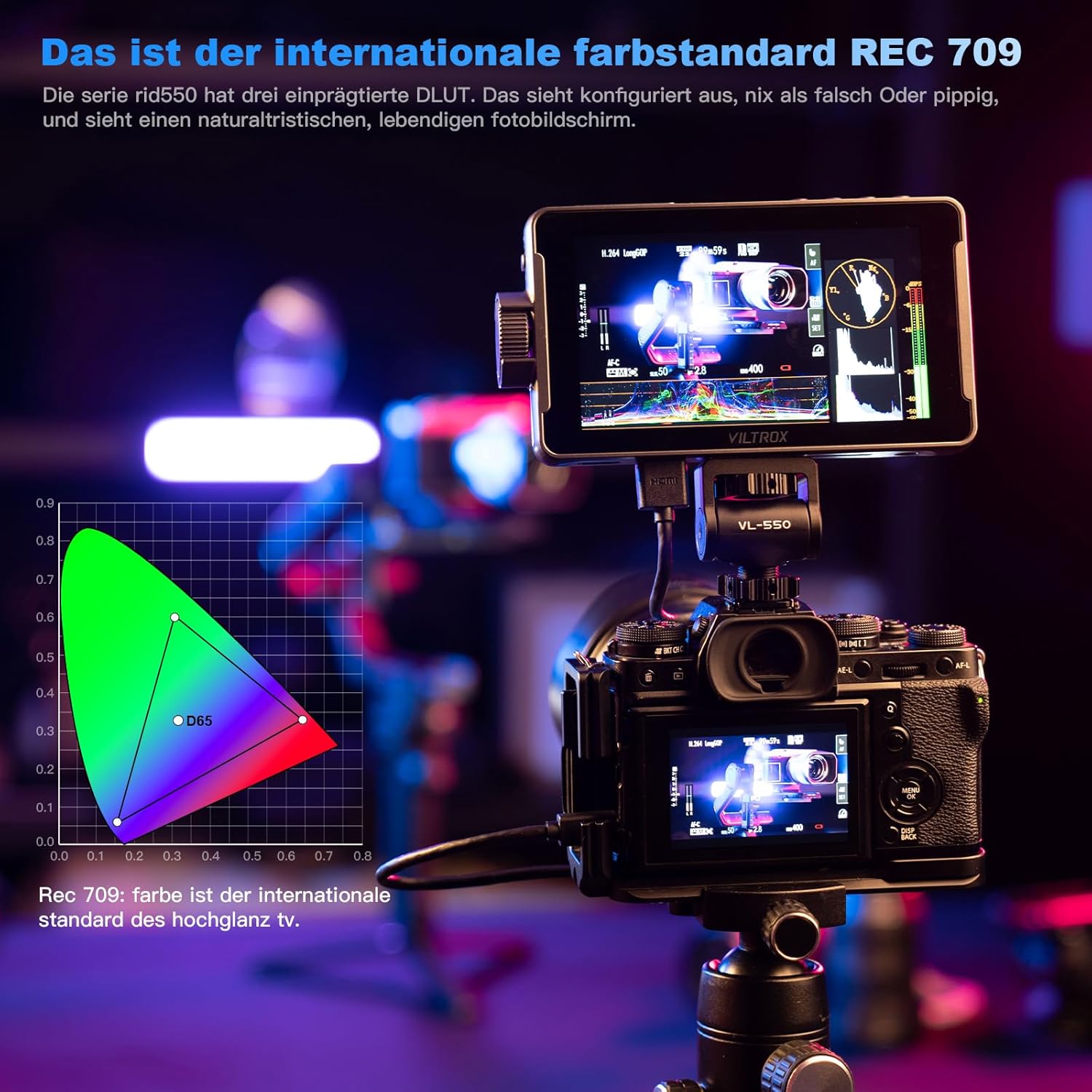

Image: Diagram illustrating the REC.709 color standard, which the VILTROX DC-550 Pro adheres to for accurate color reproduction.
Adhering to the international REC.709 color standard, the DC-550 Pro ensures accurate color reproduction without distortion or color cast, providing a natural and realistic visual experience.
3. Persediaan dan Sambungan
3.1 Fizikal Overview dan Pelabuhan
Image: Detailed diagram showing the dimensions and port layout of the VILTROX DC-550 Pro monitor, including power input, HDMI ports, SD card slot, and control buttons.
The DC-550 Pro features a compact design with essential ports and controls for easy integration into your camera rig. Refer to the diagram above for port identification:
- Menyejukkan Pengambilan Udara
- Butang Pelepas Bateri
- Next Button (F1/F2)
- Shortcut/Back Button (F4)
- Slot Kad SD
- Pelabuhan Jenis-C
- Menyejukkan Pengambilan Udara
- Butang Pelepas Bateri
- Street Interface (likely a typo, refers to a general interface/port)
- Suis Hidup/Mati
- Knob (for navigation/selection)
3.2 Menguasakan Monitor
The monitor can be powered by the included NP-F550 battery or via a DC 12V-18V power adapter (not included) connected to the DC IN port. Ensure the battery is fully charged before use.
3.3 Connecting to a Camera
Use the provided HDMI or Mini HDMI cable to connect your camera's HDMI output to the monitor's HDMI input. The monitor supports 4K 30Hz signal input.
- Mount the monitor onto your camera rig using the hot shoe mount.
- Insert a charged NP-F series battery into the battery slot, or connect an external DC power source.
- Connect an HDMI cable from your camera's HDMI output to the HDMI input port on the DC-550 Pro.
- Turn on the monitor using the On/Off switch.
4. Operasi
4.1 Basic Navigation and Touchscreen Control
Image: A hand interacting with the touchscreen of the VILTROX DC-550 Pro, demonstrating its intuitive touch interface for quick adjustments.
The DC-550 Pro features a responsive touchscreen for intuitive control. Tap on screen elements to select options, swipe to navigate menus, and pinch-to-zoom for image inspection.
4.2 Using Monitoring Functions
Access various monitoring tools through the on-screen menu. These functions are designed to assist with exposure, focus, and composition.
- LUT 3D: Apply custom Look Up Tables for real-time color grading preview.
- Waveform/Vector Scope/Histogram: Analyze video signals for exposure and color balance.
- Focus Assist (Peaking): Highlights in-focus areas for precise manual focusing.
- Warna Palsu: Memaparkan tahap pendedahan menggunakan lapisan warna.
- Flip Imej: Adjusts the image orientation for different mounting positions.
4.3 Importing 3D LUTs
Image: The VILTROX DC-550 Pro monitor displaying the interface for importing 3D LUT files from an SD card, with a comparison of original and LUT-applied images.
The DC-550 Pro allows users to import custom 3D LUTs via an SD card. This enables photographers to achieve various creative effects during post-editing and to monitor footage with any camera's Log mode.
- Save your .cube LUT files ke kad SD.
- Insert the SD card into the monitor's SD card slot.
- Navigate to the LUT management menu on the monitor.
- Select the desired LUT files untuk mengimport.
- Once imported, you can apply these LUTs to your live feed.
5. Penyelenggaraan dan Penjagaan
- Pembersihan: Use a soft, dry cloth to clean the monitor's body. For the screen, use a microfiber cloth specifically designed for electronics displays. Do not use liquid cleaners or abrasive materials.
- Storan: When not in use, store the monitor in its carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
- Penjagaan Bateri: Remove the battery if the monitor will not be used for an extended period. Store batteries in a cool, dry place.
- Sun Hood: The detachable sun hood can be easily removed for cleaning or storage.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Monitor tidak dihidupkan. | Battery is low or not inserted correctly; power cable is loose or faulty. | Ensure battery is charged and correctly inserted. Check power cable connection. Try external power source if available. |
| Tiada imej dipaparkan. | HDMI cable is loose or faulty; camera output settings are incorrect; monitor input is not selected. | Check HDMI cable connection. Verify camera's HDMI output settings. Ensure correct input source is selected on the monitor. |
| Imej herot atau berkelip-kelip. | HDMI cable issue; signal incompatibility; monitor settings. | Try a different HDMI cable. Check camera's output resolution and frame rate. Reset monitor settings to default. |
| Skrin sentuh tidak bertindak balas. | Gangguan perisian sementara; gangguan pelindung skrin. | Restart the monitor. Ensure the screen is clean and free of debris. If a screen protector is installed, ensure it is properly applied. |
6.1 Kemas Kini Perisian Tegar
Notis Penting:
Due to frequent firmware updates for the DC-550 Pro series monitor, please contact VILTROX customer service to obtain the latest firmware update file. Do not download and install firmware from unofficial webtapak.
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | VT-FR1001 (DC-550 Pro) |
| Saiz Paparan | 5.5 inci |
| Jenis Paparan | IPS |
| Resolusi | 1920 x 1080 (HD Penuh) |
| Kecerahan | 1200 Nit |
| Nisbah Kontras | 3000:1 |
| Nisbah Aspek | 16:9 |
| Ketersambungan | HDMI 1.4 (Input/Loop Out) |
| Resolusi Sokongan Maksimum | 3840x2160 (4K) @ 30Hz, 4096x2160 @ 24/25/30Hz |
| Ciri Khas | Touchscreen, 3D LUT, Waveform, Vector Scope, Histogram, Focus Assist, False Color |
| Sumber Kuasa | NP-F series battery (NP-F550 included) or DC 12V-18V |
| Dimensi (L x W x H) | 165mm x 91mm x 28.5mm |
| Berat badan | 970 gram |
| Negara Asal | China |
8. Waranti dan Sokongan
8.1 Maklumat Waranti
VILTROX products distributed by PhoZoom E come with a one-year warranty. Please retain your proof of purchase for warranty claims.
8.2 Sokongan Pelanggan
For any questions, technical assistance, or issues, please contact the PhoZoom E support team. Emails are typically responded to within 2 hours.
Maklumat Hubungan: Please refer to your purchase documentation or the official VILTROX/PhoZoom E webtapak untuk butiran hubungan terkini.
Image: VILTROX brand logo.
PhoZoom E is an official EU distributor for VILTROX products, ensuring genuine products and dedicated support.
