GOLREX T59 Bluetooth Headphones User Manual

pengenalan

Thank you for choosing GOLREX T59 Bluetooth Headphones. These wireless earbuds are designed for sport, running, and workouts, featuring over-ear earhooks for a secure fit and a wireless charging case for convenience. This manual provides detailed instructions on how to set up, operate, and maintain your headphones to ensure optimal performance.

Image: GOLREX T59 Bluetooth Headphones in their open wireless charging case, showcasing the purple earbuds with earhooks and the digital battery displays inside the case.

Kandungan Pakej

Sebelum anda memulakan, sila pastikan semua item terdapat dalam pakej:

• Fon Telinga Tanpa Wayar (Kiri dan Kanan)
• Sarung Pengecas Tanpa Wayar
• Kabel Pengecasan USB Jenis-C
• S/M/L Eartips (one set pre-installed, two additional sets)
• Manual Pengguna (dokumen ini)

Persediaan

1. Mengecas Fon Kepala dan Sarung

It is recommended to fully charge the headphones and charging case before first use.

• Menggunakan Kabel USB-C: Connect the provided Type-C cable to the charging port on the case and the other end to a USB power adapter (not included). The LED display on the case will show the charging progress.
• Pengecasan Tanpa Wayar: Place the charging case on a compatible wireless charging pad (not included). Ensure the case is centered on the pad for efficient charging.

Image: The GOLREX T59 charging case being charged via a USB-C cable and also shown on a wireless charging pad, illustrating both charging methods.

The charging case features a dual LED battery display. One display shows the battery percentage of the charging case, and the other shows the individual power status of the left and right earbuds.

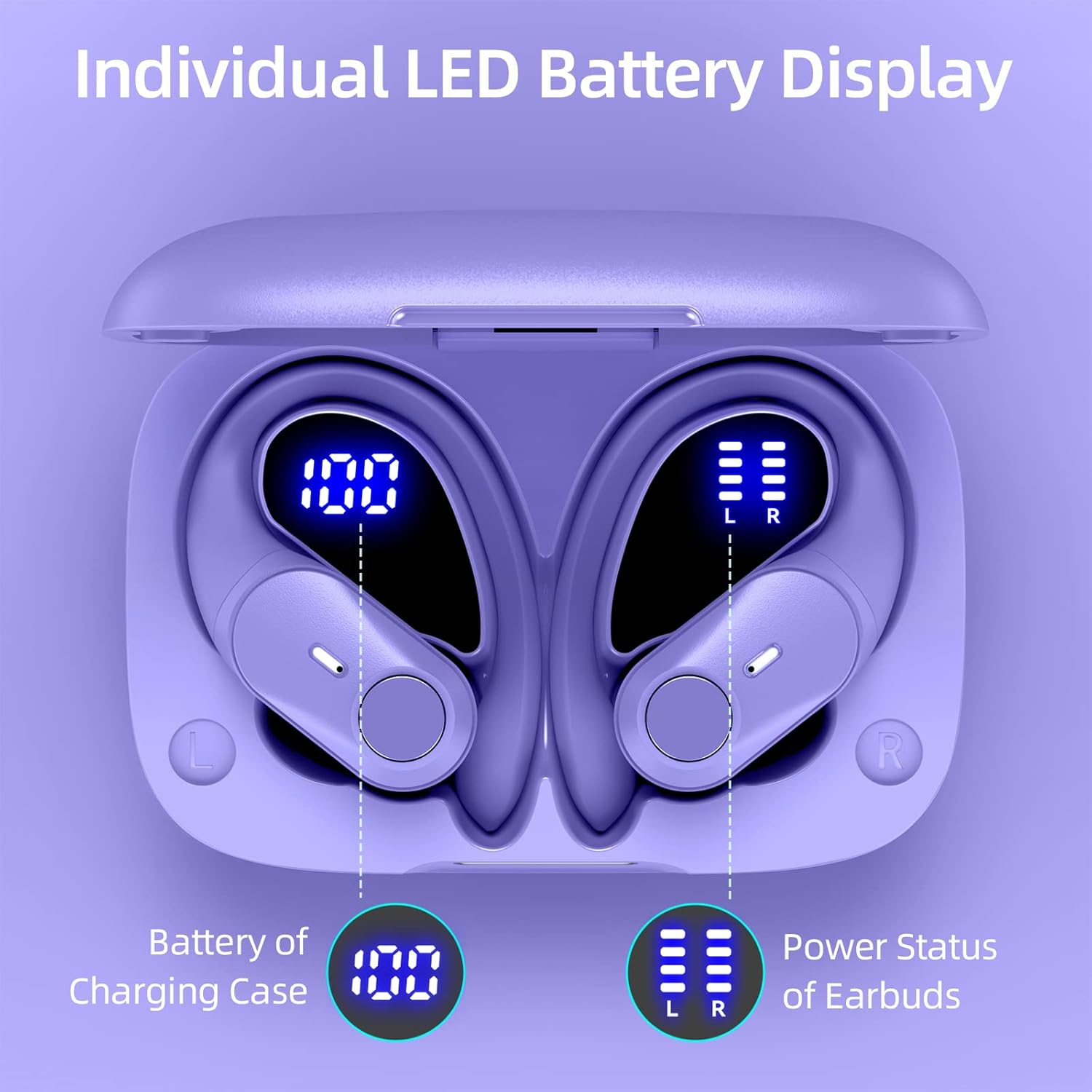

Image: A close-up of the GOLREX T59 charging case's LED display, clearly showing the battery percentage for the case and the individual battery levels for the left and right earbuds.

2. Berpasangan dengan Peranti Anda

The GOLREX T59 headphones feature an "Open-to-Connect" function for quick pairing.

• Gandingan Awal:
  1. Buka bekas pengecas. Fon telinga akan dihidupkan secara automatik dan memasuki mod berpasangan.
  2. Pada peranti anda (telefon pintar, tablet, dll.), dayakan Bluetooth.
  3. Cari untuk "T59" dalam senarai peranti Bluetooth yang tersedia dan pilihnya untuk disambungkan.
  4. Sebaik sahaja disambungkan, anda akan mendengar nada pengesahan dan lampu penunjuk fon telinga akan bertukar.
• Penyambungan Semula Automatik: Selepas pemasangan awal, fon telinga akan bersambung secara automatik ke peranti yang terakhir dipasangkan apabila anda membuka bekas pengecas, dengan syarat Bluetooth didayakan pada peranti anda.

Arahan Operasi

1. Memakai Earbud

The GOLREX T59 headphones are designed with flexible earhooks for a secure and comfortable fit, especially during sports and workouts. Choose the appropriate eartip size (S, M, L) for optimal comfort and sound quality.

Image: A person wearing the GOLREX T59 earbuds with their over-ear earhooks, demonstrating the secure fit. Below the image, the three different sizes of eartips (S, M, L) are displayed.

2. Kawalan Sentuh

The earbuds feature intuitive button controls for various functions:

3. Audio Quality and Calls

The GOLREX T59 headphones deliver high-fidelity audio with 11mm drivers and volume-optimized Active EQ, ensuring clear and balanced sound at any volume. The integrated microphones work together to reduce ambient noise, providing crystal-clear call quality.

Image: An exploded diagram illustrating the internal components of the GOLREX T59 earbud, highlighting the 11mm driver for high-fidelity audio and the microphone system for crystal-clear calls with noise rejection.

Hayat Bateri

The earbuds provide approximately 6 hours of listening time on a single charge. With the fully charged wireless charging case, you can recharge the earbuds up to 5 times, extending the total listening time to approximately 36 hours.

Image: An illustration detailing the battery life of the GOLREX T59 headphones, showing 6 hours of listening time per charge and 36 hours total with the charging case, which has a 650mAh capacity.

Penyelenggaraan

1. Pembersihan

• Regularly clean the earbuds, eartips, and charging contacts with a soft, dry, lint-free cloth.
• Untuk kotoran degil, sedikit dampen kain dengan air. Elakkan menggunakan bahan kimia yang keras atau bahan yang melelas.
• Ensure the earbuds and charging case are completely dry before placing them back in the case or charging.

2. Penyimpanan

• Apabila tidak digunakan, simpan fon telinga dalam bekas pengecasnya untuk melindunginya dan memastikan ia dicas.
• Simpan peranti di tempat yang sejuk dan kering, jauh dari suhu yang melampau dan cahaya matahari langsung.

3. Tahan Air

The GOLREX T59 headphones are water-resistant, making them suitable for workouts and light rain. However, they are not waterproof and should not be submerged in water. Avoid exposing them to saltwater, chlorinated water, or other liquids.

Menyelesaikan masalah

If you encounter any issues with your GOLREX T59 headphones, please refer to the following common solutions:

• Tiada Isu Bunyi/Sambungan:
  • Pastikan fon telinga dicas.
  • Pastikan Bluetooth didayakan pada peranti anda.
  • Place the earbuds back in the charging case, close the lid, wait a few seconds, then open it again to re-establish connection.
  • Forget "T59" from your device's Bluetooth list and re-pair.
  • Try connecting to a different device to rule out device-specific issues.
• Hanya Satu Earbud Berfungsi:
  • Pastikan kedua-dua fon telinga dicas.
  • Place both earbuds back in the charging case, close the lid, and then open it again. This often resets the connection between the two earbuds.
  • Bersihkan sesentuh pengecasan pada kedua-dua fon telinga dan di dalam sarung.
• Isu Pengecasan:
  • Periksa sama ada kabel pengecasan disambungkan dengan selamat ke kedua-dua bekas dan sumber kuasa.
  • Cuba kabel USB-C atau penyesuai kuasa yang lain.
  • If using wireless charging, ensure the case is properly aligned on the charging pad.
  • Bersihkan sesentuh pengecasan pada fon telinga dan dalam sarung.
• Kualiti Bunyi Lemah:
  • Pastikan hujung telinga ditutup rapat di saluran telinga anda. Cuba saiz hujung telinga yang berbeza.
  • Bersihkan sebarang serpihan daripada muncung fon telinga.
  • Ensure your device's volume is not too low or too high, causing distortion.
  • Bergerak lebih dekat dengan peranti anda yang disambungkan untuk mengelakkan gangguan.

Spesifikasi

Maklumat Keselamatan

• Jangan buka atau ubah suai produk.
• Jauhkan daripada suhu ekstrem, cahaya matahari langsung dan nyalaan api terbuka.
• Avoid exposing the product to strong magnetic fields.
• Do not use the product at excessively high volumes for prolonged periods to prevent hearing damage.
• Buang bateri dan komponen elektronik secara bertanggungjawab mengikut peraturan tempatan.
