pengenalan
Terima kasih kerana membeliasing the Sparkleiot 4WD RC Technical Car Chassis Kit. This kit provides a comprehensive set of components for building your own remote-controlled 4-wheel drive technical car. This manual will guide you through the assembly, operation, and maintenance of your new RC model. Please read all instructions carefully before beginning assembly or operation.
Produk Selesaiview dan Komponen
Your Sparkleiot 4WD RC Technical Car Chassis Kit includes the following components:
- Chassis Brick Set: A loose set of building blocks and parts for constructing the car chassis. Self-assembly is required.
- Kawalan Jauh IR: Used to control the vehicle's movement. Designed to be used with the IR Receiver.
- Penerima IR: Receives signals from the IR Remote Control to operate the motors.
- M Motor (1 piece): Provides power for the vehicle's drive system.
- Servo Motor (1 piece): Controls the steering mechanism. Penting: Do not connect this directly to the battery box.
- AAA Battery Box (1 piece): Powers the motors and receiver. Requires 6 AAA batteries (not included).
- 62.4x20mm Wheels (4 pieces): Off-road style wheels for traction.
Image: All individual components included in the kit, such as the remote control, battery box, motors, wheels, and various chassis parts.
Arahan Perhimpunan
This kit requires self-assembly. A basic paper instruction guide may be included. For detailed, step-by-step assembly instructions, please contact Sparkleiot customer support to request the official PDF document.
Perkara Perhimpunan Utama:
- Pembinaan Casis: Carefully follow the provided instructions to assemble the chassis using the various building blocks and connectors.
- Pemasangan Motor: Securely attach the M Motor and Servo Motor to their designated positions on the chassis.
- Lampiran Roda: Mount the four 62.4x20mm wheels onto the axles.
- Kotak bateri: Install 6 AAA batteries into the battery box, ensuring correct polarity.
- Sambungan Pendawaian: Connect the M Motor, Servo Motor, and IR Receiver to the battery box according to the instructions.
Imej: Dari dekat view of the partially assembled chassis, showing the intricate arrangement of gears, axles, and structural beams.
Critical Servo Motor Connection Warning:
DO NOT connect the Servo Motor directly to the AAA Battery Box. The Servo Motor must be connected through the IR Receiver. Direct connection to the battery box will cause the servo motor to burn out and become permanently damaged.
Image: A visual guide illustrating the correct method of connecting the servo motor via the receiver, and the incorrect method of direct connection to the battery box.
Arahan Operasi
Once assembly is complete and all components are correctly connected, you can begin operating your RC Technical Car.
- Hidupkan kuasa: Ensure the AAA Battery Box has fresh batteries and is switched ON.
- Berpasangan Alat Kawalan Jauh: The IR Remote Control and IR Receiver are designed to work together. Ensure both are powered on. If the car does not respond, check the connection between the receiver and the motors.
- Memandu: Use the joysticks or buttons on the IR Remote Control to control the car's forward, backward, left, and right movements. Refer to the remote control's markings for specific functions.
Image: The fully assembled 4WD RC car chassis alongside its remote control, ready for operation.
Penyelenggaraan
Regular maintenance will ensure the longevity and optimal performance of your RC Technical Car.
- Pembersihan: Use a soft, dry cloth to clean the chassis and components. Avoid water or harsh chemicals.
- Penjagaan Bateri: Remove batteries from the battery box and remote control when not in use for extended periods to prevent leakage.
- Semakan Komponen: Periodically inspect all connections, gears, and axles for wear or damage. Replace any damaged parts as needed.
- Storan: Simpan kit di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
|
Kereta tidak bertindak balas terhadap alat kawalan jauh. |
|
|
|
Servo motor is not working or appears damaged. |
|
|
|
Kereta bergerak perlahan atau tidak konsisten. |
|
|
Spesifikasi
- Nombor Model: SK0423B
- Bahan Utama: plastik
- Umur Disyorkan: 14 tahun dan ke atas
- Saiz Produk: 24.89 x 16 x 6.1 cm (lebih kurang 9.8 x 6.3 x 2.4 inci)
- Berat produk: 498.95 g (lebih kurang 1.1 lbs)
- Bateri Diperlukan: 6 x AAA batteries for the battery box (not included)
- Keserasian: Blok bangunan standard

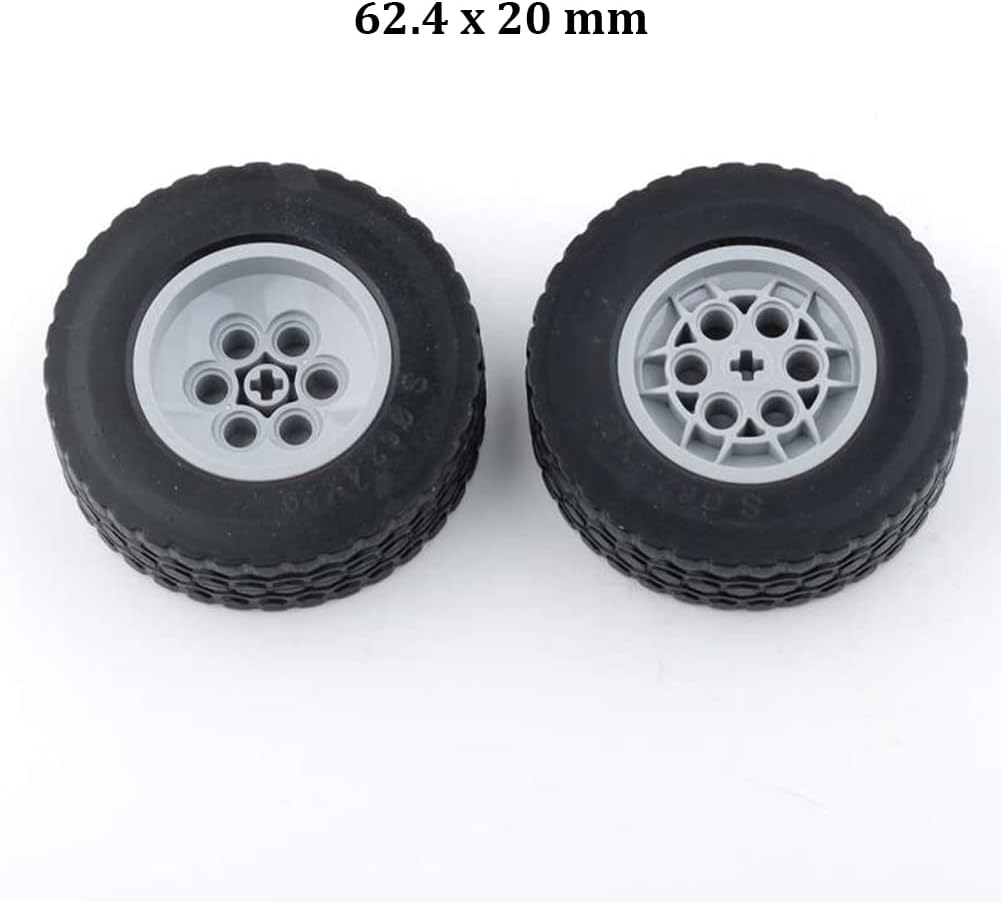

Image: Two off-road wheels with dimensions 62.4 x 20 mm, highlighting their tread pattern and hub design.
Maklumat Keselamatan
- Cadangan Umur: This product is recommended for users 14 years and older. It contains small parts that may be a choking hazard for younger children.
- Sambungan Elektrik: Always ensure correct wiring as per instructions. Never connect the servo motor directly to the battery box.
- Keselamatan Bateri:
- Use only the specified type and number of batteries (6 x AAA).
- Jangan campurkan bateri lama dan baharu, atau jenis bateri yang berlainan.
- Masukkan bateri dengan polariti yang betul (+ dan -).
- Keluarkan bateri yang habis dengan segera.
- Jangan litar pintas terminal bateri.
- Jangan buang bateri ke dalam api.
- Penyeliaan: Adult supervision is recommended during assembly and operation, especially for younger users within the recommended age range.
Waranti dan Sokongan
Specific warranty details are not provided with this kit. For any questions regarding assembly, operation, troubleshooting, or to request the detailed PDF instruction document, please contact Sparkleiot customer support. Please refer to your purchase documentation for contact information or visit the official Sparkleiot webtapak.
