pengenalan
The Flybotic Bi-Wing Evo is a remote-controlled airplane designed for easy operation and stable flight. Constructed from lightweight and durable materials, it features a double-wing design and twin motors for precise speed control and excellent stability. This manual provides essential information for setting up, operating, and maintaining your Bi-Wing Evo RC Plane.
Maklumat Keselamatan
AMARAN: Choking Hazard - Small Parts. Not suitable for children under 3 years. Always supervise children during operation. Fly in open, clear areas away from people, animals, and obstacles. Do not fly near power lines, roads, or water. Read all instructions before use.
Apa yang ada dalam Kotak
- Flybotic Bi-Wing Evo RC Plane
- Alat Kawalan Jauh (Pemancar)
- Rechargeable Li-PO Battery (for plane)
- Pengecas
- Manual Produk
Persediaan
Pemasangan Bateri
The Bi-Wing Evo RC Plane comes with a rechargeable Li-PO battery. The transmitter requires 4 "AA" batteries (not included).
For the Plane: Ensure the plane's battery is fully charged before first use. Connect the included charger to the plane's battery and a suitable power source. The charging indicator will show when charging is complete. Refer to the charger's specific instructions for details.

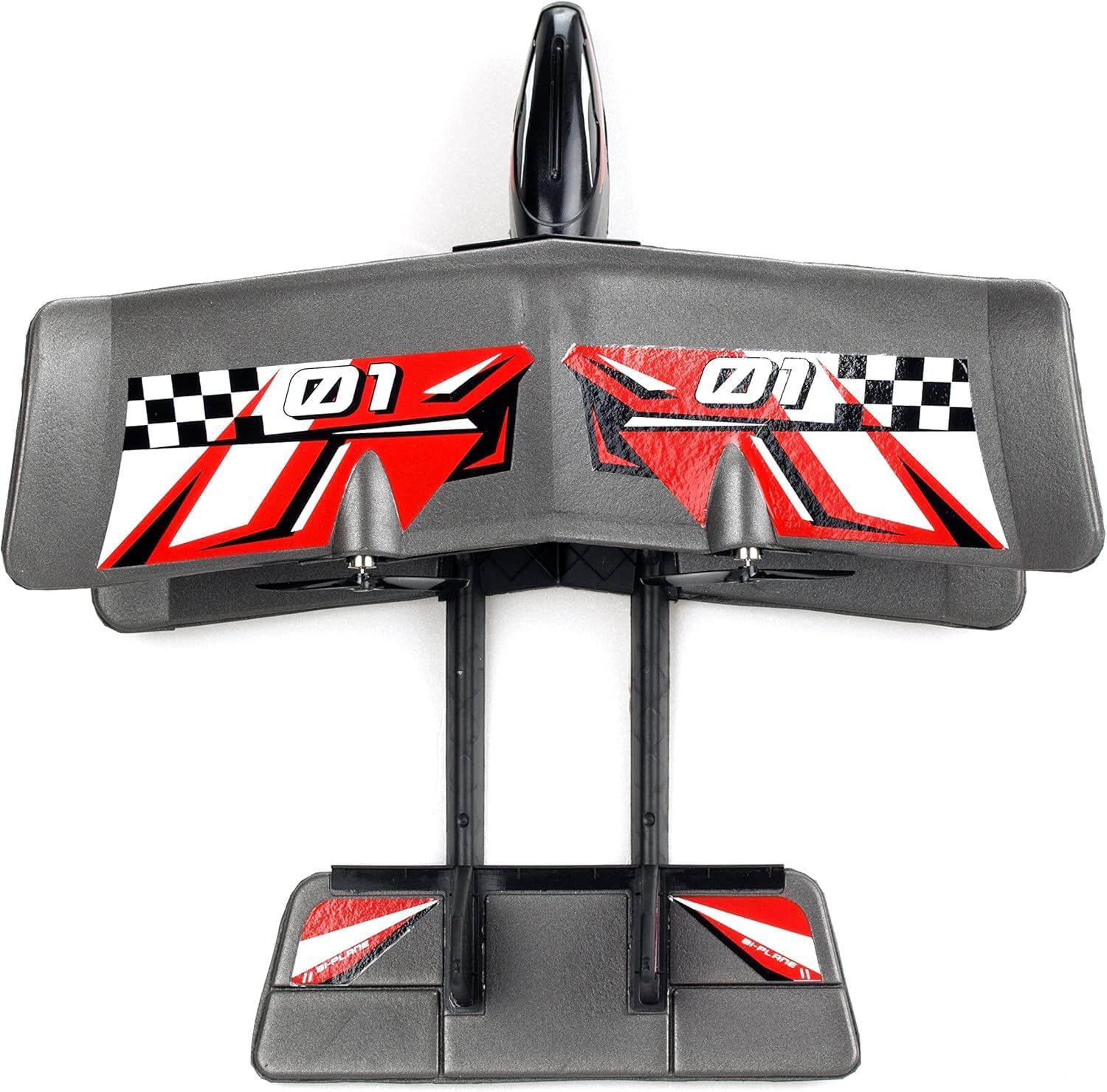

Image: The Flybotic Bi-Wing Evo RC Plane, showcasing its bi-wing design and twin motors. This is the main unit that will be charged.
Untuk Pemancar: Open the battery compartment on the back of the remote control. Insert 4 "AA" batteries, ensuring correct polarity (+/-). Close the battery compartment securely.
Image: The remote control (transmitter) for the Bi-Wing Evo RC Plane, showing its various controls and battery compartment area.
Pemeriksaan Pra-Penerbangan
- Ensure both the plane and transmitter are fully charged or have fresh batteries.
- Verify that all propellers are securely attached and free from damage.
- Choose an open, clear area for flight, free from obstacles and people.
Arahan Operasi
Pairing the Plane and Transmitter
- Turn on the plane's power switch.
- Turn on the transmitter's power switch.
- The indicator light on the transmitter will blink and then become solid, indicating successful pairing.
Basic Controls (2-Channel)
The Bi-Wing Evo features a 2-channel, 2.4GHz control system, allowing for straightforward flight maneuvers.
- Tongkat Kiri (Pendikit): Controls the speed of the twin motors. Push forward to increase speed and ascend, pull back to decrease speed and descend.
- Right Stick (Directional Control): Controls turning. Move left or right to steer the plane in the desired direction.
- Trim Controls: Use the trim buttons on the transmitter to fine-tune the plane's flight path if it drifts to one side without input.
Flying Styles
The Bi-Wing Evo is designed for various flying styles, even at low speeds, thanks to its excellent stability.
- Hand Take Off: Gently launch the plane forward with a slight upward angle while applying throttle.
- Descend and Spot Landing: Reduce throttle to descend. Guide the plane to a gentle landing by reducing speed and maintaining control.
- Circling and Gliding: Practice smooth turns using the directional control. The plane's design allows for stable gliding when throttle is reduced.
Image: A child happily holding the Flybotic Bi-Wing Evo RC Plane, demonstrating its compact size and ease of handling.
Penyelenggaraan
- Pembersihan: Wipe the plane and remote control with a soft, dry cloth. Do not use harsh chemicals or water.
- Pemeriksaan baling-baling: Regularly inspect propellers for any damage or debris. Replace if necessary to ensure optimal flight performance.
- Penjagaan Bateri: Always fully charge the Li-PO battery before storage. If not used for extended periods, charge it every 3 months to maintain battery health. Remove AA batteries from the transmitter if storing for a long time.
- Storan: Store the plane and remote in a cool, dry place away from direct sunlight and extreme temperatures.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Plane does not respond to remote. | Low batteries in plane or remote; Not paired correctly; Out of range. | Charge plane battery, replace remote batteries; Re-pair the devices; Ensure you are within operating range. |
| Plane flies erratically or drifts. | Propeller damage; Trim settings incorrect; Wind interference. | Check and replace damaged propellers; Adjust trim controls; Fly in calm conditions. |
| Masa penerbangan yang singkat. | Bateri tidak dicas sepenuhnya; Bateri lama. | Ensure battery is fully charged before each flight; Consider replacing the battery if it's old and performance has degraded. |
Spesifikasi
- Dimensi Produk: 14.02 x 3.5 x 12.99 inci
- Berat Barang: 1.13 paun
- Negara Asal: China
- Nombor Model: 5529886
- Umur Disyorkan Pengilang: 8 tahun dan ke atas
- Plane Battery: 1 x Rechargeable Li-PO battery (included)
- Bateri Pemancar: 4 x "AA" Batteries (not included)
- Sistem Kawalan: 2-Channel, 2.4GHz
- Pengeluar: Silverlit
- Tarikh Keluaran: 13 Januari 2023
Waranti dan Sokongan
For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Silverlit webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.
For further assistance, you may contact Silverlit customer service through their official channels. Please have your model number (5529886) and purchase details ready.
